W005G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> W005G

W005G: DescriptionBridge Rectifier Diode, 1.5A, 50V V(RRM),; CategoryDiscrete semiconductor diode; File Size91KB，2 Pages; ManufacturerEIC [EIC discrete Semiconductors]; Environmental Compliance

Download Datasheet Parametric Compare View All

W005G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	W005G	-	-	View	Buy Now

W005G Overview

Bridge Rectifier Diode, 1.5A, 50V V(RRM),

W005G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EIC [EIC discrete Semiconductors]
Reach Compliance Code	compliant
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
Maximum non-repetitive peak forward current	50 A
Number of components	4
Maximum operating temperature	125 °C
Maximum output current	1.5 A
Maximum repetitive peak reverse voltage	50 V
surface mount	NO

W005G Preview

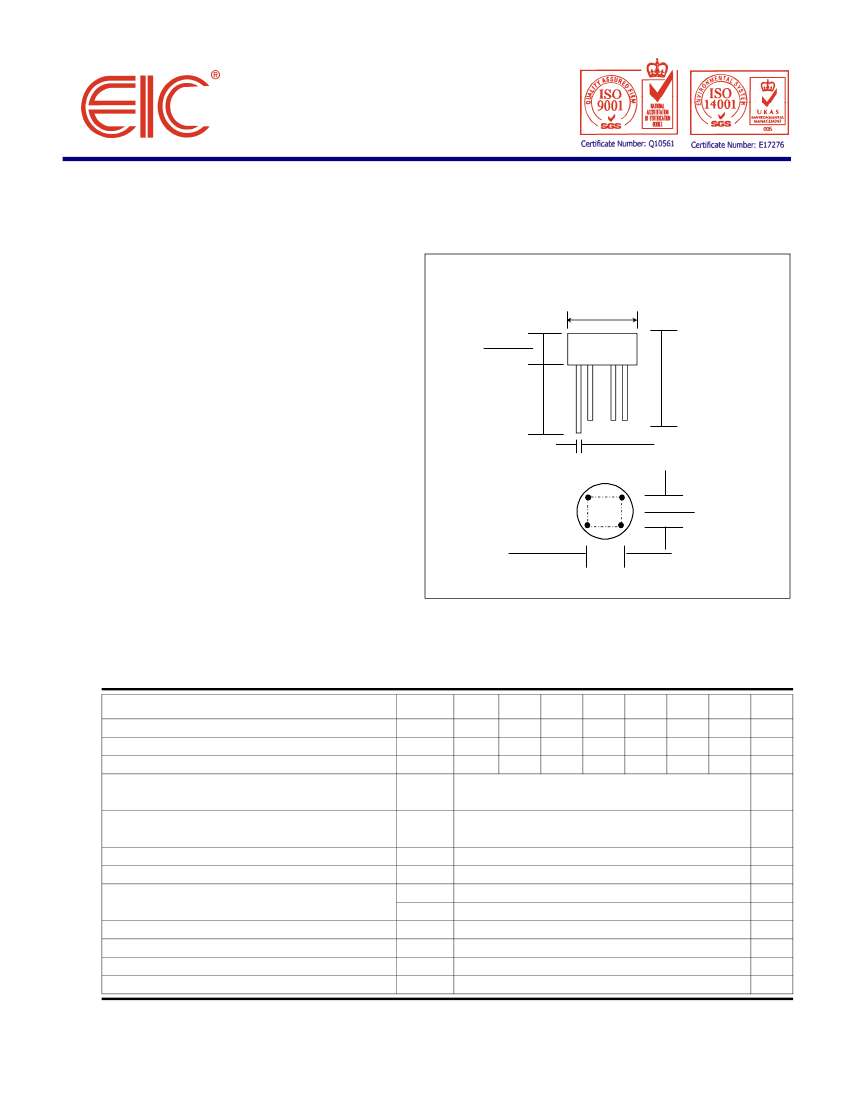

W005G - W10G

PRV : 50 - 1000 Volts

Io : 1.5 Ampere

FEATURES :

Glass passivated chip

High case dielectric strength

High surge current capability

High reliability

Low reverse current

Low forward voltage drop

Ideal for printed circuit board

Pb / RoHS Free

GLASS PASSIVATED SINGLE-PHASE

SILICON BRIDGE RECTIFIERS

WOB

0.39 (10.0)

0.31 (7.87)

0.22 (5.59)

0.18 (4.57)

1.00 (25.4)

MIN.

1.10 (27.9)

MIN.

0.034 (0.86)

0.028 (0.71)

MECHANICAL DATA :

* Case : Reliable low cost construction

utilizing molded plastic technique

* Epoxy : UL94V-O rate flame retardant

* Terminals : Plated leads solderable per

MIL-STD-202, Method 208 guaranteed

* Polarity : Polarity symbols marked on case

* Mounting position : Any

* Weight : 1.29 grams

Rating at 25

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

0.22 (5.59)

0.18 (4.57)

0.22 (5.59)

0.18 (4.57)

Dimension in inches and (millimeter)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

RATING

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Current

0.375" (9.5 mm) lead length

Peak Forward Surge Current Single half sine wave

Superimposed on rated load (JEDEC Method)

Rating for fusing

( t < 8.3 ms. )

Ta = 25

°C

Ta = 125

°C

Maximum Forward Voltage per Diode at I

= 1.0 A

Maximum DC Reverse Current

at Rated DC Blocking Voltage

Typical Thermal Resistance (Note 2)

Operating Junction Temperature Range

Storage Temperature Range

SYMBOL W005G W01G W02G W04G W06G W08G W10G

RRM

RMS

F(AV)

FSM

R(H)

STG

UNIT

µA

°C/W

°C

100

200

140

200

400

280

400

1.5

1.0

0.5

600

420

600

800

560

800

1000

700

1000

Typical Junction Capacitance per Diode (Note 1)

- 50 to + 150

Notes :

1 ) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts.

2 ) Thermal resistance from Junction to Ambient at 0.375" (9.5 mm) lead length P.C. Board mounting.

Page 1 of 2

Rev. 02 : April 1, 2005

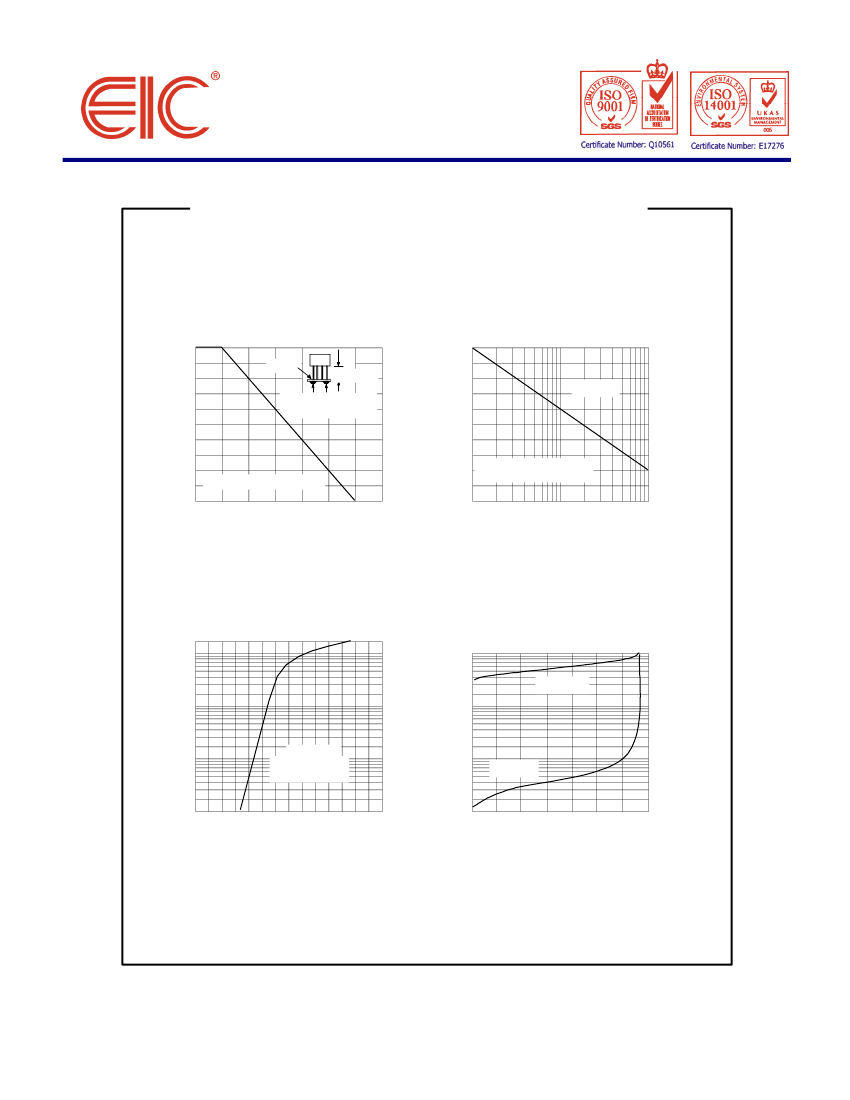

RATING AND CHARACTERISTIC CURVES ( W005G - W10G )

FIG.1 - DERATING CURVE FOR OUTPUT

RECTIFIED CURRENT

1.5

PC Board

FIG.2 - MAXIMUM NON-REPETITIVE PEAK

FORWARD SURGE CURRENT

AVERAGE FORWARD OUTPUT

CURRENT, AMPERES

1.2

0.375(9.5mm)

PEAK FORWARD SURGE

CURRENT, AMPERES

= 55

°C

0.9

Copper Pads

0.22" x 0.22" (5.5 x5.5mm)

0.6

SINGLE HALF SINE WAVE

(JEDEC METHOD)

0.3

60 Hz, Resistive or Inductive load.

100

125

150

175

100

CASE TEMPERATURE, (

NUMBER OF CYCLES AT 60Hz

FIG.3 - TYPICAL FORWARD CHARACTERISTICS

FORWARD CURRENT, AMPERES

FIG.4 - TYPICAL REVERSE CHARACTERISTICS

REVERSE CURRENT, MICROAMPERES

Ta = 100

°C

1.0

0.1

= 25

°C

Pulse Width = 300

µs

1 % Duty Cycle

0.1

Ta = 25

°C

0.01

0.4

0.6

0.8

1.0

1.2

1.4

1.6

1.8

0.01

100

120

140

FORWARD VOLTAGE, VOLTS

PERCENT OF RATED REVERSE

VOLTAGE, (%)

Page 2 of 2

Rev. 02 : April 1, 2005

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

W005G Related Products

	W005G	W01G	W10G	W04G	W06G	W02G	W08G
Description	Bridge Rectifier Diode, 1.5A, 50V V(RRM),	Bridge Rectifier Diode, 1.5A, 100V V(RRM),	Bridge Rectifier Diode, 1.5A, 1000V V(RRM),	Bridge Rectifier Diode, 1.5A, 400V V(RRM),	Bridge Rectifier Diode, 1.5A, 600V V(RRM),	Bridge Rectifier Diode, 1.5A, 200V V(RRM),	Bridge Rectifier Diode, 1.5A, 800V V(RRM),
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	EIC [EIC discrete Semiconductors]	EIC [EIC discrete Semiconductors]	EIC [EIC discrete Semiconductors]	EIC [EIC discrete Semiconductors]	EIC [EIC discrete Semiconductors]	EIC [EIC discrete Semiconductors]	EIC [EIC discrete Semiconductors]
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V	1 V	1 V
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Number of components	4	4	4	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Maximum repetitive peak reverse voltage	50 V	100 V	1000 V	400 V	600 V	200 V	800 V
surface mount	NO	NO	NO	NO	NO	NO	NO
