Key Features
Checked
Ericsson Internal
PRODUCT SPECIFICATION
No.
Public
1/1301-BMR63702 Uen
TABLE OF CONTENTS
Technical Specification
Date
No.
1 (3)
1 (1)
Checked
Date
DC/DC converters,
Input 36-75 V, Output
40
A/132
W
MICOSPE
2007-12-13
E
001 52-EN/LZT 146 306 Uen
EN/LZT 146
306
R4A
July
2008
© Ericsson Power Modules AB
Rev
Reference
Rev
Reference
•

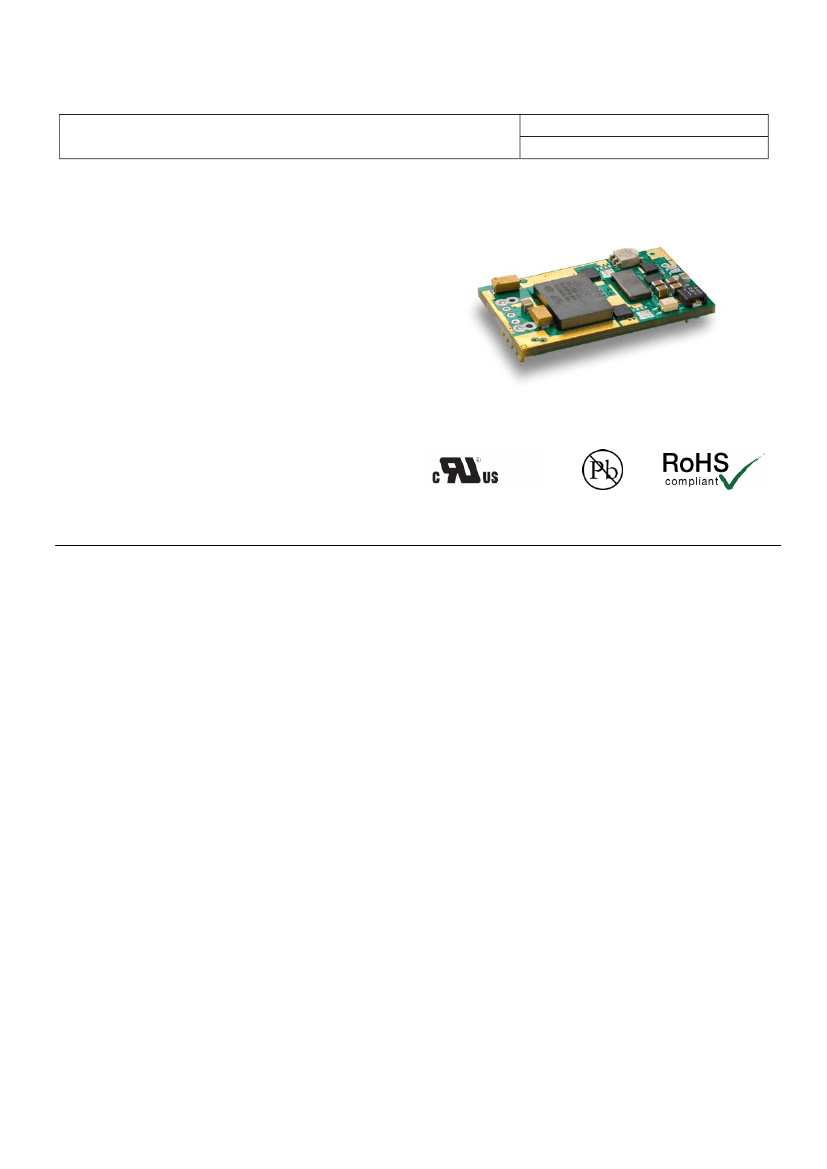

Industry standard quarter-brick. 57.93 x 36.8 x 9.1 mm
(2.28 x 1.449 x 0.35 in.)
•
High efficiency, typ. 93.6% at 12.0 Vout half load
•
1500 Vdc input to output isolation
•
Meets isolation requirements equivalent to basic
insulation according to IEC/EN/UL 60950
•
More than 3.15 million hours MTBF
General Characteristics
•
•
•
•
•
•
•
Over temperature protection
Over current limit protection
Over voltage protection
Remote control
Output voltage adjust function
Highly automated manufacturing ensures quality
ISO 9001/14001 certified supplier
Safety Approvals
Design for Environment
Meets requirements in high-
temperature lead-free soldering
processes.
Contents
General Information
Safety Specification
Absolute Maximum Ratings
Product Program
2.5 V, 40A / 100W Electrical Specification
3.3 V, 35A / 115W Electrical Specification
5.0 V, 25A / 125W Electrical Specification
6.0 V, 20A / 120W Electrical Specification
7.2 V, 15A / 108W Electrical Specification
12.0 V, 11A / 132W Electrical Specification
............................................................. 2
............................................................. 3
............................................................. 4
Ordering No.
PKM4119D PINB .................................. 5
PKM4110D PINB .................................. 8
PKM4111D PINB ................................ 11
PKM4117VD PINB.............................. 14
PKM4116D PINB ................................ 17
PKM4113D PINB ................................ 20
EMC Specification
Operating Information
Thermal Consideration
Connections
Mechanical Information
Soldering Information
Delivery Information
Product Qualification Specification
........................................................... 23
........................................................... 24
........................................................... 25
........................................................... 26
........................................................... 27
........................................................... 29
........................................................... 29
........................................................... 30
E
SEC/S Kevin Zhou
Approved
Ericsson Internal
PRODUCT SPECIFICATION
No.
Checked
Date
2 (3)
Prepared (also subject responsible if other)
1/1301-BMR63702 Uen
Technical Specification
EN/LZT 146
306
R4A
July
2008
Rev
Reference
2
PKM
Kevin Zhou
SEC/S
4000D
PINB Series
DC/DC converters,
Input 36-75 V, Output
40
A/132
W
General Information
Ordering Information
See Contents for individual product ordering numbers.
Option
Baseplate
Positive Remote Control Logic
Increased stand-off height
Lead length 3.69 mm (0.145 in)
Lead length 4.57 mm (0.180 in)
Suffix
P
M
LA
LB
Ordering No.
PKM 4110D PI
PKM 4110D PIPNB
PKM 4110D PINBM
PKM 4110D PINBLA
PKM 4110D PINBLB
MICOSPE
2007-12-13
E
© Ericsson Power Modules AB
-
electronic ceramic parts (e.g. fill material in chip
resistors)
Lead as an alloying element in copper alloy containing
up to 4% lead by weight (used in connection pins
made of Brass)
Quality Statement
The products are designed and manufactured in an
industrial environment where quality systems and methods
like ISO 9000, 6σ (sigma), and SPC are intensively in use to
boost the continuous improvements strategy. Infant
mortality or early failures in the products are screened out
and they are subjected to an ATE-based final test.
Conservative design rules, design reviews and product
qualifications, plus the high competence of an engaged
work force, contribute to the high quality of our products.
Warranty
Warranty period and conditions are defined in Ericsson
Power Modules General Terms and Conditions of Sale.
Limitation of Liability
Ericsson power Modules does not make any other
warranties, expressed or implied including any warranty of
merchantability or fitness for a particular purpose
(including, but not limited to, use in life support
applications, where malfunctions of product can cause
injury to a person’s health or life).
Note: As an example a positive logic, increased standoff, short pin product
would be PKM 4110D PIPNBMLA.
Reliability
The Mean Time Between Failure (MTBF) is calculated at full
output power and an operating ambient temperature (T
A
) of
+40°C. Different methods could be used to calculate the
predicted MTBF and failure rate which may give different
results. Ericsson Power Modules currently uses two
different methods, Ericsson failure rate data system
DependTool and Telcordia SR332.
Predicted MTBF for the series is:
-
3.15 million hours according to DependTool.
-
1.67 million hours according to Telcordia SR332, issue
1, Black box technique.
The Ericsson failure rate data system is based on field
tracking data. The data corresponds to actual failure rates
of components used in Information Technology and
Telecom (IT&T) equipment in temperature controlled
environments
(T
A
= -5...+65°C). Telcordia SR332 is a commonly used
standard method intended for reliability calculations in IT&T
equipment. The parts count procedure used in this method
was originally modelled on the methods from
MIL-HDBK-217F, Reliability Predictions of Electronic
Equipment.
It assumes that no reliability data is available on the actual
units and devices for which the predictions are to be made,
i.e. all predictions are based on generic reliability
parameters.
Compatibility with RoHS requirements
The products are compatible with the relevant clauses and
requirements of the RoHS directive 2002/95/EC and have a
maximum concentration value of 0.1% by weight in
homogeneous materials for lead, mercury, hexavalent
chromium, PBB and PBDE and of 0.01% by weight in
homogeneous materials for cadmium.
Exemptions in the RoHS directive utilized in Ericsson
Power Modules products include:
-
Lead in high melting temperature type solder (used to
solder the die in semiconductor packages)
-
Lead in glass of electronics components and in
E
SEC/S Kevin Zhou
Approved
Ericsson Internal
PRODUCT SPECIFICATION
No.
Checked
Date
3 (3)
Prepared (also subject responsible if other)
1/1301-BMR63702 Uen
Technical Specification
EN/LZT 146
306
R4A
July
2008
Rev
Reference
3
PKM
Kevin Zhou
SEC/S
4000D
PINB Series
Safety Specification
DC/DC converters,
Input 36-75 V, Output
40
A/132
W
MICOSPE
2007-12-13
E
© Ericsson Power Modules AB
General information
Ericsson Power Modules DC/DC converters and DC/DC
regulators are designed in accordance with safety
standards IEC/EN/UL60950,
Safety of Information
Technology Equipment.
IEC/EN/UL60950 contains requirements to prevent injury
or damage due to the following hazards:
•
•
•
•
•
•
Electrical shock
Energy hazards
Fire
Mechanical and heat hazards
Radiation hazards
Chemical hazards
Isolated DC/DC converters
It is recommended that a slow blow fuse with a rating
twice the maximum input current per selected product be
used at the input of each DC/DC converter. If an input filter
is used in the circuit the fuse should be placed in front of
the input filter.
In the rare event of a component problem in the input filter
or in the DC/DC converter that imposes a short circuit on
the input source, this fuse will provide the following
functions:
•
•
Isolate the faulty DC/DC converter from the input
power source so as not to affect the operation of
other parts of the system.
Protect the distribution wiring from excessive
current and power loss thus preventing
hazardous overheating.
On-board DC-DC converters are defined as component
power supplies. As components they cannot fully comply
with the provisions of any Safety requirements without
“Conditions of Acceptability”. It is the responsibility of the
installer to ensure that the final product housing these
components complies with the requirements of all
applicable Safety standards and Directives for the final
product.
Component power supplies for general use should comply
with the requirements in IEC60950, EN60950 and
UL60950
“Safety of information technology equipment”.
There are other more product related standards, e.g.
IEEE802.3af “Ethernet LAN/MAN Data terminal equipment
power”, and ETS300132-2 “Power supply interface at the
input to telecommunications equipment; part 2: DC”, but
all of these standards are based on IEC/EN/UL60950 with
regards to safety.
Ericsson Power Modules DC/DC converters and DC/DC
regulators are UL60950 recognized and certified in
accordance with EN60950.
The flammability rating for all construction parts of the
products meets requirements for V-0 class material
according to IEC 60695-11-10.
The products should be installed in the end-use
equipment, in accordance with the requirements of the
ultimate application. Normally the output of the DC/DC
converter is considered as SELV (Safety Extra Low
Voltage) and the input source must be isolated by
minimum Double or Reinforced Insulation from the primary
circuit (AC mains) in accordance with IEC/EN/UL60950.
The galvanic isolation is verified in an electric strength test.
The test voltage (V
iso
) between input and output is
1500 Vdc or 2250 Vdc for 60 seconds (refer to product
specification).
Leakage current is less than 1
μA
at nominal input voltage.
24 V DC systems
The input voltage to the DC/DC converter is SELV (Safety
Extra Low Voltage) and the output remains SELV under
normal and abnormal operating conditions.
48 and 60 V DC systems
If the input voltage to Ericsson Power Modules DC/DC
converter is 75 Vdc or less, then the output remains SELV
(Safety Extra Low Voltage) under normal and abnormal
operating conditions.
Single fault testing in the input power supply circuit should
be performed with the DC/DC converter connected to
demonstrate that the input voltage does not exceed
75 Vdc.
If the input power source circuit is a DC power system, the
source may be treated as a TNV2 circuit and testing has
demonstrated compliance with SELV limits and isolation
requirements equivalent to Basic Insulation in accordance
with IEC/EN/UL60950.
Non-isolated DC/DC regulators
The input voltage to the DC/DC regulator is SELV (Safety
Extra Low Voltage) and the output remains SELV under
normal and abnormal operating conditions.
E
EBAOCMA
Approved
Limited Internal
PRODUCT SPECIFICATION
No.
Checked
Date
1 (5)
Prepared (also subject responsible if other)
2/1301-BMR 637
Technical Specification
02/2 Uen
2006-11-22
EN/LZT 146
306
R4A
July
2008
Rev
Reference
4
PKM
(Kevin
PINB
SEC/D
4000D
Zhou)
Series
DC/DC converters,
Input 36-75 V, Output
40
A/132
W
MICOSPE
A
© Ericsson Power Modules AB
Absolute Maximum Ratings
Characteristics
T
ref
T
S
V
I
V
iso
V
iso
V
tr
V
RC
V
adj
Operating Temperature (see Thermal Consideration section)
Storage temperature
Input voltage
Isolation voltage baseplate (input to output, input & output to baseplate test voltage)
Isolation voltage no baseplate option (input to output)
Input voltage transient (Tp 100 ms)
Remote Control pin voltage
(see Operating Information section)
Adjust pin voltage (see Operating Information section)
Positive logic option
Negative logic
-0.5
-0.5
-0.5
min
-40
-55
-0.5
typ
max
+110
+125
+80
1500
1500
100
+15
+15
+5
Unit
°C
°C
V
Vdc
Vdc
V
V
V
V
Stress in excess of Absolute Maximum Ratings may cause permanent damage. Absolute Maximum Ratings, sometimes referred to as no destruction limits, are
normally tested with one parameter at a time exceeding the limits of Output data or Electrical Characteristics. If exposed to stress above these limits, function and
performance may degrade in an unspecified manner.
Fundamental Circuit Diagram
Isolated
Feedback
+ In
Primary
Secondary
+ Out
+ Out
+ Sense
RC
Control
Control
Voltage
Monitoring
Vadj
- Sense
- In
- Out
- Out
E
EBAOCMA
Approved
Limited Internal
PRODUCT SPECIFICATION
No.
Checked
Date
2 (5)
Prepared (also subject responsible if other)
2/1301-BMR 637
Technical Specification
02/2 Uen
2006-11-22
EN/LZT 146
306
R4A
July
2008
Rev
Reference
5
PKM
(Kevin
PINB
SEC/D
4000D
Zhou)
Series
DC/DC converters,
Input 36-75 V, Output
40
A/132
W
MICOSPE
A
© Ericsson Power Modules AB
2.5 V Electrical Specification
T
ref
= -40 to +90ºC, V
I
= 36 to 75 V, unless otherwise specified under Conditions.
Typical values given at: T
ref
= +25°C, V
I
= 53 V, max I
O
, unless otherwise specified under Conditions.
Characteristics
Conditions
min
typ
V
I
V
Ioff
V
Ion
C
I
P
O
SVR
Input voltage range
Turn-off input voltage
Turn-on input voltage
Internal input capacitance
Output power
Supply voltage rejection (ac)
Output voltage initial setting
f = 100 Hz sinewave, 1 Vp-p
50 % of max I
O
η
Efficiency
max I
O
50 % of max I
O
, V
I
= 48 V
max I
O
, V
I
= 48 V
P
d
P
li
P
RC
f
s
Power Dissipation
Input idling power
Input standby power
Switching frequency
max I
O
I
O
= 0, V
I
= 53 V
V
I
= 53 V (turned off with RC)
0 -100% of max I
O
180
2.6
100
200
86
0
60
90
87.5
90
87.5
Decreasing input voltage
Increasing input voltage
36
32
34
4.3
PKM 4119D PINB
max
75
Unit
V
V
V
μ
F
100
W
dB
%
16
W
W
mW
220
kHz
V
Oi
Output voltage initial setting and
T
ref
= +25°C, V
I
= 53 V, I
O
=
max I
O
accuracy
Vadj, see Note 1
Output adjust range
Output voltage tolerance band
10-100% of max I
O
I
O
= 0
max I
O
V
I
= 53 V, 1-100% of max I
O
V
I
= 53 V, Load step 25-75-25 % of
max I
O
, di/dt = 1 A/
μ
s,
see Note 2
Idling voltage
Line regulation
Load regulation
Load transient
voltage deviation
Load transient recovery time
Ramp-up time
(from 10−90 % of V
Oi
)
2.45
2.21
2.40
2.40
2.50
2.55
2.81
2.60
2.60
15
15
V
V
V
V
mV
mV
mV
us
V
O
V
tr
t
tr
t
r
t
s
I
O
I
lim
I
sc
V
Oac
±250
100
5
10
15
15
50
40
52
62
50
3.4
100
ms
ms
A
A
A
mVp-p
V
Start-up time
(from V
I
connection to 90% of V
Oi
)
10-100% of max I
O
10
0
Vo = 2.25 V, T
ref
< max T
ref
T
ref
= 25ºC,
Output current
Current limit threshold
Short circuit current
Output ripple & noise
See ripple & noise section,
max I
O
, V
O
.
T
ref
= +25°C, V
I
= 53 V, I
O
= 0-100%
OVP
Over Voltage Protection
of max I
O
Note 1: When using Vadj function, max output power (
P
O
) must not be exceeded
Note 2: Output filter according to Ripple & Noise section
RF/Wirelessly
京公网安备 11010802033920号
EEWORLD
