PIPER-25MQ160M datasheet, PDF - EEWORLD Datasheet

PIPER-25MQ160M: DescriptionRISC Microprocessor, 32-Bit, 25MHz, CMOS, PQFP160, EIAJ, CAVITY-DOWN, METAL, QFP-160; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，34 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric Compare View All

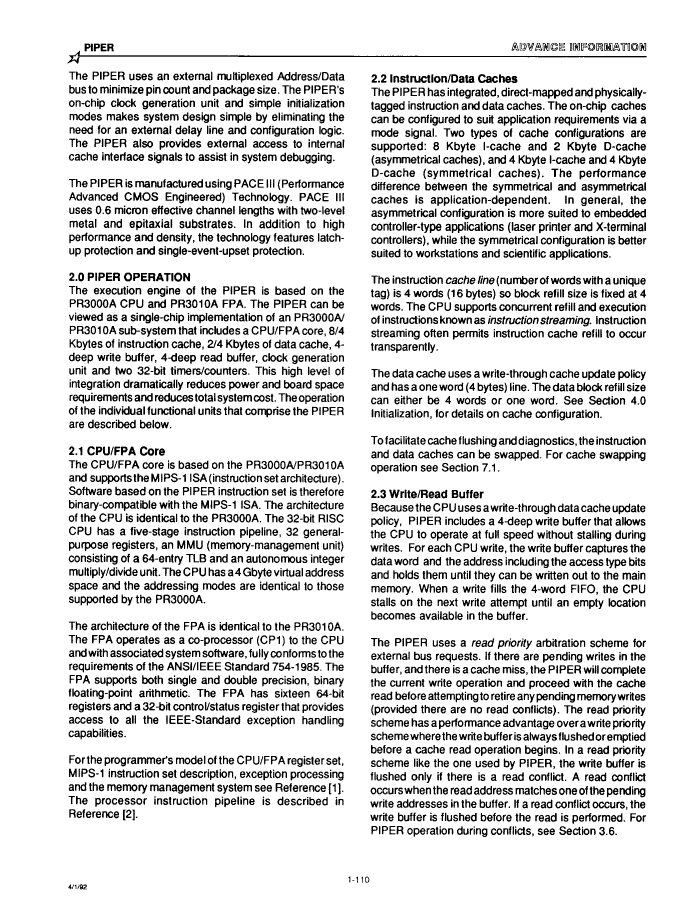

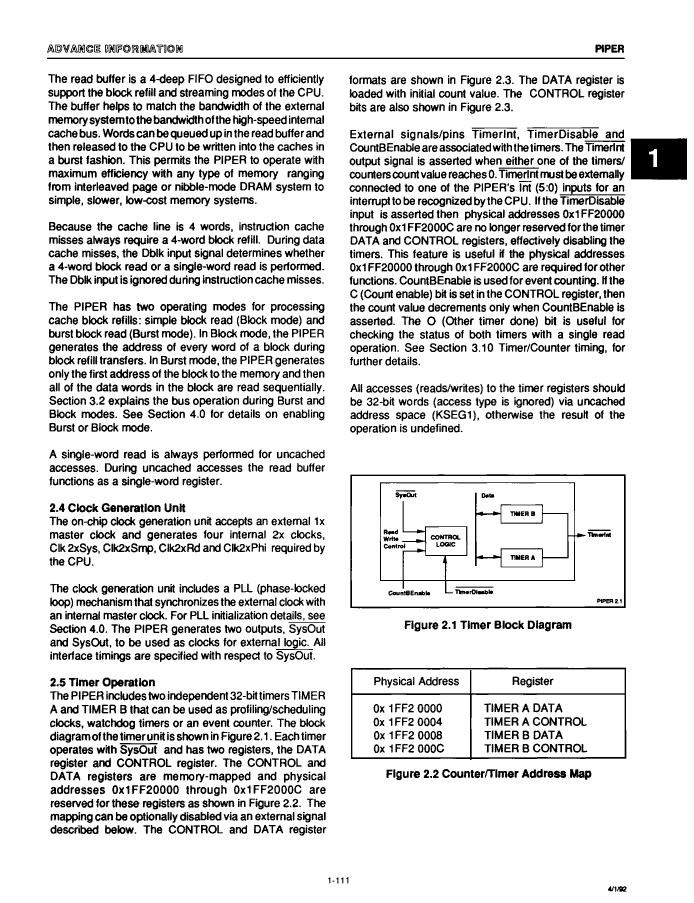

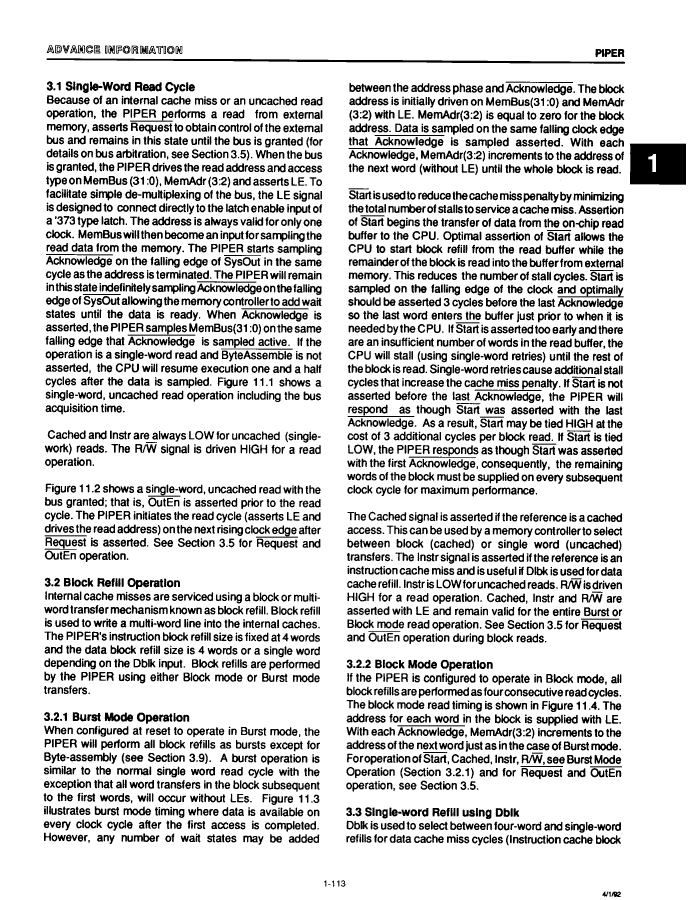

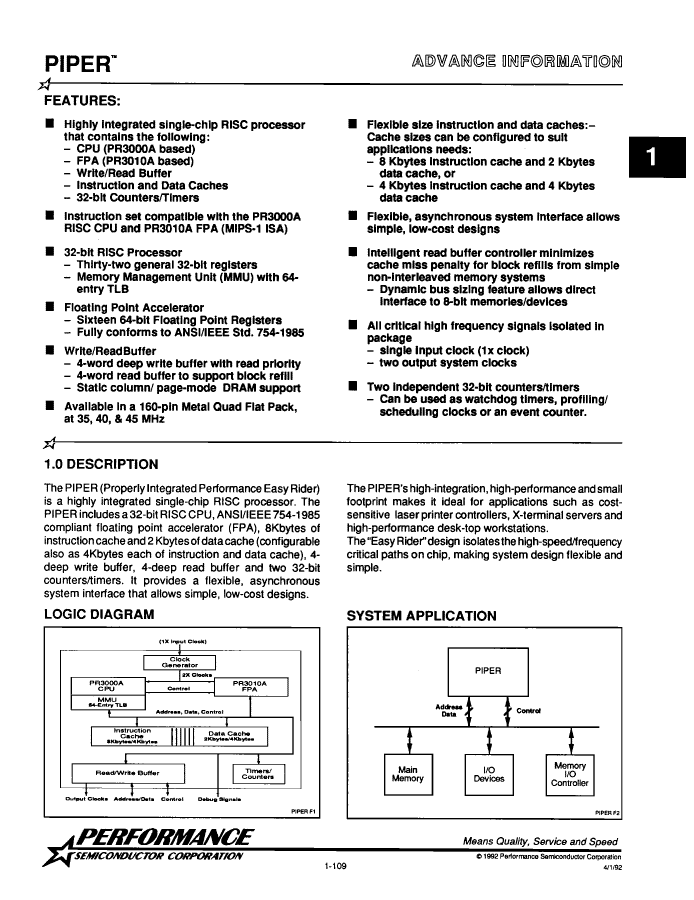

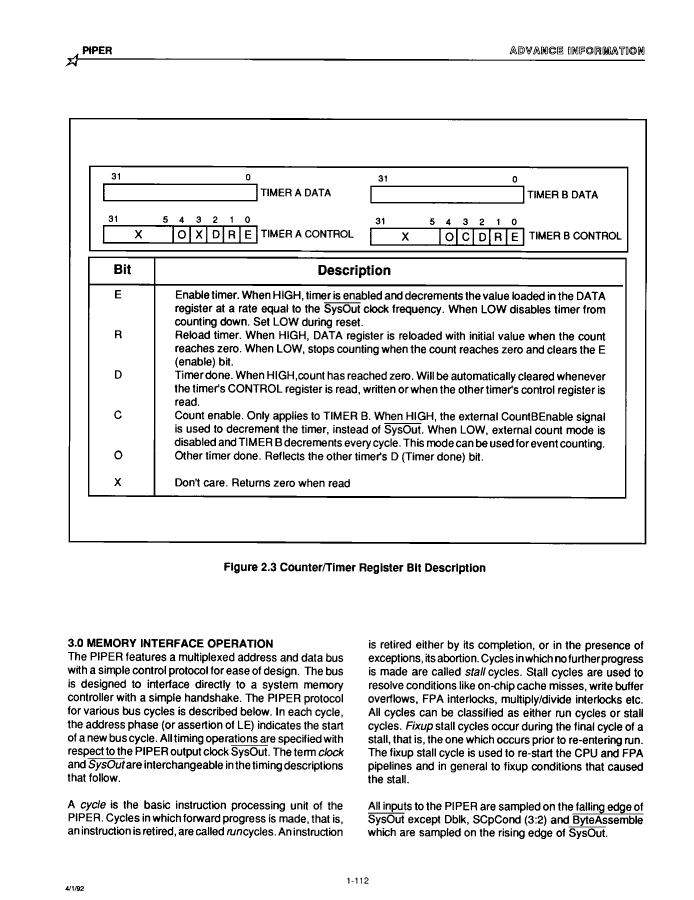

PIPER-25MQ160M Overview

RISC Microprocessor, 32-Bit, 25MHz, CMOS, PQFP160, EIAJ, CAVITY-DOWN, METAL, QFP-160

Parameter Name	Attribute value
Maker	Pyramid Semiconductor Corporation
Parts packaging code	QFP
package instruction	QFP,
Contacts	160
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	5 PIPELINE STAGES; DYNAMIC BUS SIZING
Address bus width	32
bit size	32
boundary scan	NO
maximum clock frequency	25 MHz
External data bus width	32
Format	FLOATING POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G160
length	27.65 mm
low power mode	NO
Number of DMA channels
Number of external interrupt devices	6
Number of serial I/Os
Number of terminals	160
On-chip data RAM width
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	3.85 mm
speed	25 MHz
Maximum slew rate	900 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	0.64 mm
Terminal location	QUAD
width	27.65 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC

	PIPER-25MQ160M	PIPER-35MQ160M
Description	RISC Microprocessor, 32-Bit, 25MHz, CMOS, PQFP160, EIAJ, CAVITY-DOWN, METAL, QFP-160	RISC Microprocessor, 32-Bit, 35MHz, CMOS, PQFP160, EIAJ, CAVITY-DOWN, METAL, QFP-160
Parts packaging code	QFP	QFP
package instruction	QFP,	QFP,
Contacts	160	160
Reach Compliance Code	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C
Other features	5 PIPELINE STAGES; DYNAMIC BUS SIZING	5 PIPELINE STAGES; DYNAMIC BUS SIZING
Address bus width	32	32
bit size	32	32
boundary scan	NO	NO
maximum clock frequency	25 MHz	35 MHz
External data bus width	32	32
Format	FLOATING POINT	FLOATING POINT
Integrated cache	NO	NO
JESD-30 code	S-PQFP-G160	S-PQFP-G160
length	27.65 mm	27.65 mm
low power mode	NO	NO
Number of external interrupt devices	6	6
Number of terminals	160	160
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP
Package shape	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified
Maximum seat height	3.85 mm	3.85 mm
speed	25 MHz	35 MHz
Maximum slew rate	900 mA	1200 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	GULL WING	GULL WING
Terminal pitch	0.64 mm	0.64 mm
Terminal location	QUAD	QUAD
width	27.65 mm	27.65 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC
