SBR1060CTB

Description
Rectifier Diode, 1 Phase, 2 Element, 10A, 60V V(RRM), Silicon, TO-263AB, PLASTIC, TO-263, 3 PIN
CategoryDiscrete semiconductor    diode
File Size160KB，5 Pages
ManufacturerDiodes Incorporated
Environmental Compliance
Download Datasheet Parametric View All

SBR1060CTB Overview

Rectifier Diode, 1 Phase, 2 Element, 10A, 60V V(RRM), Silicon, TO-263AB, PLASTIC, TO-263, 3 PIN

SBR1060CTB Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?conform to
MakerDiodes Incorporated
Parts packaging codeD2PAK
package instructionPLASTIC, TO-263, 3 PIN
Contacts4
Reach Compliance Codenot_compliant
ECCN codeEAR99
applicationFAST SOFT RECOVERY
Shell connectionCATHODE
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JEDEC-95 codeTO-263AB
JESD-30 codeR-PSSO-G2
JESD-609 codee3
Humidity sensitivity level1
Maximum non-repetitive peak forward current120 A
Number of components2
Phase1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Maximum output current10 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Maximum repetitive peak reverse voltage60 V
surface mountYES
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal locationSINGLE
Maximum time at peak reflow temperature40

SBR1060CTB Preview

SBR1060CT
SBR1060CTFP
10A SBR
®
SUPER BARRIER RECTIFIER
Please click here to visit our online spice models database.
Features
•
•
•
•
•
•
Low Forward Voltage Drop
Excellent High Temperature Stability
Patented Super Barrier Rectifier Technology
Soft, Fast Switching Capability
Lead Free Finish, RoHS Compliant (Note 2)
Also Available in Green Molding Compound (Note 4)
Mechanical Data
•
•
•
•
•
•
Case: TO-220AB, ITO-220AB
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Marking Information: See Page 3
Ordering Information: See Page 3
Weight: TO-220AB – 1.85 grams (approximate)
ITO-220AB – 1.65 grams (approximate)

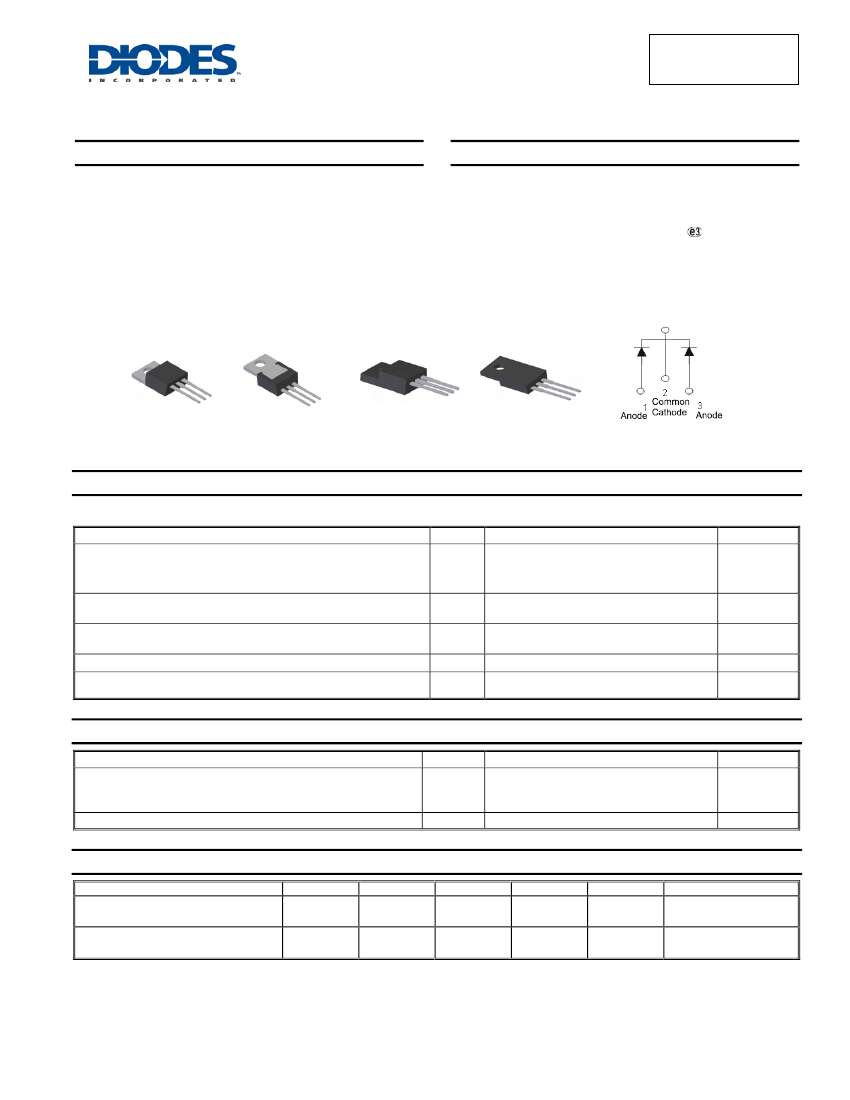

TO-220AB
Top View
TO-220AB
Bottom View
ITO-220AB
Top View
ITO-220AB
Bottom View
Package Pin Out
Configuration
Maximum Ratings (Per Leg)
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current Per Device
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Peak Repetitive Reverse Surge Current (2uS-1Khz)
Isolation Voltage (ITO-220AB Only)
From terminal to heatsink t = 3 sec.
(Per Leg)
(Total)
Symbol
V
RRM
V
RWM
V
RM
I
O
I
FSM
I
RRM
V
AC
Value
60
5
10
120
2
2000
Unit
V
A
A
A
V
Thermal Characteristics (Per Leg)
Characteristic
Typical Thermal Resistance
Package = TO-220AB
Package = ITO-220AB
Operating and Storage Temperature Range
Symbol
R
θ
JC
T
J
, T
STG
Value
2
4
-65 to +150
Unit
ºC/W
ºC
Electrical Characteristics (Per Leg)
@T
A
= 25°C unless otherwise specified
Characteristic
Forward Voltage Drop
Leakage Current (Note 1)
Notes:
Symbol
V
F
I
R
Min
-
-
Typ
-
-
-
Max
0.68
0.57
0.5
100
Unit
V
mA
Test Condition
I
F
= 5A, T
J
= 25ºC
I
F
= 5A, T
J
= 125ºC
V
R
= 60V, T
J
= 25ºC
V
R
= 60V, T
J
= 125ºC
1. Short duration pulse test used to minimize self-heating effect.
2. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at http://www.diodes.com/products/lead_free.html.
SBR is a registered trademark of Diodes Incorporated.
SBR1060
Document number: DS30960 Rev. 5 - 2
1 of 5
www.diodes.com
August 2009
© Diodes Incorporated
SBR1060CT
SBR1060CTFP
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
5.0
4.5
P
D
, POWER DISSIPATION (W)
4.0
3.5
3.0
2.5
2.0
1.5
Note 3
100
10
T
A
= 150°C
T
A
= 125°C
1
0.1
0.01
T
A
= 85°C
T
A
= 25°C
1.0
0.5
0
0
2
4
6
8
I
F(AV)
, AVERAGE FORWARD CURRENT (A)

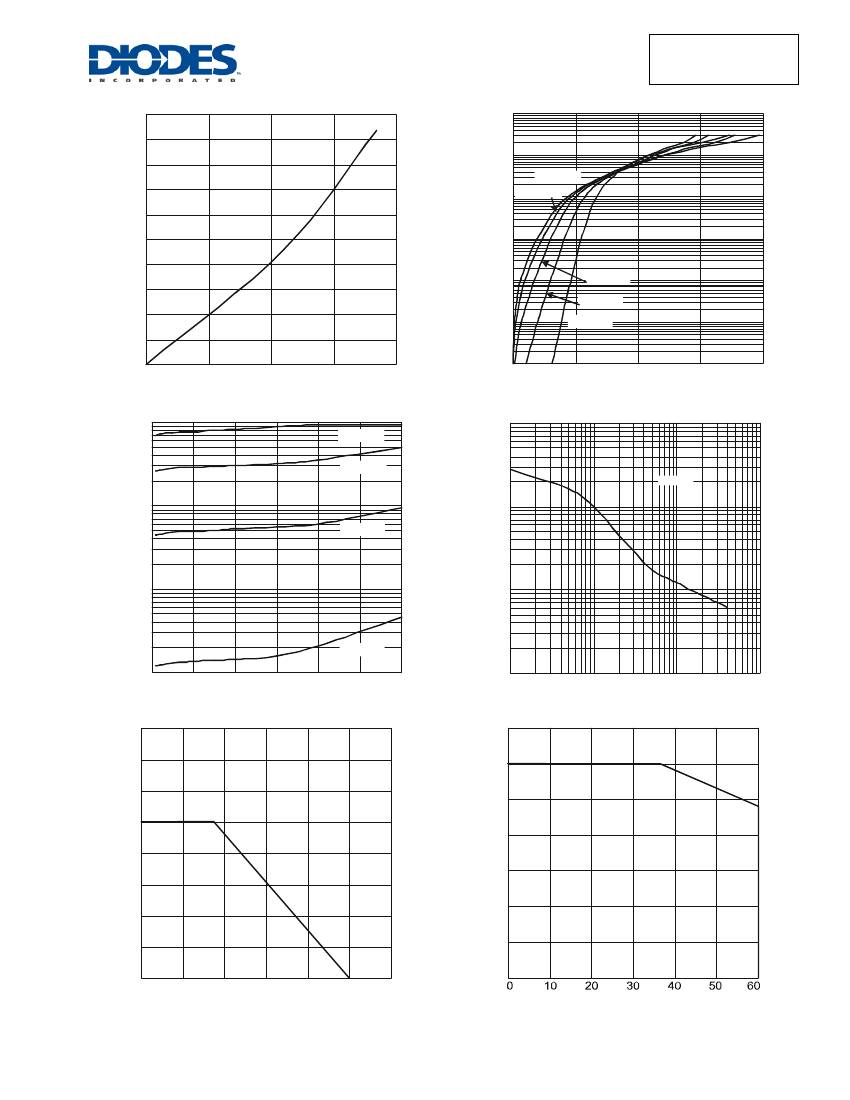

Fig. 1 Forward Power Dissipation
0.001
T
A
= -55°C
0.0001
0
300
600
900
1,200
V
F
, INSTANTANEOUS FORWARD VOLTAGE (mV)
Fig. 2 Typical Forward Characteristics
I
R
, INSTANTANEOUS REVERSE CURRENT (uA)
10,000
T
A
= 150°C
10,000
C
T
, TOTAL CAPACITANCE (pF)
T
A
= 125°C
f = 1MHz
1,000
T
A
= 85°C
1,000
100
100
T
A
= 25°C
10
0
10
20
30
40
50
60
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
10
0.1
1
10
100
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage
8
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
7
6
Note 3
175
T
A
, DERATED AMBIENT TEMPERATURE (°C)
175
150
125
100
75
50
25
0
V
R
, DC REVERSE VOLTAGE (V)
Fig. 6 Operating Temperature Derating
5
4
3
2
1
0
25
50
75
100
125
150
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 5 Forward Current Derating Curve
SBR is a registered trademark of Diodes Incorporated.
SBR1060
Document number: DS30960 Rev. 5 - 2
2 of 5
www.diodes.com
August 2009
© Diodes Incorporated
SBR1060CT
SBR1060CTFP
200
PEAK FORWARD SURGE CURRENT (A)
150
T
A
= 25°C
100
50
0
1
10
100
NUMBER OF CYCLES AT 60Hz
Fig. 7 Maximum Repetitive Surge Current
Ordering Information
Part Number
SBR1060CT
SBR1060CT-G
SBR1060CTFP
SBR1060CTFP-G
Notes:
(Notes 3 & 4)
Case
TO-220AB
TO-220AB
ITO-220AB
ITO-220AB
Packaging
50 pieces/tube
50 pieces/tube
50 pieces/tube
50 pieces/tube
3. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
4. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR1060CT-G.
Marking Information
SBR1060CT
YYWW AB
SBR1060CT = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 06 = 2006)
WW = Week (01-52)
SBR1060CTFP
YYWW AB
SBR1060CTFP = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 06 = 2006)
WW = Week (01-52)
SBR is a registered trademark of Diodes Incorporated.
SBR1060
Document number: DS30960 Rev. 5 - 2
3 of 5
www.diodes.com
August 2009
© Diodes Incorporated
SBR1060CT
SBR1060CTFP

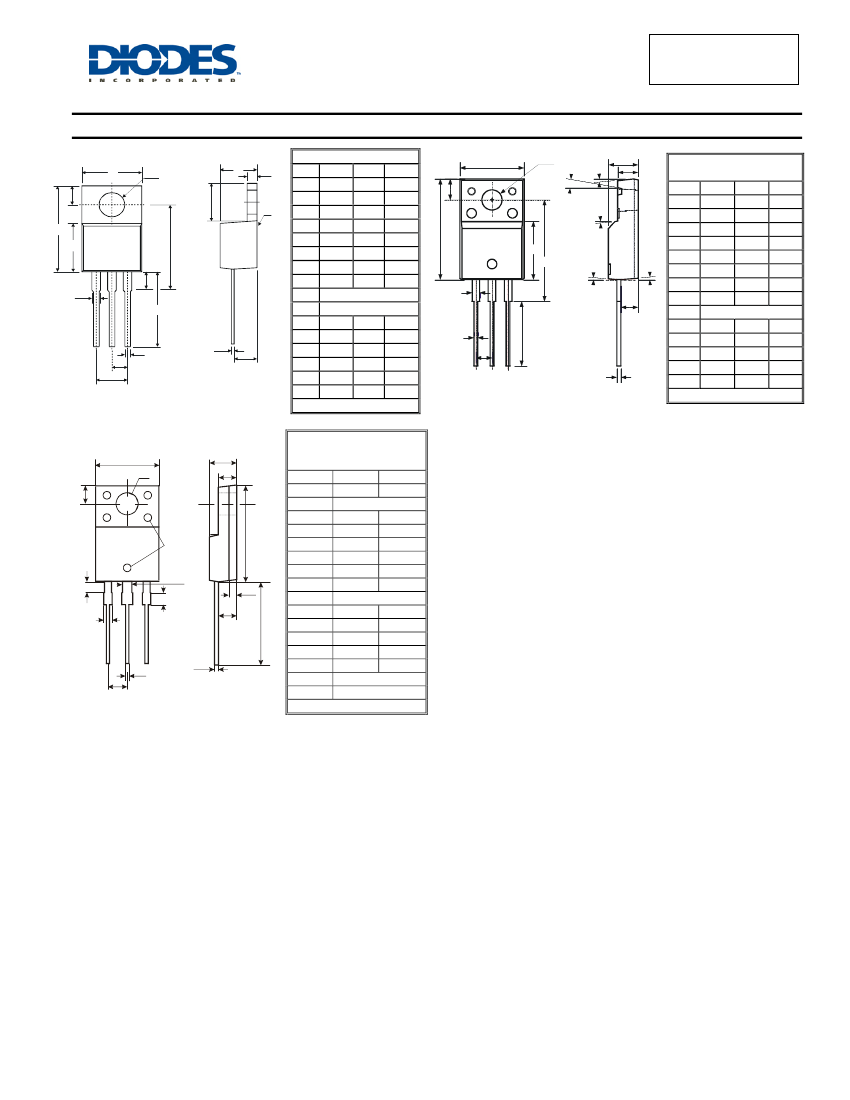

Package Outline Dimensions
E
Q
D
D1
b2
e
e1
TO-220AB
Dim Min Typ Max
A1
P
A
3.56
-
4.82
A1
0.51
-
1.39
H1
A2
2.04
-
2.92
b
0.39 0.81 1.01
b2
1.15 1.24 1.77
c
0.356
-
0.61
D
14.22
-
16.51
L1
D1
8.39
-
9.01
e
2.54
e1
5.08
E
9.66
-
10.66
H1
5.85
-
6.85
c
L
12.70
-
14.73
b
L1
-
-
6.35
A2
P
3.54
-
4.08
*Guaranteed by TO-220AB leadframe design
Q
2.54
-
3.42
All Dimensions in mm
A
SEATING PLANE
16.00
±
0.20*
L
E
Q
ØP
A
A1
10°
5°
D
D1
L1
1
3 x b1
2
3
5°
5°
A2
5°
3xb
2xe
L
c
ITO-220AB
(Note 5)
Dim Min Typ Max
A
4.50 4.70 4.90
A1
3.04 3.24 3.44
A2
2.56 2.76 2.96
b
0.50 0.60 0.75
b1
1.10 1.20 1.35
c
0.50 0.60 0.70
D
15.67 15.87 16.07
D1
8.99 9.19 9.39
e
2.54
E
9.91 10.11 10.31
L
9.45 9.75 10.05
L1
15.80 16.00 16.20
P
2.98 3.18 3.38
Q
3.10 3.30 3.50
All Dimensions in mm
E
ØP
Q
+
A
F
D
Not Through Holes
1
L1
2
3
L2
b2
A1
J1
b1
L
b
e
c
ITO-220AB
ALTERNATE
(Note 5)
DIM.
MIN.
MAX.
A
4.30
4.70
A1
1.3
b
0.50
0.75
b1
1.10
1.35
b2
1.50
1.75
c
0.50
0.75
D
14.80
15.20
E
9.96
10.36
e
2.54 typ
F
2.80
3.20
J1
2.50
2.90
L
12.80
13.60
L1
1.70
1.90
L2
1.90
2.10
ØP
3.50 typ
Q
2.70 typ
All Dimensions in mm
Notes:
5. For product manufactured with Date Code 0733 (week 33, 2007) and newer, please refer to ITO-220AB dimensions. For product manufactured prior to
Date Code 0733, please refer to ITO-220AB ALTERNATE dimensions.
SBR is a registered trademark of Diodes Incorporated.
SBR1060
Document number: DS30960 Rev. 5 - 2
4 of 5
www.diodes.com
August 2009
© Diodes Incorporated
SBR1060CT
SBR1060CTFP
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B.
A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2009, Diodes Incorporated
www.diodes.com
SBR is a registered trademark of Diodes Incorporated.
SBR1060
Document number: DS30960 Rev. 5 - 2
5 of 5
www.diodes.com
August 2009
© Diodes Incorporated
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Dual-frequency oscillation circuit diagram composed of audio decoder

Roadblock flashing warning light circuit (4)

24V power supply using integrated block 03

Switching power supply circuit diagram composed of CW3524 controlling GTR

ML2252/2259 and sensor working circuit

PLL amplifier and demodulator

28 principles of being likable
1. Don’t look offensive. If you don’t look good, make yourself talented. If you don’t have talent, always smile. [/font] 2. Temperament is the key. If you can’t learn fashion well, it’s better to be s...
lixiaohai8211 Talking about work
Experience in using TI DSP/BIOS and CCS
1. When opening/creating a project with CCS, the path name where the project is stored cannot contain Chinese characters! (Unlike VS6, ISE, etc., which can use any path name)2. Some domestic parallel ...
Jacktang DSP and ARM Processors
[Original] My Journey to DSP - Some Experiences and Questions about Mid-Segment Vectors
Original author: chenxkj Article source: DSP Exchange Network Interrupt Vector Table Writing .ref _bad_trap ; This label is not defined externally, why use .ref instead of ..global? .ref _c_int0 ; ent...
大意了 DSP and ARM Processors
Ask a question about constant current source
I need to make a constant current source that can be driven by 5V or less voltage, can control whether the power supply is output, and is approximately periodically turned on and off. The output curre...
平行电 Power technology
The role of .h files in C language
[b][font=微软雅黑][size=18pt]The Function of .h File in C Language[/size][/font][/b][align=left] [/align][align=left]I have known .h file in C language for a long time. Although its usage is not very comp...
tiankai001 Download Centre
J-Flash cannot connect to LPC4357
I have been using the LPC4357 chip recently and it has been working fine for a long time. Today, I suddenly cannot find the target board using KEIL. The JTAG Device Chain shows empty. At the same time...
leixu2 NXP MCU
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. XC6123D443EL
  2. HDM24-D4T1N
  3. UM5110H-Z601
  4. 10N60L-TC-TQ2-T
  5. SH050M0033B3S80611
  6. 0041.9120.8.3.1.063
  7. RC1210FR-137K68L
  8. C1206X7R101-223JPBU
  9. AME8501CEFTAD46
  10. ZGY1120(ITR)
  11. D3961WVC-15P-D1220
  12. A2549HCS-2x22P

Popular Articles

  1. Toshiba launches the new M4G group MCU based on Arm® Cortex®-M4 in the TXZ+TM family of advanced series
  2. Realme preheats GT Neo2: Samsung E4 flagship straight screen
  3. Samsung Galaxy M52 5G full specs revealed: 6.7-inch Full HD screen
  4. Rough Test Method of Cable Fault Tester
  5. InnoSwitch3-PD is here! Use minimalist design to make reliable fast charging applications
  6. Analysis of MEMS sensor application scenarios and future trends
  7. Implement the printf() function in the STM8 microcontroller
  8. Dry lint tester is also called twist tester. Its principle analysis
  9. Xi'an lockdown disrupts DRAM/NAND production, price decline narrows to 8%
  10. Electric vehicles have a range of over 1,000 kilometers: Has silicon negative electrode surpassed solid-state?

Technical ResourceMore

  1. Complementary output voltage controlled pulse width circuit for switching power supply
  2. Signal Analysis and Processing Based on MATLAB
  3. HCSL Application Introduction
  4. KMP string matching algorithm source code and detailed explanation
  5. A lossless snubber circuit for flyback converter
  6. Texas Instruments High-Performance Analog Devices Efficient Application Guide
  7. Protues simulation example (8051)-LCD1602.rar
  8. Chip Integration Design Flow Advanced Full Custom Design Methodology Cadence
  9. Altium-Common 3D Package Library (Step) [Common Patch] TAJ-R.rar
  10. ST_LINK_v2

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1513  106  2013  1596  2350  31  3  41  33  48
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
