WPPC-A21068EH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> WPPC-A21068EH

WPPC-A21068EH: DescriptionAC Input-Transistor Output Optocoupler, 2-Element, 5000V Isolation, DIP-8; CategoryLED optoelectronic/LED photoelectric; File Size873KB，2 Pages; ManufacturerWorld Produts Inc.; Websitehttp://www.worldproducts.com; Environmental Compliance

Download Datasheet Parametric Compare View All

WPPC-A21068EH Overview

AC Input-Transistor Output Optocoupler, 2-Element, 5000V Isolation, DIP-8

WPPC-A21068EH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	World Produts Inc.
package instruction	DIP-8
Reach Compliance Code	unknown
Coll-Emtr Bkdn Voltage-Min	60 V
Configuration	SEPARATE, 2 CHANNELS
Nominal current transfer ratio	60%
Maximum dark power	100 nA
Maximum forward current	0.05 A
Maximum insulation voltage	5000 V
Number of components	2
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

WPPC-A21068EH Preview

High Reliability Photo Coupler

DIP/ SMD/ H

WPPC-A21068

Series

USR/CNR Listed (File # 223387)

Features

1. Current transfer ratio.

(CTR: MIN. 60% at I

= ±1mA V

= 5V)

2. High isolation voltage between input and output.

(Viso: 5000V

RMS

)

3. Compact dual-in-line package.

4. AC input.

5. Available package types: DIP(shown)/ SMD/ H (Page: 138).

Part Numbering System:

Page 2.

Part Marking System:

Page 4.

Outside Dimension: Unit

(mm)

7.62

6.50

9.68

3.50

3.00

0.4

Applications

1. Programmable

controller applications

for

low input


couplers and

high

CEO


couplers.

2. Telephone sets, telephone exchangers.

3. System appliances,

limit switches

sensors, thermostats,

transducers

etc.

4. Signal transmission between circuits of different potentials and

impedances.

Classification table of current transfer ratio is shown below.

13.00

0.26

1.20

0.5

2.54

13.00

TOLERANCE :+ 0.2mm

Schematic: Top View

1,2. Anode, Cathode

3,4. Anode, Cathode

5,7. Emitter

6,8. Collector

Absolute Maximum Ratings

Parameter

Input

Forward current

Peak forward current

Power dissipation

Output

Collector-emitter voltage

Emitter-collector voltage

Collector current

Collector power dissipation

Total power dissipation

Isolation voltage 1 minute

Operating temperature

Storage temperature

Soldering temperature 10 second

Symbol

CEO

ECO

Ptot

Viso

Topr

Tstg

Tsol

Rating

± 50

±1

150

200

5000

-30 to +100

-55 to +125

260

ggg

(Ta=25°C)

Unit

Vrms

°C

Electro-optical Characteristics

Parameter

Input

Forward voltage

Peak forward voltage

Terminal capacitance

Output

Transfer

charac-

teristics

Collector dark current

Current transfer ratio

Collector-emitter saturation voltage

Isolation resistance

Floating capacitance

Cut-off frequency

Response time (Rise)

Response time (Fall)

Symbol

CEO

CTR

(sat)

Riso

Conditions

=±20mA

=±0.5A

V=0, f=1kHz

=20V, I

=±1mA,V

=5V

=±20mA, I

=1mA

DC500V

V=0, f=1MH

=5V, I

=2mA, R

=100ohm

=2V, I

=2mA, R

=100ohm

MIN.

—

5X10

—

(Ta=25°C)

TYP.

1.2

—

0.1

MAX.

1.4

3.5

—

0.1

600

0.3

—

1.0

—

Unit

ohm

kHz

0.6

WORLD PRODUCTS INC.

http://www.worldproducts.com

2.70

P.O. Box 517, 19654 Eighth Street East, Sonoma, CA 95476 Phone (707) 996-5201 Fax (707) 996-3380

r050703

WPPC-A21068

Series

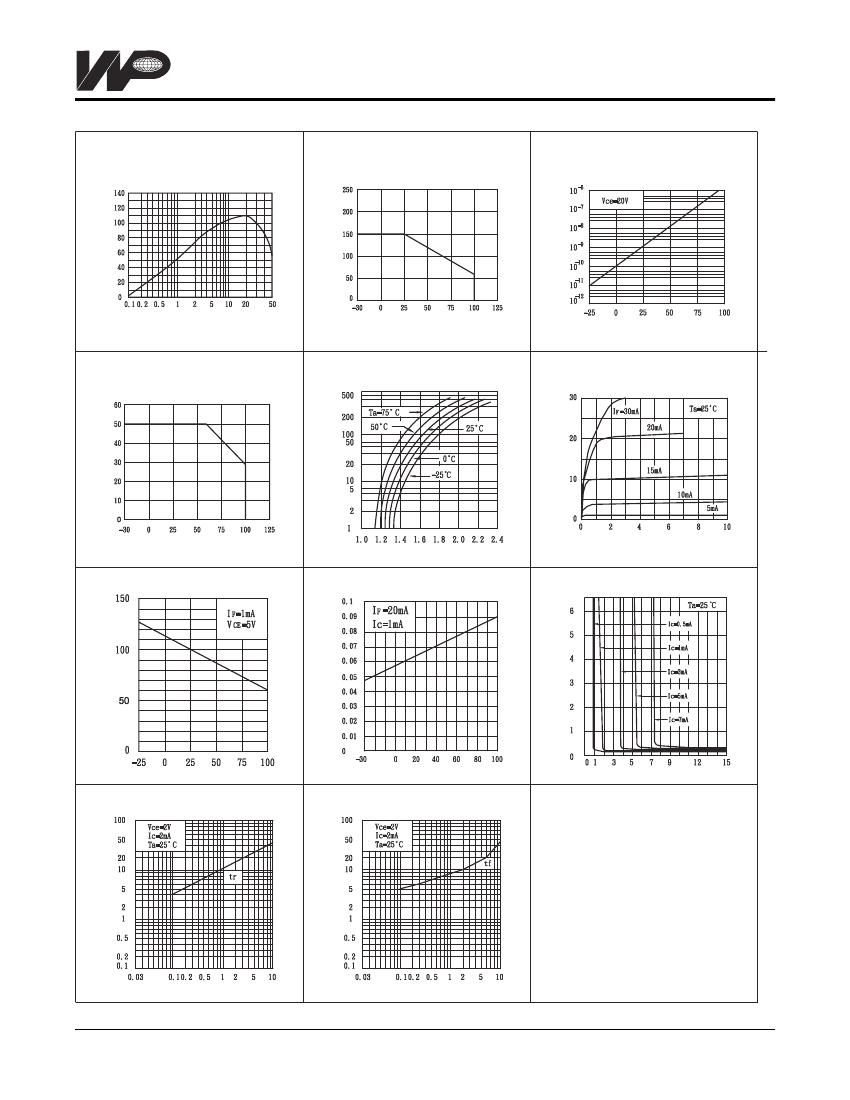

Fig.1

Current Transfer Ratio vs.

Forward Current

Collector Power Dissipation Pc (mW)

Fig.2

Collector Power Dissipation vs.

Ambient Temperature

Fig.3

Collector Dark Current vs.

Ambient Temperature

Collector Dark Current Iceo (A)

Current transfer ratio CTR (%)

Forward Current I

(mA)

Ambient Temperature Ta (°C)

Fig.4

Forward Current vs. Ambient

Temperature

Fig.5

Forward Current vs. Forward

Voltage

Fig.6

Collector Current vs. Collector-

emitter Voltage

Forward Current I

(mA)

Ambient Temperature Ta (°C)

Forward Current I

(mA)

Forward Voltage V

(V)

Collector Current Ic (mA)

Collector-emitter Voltage V

(V)

Fig.7

Relative Current Transfer Ratio

vs. Ambient Temperature

Collector-emitter Saturation Voltage Vce (V)

Fig.8

Collector-emitter Saturation

Voltage vs. Ambient Temperature

Collector-emitter Saturation Voltage Vce (V)

Fig.9

Collector-emitter Saturation

Voltage vs. Forward Current

Relative Current Transfer Ratio (%)

Ambient Temperature Ta (°C)

Forward Current I

(mA)

Fig.10

Response Time vs. Load

Resistance

Fig.11

Response Time vs. Load

Resistance

Response Rise Time (us)

Load Resistance R

(K ohm)

Response Rise Time (us)

Load Resistance R

(K ohm)

WORLD PRODUCTS INC.

http://www.worldproducts.com

P.O. Box 517, 19654 Eighth Street East, Sonoma, CA 95476 Phone (707) 996-5201 Fax (707) 996-3380

r050703

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

WPPC-A21068EH Related Products

	WPPC-A21068EH	WPPC-A21068ED	WPPC-A21068EA	WPPC-A21068EA-TRU	WPPC-A21068EA-TLD
Description	AC Input-Transistor Output Optocoupler, 2-Element, 5000V Isolation, DIP-8	AC Input-Transistor Output Optocoupler, 2-Element, 5000V Isolation, DIP-8	AC Input-Transistor Output Optocoupler, 2-Element, 5000V Isolation, SMD, 8 PIN	AC Input-Transistor Output Optocoupler, 2-Element, 5000V Isolation, SMD, 8 PIN	AC Input-Transistor Output Optocoupler, 2-Element, 5000V Isolation, SMD, 8 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	World Produts Inc.	World Produts Inc.	World Produts Inc.	World Produts Inc.	World Produts Inc.
package instruction	DIP-8	DIP-8	SMD, 8 PIN	SMD, 8 PIN	SMD, 8 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Coll-Emtr Bkdn Voltage-Min	60 V	60 V	60 V	60 V	60 V
Configuration	SEPARATE, 2 CHANNELS	SEPARATE, 2 CHANNELS	SEPARATE, 2 CHANNELS	SEPARATE, 2 CHANNELS	SEPARATE, 2 CHANNELS
Nominal current transfer ratio	60%	60%	60%	60%	60%
Maximum dark power	100 nA	100 nA	100 nA	100 nA	100 nA
Maximum forward current	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Maximum insulation voltage	5000 V	5000 V	5000 V	5000 V	5000 V
Number of components	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Optoelectronic device types	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
