IDT72B04S15L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IDT72B04S15L

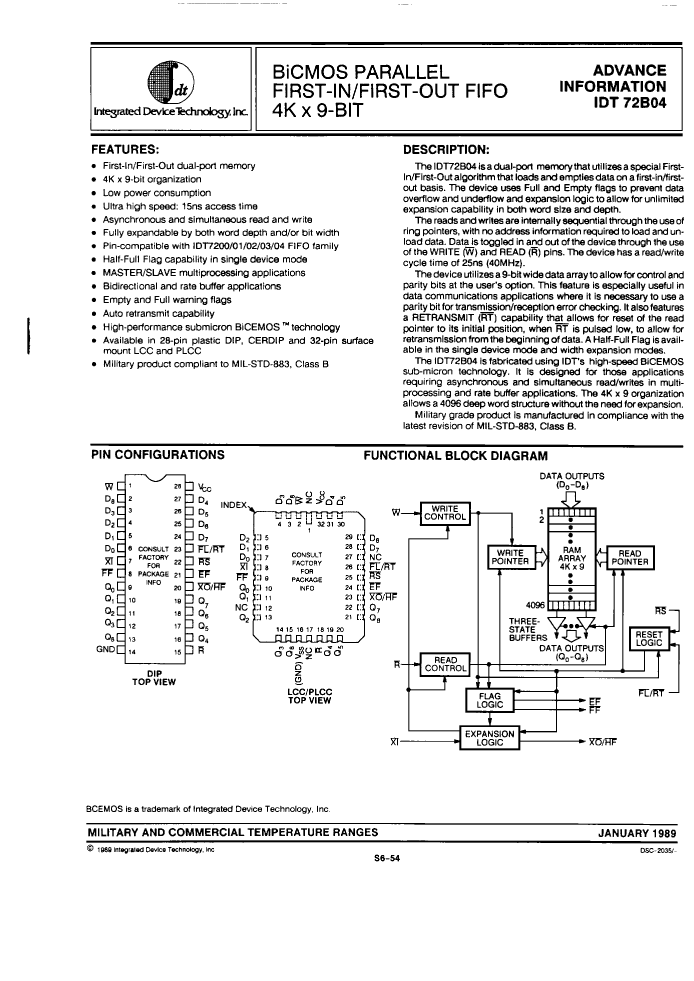

IDT72B04S15L: DescriptionFIFO, 4KX9, 15ns, Asynchronous, CQCC32, LCC-32; Categorystorage storage; File Size51KB，1 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT72B04S15L Overview

FIFO, 4KX9, 15ns, Asynchronous, CQCC32, LCC-32

IDT72B04S15L Parametric

Parameter Name	Attribute value
Maker	IDT (Integrated Device Technology)
Parts packaging code	QFJ
package instruction	QCCN,
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	15 ns
period time	25 ns
JESD-30 code	R-CQCC-N32
JESD-609 code	e0
memory density	36864 bit
memory width	9
Number of functions	1
Number of terminals	32
word count	4096 words
character code	4000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4KX9
Exportable	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	QUAD

Preview

Download Datasheet

View All

IDT72B04S15L Related Products

	IDT72B04S15L	IDT72B04S15JB	IDT72B04S15P	IDT72B04S15PB	IDT72B04S15LB	IDT72B04S15J	IDT72B04S15DB	IDT72B04S15D
Description	FIFO, 4KX9, 15ns, Asynchronous, CQCC32, LCC-32	FIFO, 4KX9, 15ns, Asynchronous, PQCC32, PLASTIC, LCC-32	FIFO, 4KX9, 15ns, Asynchronous, PDIP28, PLASTIC, DIP-28	FIFO, 4KX9, 15ns, Asynchronous, PDIP28, PLASTIC, DIP-28	FIFO, 4KX9, 15ns, Asynchronous, CQCC32, LCC-32	FIFO, 4KX9, 15ns, Asynchronous, PQCC32, PLASTIC, LCC-32	FIFO, 4KX9, 15ns, Asynchronous, CDIP28, CERDIP-28	FIFO, 4KX9, 15ns, Asynchronous, CDIP28, CERDIP-28
Parts packaging code	QFJ	QFJ	DIP	DIP	QFJ	QFJ	DIP	DIP
package instruction	QCCN,	PLASTIC, LCC-32	DIP,	DIP,	QCCN,	PLASTIC, LCC-32	DIP,	DIP,
Contacts	32	32	28	28	32	32	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	15 ns	15 ns	15 ns	15 ns	15 ns	15 ns	15 ns	15 ns
period time	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns
JESD-30 code	R-CQCC-N32	R-PQCC-J32	R-PDIP-T28	R-PDIP-T28	R-CQCC-N32	R-PQCC-J32	R-GDIP-T28	R-GDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
memory density	36864 bit	36864 bit	36864 bit	36864 bit	36864 bit	36864 bit	36864 bit	36864 bit
memory width	9	9	9	9	9	9	9	9
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	32	32	28	28	32	32	28	28
word count	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words
character code	4000	4000	4000	4000	4000	4000	4000	4000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	125 °C	70 °C	125 °C	125 °C	70 °C	125 °C	70 °C
organize	4KX9	4KX9	4KX9	4KX9	4KX9	4KX9	4KX9	4KX9
Exportable	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	QCCJ	DIP	DIP	QCCN	QCCJ	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	NO	NO	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	NO LEAD	J BEND	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	J BEND	THROUGH-HOLE	THROUGH-HOLE
Terminal location	QUAD	QUAD	DUAL	DUAL	QUAD	QUAD	DUAL	DUAL
Maker	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
