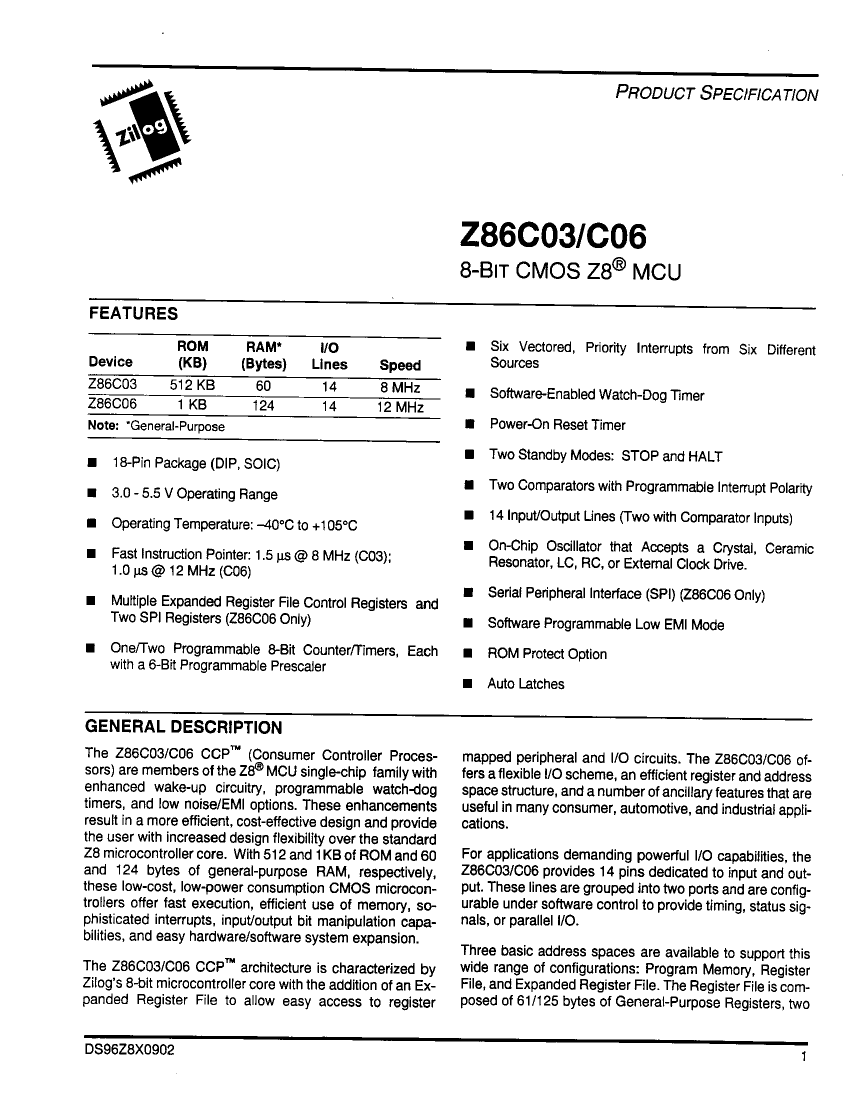

Z86C0612SSC: DescriptionIC 8-BIT, MROM, 12 MHz, MICROCONTROLLER, PDSO18, PLASTIC, SOIC-18, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size38KB，1 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z86C0612SSC Overview

IC 8-BIT, MROM, 12 MHz, MICROCONTROLLER, PDSO18, PLASTIC, SOIC-18, Microcontroller

Z86C0612SSC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	SOIC
package instruction	SOP, SOP18,.4
Contacts	18
Reach Compliance Code	unknown
Has ADC	NO
Other features	OPTIONAL LOW EMI MODE; ROM PROTECT; TWO STANDBY MODES
Address bus width
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDSO-G18
JESD-609 code	e0
length	11.55 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	6
Number of I/O lines	14
Number of serial I/Os	1
Number of terminals	18
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP18,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	225
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	124
RAM (number of words)	124
rom(word)	1024
ROM programmability	MROM
Maximum seat height	2.65 mm
speed	12 MHz
Maximum slew rate	15 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.5 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Z86C0612SSC Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
