ADSP-21368BBP-2A datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ADSP-21368BBP-2A

ADSP-21368BBP-2A: DescriptionIC 32-BIT, 55.56 MHz, OTHER DSP, PBGA256, MO-192BAL-2, BGA-256, Digital Signal Processor; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，60 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

ADSP-21368BBP-2A Overview

IC 32-BIT, 55.56 MHz, OTHER DSP, PBGA256, MO-192BAL-2, BGA-256, Digital Signal Processor

ADSP-21368BBP-2A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	BGA
package instruction	MO-192BAL-2, BGA-256
Contacts	256
Reach Compliance Code	unknown
ECCN code	3A991.A.2
Other features	ALSO REQUIRES 3.3V SUPPLY
Address bus width	24
barrel shifter	YES
bit size	32
boundary scan	YES
maximum clock frequency	55.56 MHz
External data bus width	32
Format	FLOATING POINT
Internal bus architecture	MULTIPLE
JESD-30 code	S-PBGA-B256
JESD-609 code	e0
length	27 mm
low power mode	NO
Humidity sensitivity level	3
Number of terminals	256
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LBGA
Encapsulate equivalent code	BGA256,20X20,50
Package shape	SQUARE
Package form	GRID ARRAY, LOW PROFILE
Peak Reflow Temperature (Celsius)	225
power supply	1.2,3.3 V
Certification status	Not Qualified
RAM (number of words)	65536
Maximum seat height	1.7 mm
Maximum supply voltage	1.26 V
Minimum supply voltage	1.14 V
Nominal supply voltage	1.2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn63Pb37)
Terminal form	BALL
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	30
width	27 mm
uPs/uCs/peripheral integrated circuit type	DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-21368BBP-2A Preview

SHARC Processors

ADSP-21367/ADSP-21368/ADSP-21369

SUMMARY

High performance 32-bit/40-bit floating-point processor

optimized for high performance audio processing

Single-instruction, multiple-data (SIMD) computational

architecture

On-chip memory—2M bits of on-chip SRAM and 6M bits of

on-chip mask programmable ROM

Code compatible with all other members of the SHARC family

The ADSP-21367/ADSP-21368/ADSP-21369 are available

with a 400 MHz core instruction rate with unique audiocen-

tric peripherals such as the digital applications interface,

S/PDIF transceiver, serial ports, 8-channel asynchronous

sample rate converter, precision clock generators, and

more. For complete ordering information, see

Ordering

Guide on Page 58.

DEDICATED AUDIO COMPONENTS

S/PDIF-compatible digital audio receiver/transmitter

4 independent asynchronous sample rate converters (SRC)

16 PWM outputs configured as four groups of four outputs

ROM-based security features include

JTAG access to memory permitted with a 64-bit key

Protected memory regions that can be assigned to limit

access under program control to sensitive code

PLL has a wide variety of software and hardware multi-

plier/divider ratios

Available in 256-ball BGA_ED and 208-lead LQFP_EP

packages

Internal Memory

SIMD Core

Instruction

Cache

5 stage

Sequencer

Block 0

RAM/ROM

Block 1

RAM/ROM

Block 2

RAM

Block 3

RAM

DAG1/2

Timer

DMD

64-BIT

DMD 64-BIT

B0D

64-BIT

B1D

64-BIT

B2D

64-BIT

B3D

64-BIT

PEx

PEy

PMD

64-BIT

Core Bus

Cross Bar

Internal Memory I/F

PMD 64-BIT

EPD BUS 32-BIT

IOD0 32-BIT

FLAGx/IRQx/

TMREXP

JTAG

PERIPHERAL BUS

32-BIT

IOD1

32-BIT

IOD0 BUS

MTM

PERIPHERAL BUS

CORE PCG

FLAGS C-D

TIMER

2-0

TWI

SPI/B

UART

1-0

S/PDIF PCG

Tx/Rx A-D

ASRC IDP/ SPORT

7-0

3-0 PDAP

7-0

CORE PWM

FLAGS 3-0

AMI

SDRAM

DPI Routing/Pins

DAI Routing/Pins

External Port Pin MUX

DPI Peripherals

DAI Peripherals

Peripherals

External

Port

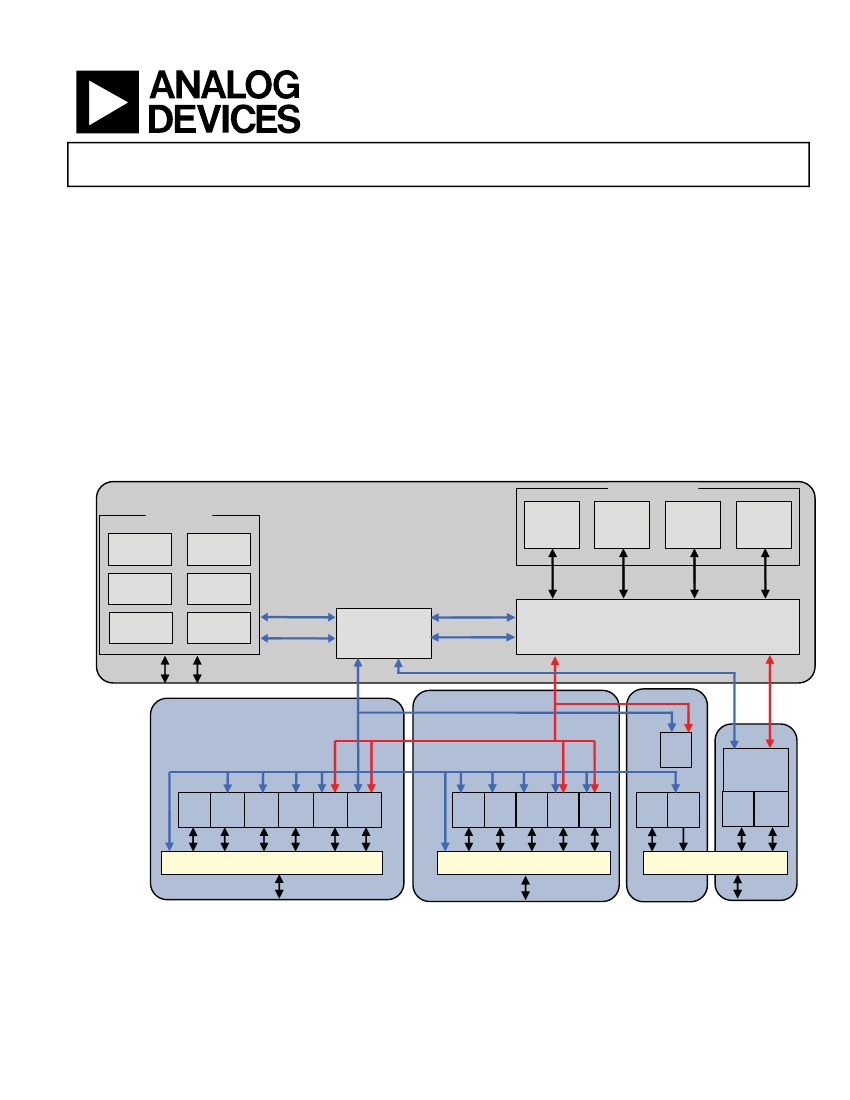

Figure 1. Functional Block Diagram

SHARC and the SHARC logo are registered trademarks of Analog Devices, Inc.

Rev. E

Information furnished by Analog Devices is believed to be accurate and reliable.

However, no responsibility is assumed by Analog Devices for its use, nor for any

infringements of patents or other rights of third parties that may result from its use.

Specifications subject to change without notice. No license is granted by implication

or otherwise under any patent or patent rights of Analog Devices. Trademarks and

registered trademarks are the property of their respective companies.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 U.S.A.

Tel: 781.329.4700

www.analog.com

Fax: 781.461.3113

ADSP-21367/ADSP-21368/ADSP-21369

TABLE OF CONTENTS

Summary ............................................................... 1

Dedicated Audio Components .................................... 1

General Description ................................................. 3

SHARC Family Core Architecture ............................ 4

Family Peripheral Architecture ................................ 7

I/O Processor Features ......................................... 10

System Design .................................................... 10

Development Tools ............................................. 11

Additional Information ........................................ 12

Pin Function Descriptions ....................................... 13

Specifications ........................................................ 16

Operating Conditions .......................................... 16

Electrical Characteristics ....................................... 17

Package Information ........................................... 18

ESD Caution ...................................................... 18

Maximum Power Dissipation ................................. 18

Absolute Maximum Ratings ................................... 18

Timing Specifications ........................................... 18

Output Drive Currents ......................................... 48

Test Conditions .................................................. 48

Capacitive Loading .............................................. 48

Thermal Characteristics ........................................ 50

256-Ball BGA_ED Pinout ......................................... 51

208-Lead LQFP_EP Pinout ....................................... 54

Package Dimensions ............................................... 56

Surface-Mount Design .......................................... 57

Automotive Products .............................................. 58

Ordering Guide ..................................................... 58

REVISION HISTORY

7/09—Rev. D to Rev. E

Corrected all outstanding document errata. Also replaced core

clock references (CCLK) in the timing specifications with

peripheral clock references (PCLK).

Revised

Functional Block Diagram ................................1

Added

Context Switch ...............................................5

Added

Universal Registers ..........................................5

Clarified VCO operations. See

Voltage Controlled Oscillator .................................... 18

Corrected the pins names for the DAI and DPI in

256-Ball BGA_ED Pinout ......................................... 51

208-Lead LQFP_EP Pinout ....................................... 54

Added 366 MHz LQFP EPAD models for the ADSP-21367 and

ADSP-21369. For additional specifications for these models,

refer to the following:

Specifications ......................................................... 16

Clock Input ........................................................... 21

SDRAM Interface Timing (166 MHz SDCLK) ............... 28

Serial Ports ............................................................ 34

Ordering Guide ...................................................... 58

Rev. E

| Page 2 of 60 | July 2009

ADSP-21367/ADSP-21368/ADSP-21369

GENERAL DESCRIPTION

The ADSP-21367/ADSP-21368/ADSP-21369 SHARC

proces-

sors are members of the SIMD SHARC family of DSPs that

feature Analog Devices’ Super Harvard Architecture. These pro-

cessors are source code-compatible with the ADSP-2126x and

ADSP-2116x DSPs as well as with first generation ADSP-2106x

SHARC processors in SISD (single-instruction, single-data)

mode. The processors are 32-bit/40-bit floating-point proces-

sors optimized for high performance automotive audio

applications with its large on-chip SRAM, mask programmable

ROM, multiple internal buses to eliminate I/O bottlenecks, and

an innovative digital applications interface (DAI).

As shown in the functional block diagram

on Page 1,

the

processors use two computational units to deliver a significant

performance increase over the previous SHARC processors on a

range of DSP algorithms. Fabricated in a state-of-the-art, high

speed, CMOS process, the ADSP-21367/ADSP-21368/

ADSP-21369 processors achieve an instruction cycle time of up

to 2.5 ns at 400 MHz. With its SIMD computational hardware,

the processors can perform 2.4 GFLOPS running at 400 MHz.

Table 1

shows performance benchmarks for these devices.

Table 1. Processor Benchmarks (at 400 MHz)

Speed

Benchmark Algorithm

(at 400 MHz)

1024 Point Complex FFT (Radix 4, with reversal) 23.2

μs

FIR Filter (per tap)

1.25 ns

IIR Filter (per biquad)

5.0 ns

Matrix Multiply (pipelined)

[3×3] × [3×1]

11.25 ns

[4×4] × [4×1]

20.0 ns

Divide (y/x)

8.75 ns

Inverse Square Root

13.5 ns

Table 2. ADSP-2136x Family Features

(Continued)

ADSP-21369/

ADSP-21369W

Yes

32/16/8 bits

Yes

128 dB

256 Ball-

BGA,

208-Lead

LQFP_EP

256 Ball-

BGA

256 Ball-

BGA,

208-Lead

LQFP_EP

ADSP-21367

ADSP-21368

Feature

Serial Ports

IDP

DAI

UART

DAI and DPI

S/PDIF Transceiver

AMI Interface Bus Width

SPI

TWI

SRC Performance

Package

W = Automotive grade product. See

Automotive Products on Page 58

for more

information.

Audio decoding algorithms include PCM, Dolby Digital EX, Dolby Prologic IIx,

DTS 96/24, Neo:6, DTS ES, MPEG-2 AAC, MP3, and functions like bass

management, delay, speaker equalization, graphic equalization, and more.

Decoder/post-processor algorithm combination support varies depending upon

the chip version and the system configurations. Please visit www.analog.com for

complete information.

Assumes two files in multichannel SIMD mode.

Table 2. ADSP-2136x Family Features

ADSP-21369/

ADSP-21369W

ADSP-21367

ADSP-21368

The diagram

on Page 1

shows the two clock domains that make

up the ADSP-21367/ADSP-21368/ADSP-21369 processors. The

core clock domain contains the following features.

• Two processing elements (PEx, PEy), each of which com-

prises an ALU, multiplier, shifter, and data register file

• Data address generators (DAG1, DAG2)

• Program sequencer with instruction cache

• PM and DM buses capable of supporting 2x64-bit data

transfers between memory and the core at every core pro-

cessor cycle

• One periodic interval timer with pinout

• On-chip SRAM (2M bit)

• On-chip mask-programmable ROM (6M bit)

• JTAG test access port for emulation and boundary scan.

The JTAG provides software debug through user break-

points which allows flexible exception handling.

Feature

Frequency

RAM

ROM

Audio Decoders in ROM

Pulse-Width Modulation

S/PDIF

SDRAM Memory Bus Width

400 MHz

2M bits

6M bits

Yes

32/16 bits

Rev. E

| Page 3 of 60 | July 2009

ADSP-21367/ADSP-21368/ADSP-21369

The block diagram of the ADSP-21368

on Page 1

also shows the

peripheral clock domain (also known as the I/O processor) and

contains the following features:

• IOD0 (peripheral DMA) and IOD1 (external port DMA)

buses for 32-bit data transfers

• Peripheral and external port buses for core connection

• External port with an AMI and SDRAM controller

• 4 units for PWM control

• 1 MTM unit for internal-to-internal memory transfers

• Digital applications interface that includes four precision

clock generators (PCG), a input data port (IDP) for serial

and parallel interconnect, an S/PDIF receiver/transmitter,

four asynchronous sample rate converters, eight serial

ports, a flexible signal routing unit (DAI SRU).

• Digital peripheral interface that includes three timers, a 2-

wire interface, two UARTs, two serial peripheral interfaces

(SPI), 2 precision clock generators (PCG) and a flexible sig-

nal routing unit (DPI SRU).

SHARC FAMILY CORE ARCHITECTURE

The ADSP-21367/ADSP-21368/ADSP-21369 are code compati-

ble at the assembly level with the ADSP-2126x, ADSP-21160,

and ADSP-21161, and with the first generation ADSP-2106x

SHARC processors. The ADSP-21367/ADSP-21368/

ADSP-21369 processors share architectural features with the

ADSP-2126x and ADSP-2116x SIMD SHARC processors, as

shown in

Figure 2

and detailed in the following sections.

JTAG

FLAG

TIMER INTERRUPT CACHE

SIMD Core

PM DATA 48

DMD/PMD 64

5 STAGE

PROGRAM SEQUENCER

PM ADDRESS 24

DAG1

16x32

DAG2

16x32

PM ADDRESS 32

DM ADDRESS 32

PM DATA 64

SYSTEM

I/F

USTAT

4x32-BIT

64-BIT

DM DATA 64

MULTIPLIER

SHIFTER

ALU

Rx/Fx

PEx

16x40-BIT

DATA

SWAP

Sx/SFx

PEy

16x40-BIT

ALU

SHIFTER

MULTIPLIER

MRF

80-BIT

MRB

80-BIT

ASTATx

STYKx

ASTATy

STYKy

MSB

80-BIT

MSF

80-BIT

Figure 2. SHARC Core Block Diadram

Rev. E

| Page 4 of 60 | July 2009

ADSP-21367/ADSP-21368/ADSP-21369

SIMD Computational Engine

The processors contain two computational processing elements

that operate as a single-instruction, multiple-data (SIMD)

engine. The processing elements are referred to as PEX and PEY

and each contains an ALU, multiplier, shifter, and register file.

PEX is always active, and PEY may be enabled by setting the

PEYEN mode bit in the MODE1 register. When this mode is

enabled, the same instruction is executed in both processing ele-

ments, but each processing element operates on different data.

This architecture is efficient at executing math intensive DSP

algorithms.

Entering SIMD mode also has an effect on the way data is trans-

ferred between memory and the processing elements. When in

SIMD mode, twice the data bandwidth is required to sustain

computational operation in the processing elements. Because of

this requirement, entering SIMD mode also doubles the band-

width between memory and the processing elements. When

using the DAGs to transfer data in SIMD mode, two data values

are transferred with each access of memory or the register file.

The data bus exchange register (PX) permits data to be passed

between the 64-bit PM data bus and the 64-bit DM data bus, or

between the 40-bit register file and the PM data bus. These reg-

isters contain hardware to handle the data width difference.

Timer

A core timer that can generate periodic software Interrupts. The

core timer can be configured to use FLAG3 as a timer expired

signal

Single-Cycle Fetch of Instruction and Four Operands

The ADSP-21367/ADSP-21368/ADSP-21369 feature an

enhanced Harvard architecture in which the data memory

(DM) bus transfers data and the program memory (PM) bus

transfers both instructions and data (see

Figure 2 on Page 4).

With separate program and data memory buses and on-chip

instruction cache, the processors can simultaneously fetch four

operands (two over each data bus) and one instruction (from

the cache), all in a single cycle.

Independent, Parallel Computation Units

Within each processing element is a set of computational units.

The computational units consist of an arithmetic/logic unit

(ALU), multiplier, and shifter. These units perform all opera-

tions in a single cycle. The three units within each processing

element are arranged in parallel, maximizing computational

throughput. Single multifunction instructions execute parallel

ALU and multiplier operations. In SIMD mode, the parallel

ALU and multiplier operations occur in both processing

elements. These computation units support IEEE 32-bit single-

precision floating-point, 40-bit extended precision floating-

point, and 32-bit fixed-point data formats.

Instruction Cache

The processors include an on-chip instruction cache that

enables three-bus operation for fetching an instruction and four

data values. The cache is selective—only the instructions whose

fetches conflict with PM bus data accesses are cached. This

cache allows full-speed execution of core, looped operations

such as digital filter multiply-accumulates, and FFT butterfly

processing.

Data Address Generators with Zero-Overhead Hardware

Circular Buffer Support

The ADSP-21367/ADSP-21368/ADSP-21369 have two data

address generators (DAGs). The DAGs are used for indirect

addressing and implementing circular data buffers in hardware.

Circular buffers allow efficient programming of delay lines and

other data structures required in digital signal processing, and

are commonly used in digital filters and Fourier transforms.

The two DAGs contain sufficient registers to allow the creation

of up to 32 circular buffers (16 primary register sets, 16 second-

ary). The DAGs automatically handle address pointer

wraparound, reduce overhead, increase performance, and sim-

plify implementation. Circular buffers can start and end at any

memory location.

Data Register File

A general-purpose data register file is contained in each pro-

cessing element. The register files transfer data between the

computation units and the data buses, and store intermediate

results. These 10-port, 32-register (16 primary, 16 secondary)

vard architecture, allow unconstrained data flow between

computation units and internal memory. The registers in PEX

are referred to as R0–R15 and in PEY as S0–S15.

Context Switch

Many of the processor’s registers have secondary registers that

can be activated during interrupt servicing for a fast context

switch. The data registers in the register file, the DAG registers,

and the multiplier result registers all have secondary registers.

The primary registers are active at reset, while the secondary

registers are activated by control bits in a mode control register.

Flexible Instruction Set

The 48-bit instruction word accommodates a variety of parallel

operations for concise programming. For example, the

ADSP-21367/ADSP-21368/ADSP-21369 can conditionally exe-

cute a multiply, an add, and a subtract in both processing

elements while branching and fetching up to four 32-bit values

from memory—all in a single instruction.

Universal Registers

These registers can be used for general-purpose tasks. The

USTAT (4) registers allow easy bit manipulations (Set, Clear,

Toggle, Test, XOR) for all system registers (control/status) of

the core.

On-Chip Memory

The processors contain two megabits of internal RAM and six

megabits of internal mask-programmable ROM. Each block can

be configured for different combinations of code and data stor-

age (see

Table 3 on Page 6).

Each memory block supports

single-cycle, independent accesses by the core processor and I/O

Rev. E

| Page 5 of 60 | July 2009

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

ADSP-21368BBP-2A Related Products

	ADSP-21368BBP-2A	ADSP-21369KSWZ-4A	ADSP-21368KBP-2A	ADSP-21369KBP-2A
Description	IC 32-BIT, 55.56 MHz, OTHER DSP, PBGA256, MO-192BAL-2, BGA-256, Digital Signal Processor	High-Performance 32-bit Floating-Point SHARC Processor for General Purpose Applications	IC 32-BIT, 55.56 MHz, OTHER DSP, PBGA256, MO-192BAL-2, BGA-256, Digital Signal Processor	IC 32-BIT, 55.56 MHz, OTHER DSP, PBGA256, MO-192BAL-2, BGA-256, Digital Signal Processor
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible
Maker	ADI	ADI	ADI	ADI
Parts packaging code	BGA	QFP	BGA	BGA
package instruction	MO-192BAL-2, BGA-256	HLFQFP, QFP208,1.2SQ,20	MO-192BAL-2, BGA-256	MO-192BAL-2, BGA-256
Contacts	256	208	256	256
Reach Compliance Code	unknown	compliant	unknown	unknown
ECCN code	3A991.A.2	3A991.A.2	3A991.A.2	3A991.A.2
Other features	ALSO REQUIRES 3.3V SUPPLY	ALSO REQUIRES 3.3V SUPPLY	ALSO REQUIRES 3.3V SUPPLY	ALSO REQUIRES 3.3V SUPPLY
Address bus width	24	24	24	24
barrel shifter	YES	YES	YES	YES
bit size	32	32	32	32
boundary scan	YES	YES	YES	YES
maximum clock frequency	55.56 MHz	58.34 MHz	55.56 MHz	55.56 MHz
External data bus width	32	32	32	32
Format	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT
Internal bus architecture	MULTIPLE	MULTIPLE	MULTIPLE	MULTIPLE
JESD-30 code	S-PBGA-B256	S-PQFP-G208	S-PBGA-B256	S-PBGA-B256
JESD-609 code	e0	e3	e0	e0
length	27 mm	28 mm	27 mm	27 mm
low power mode	NO	NO	NO	NO
Number of terminals	256	208	256	256
Maximum operating temperature	85 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LBGA	HLFQFP	LBGA	LBGA
Encapsulate equivalent code	BGA256,20X20,50	QFP208,1.2SQ,20	BGA256,20X20,50	BGA256,20X20,50
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY, LOW PROFILE	FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH	GRID ARRAY, LOW PROFILE	GRID ARRAY, LOW PROFILE
Peak Reflow Temperature (Celsius)	225	260	225	225
power supply	1.2,3.3 V	1.3,3.3 V	1.2,3.3 V	1.2,3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	65536	65536	65536	65536
Maximum seat height	1.7 mm	1.6 mm	1.7 mm	1.7 mm
Maximum supply voltage	1.26 V	1.35 V	1.26 V	1.26 V
Minimum supply voltage	1.14 V	1.25 V	1.14 V	1.14 V
Nominal supply voltage	1.2 V	1.3 V	1.2 V	1.2 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn63Pb37)	Matte Tin (Sn)	Tin/Lead (Sn63Pb37)	Tin/Lead (Sn63Pb37)
Terminal form	BALL	GULL WING	BALL	BALL
Terminal pitch	1.27 mm	0.5 mm	1.27 mm	1.27 mm
Terminal location	BOTTOM	QUAD	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	30	40	30	30
width	27 mm	28 mm	27 mm	27 mm
uPs/uCs/peripheral integrated circuit type	DIGITAL SIGNAL PROCESSOR, OTHER	DIGITAL SIGNAL PROCESSOR, OTHER	DIGITAL SIGNAL PROCESSOR, OTHER	DIGITAL SIGNAL PROCESSOR, OTHER
Humidity sensitivity level	3	-	3	3

Recommended Resources

TW-42 ultra-short wave radio transmitter high frequency power amplifier circuit part

Use NE555 to make automatic door-controlled lights at night

Philips color TV switching power supply circuit diagram

Electromechanical control single-phase half-wave rectifier circuit

Interface circuit for controlling AC loads

Study Altera's article "SoC FPGA: Does Architecture Matter?" and answer questions to win prizes! (Prizes awarded): Award post: [url=https://bbs.eeworld.com.cn/thread-441745-1-1.html]>>Altera SoC Quiz with Prizes[/url] SoC FPGA: Is architecture important? Important? Not important? Event time: From now on to June 15...; EEWORLD社区 FPGA/CPLD

Please help me find out how to adjust the resistance of this circuit: How to choose the values of these two resistors? What is the appropriate value? What is the basis for choosing the values?If it is a low-power application, is the larger the resistance value, the bett...; Knight97538 Power technology

STM32F7DIS development board camera routine initialization problem: Where is the process of writing OV9655 registers in the initialization routine of the camera routine of the STM32F7DIS development board? Why can't I find the program to initialize the OV9655 register...; 杏花雨 stm32/stm8

The third (1997) National Undergraduate Electronic Design Competition: [i=s] This post was last edited by paulhyde on 2014-9-15 09:29 [/i] Question A DC regulated power supply I. Task Design and make a regulated power supply that converts AC to DC. II. Requirements 1. Ba...; maker Electronics Design Contest

Microcalcification detection based on contribution matrix: Microcalcification detection based on contribution matrix generally believes that the more features there are, the more fully the image can be described, and the more it can reflect the connotation of...; feifei Test/Measurement

TSMC employee confirmed! Global wafer supply hit hard again!: According to foreign media reports, relevant departments in Taiwan announced yesterday that an engineer from TSMC was diagnosed with COVID-19. TSMC said it has strengthened disinfection of the employe...; eric_wang Talking

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components
