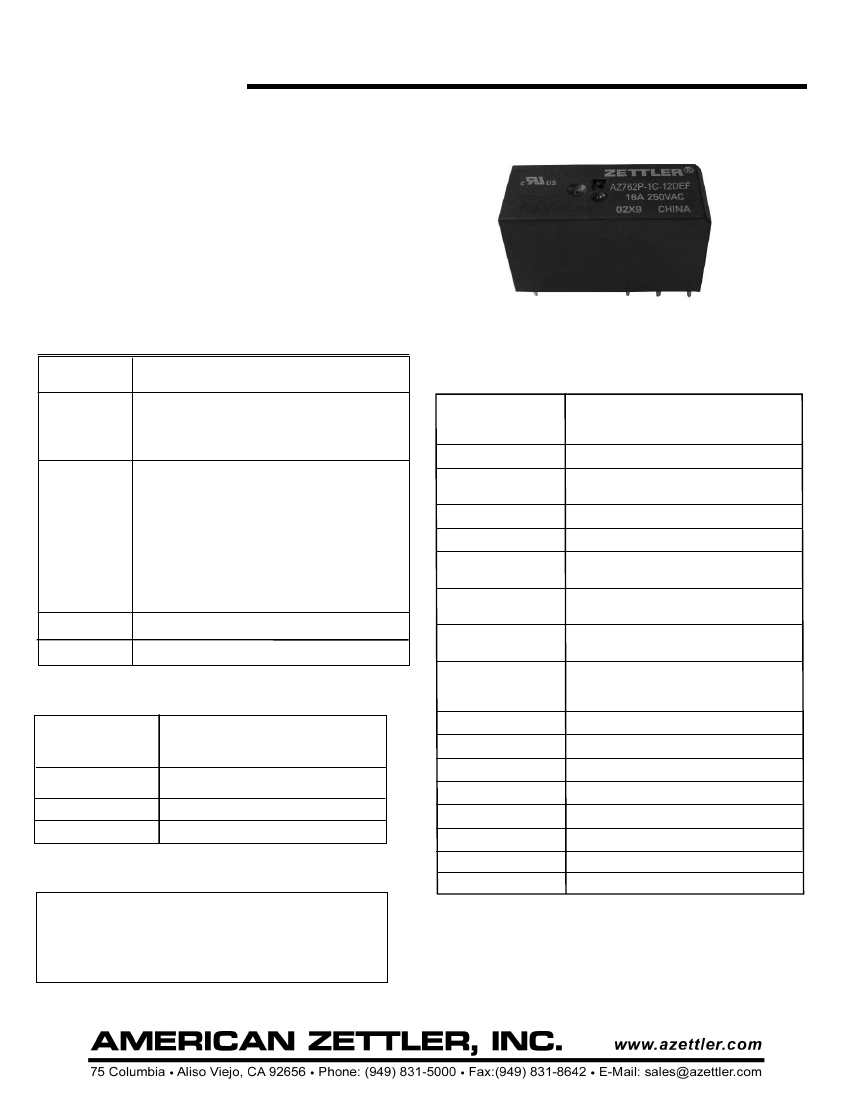

16 A at 250 VAC, Resistive, 50k cycles (Form C-NC)
6 A at 277 VAC, inductive, 100k cycles
1.5 HP at 250 VAC, Motor, 40k cycles
‘T’ High Inrush Version (Form A 5.0mm Only)
3300W at 277VAC, Electronic Ballast, 20k cycles
3000W at 220VAC, Tungsten, 6k cycles
1500W at 347VAC, Std. Ballast, 20k cycles
Material
Resistance
Silver tin oxide, Tungsten/Silver tin oxide
< 50 milliohms initially (at 1A, 24 VDC)
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Set Time (typical)
Reset Time (typical)
Min. Pulse Time
Max Pulse Time
Dielectric Strength
(at sea level for 1 min.)
Surge Voltage
Coil to Contact
Insulation
Resistance
Ambient Temperature
Operating
Storage
Vibration
Minimum operations
1 x 10
6
1 x 10
5
at 16 A 250 VAC Res.
15 ms at nominal coil voltage
15 ms at nominal coil voltage
(with no coil suppression)
75ms
1 min.
4400 VAC coil to contact
1000 VAC between open contacts
10,000V (at 1.2x50 µ s)
1000 megohms min. at 20°C
500 VDC 50% RH
At nominal coil voltage
-40°C (-40°F) to 85°C (185°F)
0°C (32°F) to 40°C (104°F)
0.062" DA at 10–55 Hz
10 g
P.B.T. polyester
Tinned copper alloy, P. C.
270°C (518°F)
5 seconds
80°C (176°F)
13 g
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Max. Temperature
1 Coil: 256 mW
2 Coils: 384 mW
1 Coil: 0.4 W
2 Coils: 0.6 W
26°C (47°F) at nominal coil voltage
130°C (266°F)
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
NOTES
1. All values at 23°C (73.4°F).
2. Relay may pull in with less than “Must Operate” value.
3. Speci cations subject to change without notice.
4. Check the relay set/reset state before energizing the relay in
application.
Weight
10/17/14
AZ762P
AZ
RELAY ORDERING DATA
COIL SPECIFICATIONS - SINGLE COIL LATCHING
Nominal Coil
VDC
3
5
6
12
24
Must Operate
VDC
2.4
4.0
4.8
9.6
19.2
Max. Continuous
VDC
3.9
6.5
7.8
15.6
31.2
Coil
Resistance ±10%
22.5
62.5
90
360
1,440
ORDER NUMBER*
Unsealed
AZ762P1–1CE–3D
AZ762P1–1CE–5D
AZ762P1–1CE–6D
AZ762P1–1CE–12D
AZ762P1–1CE–24D
Sealed
AZ762P1–1CE–3DE
AZ762P1–1CE–5DE
AZ762P1–1CE–6DE
AZ762P1–1CE–12DE
AZ762P1–1CE–24DE
COIL SPECIFICATIONS - DUAL COIL LATCHING
Nominal Coil
VDC
3
5
6
12
24
Must Operate
VDC
2.4
4.0
4.8
9.6
19.2
Max. Continuous
VDC
3.9
6.5
7.8
15.6
31.2
Coil 1
Resistance ±10%
15
42
60
240
886
ORDER NUMBER*
Coil 2
Unsealed
Resistance ±10%
15
AZ762P2–1CE–3D
42
AZ762P2–1CE–5D
60
AZ762P2–1CE–6D
240
AZ762P2–1CE–12D
886
AZ762P2–1CE–24D
Sealed
AZ762P2–1CE–3DE
AZ762P2–1CE–5DE
AZ762P2–1CE–6DE
AZ762P2–1CE–12DE
AZ762P2–1CE–24DE
* Substitute “1A” or “1B” in place of “1C” for Form A or B respectively. Form A relay is in the reset postion. Form B relay is in the set position. Add suffix “K” for
3.5mm pin spacing version. Replace ‘1AE’ with ‘1AT’ for W+AgSnO2 high inrush contacts
(Form A, 5.0mm pin spacing only).
Add suffix “L” for 2.5mm pin
spacing version. Note, Form C only available in 5.0mm and 3.5mm
pin
spacing. Add suffix “R” for reversed polarity coil.

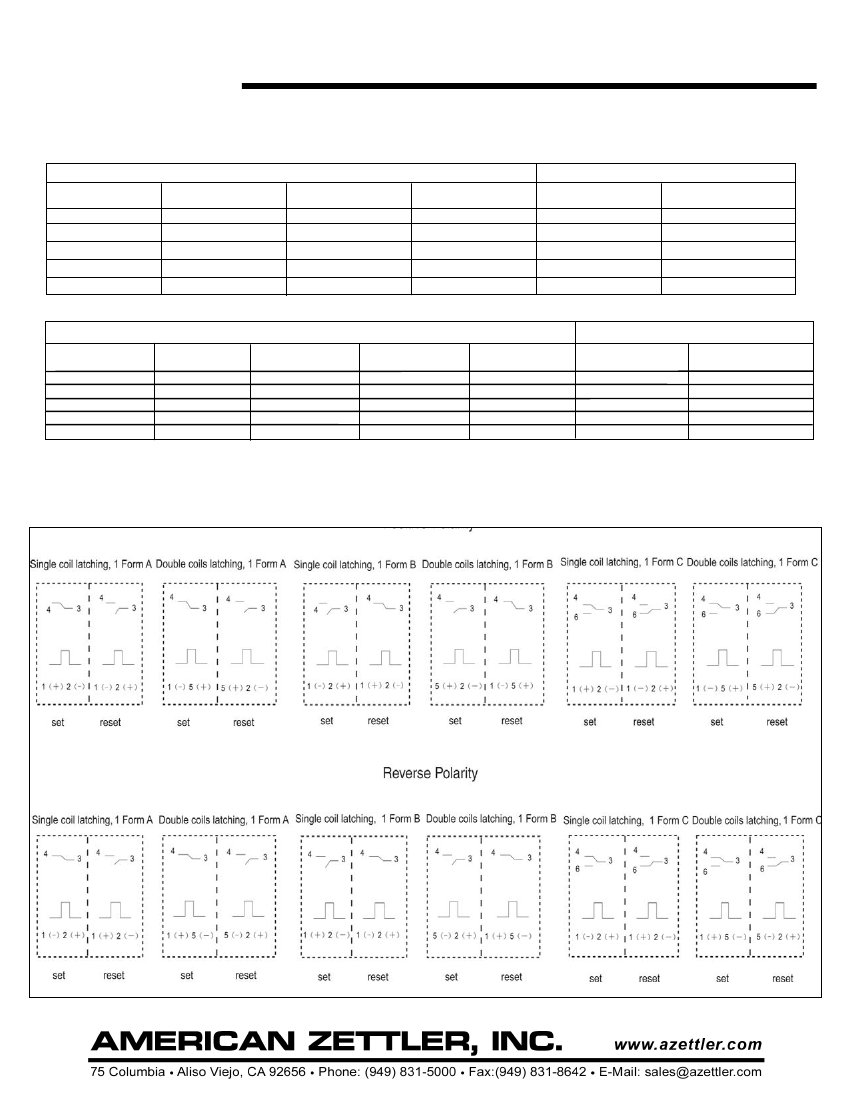

WIRING DIAGRAM
10/17/14
AZ762P

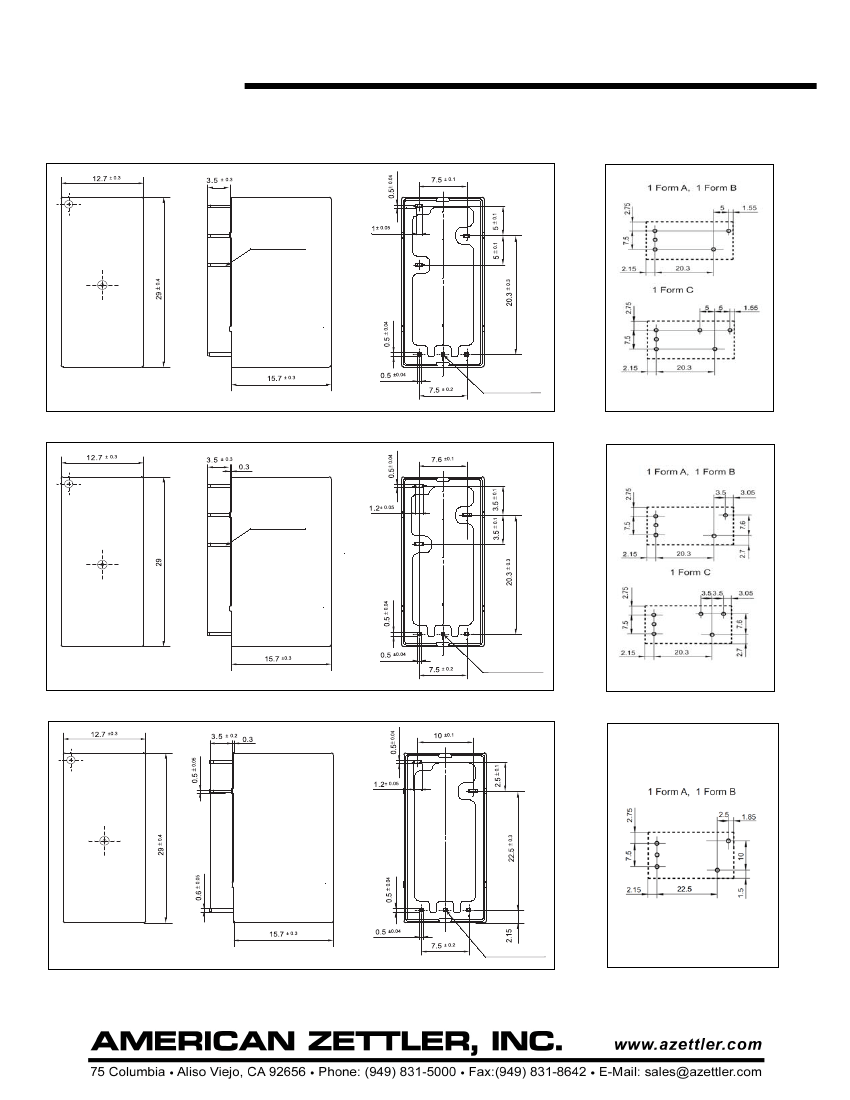

MECHANICAL DATA
5.0mm Spacing - Standard
PCB LAYOUT
No terminal on
1 Form A
No terminal for
single coil version
3.5mm Spacing - Suffix “K”
No terminal on
1 Form A
No terminal for
single coil version
2.5mm Spacing - Suffix “L”
No terminal for
single coil version
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
