2SJ200-Y

Description
TOSHIBA Field Effect Transistor Silicon P Channel MOS Type
CategoryDiscrete semiconductor    The transistor
File Size285KB,5 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Download Datasheet Parametric View All

2SJ200-Y Overview

TOSHIBA Field Effect Transistor Silicon P Channel MOS Type

2SJ200-Y Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codeunknow
ECCN codeEAR99
Shell connectionDRAIN
ConfigurationSINGLE
Minimum drain-source breakdown voltage180 V
Maximum drain current (Abs) (ID)10 A
Maximum drain current (ID)10 A
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PSFM-T3
JESD-609 codee0
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeP-CHANNEL
Maximum power dissipation(Abs)120 W
Certification statusNot Qualified
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Base Number Matches1

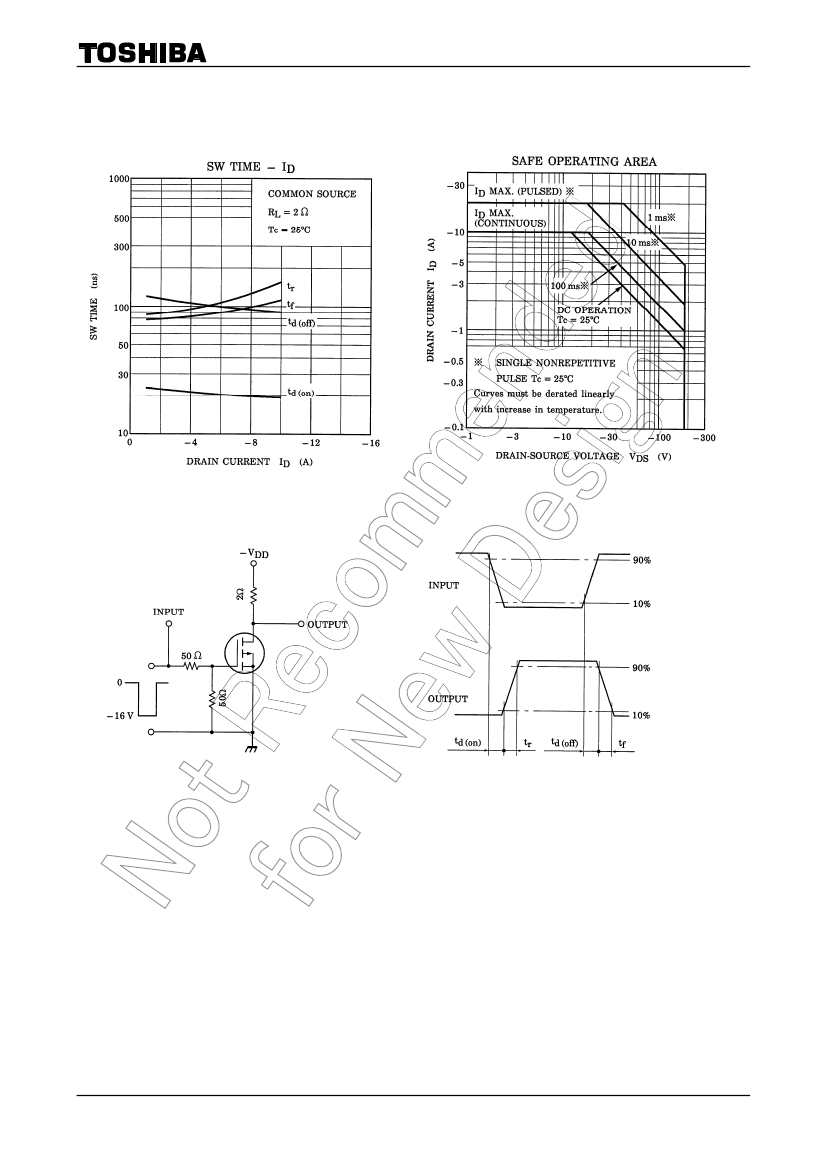

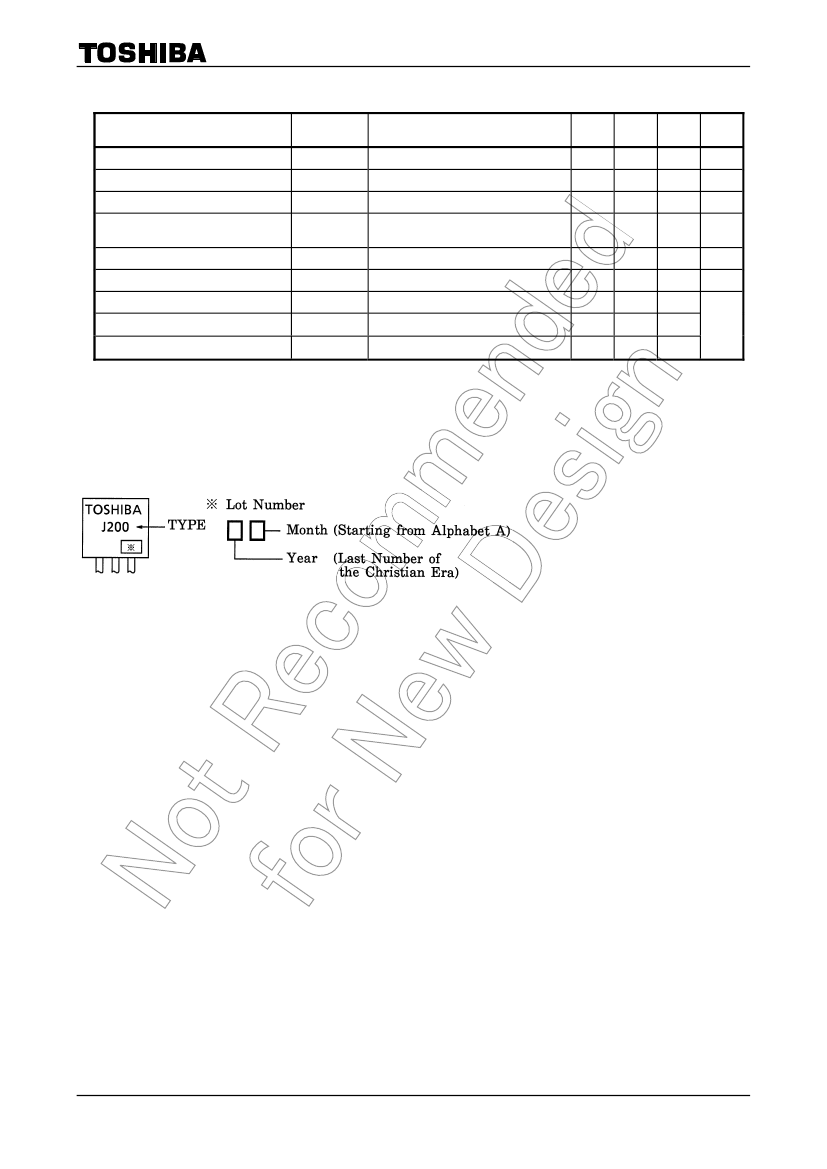

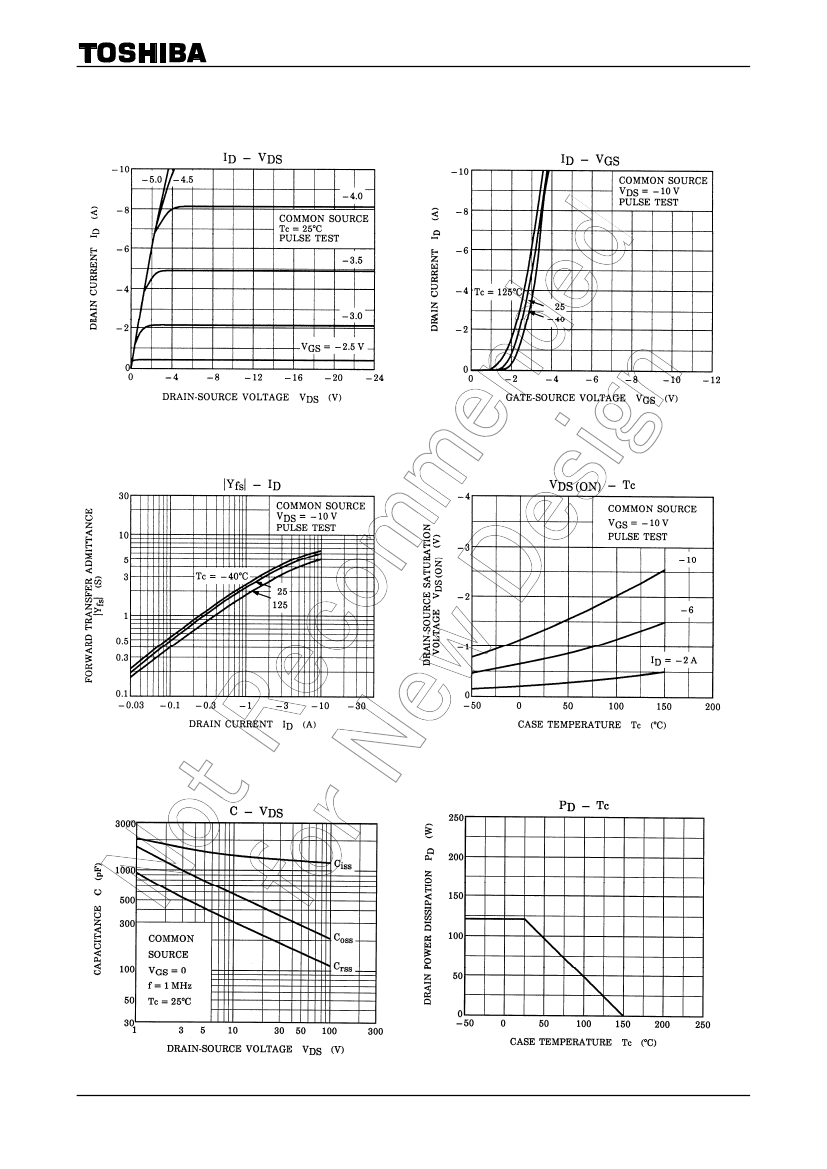

2SJ200
TOSHIBA Field Effect Transistor Silicon P Channel MOS Type
2SJ200
High Power Amplifier Application
High breakdown voltage
: V
DSS
=
−180
V
High forward transfer admittance
: |Y
fs
| = 4.0 S (typ.)
Complementary to 2SK1529

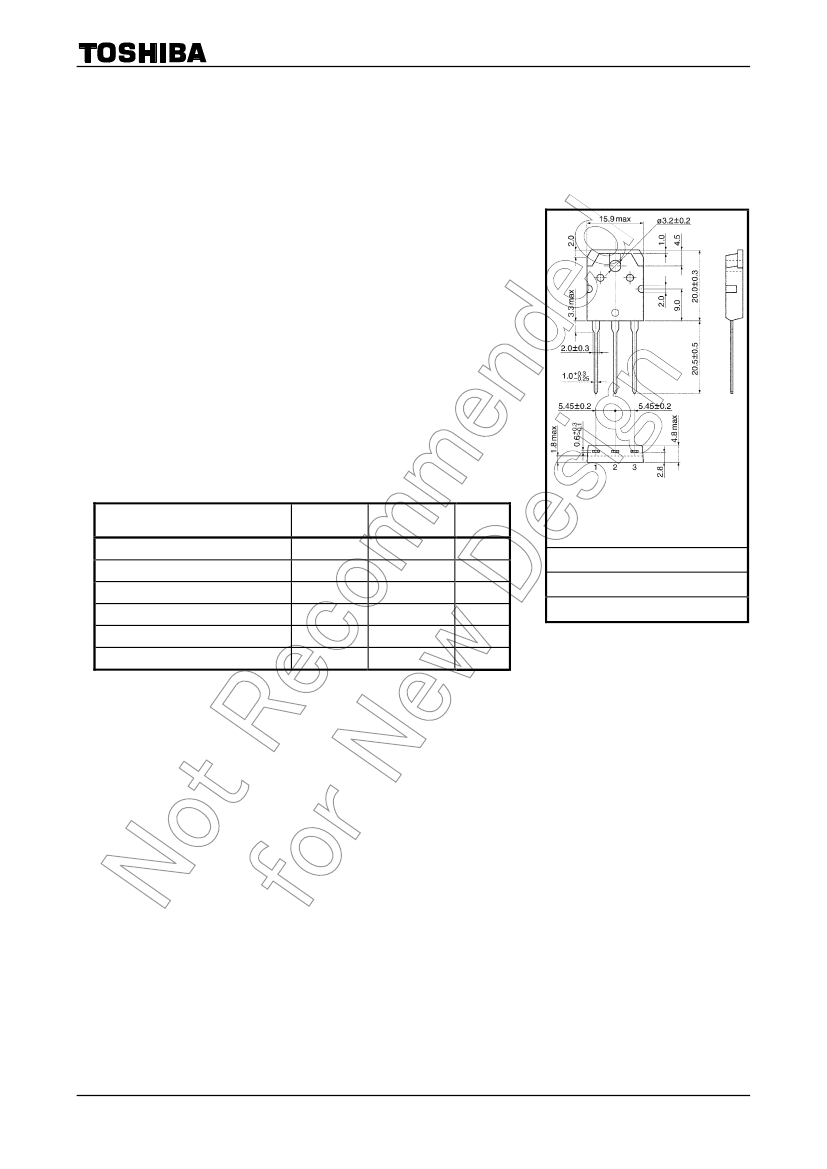

Unit: mm
Absolute Maximum Ratings
(Ta = 25°C)
Characteristics
Drain−source voltage
Gate−source voltage
Drain current
(Note 1)
Symbol
V
DSS
V
GSS
I
D
P
D
T
ch
T
stg
Rating
−180
±20
−10
120
150
−55~150
Unit
V
V
A
W
°C
°C
1. GATE
2. DRAIN (HEAT SINK)
3. SOURCE
JEDEC
JEITA
TOSHIBA
2-16C1B
Drain power dissipation (Tc = 25°C)
Channel temperature
Storage temperature range
Weight: 4.6 g (typ.)
Note:
Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the absolute maximum ratings. Please design the appropriate
reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/Derating Concept and
Methods) and individual reliability data (i.e. reliability test report and estimated failure rate, etc).
1
2006-11-16
