LT05YD475KAT4X: DescriptionCeramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X5R, 15% TC, 4.7uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size84KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

LT05YD475KAT4X Overview

Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X5R, 15% TC, 4.7uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT

LT05YD475KAT4X Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1744814071
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.75
capacitance	4.7 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.95 mm
JESD-609 code	e3
length	2.01 mm
Manufacturer's serial number	LT05
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 13 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	16 V
series	LT
size code	0805
surface mount	YES
Temperature characteristic code	X5R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	1.25 mm

Preview

Download Datasheet

View All

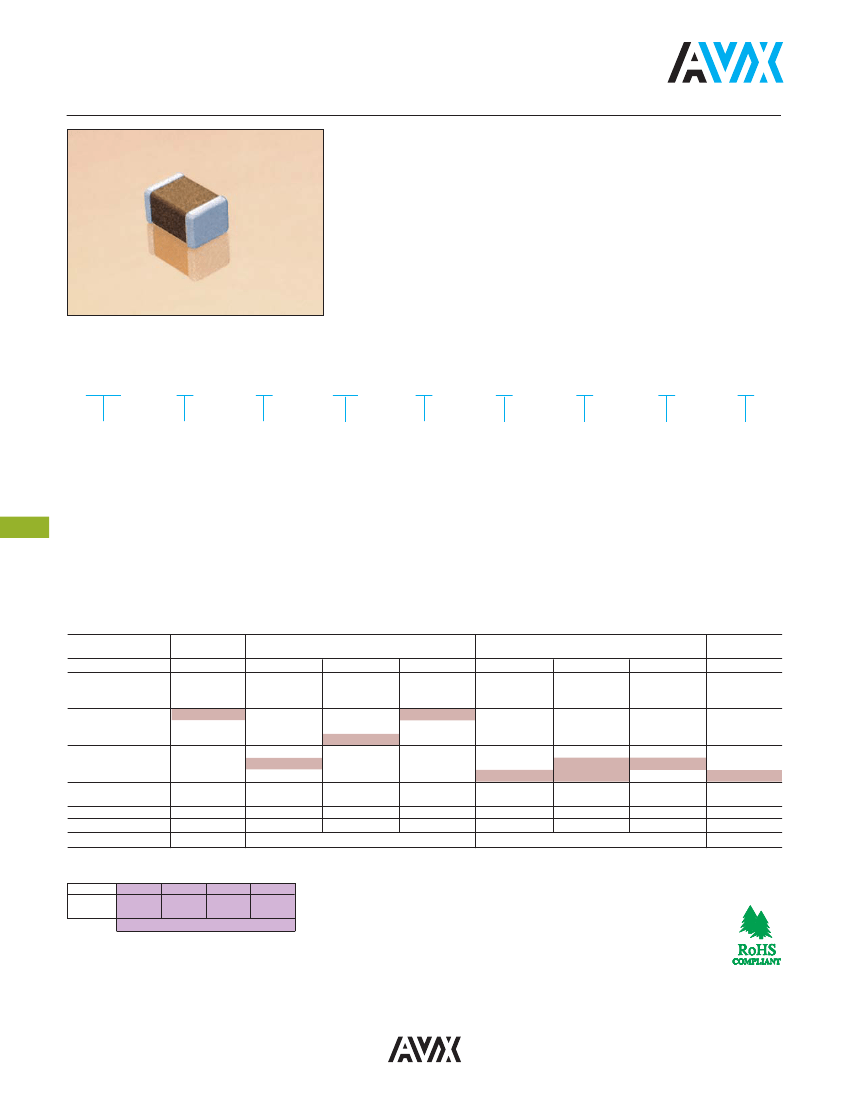

MLCC Low Profile

General Specifications

GENERAL DESCRIPTION

AVX introduces the LT series comprising a range of low profile

products in our X5R dielectric. X5R is a Class II dielectric with

temperature varation of capacitance within ±15% from –55°C to

+85°C. Offerings include 0402, 0603, 0805, and 1206 packages in

compact, low profile designs. The LT series is ideal for decoupling

and filtering applications where height clearance is limited.

PART NUMBER

(see page 2 for complete part number explanation)

LT05

Size

LT02 - 0402

LT03 - 0603

LT05 - 0805

LT06 - 1206

Z

Voltage

4V = 4

6.3V = 6

10V = Z

16V = Y

D

Dielectric

X5R = D

475

Capacitance

Code (In pF)

2 Sig. Digits +

Number of

Zeros

K

Capacitance

Tolerance

K = ±10%

M = ±20%

M

Failure

Rate

A = Not

Applicable

T

Terminations

T = Plated Ni

and Sn

2

S

Special

Packaging

Code

2 = 7" Reel

CSXW

4 = 13" Reel

7 = Bulk Cass. See table below

9 = Bulk

Contact

Factory

For

Multiples

CAPACITANCE RANGE (X5R DIELECTRIC)

SIZE

Cap

(µF)

WVDC

0.33

0.47

0.68

1.0

1.5

2.2

3.3

4.7

10

22

47

100

WVDC

LT02

4

LT03

6.3

16

6.3

LT05

10

16

LT06

16

C

S

X

S

X

W

4

6.3

16

6.3

10

16

SIZE

LT02

LT03

LT05

LT06

Special Code Table

Letter

Max.

Thickness

C

0.356

(0.014)

S

X

0.56

0.95

(0.022)

(0.038)

PAPER

W

1.02

(0.040)

34
