C80C152JA-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> C80C152JA-1

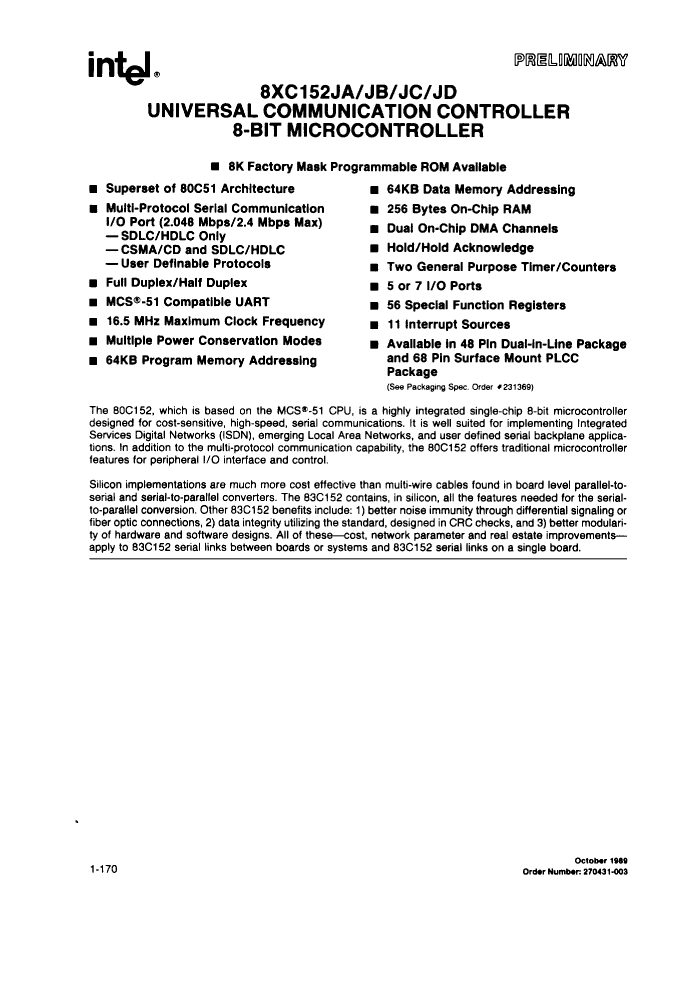

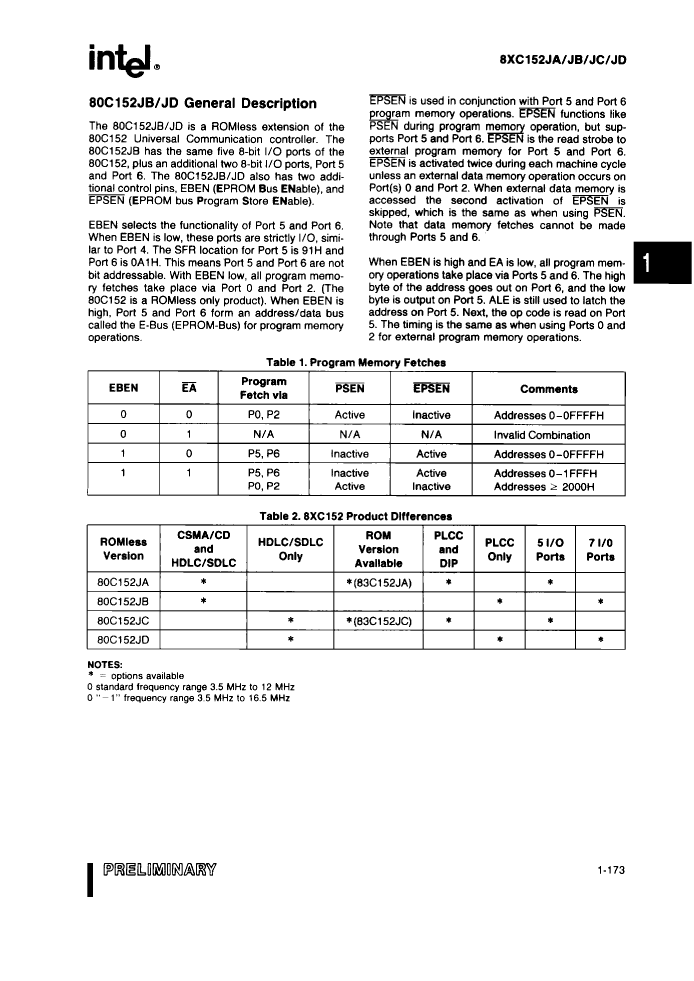

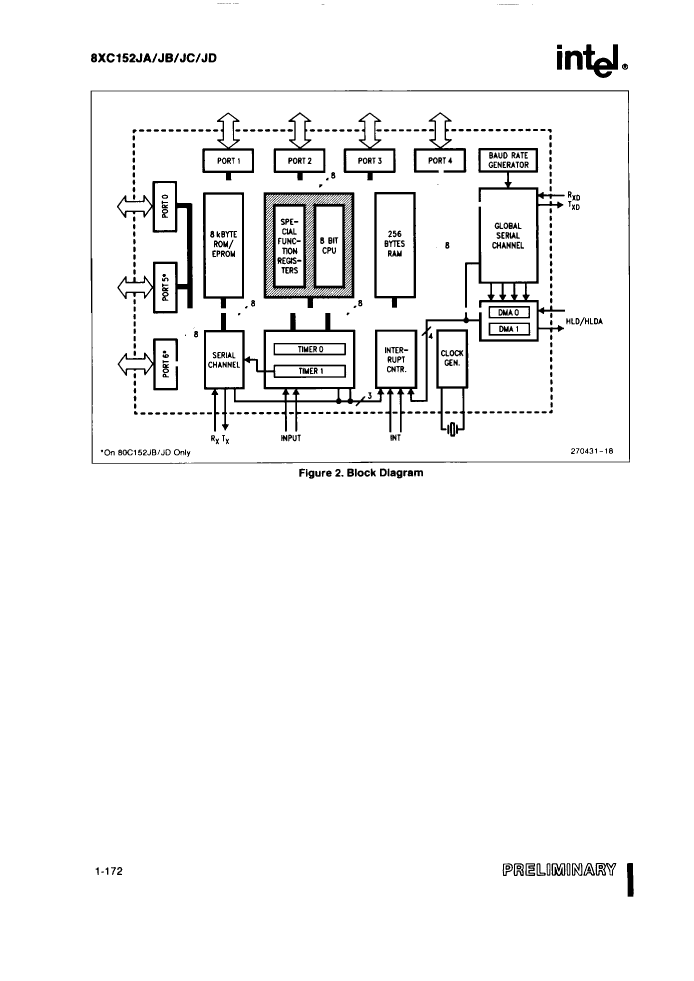

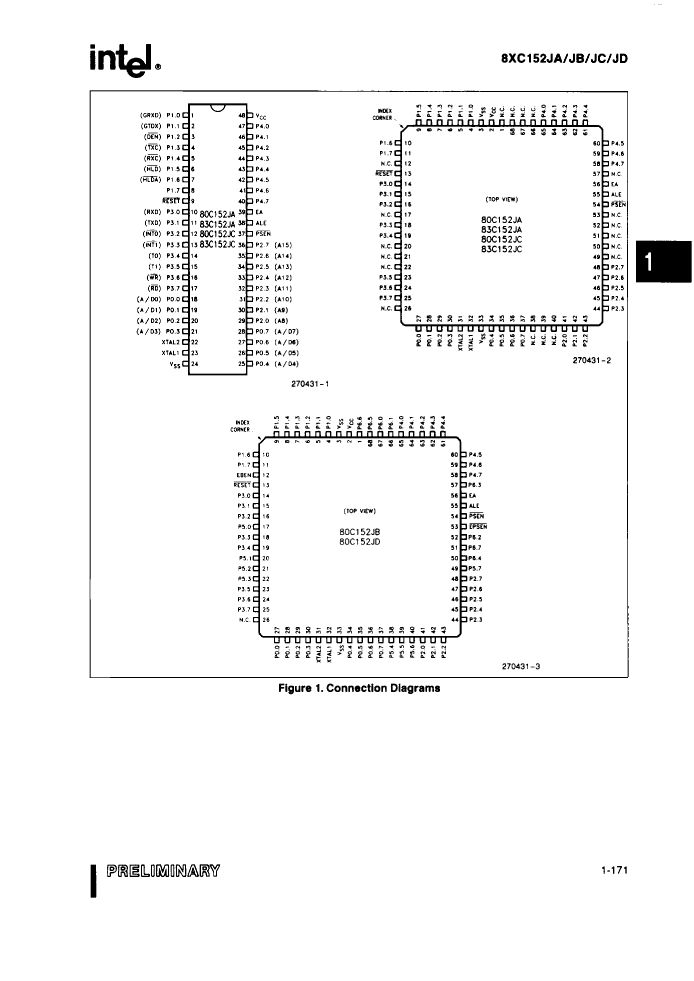

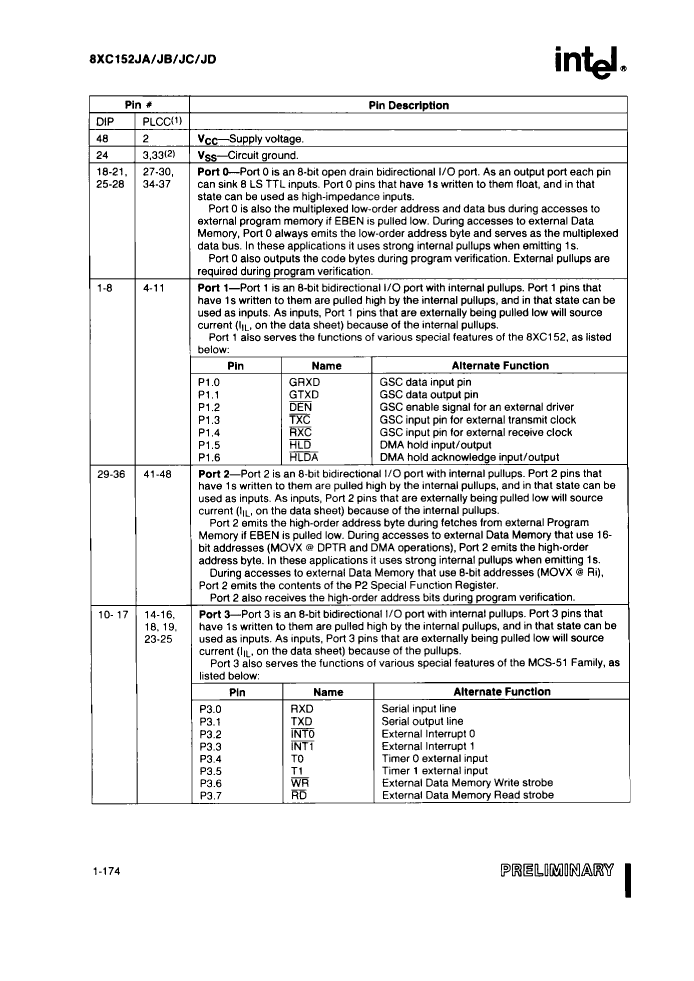

C80C152JA-1: DescriptionMicrocontroller, 8-Bit, 8051 CPU, 8.25MHz, CMOS, CDIP48, CERAMIC, DIP-48; CategoryThe embedded processor and controller Microcontrollers and processors; File Size512KB，17 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

C80C152JA-1 Overview

Microcontroller, 8-Bit, 8051 CPU, 8.25MHz, CMOS, CDIP48, CERAMIC, DIP-48

C80C152JA-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Parts packaging code	DIP
package instruction	CERAMIC, DIP-48
Contacts	48
Reach Compliance Code	compliant
Has ADC	NO
Other features	56 SPECIAL FUNCTION REGISTERS
Address bus width	16
bit size	8
boundary scan	NO
CPU series	8051
maximum clock frequency	16.5 MHz
DAC channel	NO
DMA channel	YES
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-CDIP-T48
JESD-609 code	e0
length	60.96 mm
low power mode	YES
Number of DMA channels	2
Number of external interrupt devices	2
Number of I/O lines	40
Number of serial I/Os	2
Number of terminals	48
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WDIP
Encapsulate equivalent code	DIP48,.6
Package shape	RECTANGULAR
Package form	IN-LINE, WINDOW
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	256
RAM (number of words)	256
rom(word)	0
Maximum seat height	6.32 mm
speed	8.25 MHz
Maximum slew rate	41.1 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

C80C152JA-1 Related Products

	C80C152JA-1	C80C152JC-1	C83C152JA	9N80A	C83C152JC-1	C80C152JA	C80C152JC	C83C152JC
Description	Microcontroller, 8-Bit, 8051 CPU, 8.25MHz, CMOS, CDIP48, CERAMIC, DIP-48	Microcontroller, 8-Bit, 8051 CPU, 8.25MHz, CMOS, CDIP48, CERAMIC, DIP-48	Microcontroller, 8-Bit, MROM, 8051 CPU, 6MHz, CMOS, CDIP48, CERAMIC, DIP-48	isc N-Channel MOSFET Transistor	Microcontroller, 8-Bit, MROM, 8051 CPU, 8.25MHz, CMOS, CDIP48, CERAMIC, DIP-48	Microcontroller, 8-Bit, 8051 CPU, 6MHz, CMOS, CDIP48, CERAMIC, DIP-48	Microcontroller, 8-Bit, 8051 CPU, 6MHz, CMOS, CDIP48, CERAMIC, DIP-48	Microcontroller, 8-Bit, MROM, 8051 CPU, 6MHz, CMOS, CDIP48, CERAMIC, DIP-48
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible
Maker	Intel	-	Intel	-	Intel	Intel	Intel	Intel
Parts packaging code	DIP	DIP	DIP	-	DIP	DIP	DIP	DIP
package instruction	CERAMIC, DIP-48	CERAMIC, DIP-48	CERAMIC, DIP-48	-	CERAMIC, DIP-48	CERAMIC, DIP-48	CERAMIC, DIP-48	CERAMIC, DIP-48
Contacts	48	48	48	-	48	48	48	48
Reach Compliance Code	compliant	compliant	compliant	-	compliant	compliant	compliant	compli
Has ADC	NO	NO	NO	-	NO	NO	NO	NO
Other features	56 SPECIAL FUNCTION REGISTERS	56 SPECIAL FUNCTION REGISTERS	56 SPECIAL FUNCTION REGISTERS	-	56 SPECIAL FUNCTION REGISTERS	56 SPECIAL FUNCTION REGISTERS	56 SPECIAL FUNCTION REGISTERS	56 SPECIAL FUNCTION REGISTERS
Address bus width	16	16	16	-	16	16	16	16
bit size	8	8	8	-	8	8	8	8
boundary scan	NO	NO	NO	-	NO	NO	NO	NO
CPU series	8051	8051	8051	-	8051	8051	8051	8051
maximum clock frequency	16.5 MHz	16.5 MHz	12 MHz	-	16.5 MHz	12 MHz	12 MHz	12 MHz
DAC channel	NO	NO	NO	-	NO	NO	NO	NO
DMA channel	YES	YES	YES	-	YES	YES	YES	YES
External data bus width	8	8	8	-	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	-	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	-	NO	NO	NO	NO
JESD-30 code	R-CDIP-T48	R-CDIP-T48	R-CDIP-T48	-	R-CDIP-T48	R-CDIP-T48	R-CDIP-T48	R-CDIP-T48
JESD-609 code	e0	e0	e0	-	e0	e0	e0	e0
length	60.96 mm	60.96 mm	60.96 mm	-	60.96 mm	60.96 mm	60.96 mm	60.96 mm
low power mode	YES	YES	YES	-	YES	YES	YES	YES
Number of DMA channels	2	2	2	-	2	2	2	2
Number of external interrupt devices	2	2	2	-	2	2	2	2
Number of I/O lines	40	40	40	-	40	40	40	40
Number of serial I/Os	2	2	2	-	2	2	2	2
Number of terminals	48	48	48	-	48	48	48	48
Number of timers	2	2	2	-	2	2	2	2
On-chip data RAM width	8	8	8	-	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	-	70 °C	70 °C	70 °C	70 °C
PWM channel	NO	NO	NO	-	NO	NO	NO	NO
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WDIP	WDIP	WDIP	-	WDIP	WDIP	WDIP	WDIP
Encapsulate equivalent code	DIP48,.6	DIP48,.6	DIP48,.6	-	DIP48,.6	DIP48,.6	DIP48,.6	DIP48,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, WINDOW	IN-LINE, WINDOW	IN-LINE, WINDOW	-	IN-LINE, WINDOW	IN-LINE, WINDOW	IN-LINE, WINDOW	IN-LINE, WINDOW
power supply	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	256	256	256	-	256	256	256	256
RAM (number of words)	256	256	256	-	256	256	256	256
Maximum seat height	6.32 mm	6.32 mm	6.32 mm	-	6.32 mm	6.32 mm	6.32 mm	6.32 mm
speed	8.25 MHz	8.25 MHz	6 MHz	-	8.25 MHz	6 MHz	6 MHz	6 MHz
Maximum slew rate	41.1 mA	41.1 mA	31.04 mA	-	41.1 mA	31.04 mA	31.04 mA	31.04 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	-	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	-	15.24 mm	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	-	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
