Datasheet
LambdaDriver® Multi-protocol OTN Muxponder Modules
(EM2009-8AXFP/8AXFP2/TM-8A8T)
Features
OTU2 line interfaces (FEC or EFEC)
Multi-service / multi-protocol transport
Extensive performance management capability
Diagnostics Loop-Back (DLEB)
Digital Diagnostics monitoring
Hot swappable
Choice of XFP or tunable long haul line interface
LIN Support
Applications
Advanced Multiprotocol Service aggregation
Services ADD/DROP over single wavelenght

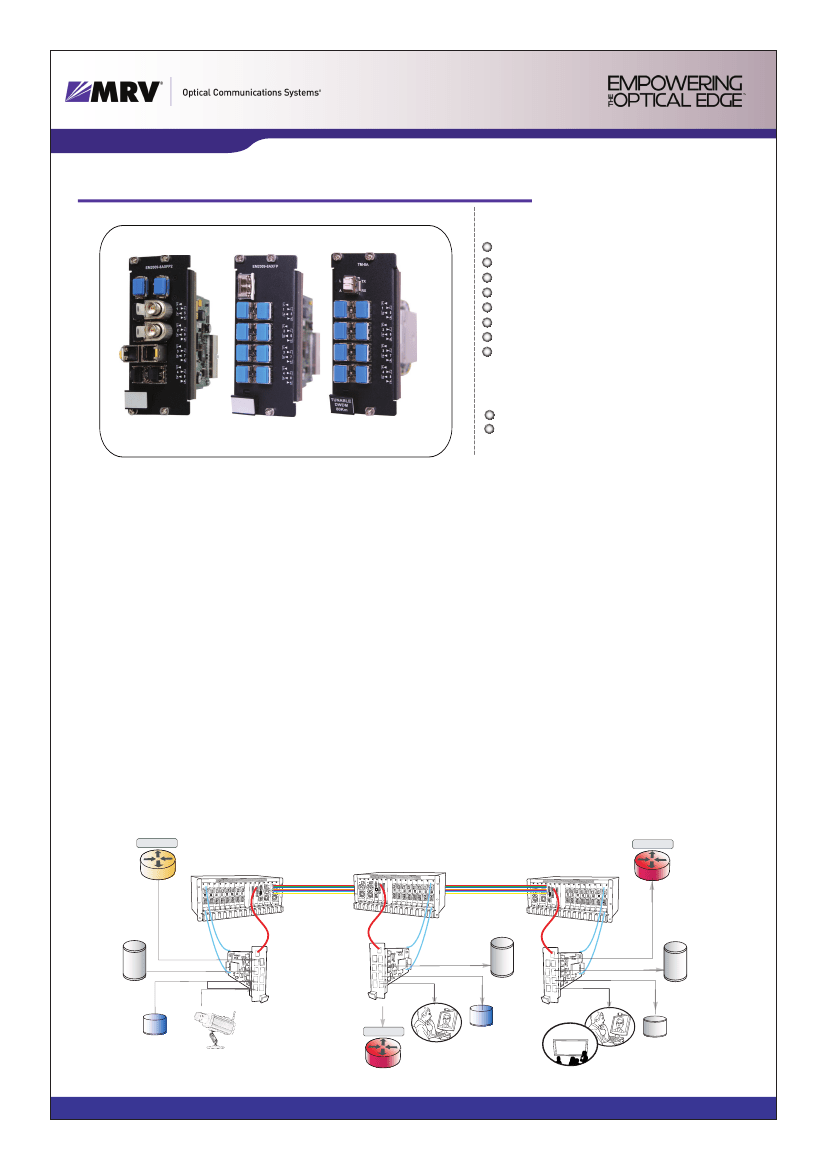

EM2009-8AXFP/8AXFP2/TM-8A8T
Overview
The OTN Muxponders are a revolutionary addition to the
LambdaDriver system that enhance the versatility and
flexibility of WDM-based network design and implementation
to unprecedented levels.
These modules are Multi-Service line cards that incorporate
8 SFP-based access ports and one or two line ports (XFP or
tunable DWDM) and are two shorts slot wide.
The uniqueness of this device consists in its capability to accept
any protocol at its access ports in different mixing schemes and
aggregate these services over an OTU2 line with FEC or EFEC
support.
The access services can be any mix of the protocols STM1/4/16,
OTU1, FC100/200/400, FE/GE, SDI /HD-SDI and 3G-SDI protocols.
Each access port can host any standard SFP (Copper, Coax or
Fiber).
Modules with XFP line ports (e.g.,EM2009-8AXFP) are best
suited for Access/Metro Networks, while the long-haul
applications are addressed by modules with a tunable DWDM
transceiver with superior optical transport performance (e.g.,
Server
TM-8A8T).
The EM2009-8AXFP2 incorporates two XFP based line interfaces
thus having the capability of forwarding some the services
received at one line port to local client ports while forwarding
other services to a next hop via a second line port, there by
functioning as a non-optical service add/drop multiplexer and
thus eliminating the need to use a dedicated wavelength for
each service.
Extensive performance monitoring is supported on all ports as
required by most of the carrier-oriented management systems.
Diagnostics LoopBack per port can be remotely activated with
the management module to facilitate troubleshooting and
network maintenance.
A typical application is aggregation of multiple services over
single fiber or single wavelength with high-level Performance
Monitoring.
The modules are manageable with the LambdaDriver
management module (EM800-MNGP or EM1600-MNGP) either
locally over a serial RS-232 connection or remotely over a
Telnet or SNMP connection using, for example with the MRV
Server
WDM
Storage
OTU 2
1GE
Fibre Channel
ODU 1
SDI
SDI
1GE
STM-16
Video
Fibre Channel
ODU 1
1GE
Fibre Channel
ODU 1
SDI
Storage
Storage
Server
Video
STM-16
Video
STM-16
Not sure what solution best suits your needs? Visit www.mrv.com or e-mail us at sales@mrv.com
Enviromental Specifications
Operating Temperature
Storage Temperature
Relative Humidity
Dimensions (W x H x D)
Weight
-5 to 45
o
C (23 to 113
o
F)
-10 to 70
o
C (14 to 158
o
F)
85% maximum, non-condensing
54.18 mm x 130.7 x 227mm (2.13 x 8.956 x 5.145 In)
EM2009-8AXFP: 0.726 kg
EM2009-8AXFP2: 0.750 kg
TM-8A8T:
0.858 kg
8 x SFP & 1x XFP receptacles ( EM2009-8AXFP)
8 x SFP & 2x XFP receptacles ( EM2009-8AXFP2)
8 x SFP & 2x MU receptacles ( TM-8A8T)
EM2009-8AXFP: 16.50Watt
EM2009-8AXFP2: 19.00 Watt
TM-8A8T:
24.50 Watt
Connectors
Power Consumption (Fully loaded)
Technical Specifications
Access Data Rate
Line Data Rate
TX power (dBm)
Maximum receiver sensitivity (dBm)
Overload (dBm)
DWDM wavelengths range
Chromatic Dispersion tolerance
Dispersion penalty at limit (dB)
Tunable DWDM wavelength models
100Mbps to 4.25 Gbps
OTU2 (10.7Gbps)
4-7
-28
-6
1529-1563 nm on ITU-T G694.1 50 GHz grid
1600 ps/nm
2
XFP models
100Mbps to 4.25 Gbps
OTU2 (10.7Gbps)
per the XFP
per the XFP
per the XFP
per the XFP
MRV has more than 50 offices throughout the world. Addresses, phone numbers, and fax numbers are listed at www.mrv.com.
Please e-mail us at
sales@mrv.com
or call us for assistance.
MRV (West Coast USA)
20415 Nordhoff St.
Chatsworth, CA 91311
800-338-5316
818-773-0900
MRV (East Coast USA)
295 Foster St.
Littleton, MA 01460
800-338-5316
978-952-4700
MRV (International)
Bussiness Park Moerfelden
Waldeckerstrasse 13
64546 Moerfelden-Walldorf
Germany
Tel. (49) 6105/2070
Fax. (49) 6105/207-100
All statements, technical information and recommendations related to the products herein are based upon information believed to be reliable or accurate. However, the accuracy or completeness
thereof is not guaranteed, and no responsibility is assumed for any inaccuracies. Please contact MRV Communications for more information. MRV Communications and the MRV Communications
logo are trademarks of MRV Communications, Inc. Other trademarks are the property of their respective holders.
MRV-LD-8A8T
Rev.2 10 -11
Order Info
EM2009-8AXFP
EM2009-8AXFP2
TM-8A8T
TDM Module with OTU2 XFP line port, 8 x SFP multiprotocol ports
TDM Module with 2 x OTU2 XFP line ports 8 x SFP multiprotocol ports
TDM Module with OTU2 tunable DWDM line ports, 8 x SFP multiprotocol ports 80km operating range
