AUIRFS4010-7P

Description
190 A, 100 V, 0.004 ohm, N-CHANNEL, Si, POWER, MOSFET
CategoryDiscrete semiconductor    The transistor
File Size322KB,12 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

AUIRFS4010-7P Online Shopping

Suppliers Part Number Price MOQ In stock
AUIRFS4010-7P - - View Buy Now

AUIRFS4010-7P Overview

190 A, 100 V, 0.004 ohm, N-CHANNEL, Si, POWER, MOSFET

AUIRFS4010-7P Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerInternational Rectifier ( Infineon )
package instructionSMALL OUTLINE, R-PSSO-G6
Contacts7
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresAVALANCHE RATED, ULTRA-LOW RESISTANCE, HIGH RELIABILITY
Avalanche Energy Efficiency Rating (Eas)330 mJ
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage100 V
Maximum drain current (Abs) (ID)190 A
Maximum drain current (ID)190 A
Maximum drain-source on-resistance0.004 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PSSO-G6
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals6
Operating modeENHANCEMENT MODE
Maximum operating temperature175 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typeN-CHANNEL
Maximum power dissipation(Abs)380 W
Maximum pulsed drain current (IDM)740 A
surface mountYES
Terminal surfaceMATTE TIN OVER NICKEL
Terminal formGULL WING
Terminal locationSINGLE
Maximum time at peak reflow temperature30
transistor applicationsSWITCHING
Transistor component materialsSILICON
AUTOMOTIVE GRADE
PD -
96397A

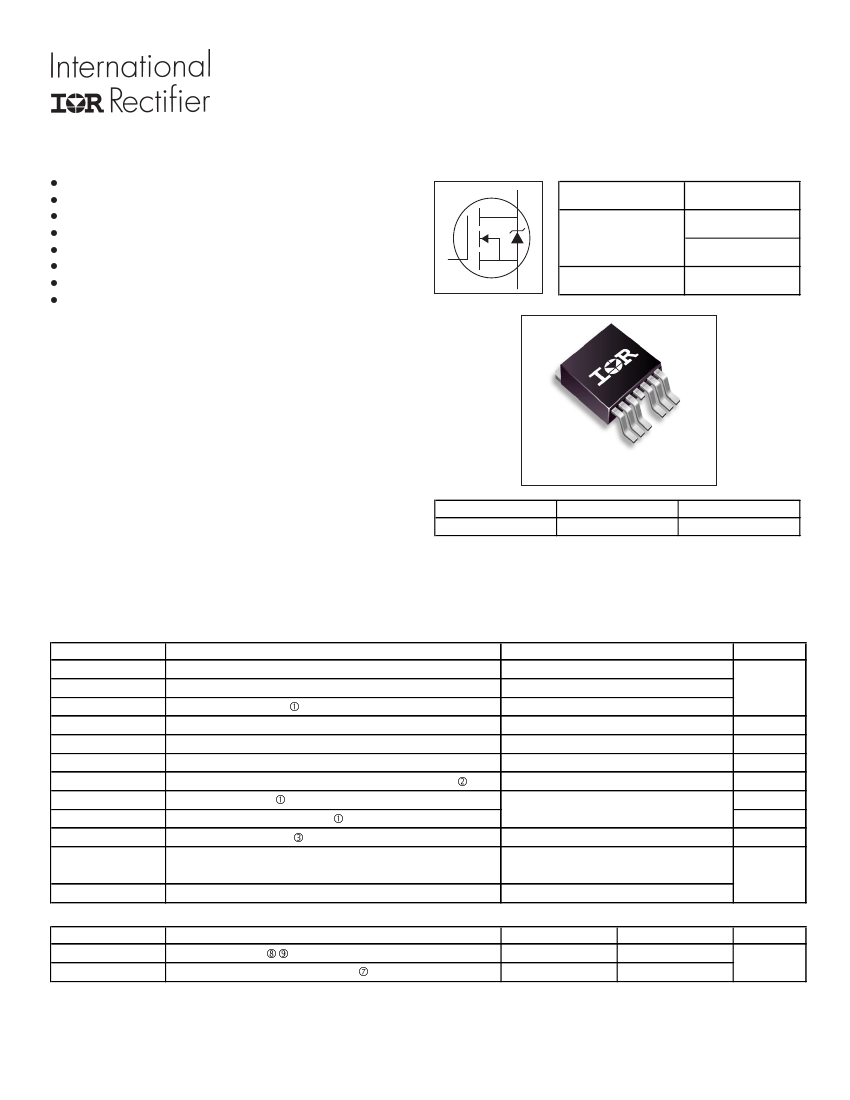

AUIRFS4010-7P
Features
l
l
l
l
l
l
l
l
HEXFET
®
Power MOSFET
D
Advanced Process Technology
Ultra Low On-Resistance
Enhanced dV/dT and dI/dT capability
175°C Operating Temperature
Fast Switching
Repetitive Avalanche Allowed up to Tjmax
Lead-Free, RoHS Compliant
Automotive Qualified *
G
S
V
DSS
R
DS(on)
typ.
max.
I
D
D
100V
3.3mΩ
4.0mΩ
190A
Description
Specifically designed for Automotive applications, this
HEXFET
®
Power MOSFET utilizes the latest processing
techniques to achieve extremely low on-resistance per silicon
area. Additional features of this design are a 175°C junction
operating temperature, fast switching speed and improved
repetitive avalanche rating . These features combine to make
this design an extremely efficient and reliable device for use
in Automotive applications and a wide variety of other
applications.
G
S
G
S
S
S
S
7 Pin
AUIRFS4010-7P
D
2
Pak
D
S
Absolute Maximum Ratings
Gate
Drain
Source
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress
ratings only; and
functional operation of the device at these or any other condition beyond those indicated in the specifications
is not implied.Exposure
to absolute-maximum-rated conditions for extended periods may affect device reliability. The thermal
resistance and power dissipation ratings are measured under board mounted and still air conditions. Ambient temperature (T
A
)
is 25°C, unless otherwise specified.
Parameter
I
D
@ T
C
= 25°C
I
D
@ T
C
= 100°C
I
DM
P
D
@T
C
= 25°C
V
GS
E
AS
I
AR
E
AR
dv/dt
T
J
T
STG
Continuous Drain Current, V
GS
@ 10V
Continuous Drain Current, V
GS
@ 10V
Pulsed Drain Current
Maximum Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Single Pulse Avalanche Energy (Thermally Limited)
Avalanche Current
Repetitive Avalanche Energy
Peak Diode Recovery
Operating Junction and
Storage Temperature Range
Soldering Temperature, for 10 seconds (1.6mm from case)
Max.
190
130
740
380
2.5
± 20
330
See Fig. 14, 15, 22a, 22b
26
-55 to + 175
300
Units
A
W
W/°C
V
mJ
A
mJ
V/ns
°C
c
c
d
e
c
Thermal Resistance
R
θJC
R
θJA
Junction-to-Case
Junction-to-Ambient (PCB Mount)
jk
Parameter
Typ.
Max.
0.40
40
Units
°C/W
i
–––
–––
HEXFET
®
is a registered trademark of International Rectifier.
*Qualification
standards can be found at http://www.irf.com/
www.irf.com
1
10/31/11

AUIRFS4010-7P Related Products

AUIRFS4010-7P AUIRFS4010-7TRL AUIRFS4010-7TRR
Description 190 A, 100 V, 0.004 ohm, N-CHANNEL, Si, POWER, MOSFET 190 A, 100 V, 0.004 ohm, N-CHANNEL, Si, POWER, MOSFET 190 A, 100 V, 0.004 ohm, N-CHANNEL, Si, POWER, MOSFET
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
package instruction SMALL OUTLINE, R-PSSO-G6 SMALL OUTLINE, R-PSSO-G6 SMALL OUTLINE, R-PSSO-G6
Contacts 7 7 7
Reach Compliance Code compli compli compli
ECCN code EAR99 EAR99 EAR99
Other features AVALANCHE RATED, ULTRA-LOW RESISTANCE, HIGH RELIABILITY AVALANCHE RATED, ULTRA-LOW RESISTANCE, HIGH RELIABILITY AVALANCHE RATED, ULTRA-LOW RESISTANCE, HIGH RELIABILITY
Avalanche Energy Efficiency Rating (Eas) 330 mJ 330 mJ 330 mJ
Shell connection DRAIN DRAIN DRAIN
Configuration SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage 100 V 100 V 100 V
Maximum drain current (Abs) (ID) 190 A 190 A 190 A
Maximum drain current (ID) 190 A 190 A 190 A
Maximum drain-source on-resistance 0.004 Ω 0.004 Ω 0.004 Ω
FET technology METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR
JESD-30 code R-PSSO-G6 R-PSSO-G6 R-PSSO-G6
JESD-609 code e3 e3 e3
Humidity sensitivity level 1 1 1
Number of components 1 1 1
Number of terminals 6 6 6
Operating mode ENHANCEMENT MODE ENHANCEMENT MODE ENHANCEMENT MODE
Maximum operating temperature 175 °C 175 °C 175 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 260 260 260
Polarity/channel type N-CHANNEL N-CHANNEL N-CHANNEL
Maximum power dissipation(Abs) 380 W 380 W 380 W
Maximum pulsed drain current (IDM) 740 A 740 A 740 A
surface mount YES YES YES
Terminal surface MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL
Terminal form GULL WING GULL WING GULL WING
Terminal location SINGLE SINGLE SINGLE
Maximum time at peak reflow temperature 30 30 30
transistor applications SWITCHING SWITCHING SWITCHING
Transistor component materials SILICON SILICON SILICON
Maker International Rectifier ( Infineon ) International Rectifier ( Infineon ) -
