AUIRL1404Z

Description
160 A, 40 V, 0.0031 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB
CategoryDiscrete semiconductor    The transistor
File Size742KB,13 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

AUIRL1404Z Online Shopping

Suppliers Part Number Price MOQ In stock
AUIRL1404Z - - View Buy Now

AUIRL1404Z Overview

160 A, 40 V, 0.0031 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB

AUIRL1404Z Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Parts packaging codeTO-220AB
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresAVALANCHE RATED, LOGIC LEVEL COMPATIBLE, ULTRA-LOW RESISTANCE
Avalanche Energy Efficiency Rating (Eas)490 mJ
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage40 V
Maximum drain current (Abs) (ID)180 A
Maximum drain current (ID)160 A
Maximum drain-source on-resistance0.0031 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
JESD-609 codee3
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Maximum operating temperature175 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)250
Polarity/channel typeN-CHANNEL
Maximum power dissipation(Abs)200 W
Maximum pulsed drain current (IDM)790 A
Certification statusNot Qualified
surface mountNO
Terminal surfaceMATTE TIN OVER NICKEL
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperature30
transistor applicationsSWITCHING
Transistor component materialsSILICON
Base Number Matches1

AUTOMOTIVE GRADE
Features
Logic Level
Advanced Process Technology
Ultra Low On-Resistance
175°C Operating Temperature
Fast Switching
Repetitive Avalanche Allowed up to Tjmax
Lead-Free, RoHS Compliant
Automotive Qualified *

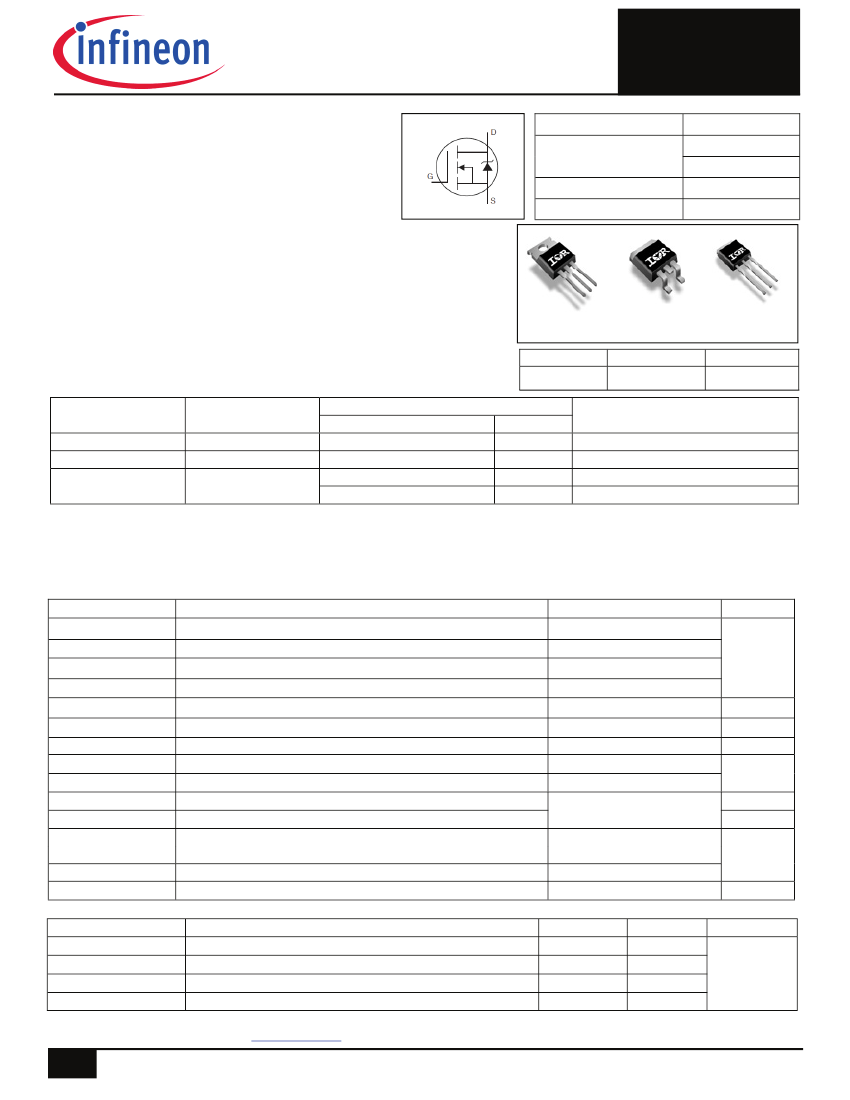

Description
Specifically designed for Automotive applications, this HEXFET® Power
MOSFET utilizes the latest processing techniques to achieve extremely low
on-resistance per silicon area. Additional features of this design are a 175°C
junction operating temperature, fast switching speed and improved repetitive
avalanche rating . These features combine to make this design an extremely
efficient and reliable device for use in Automotive applications and a wide
variety of other applications.
S
D
G
TO-220AB
AUIRL1404Z
AUIRL1404Z
AUIRL1404ZS
AUIRL1404ZL
V
DSS
R
DS(on)
typ.
max.
I
D (Silicon Limited)
I
D (Package Limited)
D

HEXFET
®
Power MOSFET
40V
2.5m
3.1m
180A
160A
D
S
G
D
2
Pak
AUIRL1404ZS
G
S
D
TO-262
AUIRL1404ZL
G
Gate
D
Drain
S
Source
Base part number
AUIRL1404Z
AUIRL1404ZL
AUIRL1404ZS
Package Type
TO-220
TO-262
D
2
-Pak
Standard Pack
Form
Quantity
Tube
50
Tube
50
Tube
50
Tape and Reel Left
800
Orderable Part Number
AUIRL1404Z
AUIRL1404ZL
AUIRL1404ZS
AUIRL1404ZSTRL
Absolute Maximum Ratings
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress
ratings only; and functional operation of the device at these or any other condition beyond those indicated in the specifications is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. The thermal resistance
and power dissipation ratings are measured under board mounted and still air conditions. Ambient temperature (TA) is 25°C, unless
otherwise specified.
Symbol
I
D
@ T
C
= 25°C
I
D
@ T
C
= 100°C
I
D
@ T
C
= 25°C
I
DM
P
D
@T
C
= 25°C
V
GS
E
AS
E
AS
(tested)
I
AR
E
AR
T
J
T
STG
Parameter
Continuous Drain Current, V
GS
@ 10V (Silicon Limited)
Continuous Drain Current, V
GS
@ 10V (Silicon Limited)
Continuous Drain Current, V
GS
@ 10V (Package Limited)
Pulsed Drain Current
Maximum Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Single Pulse Avalanche Energy (Thermally Limited)
Single Pulse Avalanche Energy Tested Value
Avalanche Current
Repetitive Avalanche Energy
Operating Junction and
Storage Temperature Range
Soldering Temperature, for 10 seconds (1.6mm from case)
Mounting torque, 6-32 or M3 screw
Max.
180
130
160
790
200
1.3
± 16
190
490
See Fig.15,16, 12a, 12b
-55 to + 175
300
10 lbf•in (1.1N•m)

Units
A
W
W/°C
V
mJ
A
mJ
°C


Thermal Resistance

Symbol
R
JC
R
CS
R
JA
R
JA
Parameter
Junction-to-Case
Case-to-Sink, Flat, Greased Surface
Junction-to-Ambient
Junction-to-Ambient ( PCB Mount, steady state)
Typ.
–––
0.50
–––
Max.
0.75
–––
62
40
Units
°C/W
HEXFET® is a registered trademark of Infineon.
*Qualification
standards can be found at
www.infineon.com
1
2015-10-27

AUIRL1404Z Related Products

AUIRL1404Z AUIRL1404ZL AUIRL1404ZS
Description 160 A, 40 V, 0.0031 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB 160 A, 40 V, 0.0031 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-262AA 160 A, 40 V, 0.0031 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-263AB
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
Parts packaging code TO-220AB TO-262AA D2PAK
package instruction FLANGE MOUNT, R-PSFM-T3 IN-LINE, R-PSIP-T3 SMALL OUTLINE, R-PSSO-G2
Contacts 3 3 3
Reach Compliance Code compli compli compli
ECCN code EAR99 EAR99 EAR99
Other features AVALANCHE RATED, LOGIC LEVEL COMPATIBLE, ULTRA-LOW RESISTANCE AVALANCHE RATED, LOGIC LEVEL COMPATIBLE, ULTRA-LOW RESISTANCE AVALANCHE RATED, LOGIC LEVEL COMPATIBLE, ULTRA-LOW RESISTANCE
Avalanche Energy Efficiency Rating (Eas) 490 mJ 490 mJ 490 mJ
Shell connection DRAIN DRAIN DRAIN
Configuration SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage 40 V 40 V 40 V
Maximum drain current (Abs) (ID) 180 A 180 A 180 A
Maximum drain current (ID) 160 A 160 A 160 A
Maximum drain-source on-resistance 0.0031 Ω 0.0031 Ω 0.0031 Ω
FET technology METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code TO-220AB TO-262AA TO-263AB
JESD-30 code R-PSFM-T3 R-PSIP-T3 R-PSSO-G2
JESD-609 code e3 e3 e3
Number of components 1 1 1
Number of terminals 3 3 2
Operating mode ENHANCEMENT MODE ENHANCEMENT MODE ENHANCEMENT MODE
Maximum operating temperature 175 °C 175 °C 175 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT IN-LINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 250 260 260
Polarity/channel type N-CHANNEL N-CHANNEL N-CHANNEL
Maximum power dissipation(Abs) 200 W 200 W 200 W
Maximum pulsed drain current (IDM) 790 A 790 A 790 A
Certification status Not Qualified Not Qualified Not Qualified
surface mount NO NO YES
Terminal surface MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL
Terminal form THROUGH-HOLE THROUGH-HOLE GULL WING
Terminal location SINGLE SINGLE SINGLE
Maximum time at peak reflow temperature 30 40 30
transistor applications SWITCHING SWITCHING SWITCHING
Transistor component materials SILICON SILICON SILICON
Base Number Matches 1 - 1
Humidity sensitivity level - 1 1
