25-21SYGC/S530-E1/TR8 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 25-21SYGC/S530-E1/TR8

25-21SYGC/S530-E1/TR8: DescriptionSingle Color LED, Brilliant Yellow Green, Water Clear, 1.1mm, ROHS COMPLIANT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size121KB，8 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric View All

25-21SYGC/S530-E1/TR8 Overview

Single Color LED, Brilliant Yellow Green, Water Clear, 1.1mm, ROHS COMPLIANT, SMD, 2 PIN

25-21SYGC/S530-E1/TR8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compli
color	BRILLIANT YELLOW GREEN
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	WATER CLEAR
Nominal luminous intensity	18.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	TAPE AND REEL 7"
peak wavelength	575 nm
shape	ROUND
size	1.1 mm
surface mount	YES
Terminal pitch	3.4 mm
perspective	60 deg
Base Number Matches	1

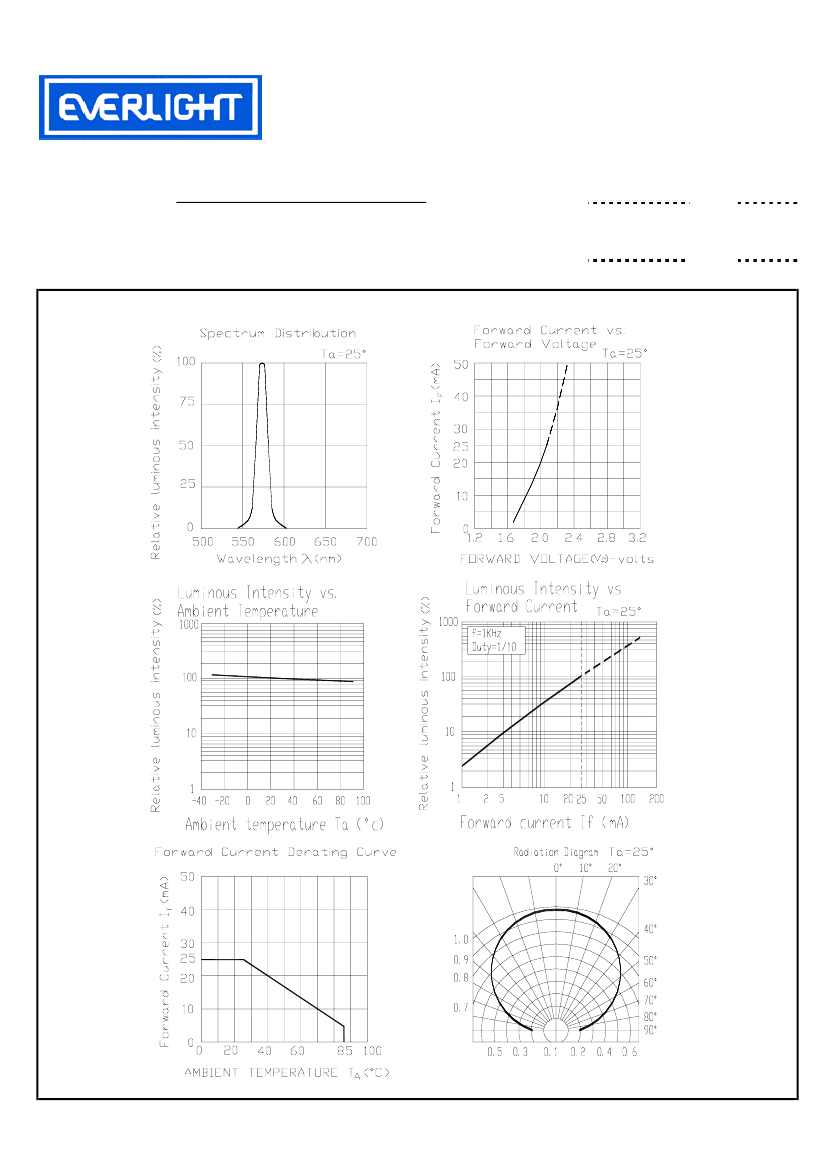

Preview

Download Datasheet

View All

EVERLIGHT ELECTRONICS CO., LTD.

MODEL NO:

25-21SYGC/S530-E1/TR8

Reverse Package Chip LED

Device Number：

DSE-251-004 REV.

1.0

ECN：

Page:

1/8

█

Features：

：

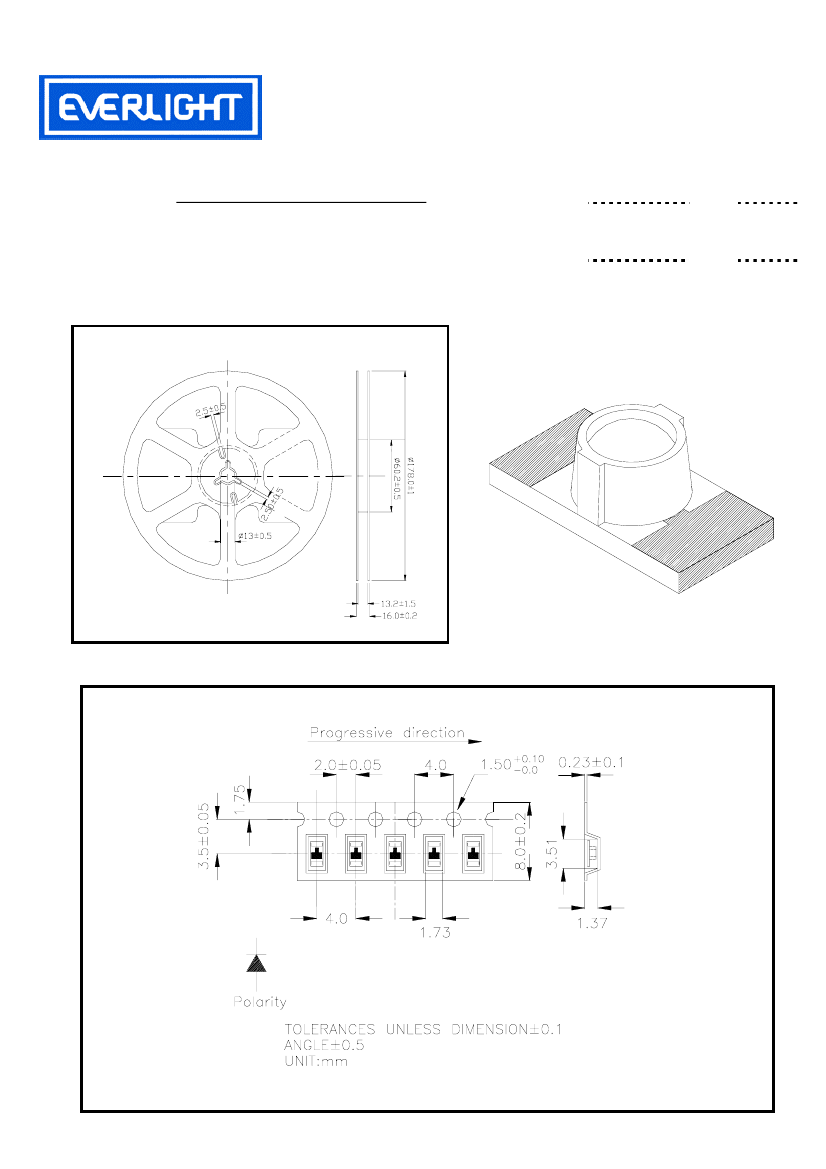

Package in 8mm tape on 7“ diameter

reel.

Compatible with automatic placement

equipment.

Compatible with infrared and vapor

phase reflow solder process.

Mono-color type.

█

Description：

：

The 25-21 SMD Taping is much smaller than

leaded components, thus enable smaller board

size, higher packing density, reduced storage

space and finally smaller equipment to be

obtained.

Besides, lightweight makes them ideal for

miniature application, etc.

█

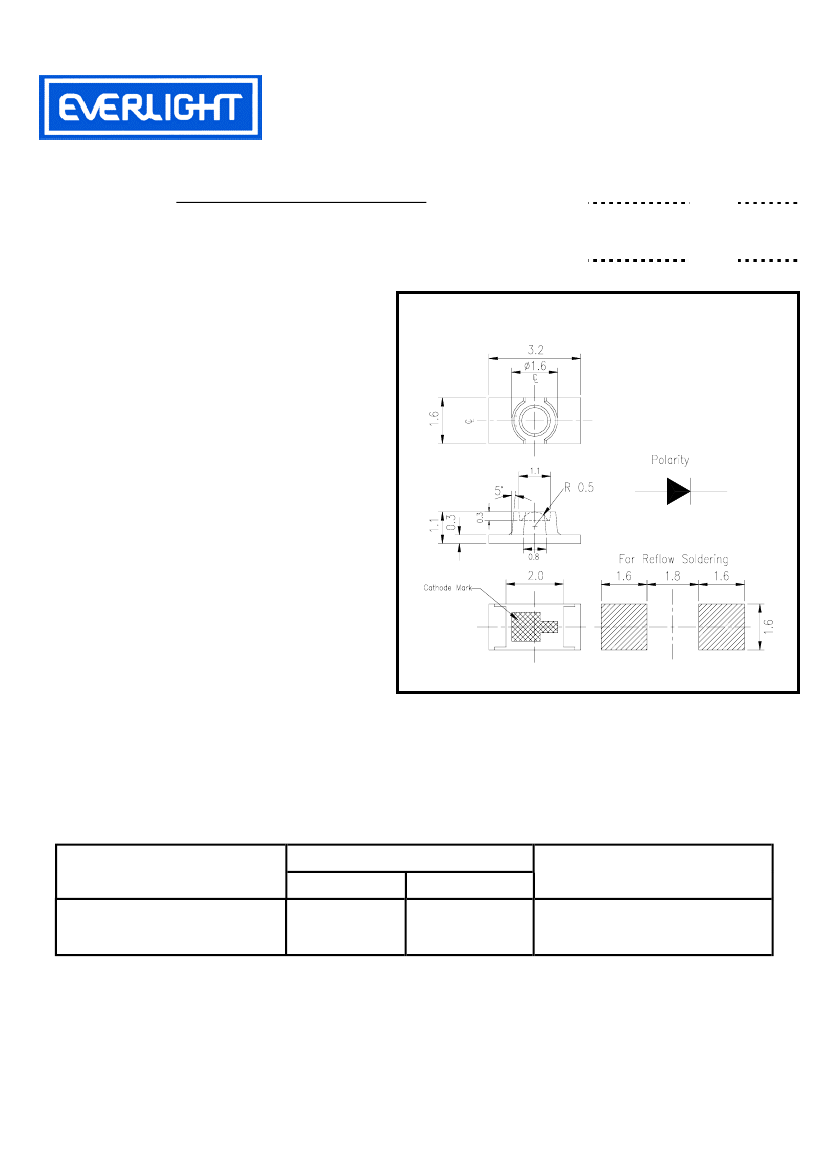

Package Dimensions：

：

█

Applications：

：

Automotive: backlighting in dashboard and switch.

■

Notes：

：

0.1mm

Angle±0.5°

Telecommunication: indicator and backlighting in telephone and fax.

Tolerances Unless Dimension

Flat backlight for LCD, switch and symbol.

General use.

PART NO

25-21SYGC/S530-E1/TR8

CHIP

Material

Emitted Color

Super Yellow

AlGaInP

Green

Lens Color

Water

Clear

Office: NO 25,Lane.76, Chung Yang Rd., Sec.3, Tucheng, Taipei 236, Taiwan, R.O.C.

TEL: 886-2-2267-2000,2266-9936(22 Lines)

FAX: 886-2-2267-6189

http: //www.everlight.com
