SM7745HE-50.0M-T1K

Description
CMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, CERAMIC, LCC-4
CategoryPassive components    oscillator
File Size110KB,8 Pages
ManufacturerPletronics
Environmental Compliance
Download Datasheet Parametric View All

SM7745HE-50.0M-T1K Overview

CMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, CERAMIC, LCC-4

SM7745HE-50.0M-T1K Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerPletronics
Reach Compliance Codeunknown
Other featuresENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time8 ns
Frequency Adjustment - MechanicalNO
frequency stability50%
JESD-609 codee4
Manufacturer's serial numberSM77H
Installation featuresSURFACE MOUNT
Nominal operating frequency50 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typeCMOS
Output load30 pF
physical size7.0mm x 5.0mm x 1.73mm
longest rise time8 ns
Maximum supply voltage5.5 V
Minimum supply voltage4.5 V
Nominal supply voltage5 V
surface mountYES
maximum symmetry55/45 %
Terminal surfaceGold (Au)

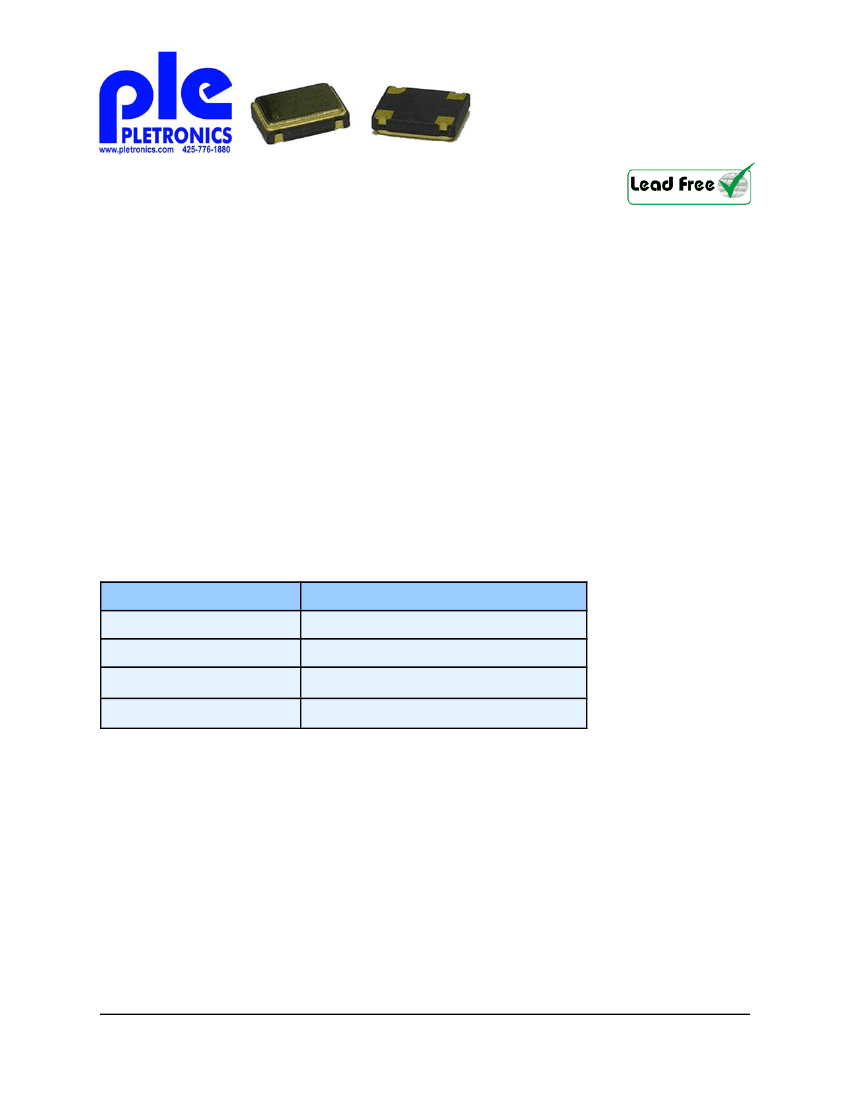

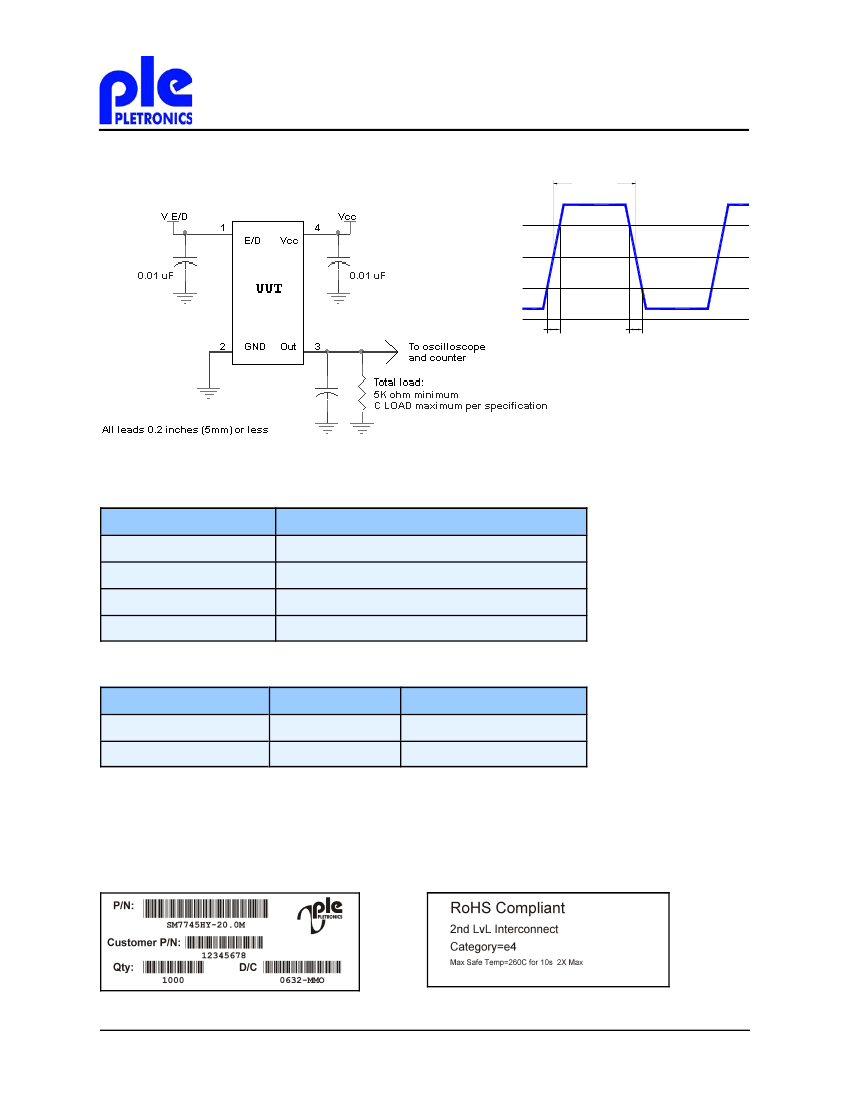

SM77H Series 5.0V
CMOS Clock Oscillators
May 2008
• Pletronics’ SM77H Series is a quartz crystal
controlled precision square wave generator with a
CMOS output.
• The package is designed for high density surface
mount designs.
• This is a low cost mass produced oscillator.
• Tape and Reel or cut tape packaging is available.
0.8 to 70 MHz
5 x 7 mm LCC Ceramic Package
Enable/Disable or Standby Function
Disable function includes low standby power
mode
• Low Jitter
Pletronics Inc. certifies this device is in accordance with the
RoHS 6/6 (2002/95/EC) and WEEE (2002/96/EC) directives.
Pletronics Inc. guarantees the device does not contain the following:
Cadmium, Hexavalent Chromium, Lead, Mercury, PBB’s, PBDE’s
Weight of the Device: 0.17 grams
Moisture Sensitivity Level: 1 As defined in J-STD-020C
Second Level Interconnect code: e4
Absolute Maximum Ratings:
Parameter
V
CC
Supply Voltage
Vi
Vo
Io
Input Voltage
Output Voltage
Output Current
Unit
-0.5V to +7.0V
-0.5V to V
CC
+ 0.5V
-0.5V to V
CC
+ 0.5V
+25 mA to -25 mA
Thermal Characteristics
The maximum die or junction temperature is 155
o
C
The thermal resistance junction to board is 30 to 50
o
C/Watt depending on the solder pads, ground plane
and construction of the PCB.
Product information is current as of publication date. The product conforms
to specifications per the terms of the Pletronics standard warranty. Production
processsing does not necessarily include testing of all parameters.
Copyright © 2006, 2007, 2008 Pletronics Inc.
