FP5155 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP5155

FP5155: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size62KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5155 Overview

RF AMPLIFIER MODEL

FP5155 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	14 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	300 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

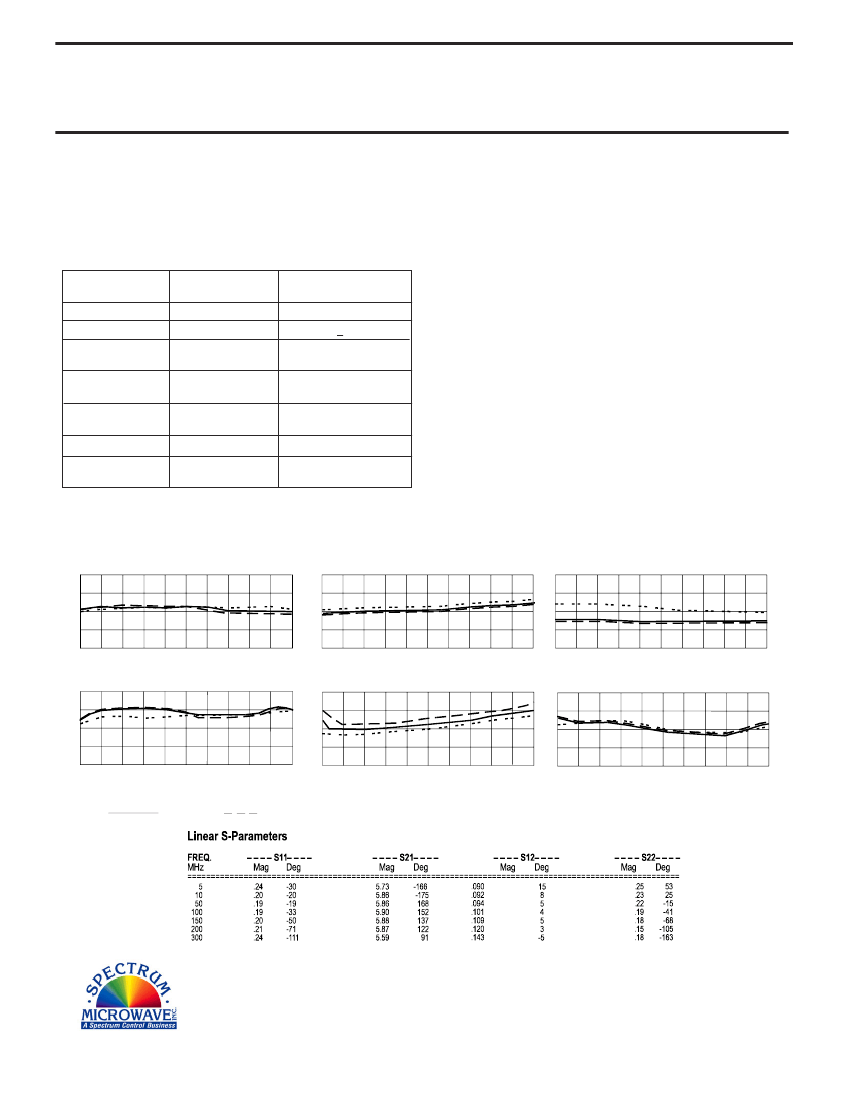

RF AMPLIFIER

MODEL

TM5155

Features

High 3rd Order Intercept: +37 dBm Typical

Medium Gain: 15 dB Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM5155, 4 Pin TO-8 (T4)

TN5155, 4 Pin Surface Mount (SM3)

FP5155, 4 Pin Flatpack (FP4)

BX5155, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+54 dBm (Typ.)

Second Order Two Tone Intercept Point.........+48 dBm (Typ.)

Third Order Two Tone Intercept Point.............+37 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

5-300 MHz

15.0

>+22

-17

<1.75:1

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5-300 MHz

15.0 + 1.0 Min

+21 Min.

-16 Max.

2.0:1 Max.

6.0 Max.

+15 Min.

90 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 17 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 5 MHz

Stop 300 MHz

Gain (dB)

-10

- 20

- 30

- 40

Reverse Isolation (dB)

Noise Figure (dB)

Start 5 MHz

Stop 300 MHz

Start 5 MHz

Stop 300 MHz

+24

+23

+22

+21

+20

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

Output VSWR

2.0

1.5

1.0

Start 5 MHz

Stop 300 MHz

Start 5 MHz

Stop 300 MHz

Start 5 MHz

Stop 300 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

6/17/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP5155 Related Products

	FP5155	BX5155	TM5155	TN5155
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	14 dB	14 dB	14 dB	14 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	300 MHz	300 MHz	300 MHz	300 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	API Technologies	-	API Technologies	API Technologies
