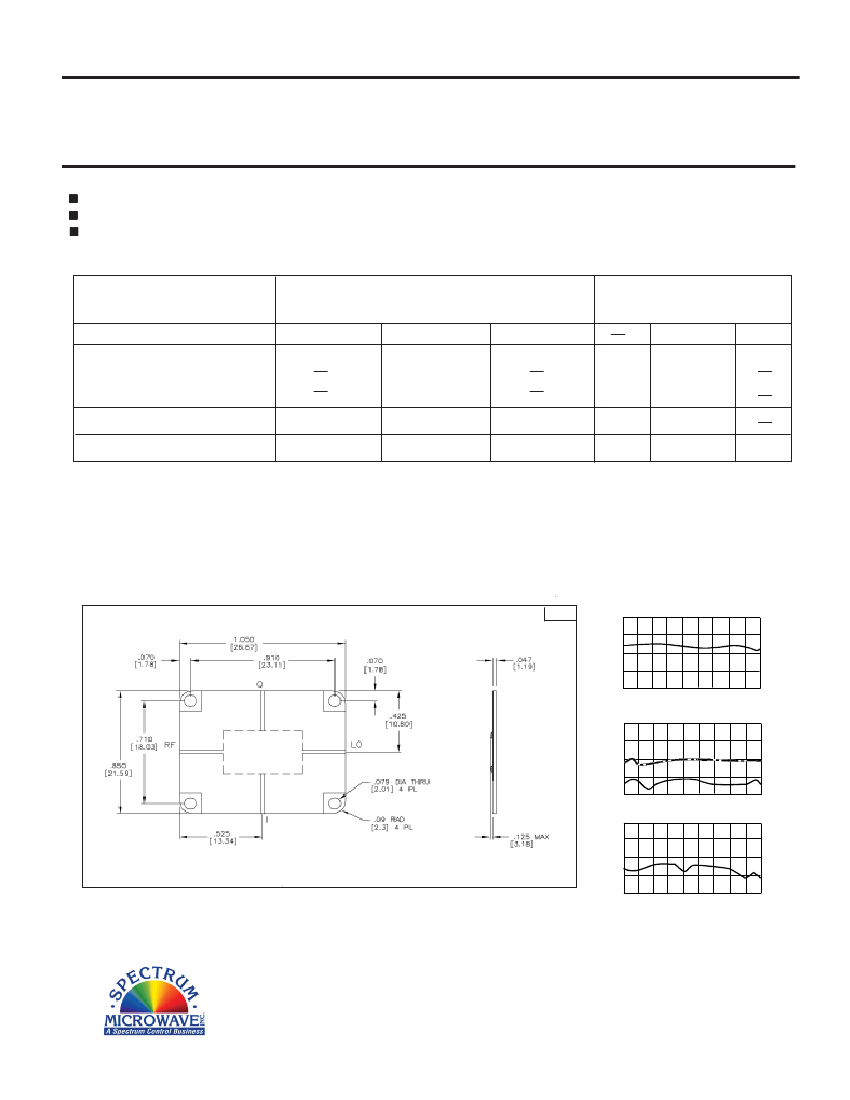

I/Q MIXER/ MODULATOR
MODEL
MIQ24MS-6
Features
Conversion Loss: 6.0 dB Typical
LO to IF Isolation: 32 dB Typical
Operating Temperature Range: - 55ºC to +100ºC
Available as:
MIQ24MS-6, .850 “ x 1.05”
Microstrip Carrier
RF:
3 to 4 GHz
LO:
3 to 4 GHz
IF:
DC to 62 MHz
Conditions
Specifications
IF (MHz)
DC - 62
Electrical Speci cations
:
(1)
SSB Conversion loss:
Isolations
LO to RF
LO to IF
Sideband Suppression:
LO Power Input:
Notes:
Parameter
RF (GHz)
3.0 - 4.0
LO (GHz)
3.0 - 4.0
3.0 - 4.0
3.0 - 4.0
Min
30 dB
30 dB
Typical
6.0 dB
35 dB
32 dB
25 dB
10.0 dBm
Max
8.0 dB
3.0 - 4.0
3.0 - 4.0
3.0 - 4.0
3.0 - 4.0
DC - 62
DC - 62
22 dB
+8.0 dBm
+11 dBm
1. Speci cations are guaranteed when tested as a downconverter in a 50 Ohm system at +25ºC with an LO power of +10 dBm.
2. Noise gure is typically within
±0.5 dB of the SSB Conversion loss for IF frequencies greater than 10 MHz.
Case Outline
MSQ8
Typical Performance Data
3
4
5
6
7
3.0 GHz
4.0 GHz
Conversion Loss (dB)
10
20
30
40
50
0
10
20
LO to RF, LO to IF Isolation (dB)
LO to IF
3.0 GHz
LO to RF
4.0 GHz
Sideband Suppression (dB)
All dimensions are in inches and [mm].
Microstrip Traces: LO, RF, and IF traces are 0.02 in (0.51 mm) wide tin plated copper on Duroid, suitable for solder attach.
30
40
3.0 GHz
4.0 GHz
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, FL 32905 · PH (888) 553-7531 · Fax (888) 553-7532
01/03/06
www.SpectrumMicrowave.com
Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, PA 19154 · PH (215) 464-4000 · Fax (215) 464-4001
