RUE600-AP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RUE600-AP

RUE600-AP: DescriptionRESISTOR, TEMPERATURE DEPENDENT, PTC RESETTABLE FUSE, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components The resistor; File Size108KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

RUE600-AP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RUE600-AP	-	-	View	Buy Now

RUE600-AP Overview

RESISTOR, TEMPERATURE DEPENDENT, PTC RESETTABLE FUSE, THROUGH HOLE MOUNT, RADIAL LEADED

RUE600-AP Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
package instruction	RADIAL LEADED
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	RESISTANCE RANGE(MIN-MAX): 0.0050-0.02
JESD-609 code	e0
Manufacturer's serial number	RUE
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	85 °C
Package shape	RECTANGULAR PACKAGE
method of packing	AMMO PACK
Rated (AC) voltage (URac)	30 V
Rated power dissipation(P)	3.5 W
Resistor type	PTC RESETTABLE FUSE
surface mount	NO
Terminal surface	TIN LEAD
Terminal location	RADIAL
Terminal shape	WIRE
Thermistor Applications	TEMPERATURE SENSING

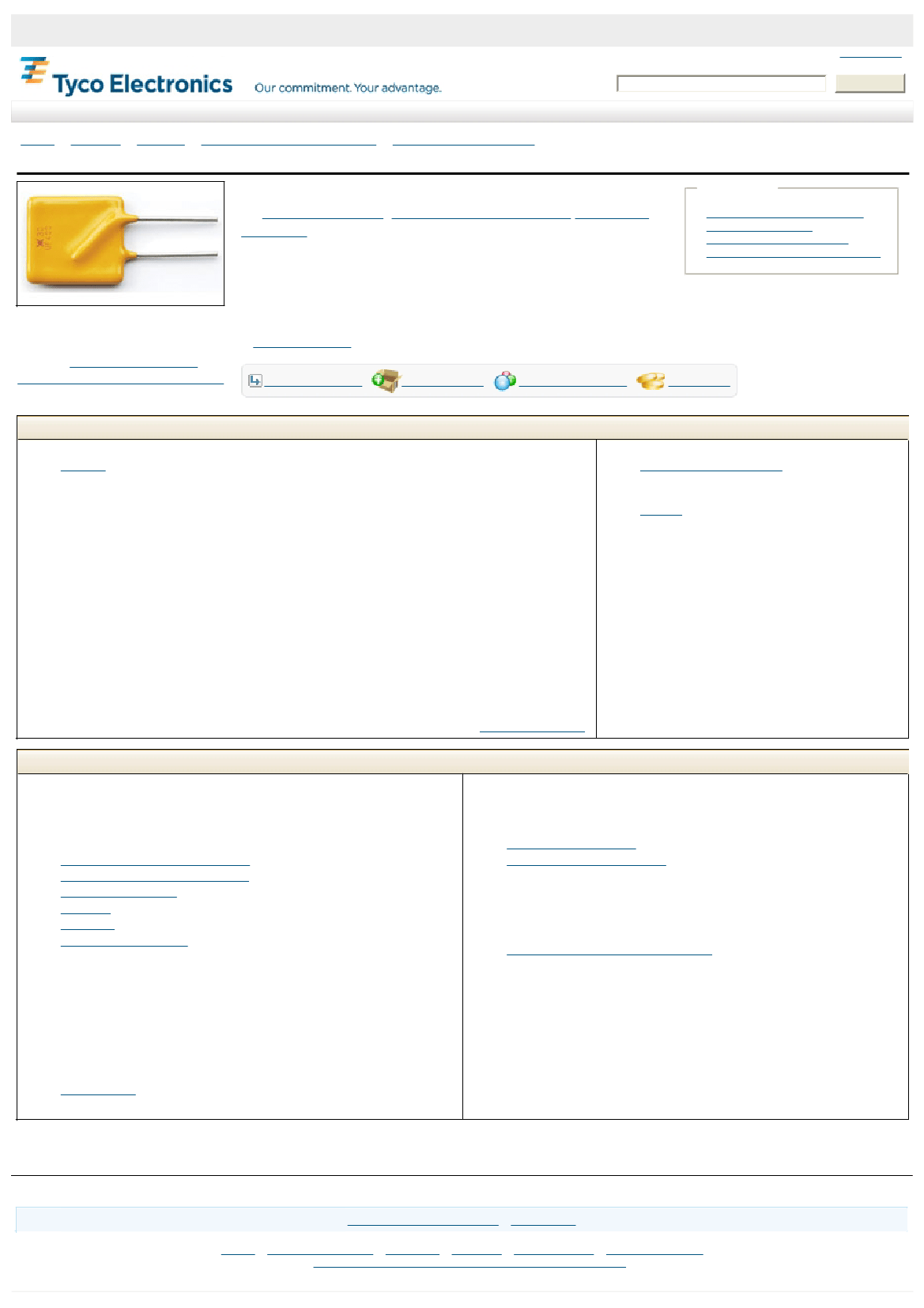

RUE600-AP Preview

C orporate Hom e

Electronic Components

Se gm e nts

W ho W e Are

My Account

Searc h

Products

Documentation

Resources

My Account

Customer Support

Home

Products

By Type

PolySwitch Resettable Devices

Product Feature Selector

> Product Details

RUE600-AP Product Details

PolySwitch Resettable Devices

Always ELV C om plia nt

(

Find R oHS C om plia nt Alte rna te s

Sta te m e nt of

C om plia nce

)

Quick Links

C heck Pricing & Availability

Search for Tooling

Product Feature Selector

C ontact Us About This Product

RUE600-AP

T E I nternal N umber: 2 9 2 3 7 5 - 0 0 0

Product Highlights:

Radial Application

Family Name = RUE

Radial C onstruction, Through Hole C onstruction

IH (Room Temperature) = 6 Amps.

IT (Room Temperature) = 12.00 Amps.

View all Features

A dd to M y P art L is t

Reques t Sample

Find Similar P roduc ts

Pending Obsolescence

C ontact Product Information C enter

Buy P roduc t

Documentation & Additional Information

Product Drawings:

RUE600

(PDF, English)

Catalog Pages/Data Sheets:

None Available

Product Specifications:

None Available

Application Specifications:

None Available

Instruction Sheets:

None Available

CAD Files:

None Available

List all Documents

Product Features

(Please use the Product Drawing for all design activity)

Product Type Features:

UL Recognized = File No. E74889

C SA File No. = 78165C

Electrical Characteristics:

IH (Room Temperature) (Amps.)

= 6

IT (Room Temperature) (Amps.)

= 12.00

Vmax Operating (V)

= 30

Rmin (?)

= 0.005

Rmax (?)

= 0.020

R1 Max [Post Trip] (?)

= 0.04

Power Dissipation (Typical) (W) = 3.50

Termination Related Features:

C onstruction = Radial, Through Hole

Body Related Features:

Lead Type = Straight

Contact Related Features:

Family Name

= RUE

Configuration Related Features:

C oating = C oated

Industry Standards:

RoHS/ELV C ompliance

= ELV compliant

Lead Free Solder Processes

= Wave solder capable to 240?C , Wave

solder capable to 260?C , Wave solder capable to 265?C

RoHS/ELV C ompliance History = Always was ELV compliant

TUV C ertificate No. = R2279286

Conditions for Usage:

Operating Temperature (Max.) (?C )

= 85

Operation/Application:

Application = Radial

Packaging Related Features:

Packaging Method = Ammo Pack

Other:

Brand = Raychem

Additional Information:

Product Line Information
