FP6010PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6010PM

FP6010PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size194KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6010PM Overview

RF AMPLIFIER MODEL

FP6010PM Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	13 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

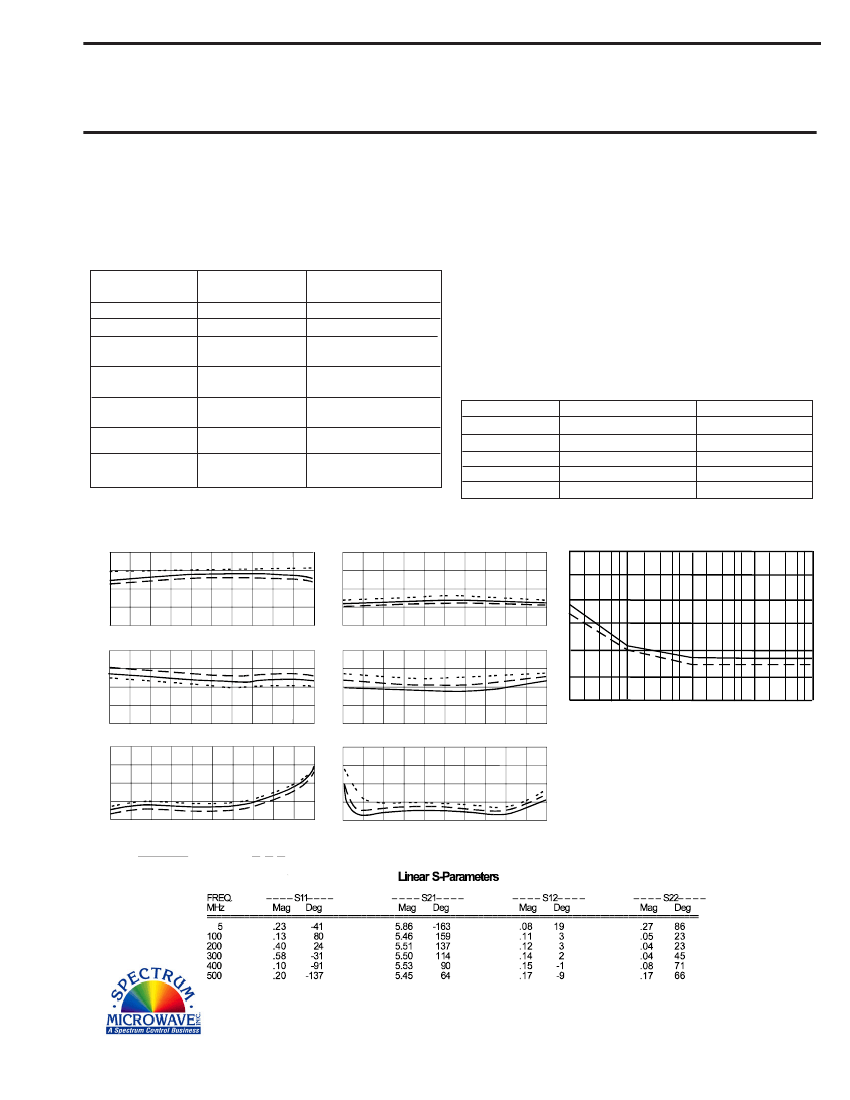

RF AMPLIFIER

MODEL

TM6010PM

Features

Superior Phase Noise Performance

High Output Power: +23 dBm Typical

High Third Order Intercept: +36 dBm Typical

Low +10 volt Supply

Environmental Screening Available

Available as:

TM6010PM, 4 Pin TO-8 (T4)

TN6010PM, 4 Pin Surface Mount (SM3)

FP6010PM, 4 Pin Flatpack (FP4)

BX6010PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +56 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +50 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +36 dBm (Typ.)

(Absolute) Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage ...........................................................+12 volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power ............. 50 mW (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

5 - 500 MHz

14.5

+23

-18

<1.4:1

<1.2:1

4.6

+10

145

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 500 MHz

13.0 Min.

+20 Min.

-15 Max.

2.0:1 Max.

6.0 Max.

+10

150 Max.

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-156

-170

-175

Guaranteed

-152

-168

-172

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

+24

+23

+22

+21

+20

Start

2.0

1.5

1.0

Start

5 MHz

Start 5 MHz

Gain (dB)

+ 10

- 10

- 20

- 30

2.0

1.5

1.0

Start

Reverse Isolation (dB)

-130

-140

-150

-160

-170

-180

-190

100

Phase Noise (dBc/Hz)

1 dB Comp. (dBm)

Stop 500 MHz

Start 5 MHz

Noise Figure (dB)

Stop 500 MHz

10 k

100 k

Input VSWR

Stop 500 MHz

Start 5 MHz

Output VSWR

Stop 500 MHz

_________Guarantee __ __ __ __Typical

Test

Residual Phase Noise

MHz

Conditions

Carrier Frequency: 500

Power Output: +23 dBm

Temperature: 25 ºC

Agilent ES5500 System

Stop 500 MHz

5 MHz

Stop 500 MHz

5 MHz

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

3/3/09

www.SpectrumMicrowave.com
