FP6191PM Overview

RF AMPLIFIER MODEL

FP6191PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	22 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	600 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

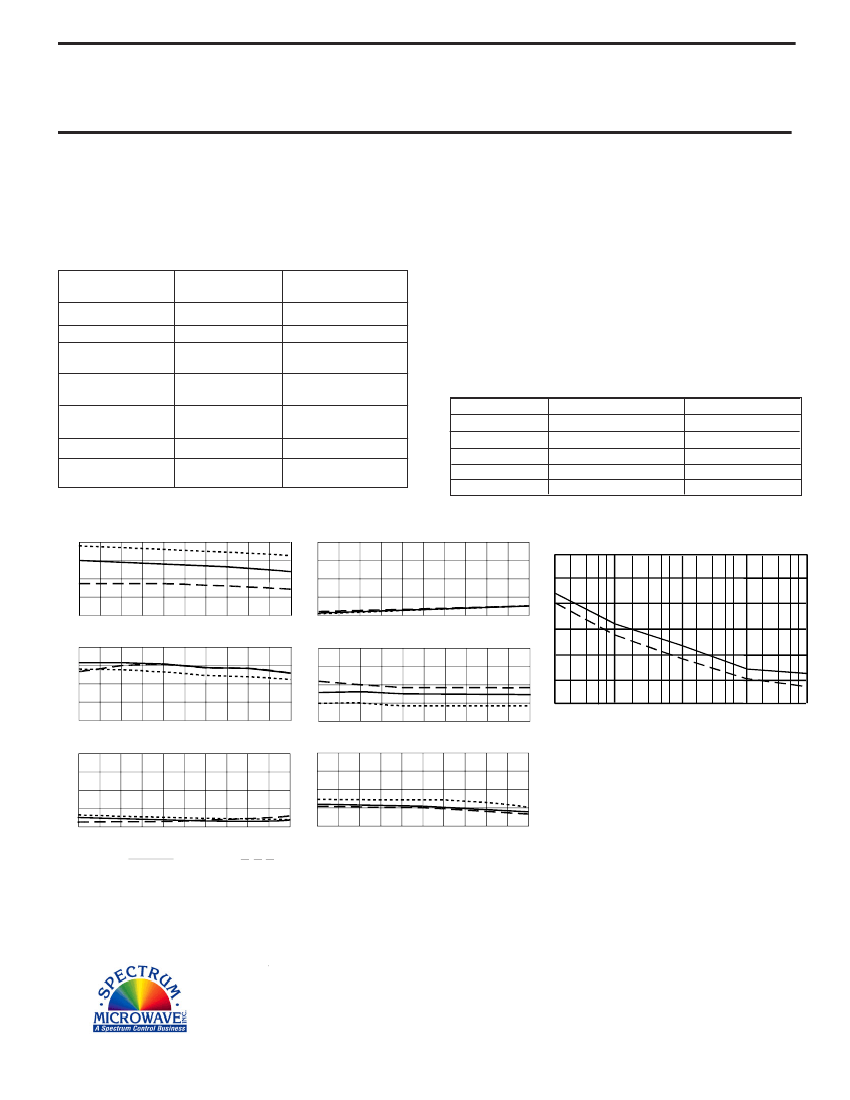

RF AMPLIFIER

MODEL

TM6191PM

Features

!

Low Noise Figure: 2.5 dB Typical

Medium Output Power: +21.5 dBm Typical

Operating Temp. -55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM6191PM, 4 Pin TO-8 (T4)

TN6191PM, 4 Pin Surface Mount (SM3)

FP6191PM, 4 Pin Flatpack (FP4)

BX6191PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ...... +57 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +52 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +36 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

In

Out

Noise Figure (dB)

Power

Vdc

mA

TYPICAL

Ta= 25 ºC

100 - 600 MHz

23.5

+21.5

-35

<1.25:1

<1.50:1

2.5

+15

95

MIN/MAX

Ta = -55 ºC to +85 ºC

100 - 600 MHz

22.0 Min.

+20 Min.

-33 Max.

2.0:1 Max.

3.0:1 Max.

4.0 Max.

+15

100 Max.

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power.... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-140

-152

-161

-169

-172

Guarantee

-136

-148

-157

-165

-168

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

25

24

23

22

21

Start 100 MHz

Stop 600 MHz

Gain (dB)

0

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

-120

-130

-140

Start 100 MHz

Stop 600 MHz -150

-160

-170

-180

100

Stop 600 MHz

Phase Noise (dBc/Hz)

+23

+22

+21

+20

1 dB Comp. (dBm)

5

4

3

2

1

Noise Figure (dB)

1k

10k

100k

1M

Start 100 MHz

Stop 600 MHz

Start 100 MHz

_________Guarantee __ __ __ __Typical

2.0

1.5

1.0

Start 100 MHz

Input VSWR

2.0

1.5

1.0

Stop 600 MHz

Output VSWR

*

Start 100 MHz

Stop 600 MHz

Residual Phase Noise Test Conditions

Carrier Frequency: 600 MHz

Power Output: +21.5 dBm

Temperature: 25 ºC

Agilent ES5500 System

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Linear S-Parameters

FREQ.

– – – – S11– – – –

– – – – S21– – – –

– – – – S12– – – –

– – – – S22– – – –

MHz

Mag

Deg

Mag

Deg

Mag

Deg

Mag

Deg

=========================================================================================================

100

.05

15.95

-17

3

.12

-173

175

.0131

200

.04

15.83

-39

2

.09

173

175

.0129

300

.03

15.73

-59

4

.13

162

-179

.0146

400

.02

15.60

-80

5

.14

177

-170

.0155

500

.02

15.42

-101

1

.10

-167

-139

.0163

600

.01

14.93

-122

-1

.04

148

-98

.0172

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

3/31/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
