FP6442: DescriptionRF AMPLIFIER MODEL; File Size66KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Compare View All

FP6442 Overview

RF AMPLIFIER MODEL

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6442

Features

High Output Power: +22 dBm Typical

High IP3: +37 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM6442, 4 Pin TO-8 (T4)

TN6442, 4 Pin Surface Mount (SM3)

FP6442, 4 Pin Flatpack (FP4)

BX6442, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ...... +57 dBm (Typ.)

Second Order Two Tone Intercept Point ...... +51 dBm (Typ.)

Third Order Two Tone Intercept Point .......... +37 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

20 - 400 MHz

+22

-19

1.15:1

1.25:1

4.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

20 - 400 MHZ

12.5 Min

+19.0 Min.

-17 Max.

2.0:1 Max.

6.0 Max.

+15

65 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 18 dBm

Short Term RF Input Power....... 50 Milliwatts 1 Minute Max.)

Maximum Peak Power ................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

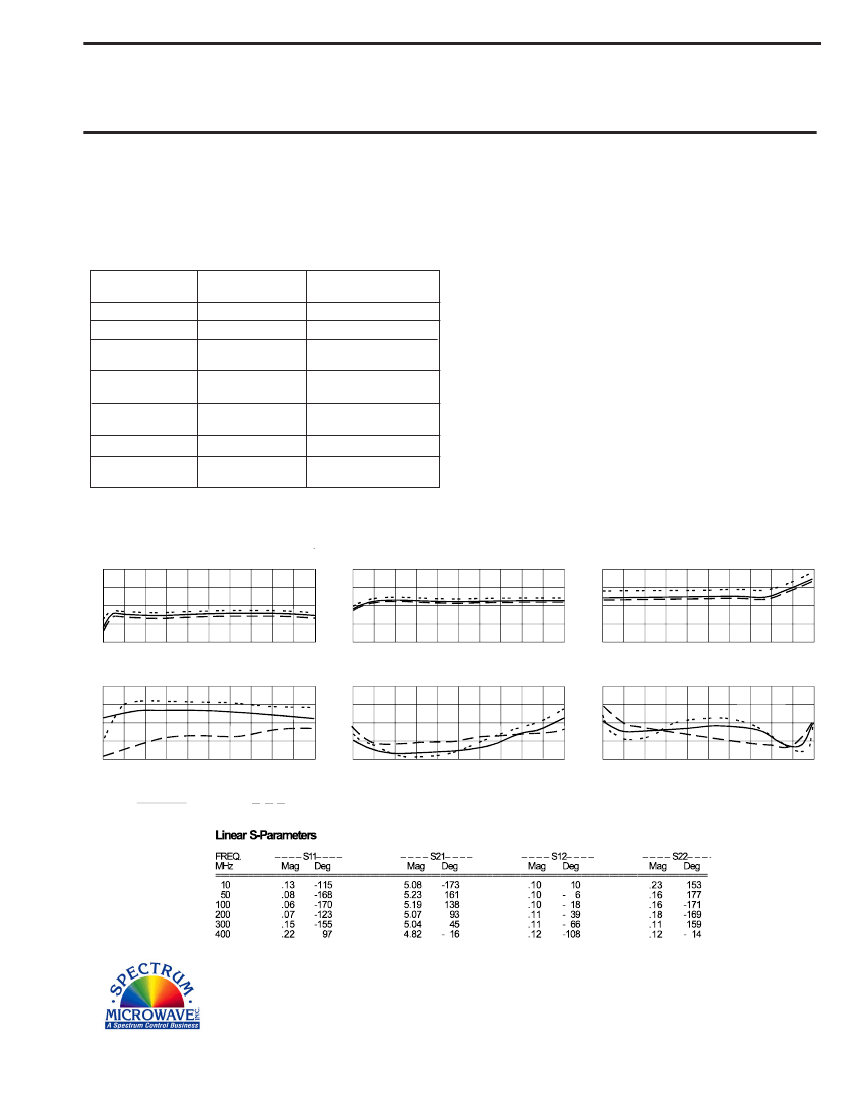

Typical Performance Data

Start 20 MHz

Stop 400 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Noise Figure (dB)

Start 20 MHz

Stop 400 MHz

Start 20 MHz

Stop 400 MHz

+24

+23

+22

+21

+20

1 dB Comp. (dBm)

Input VSWR

2.0

1.5

1.0

2.0

1.5

1.0

Start 20 MHz

Stop 400 MHz

Output VSWR

Start 20 MHz

Stop 400 MHz

Start 20 MHz

Stop 400 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

05/11/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6442 Related Products

	FP6442	BX6442	TM6442	TN6442
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	-	API Technologies	API Technologies	API Technologies
package instruction	-	H1	CAN4,.3	SM3, SURFACE MOUNT PACKAGE-4
Reach Compliance Code	-	compli	compliant	compli
Other features	-	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	-	COAXIAL	COMPONENT	COMPONENT
Gain	-	12.5 dB	12.5 dB	12.5 dB
Maximum input power (CW)	-	18 dBm	18 dBm	18 dBm
Maximum operating frequency	-	400 MHz	400 MHz	400 MHz
Minimum operating frequency	-	20 MHz	20 MHz	20 MHz
Maximum operating temperature	-	85 °C	85 °C	85 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	-	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	-	2	2	2
