1206 CHIP INDUCTORS
Aerospace Grade Chip Inductors
AE376RAA
The AE376RAA inductors feature high SRF and excel-
lent Q values. Their ceramic cores make 1% tolerances
practical and economical and ensure the utmost in
thermal stability, predictability and consistency.
This robust version of Coilcraft’s standard 1206CS se-
ries features high temperature materials that pass NASA
low outgassing specifications and allow operation in
ambient temperatures up to 155°C. The leach-resistant
base metalization with tin-lead (Sn-Pb) terminations en-
sures the best possible board adhesion.
Q
min
3
SRF min
4
(MHz)
6200
5500
4000
3200
3200
2800
2200
1800
1800
1800
1500
1450
1200
1200
1100
1100
950
900
760
730
650
600
550
470
470
450
440
420
410
400
380
Part number
1
AE376RAA030JSZ
AE376RAA060JSZ
AE376RAA100JSZ
AE376RAA120_SZ
AE376RAA150_SZ
AE376RAA180_SZ
AE376RAA220_SZ
AE376RAA270_SZ
AE376RAA330_SZ
AE376RAA390_SZ
AE376RAA470_SZ
AE376RAA560_SZ
AE376RAA680_SZ
AE376RAA820_SZ
AE376RAA101_SZ
AE376RAA121_SZ
AE376RAA151_SZ
AE376RAA181_SZ
AE376RAA221_SZ
AE376RAA271_SZ
AE376RAA331_SZ
AE376RAA391_SZ
AE376RAA471_SZ
AE376RAA561_SZ
AE376RAA621_SZ
AE376RAA681_SZ
AE376RAA751_SZ
AE376RAA821_SZ
AE376RAA911_SZ
AE376RAA102_SZ
AE376RAA122_SZ
Inductance
2
(nH)
3.3 @ 100 MHz
6.8 @ 100 MHz
10 @ 100 MHz
12 @ 100 MHz
15 @ 100 MHz
18 @ 100 MHz
22 @ 100 MHz
27 @ 100 MHz
33 @ 100 MHz
39 @ 100 MHz
47 @ 100 MHz
56 @ 100 MHz
68 @ 100 MHz
82 @ 100 MHz
100 @ 100 MHz
120 @ 100 MHz
150 @ 100 MHz
180 @ 50 MHz
220 @ 50 MHz
270 @ 50 MHz
330 @ 50 MHz
390 @ 50 MHz
470 @ 50 MHz
560 @ 35 MHz
620 @ 35 MHz
680 @ 35 MHz
750 @ 35 MHz
820 @ 35 MHz
910 @ 35 MHz
1000 @ 35 MHz
1200 @ 35 MHz
Percent
tolerance
5
5
5
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
DCR max
5
(Ohms)
0.050
0.070
0.080
0.080
0.100
0.100
0.100
0.110
0.110
0.120
0.130
0.140
0.260
0.210
0.260
0.260
0.310
0.430
0.500
0.560
0.620
0.750
1.30
1.34
1.58
1.58
2.25
1.82
2.95
2.80
3.20
Imax
(mA)
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
900
900
850
800
750
700
670
630
590
530
490
460
460
430
320
400
310
320
300
30 @ 300 MHz
30 @ 300 MHz
40 @ 300 MHz
40 @ 300 MHz
40 @ 300 MHz
50 @ 300 MHz
50 @ 300 MHz
50 @ 300 MHz
55 @ 300 MHz
55 @ 300 MHz
55 @ 300 MHz
55 @ 300 MHz
55 @ 300 MHz
55 @ 300 MHz
55 @ 300 MHz
60 @ 300 MHz
60 @ 300 MHz
60 @ 300 MHz
60 @ 300 MHz
55 @ 300 MHz
45 @ 150 MHz
45 @ 150 MHz
45 @ 150 MHz
45 @ 150 MHz
45 @ 150 MHz
45 @ 150 MHz
45 @ 150 MHz
45 @ 150 MHz
45 @ 150 MHz
45 @ 150 MHz
45 @ 150 MHz
1. When ordering, please specify
tolerance
and
testing
codes:
AE376RAA122JSZ
Tolerance: F
= 1%
G
= 2%
J
= 5%
Testing:
Z
= Coilcraft Critical Products Environmental Stress Conditions Testing.
H
= Coilcraft Qual + Coilcraft Hi-Rel Burn-in
P
= Coilcraft Qual + MIL-STD-981 Class S Group A screening
N
= Coilcraft Qual + MIL-STD-981 Class B Group A screening
C
= Coilcraft Qual + MIL-STD-981 Class S Group A screening + MIL-STD-981 Class S Group B qualification
W
= Coilcraft Qual + MIL-STD-981 Class B Group A screening + MIL-STD-981 Class S Group B qualification
2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/HP 4286A impedance analyzer with Coilcraft-provided correlation pieces.
3. Q measured using an Agilent/HP 4291A with an Agilent/HP 16193 test fixture.
4. SRF measured using an Agilent/HP 8720D network analyzer and a Coilcraft SMD-D test fixture.
5. DCR measured on a Cambridge Technology Micro-ohmmeter and a Coilcraft CCF840 fixture.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
®
These parts are preproduction products for electrical evaluation only.
Specification subject to change without notice.
Document AE104-1 Revised 06/01/09
1102 Silver Lake Road
Cary IL 60013
© Coilcraft, Inc. 2009
Phone
800-981-0363
Fax
847-639-1508
E-mail
cp@coilcraft.com
Web
www.coilcraft-cps.com

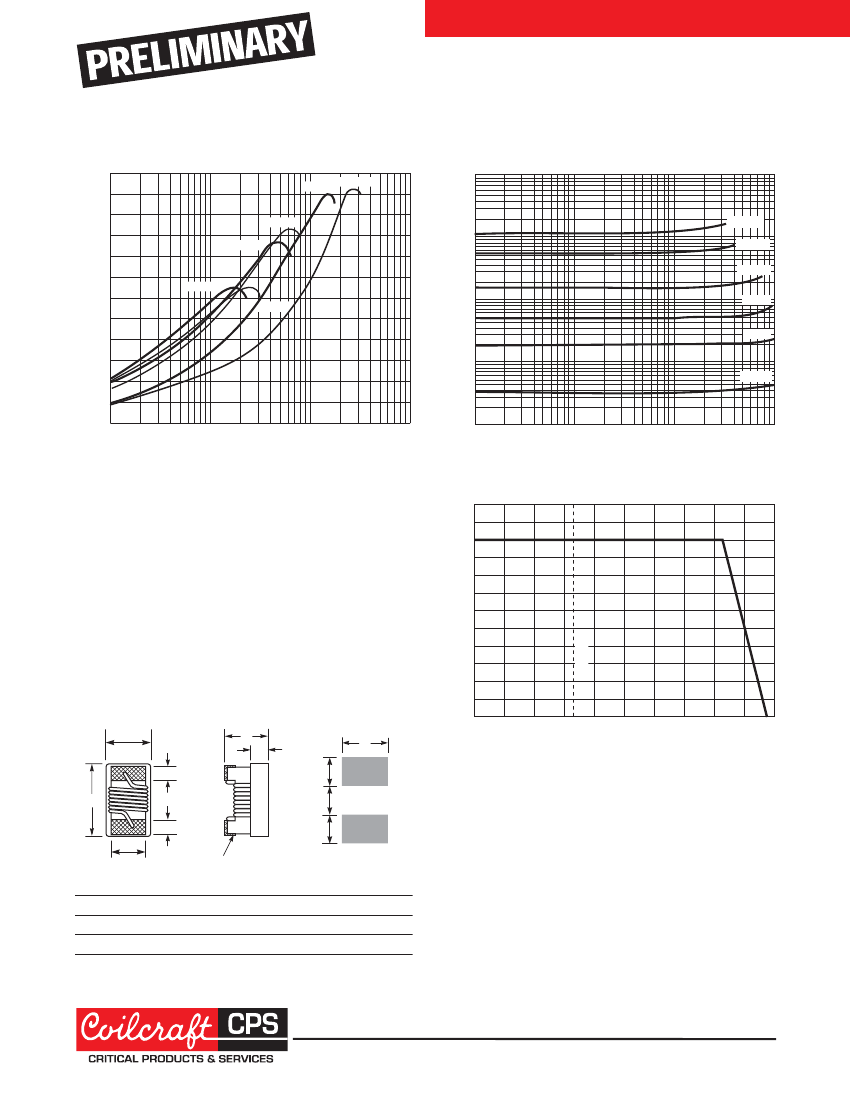

1206 CHIP INDUCTORS
AE376RAA Series (1206)
Typical Q vs Frequency
120
110
100
90
15 nH
3.3 nH
Typical L vs Frequency
10000
33 nH
1200 nH
1000
560 nH
150 nH
100
47 nH
150 nH
70
680 nH
60
50
40
30
20
10
0
10
100
1000
10000
330 nH
Inductance (nH)
80
Q Factor
18 nH
10
3.3 nH
1
1
10
100
1000
Frequency (MHz)
Core material
Ceramic
Terminations
Tin-lead (63/37) over silver-platinum-glass frit
Ambient temperature
–55°C to +125°C with
Imax
current, +125°C
to +155°C with derated current
Frequency (MHz)
Current Derating
120
110
100
Percent of rated
I
rms
Storage temperature
Component: –55°C to +155°C.
Packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +155 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
2000 per 7″ reel
Plastic tape: 8 mm wide, 0.3 mm thick, 4 mm pocket spacing,
1.6 mm pocket depth
90
80
70
60
50
30
20
10
0
-40
-20
0
20
25°C
40
40
60
80
100
120
140 160
B
overall
F
A
G
F
E
terminal
C
D
I
J
I
Terminal wraparound:
approx 0.015/0,38 both ends
H
Ambient temperature (°C)
Suggested
Land Pattern
H
I
J
A max B max C max
0.140
3,56
0.085
2,16
0.060
1,52
D ref
E
F
G
0.020 0.056 0.020 0.080 0.076 0.040 0.070 inches
0,51
1,42
0,51
2,03
1,93 1,02 1,78 mm
All dimensions are without solder applied to the terminations. For
maximum dimensions with solder, add 0.006 inches / 0,152 mm.
These parts are preproduction products for electrical evaluation only.
Specification subject to change without notice.
Document AE104-2 Revised 06/01/09
®
1102 Silver Lake Road
Cary IL 60013
© Coilcraft, Inc. 2009
Phone
800-981-0363
Fax
847-639-1508
E-mail
cp@coilcraft.com
Web
www.coilcraft-cps.com
