21281-BA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 21281-BA

21281-BA: DescriptionRISC Microprocessor, 32-Bit, 110MHz, CMOS, PQFP144, TQFP-144; CategoryThe embedded processor and controller Microcontrollers and processors; File Size180KB，10 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

21281-BA Overview

RISC Microprocessor, 32-Bit, 110MHz, CMOS, PQFP144, TQFP-144

21281-BA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QFP
package instruction	LFQFP, QFP144,.87SQ,20
Contacts	144
Reach Compliance Code	unknow
ECCN code	3A001.A.3
Address bus width	32
bit size	32
boundary scan	YES
maximum clock frequency	110 MHz
External data bus width	32
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G144
JESD-609 code	e0
length	20 mm
low power mode	YES
Number of terminals	144
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Encapsulate equivalent code	QFP144,.87SQ,20
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	1.65,3.3 V
Certification status	Not Qualified
Maximum seat height	1.7 mm
speed	110 MHz
Maximum supply voltage	1.815 V
Minimum supply voltage	1.485 V
Nominal supply voltage	1.65 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	20 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC
Base Number Matches	1

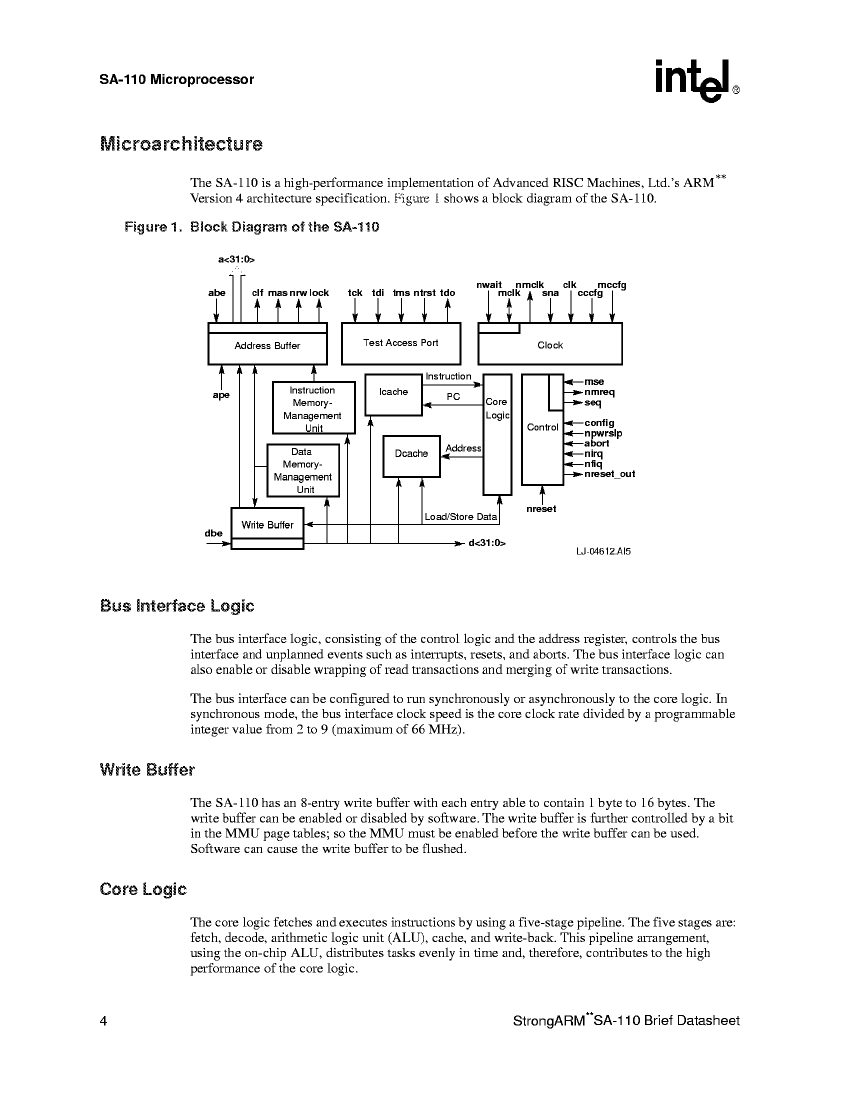

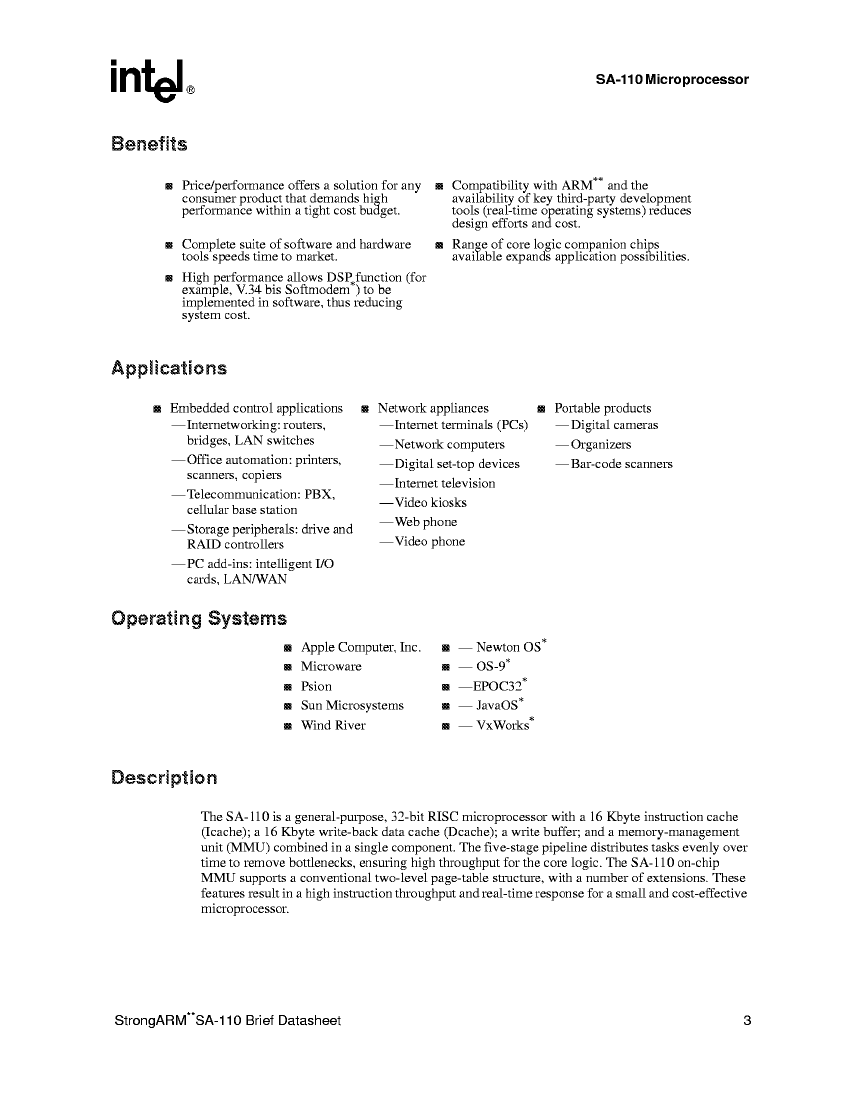

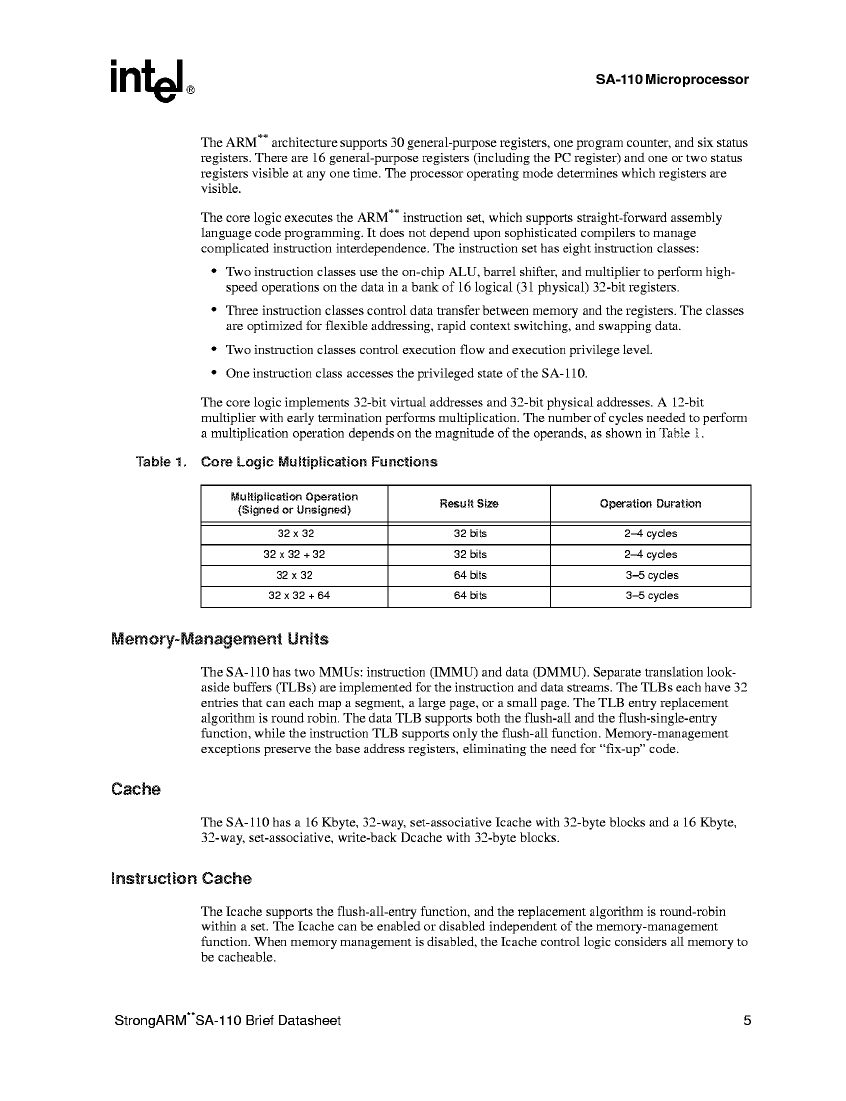

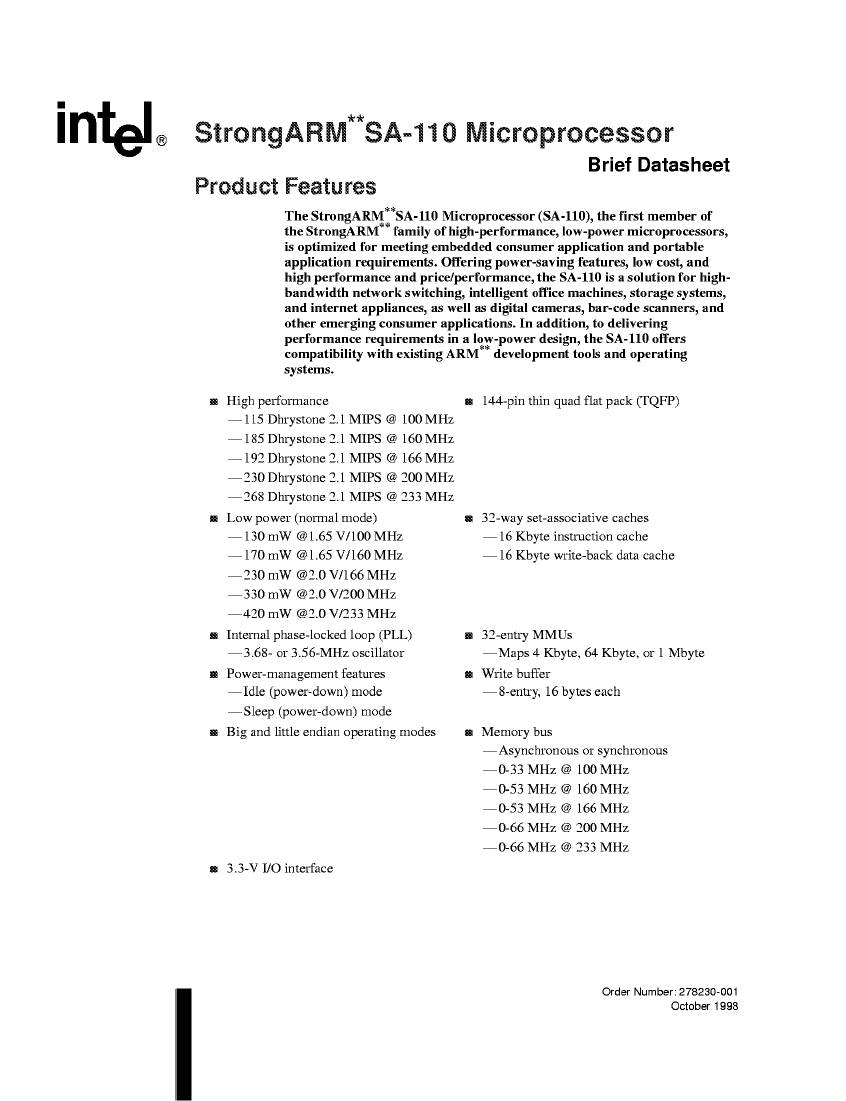

Preview

Download Datasheet

View All

21281-BA Related Products

	21281-BA	21281-AA
Description	RISC Microprocessor, 32-Bit, 110MHz, CMOS, PQFP144, TQFP-144	RISC Microprocessor, 32-Bit, 160MHz, CMOS, PQFP144, TQFP-144
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	QFP	QFP
package instruction	LFQFP, QFP144,.87SQ,20	LFQFP, QFP144,.87SQ,20
Contacts	144	144
Reach Compliance Code	unknow	unknow
ECCN code	3A001.A.3	3A001.A.3
Address bus width	32	32
bit size	32	32
boundary scan	YES	YES
maximum clock frequency	110 MHz	150 MHz
External data bus width	32	32
Format	FIXED POINT	FIXED POINT
Integrated cache	NO	NO
JESD-30 code	S-PQFP-G144	S-PQFP-G144
JESD-609 code	e0	e0
length	20 mm	20 mm
low power mode	YES	YES
Number of terminals	144	144
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFQFP	LFQFP
Encapsulate equivalent code	QFP144,.87SQ,20	QFP144,.87SQ,20
Package shape	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	1.65,3.3 V	1.65,3.3 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	1.7 mm
speed	110 MHz	160 MHz
Maximum supply voltage	1.815 V	1.815 V
Minimum supply voltage	1.485 V	1.485 V
Nominal supply voltage	1.65 V	1.65 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	20 mm	20 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC
Base Number Matches	1	1
