DPDD32MX4RLAY5-DP-XX0815 datasheet, PDF

Datasheet> All Categories > storage> storage> DPDD32MX4RLAY5-DP-XX0815

DPDD32MX4RLAY5-DP-XX0815: DescriptionSynchronous DRAM, 32MX4, CMOS, PDSO66, STACK, LEADLESS, MODULE, TSOP-66; Categorystorage storage; File Size65KB，2 Pages; ManufacturerB&B Electronics Manufacturing Company

Download Datasheet Parametric Compare View All

DPDD32MX4RLAY5-DP-XX0815 Overview

Synchronous DRAM, 32MX4, CMOS, PDSO66, STACK, LEADLESS, MODULE, TSOP-66

DPDD32MX4RLAY5-DP-XX0815 Parametric

Parameter Name	Attribute value
Maker	B&B Electronics Manufacturing Company
Parts packaging code	TSOP
package instruction	ATSOP,
Contacts	66
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FOUR BANK PAGE BURST
Other features	AUTO/SELF REFRESH
Spare memory width	4
JESD-30 code	R-PDSO-G66
length	22.3266 mm
memory density	134217728 bit
Memory IC Type	SYNCHRONOUS DRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	66
word count	33554432 words
character code	32000000
Operating mode	SYNCHRONOUS
organize	32MX4
Package body material	PLASTIC/EPOXY
encapsulated code	ATSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, PIGGYBACK, THIN PROFILE
Certification status	Not Qualified
Maximum seat height	2.6162 mm
self refresh	YES
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL

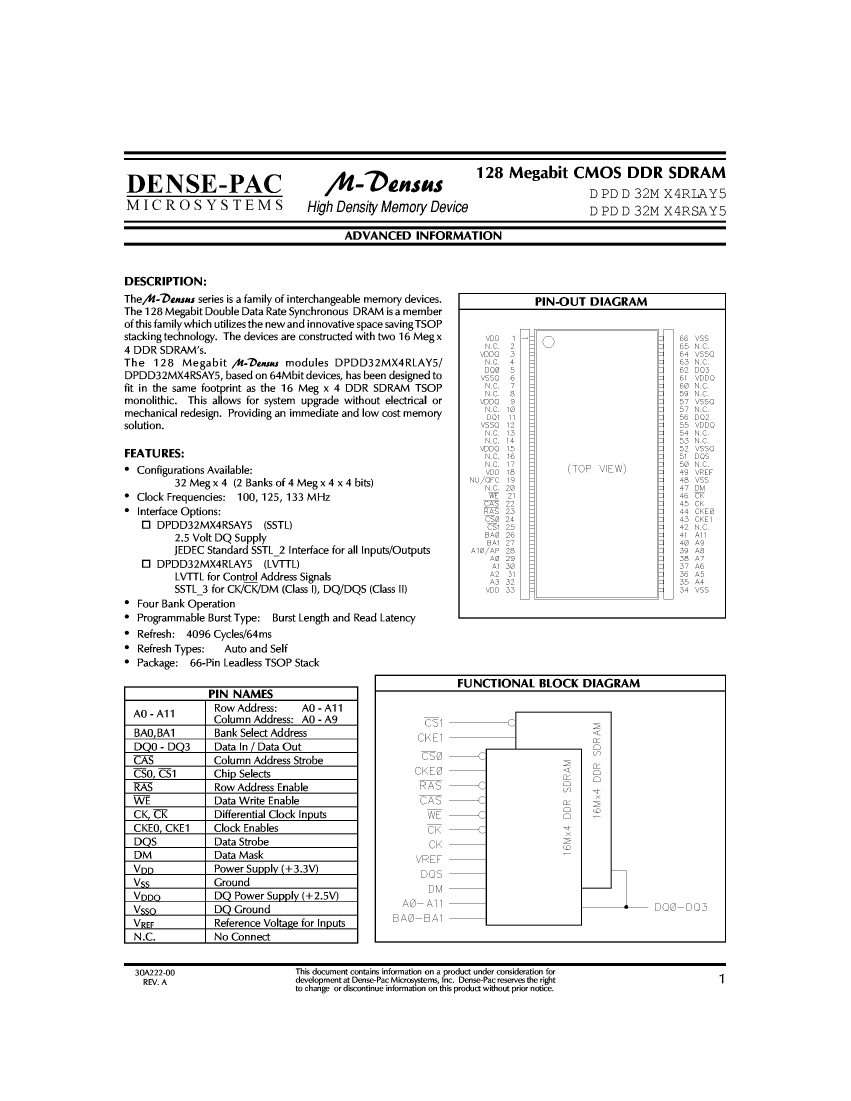

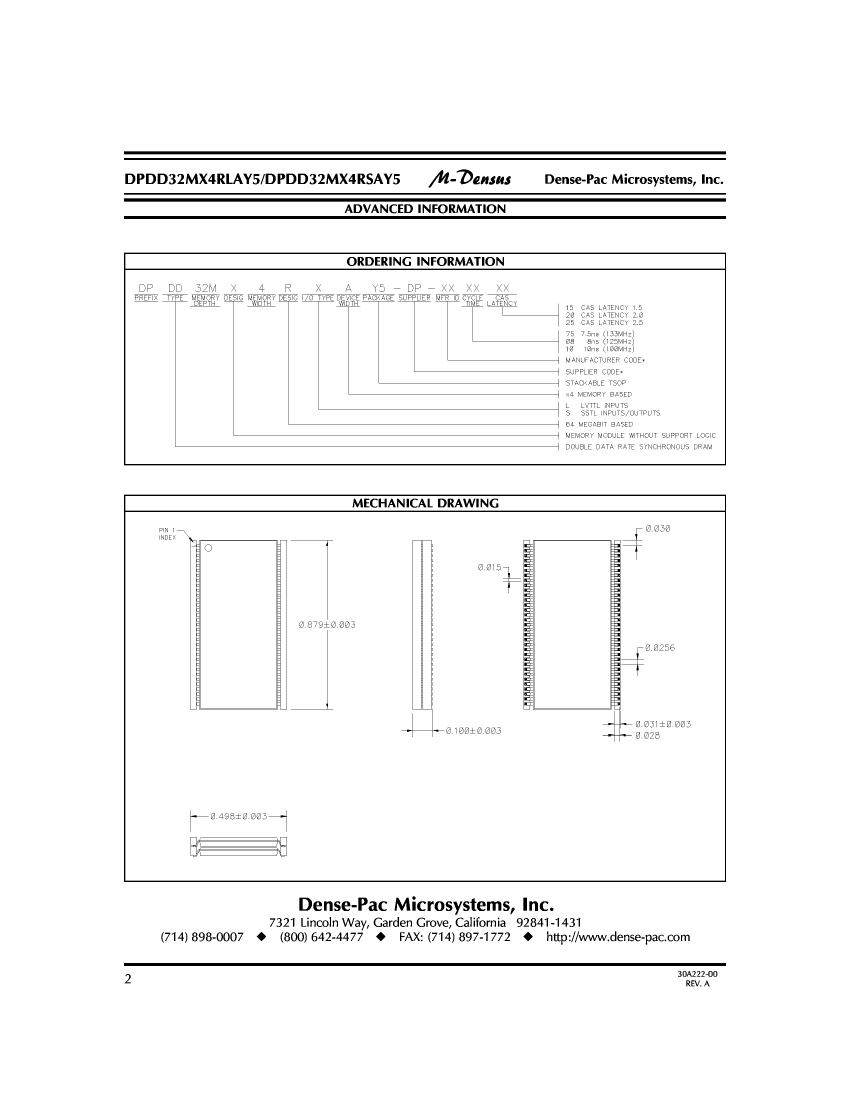

Preview

Download Datasheet

View All

DPDD32MX4RLAY5-DP-XX0815 Related Products

	DPDD32MX4RLAY5-DP-XX0815	DPDD32MX4RLAY5-DP-XX1020	DPDD32MX4RLAY5-DP-XX7525	DPDD32MX4RLAY5-DP-XX7520	DPDD32MX4RLAY5-DP-XX1015	DPDD32MX4RLAY5-DP-XX0825	DPDD32MX4RLAY5-DP-XX0820	DPDD32MX4RLAY5-DP-XX1025	DPDD32MX4RLAY5-DP-XX7515
Description	Synchronous DRAM, 32MX4, CMOS, PDSO66, STACK, LEADLESS, MODULE, TSOP-66	Synchronous DRAM, 32MX4, CMOS, PDSO66, STACK, LEADLESS, MODULE, TSOP-66	Synchronous DRAM, 32MX4, CMOS, PDSO66, STACK, LEADLESS, MODULE, TSOP-66	Synchronous DRAM, 32MX4, CMOS, PDSO66, STACK, LEADLESS, MODULE, TSOP-66	Synchronous DRAM, 32MX4, CMOS, PDSO66, STACK, LEADLESS, MODULE, TSOP-66	Synchronous DRAM, 32MX4, CMOS, PDSO66, STACK, LEADLESS, MODULE, TSOP-66	Synchronous DRAM, 32MX4, CMOS, PDSO66, STACK, LEADLESS, MODULE, TSOP-66	Synchronous DRAM, 32MX4, CMOS, PDSO66, STACK, LEADLESS, MODULE, TSOP-66	Synchronous DRAM, 32MX4, CMOS, PDSO66, STACK, LEADLESS, MODULE, TSOP-66
Parts packaging code	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP
package instruction	ATSOP,	ATSOP,	ATSOP,	ATSOP,	ATSOP,	ATSOP,	ATSOP,	ATSOP,	ATSOP,
Contacts	66	66	66	66	66	66	66	66	66
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST
Other features	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH
Spare memory width	4	4	4	4	4	4	4	4	4
JESD-30 code	R-PDSO-G66	R-PDSO-G66	R-PDSO-G66	R-PDSO-G66	R-PDSO-G66	R-PDSO-G66	R-PDSO-G66	R-PDSO-G66	R-PDSO-G66
length	22.3266 mm	22.3266 mm	22.3266 mm	22.3266 mm	22.3266 mm	22.3266 mm	22.3266 mm	22.3266 mm	22.3266 mm
memory density	134217728 bit	134217728 bit	134217728 bit	134217728 bit	134217728 bit	134217728 bit	134217728 bit	134217728 bit	134217728 bit
Memory IC Type	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM
memory width	4	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1	1
Number of terminals	66	66	66	66	66	66	66	66	66
word count	33554432 words	33554432 words	33554432 words	33554432 words	33554432 words	33554432 words	33554432 words	33554432 words	33554432 words
character code	32000000	32000000	32000000	32000000	32000000	32000000	32000000	32000000	32000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
organize	32MX4	32MX4	32MX4	32MX4	32MX4	32MX4	32MX4	32MX4	32MX4
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	ATSOP	ATSOP	ATSOP	ATSOP	ATSOP	ATSOP	ATSOP	ATSOP	ATSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, PIGGYBACK, THIN PROFILE	SMALL OUTLINE, PIGGYBACK, THIN PROFILE	SMALL OUTLINE, PIGGYBACK, THIN PROFILE	SMALL OUTLINE, PIGGYBACK, THIN PROFILE	SMALL OUTLINE, PIGGYBACK, THIN PROFILE	SMALL OUTLINE, PIGGYBACK, THIN PROFILE	SMALL OUTLINE, PIGGYBACK, THIN PROFILE	SMALL OUTLINE, PIGGYBACK, THIN PROFILE	SMALL OUTLINE, PIGGYBACK, THIN PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.6162 mm	2.6162 mm	2.6162 mm	2.6162 mm	2.6162 mm	2.6162 mm	2.6162 mm	2.6162 mm	2.6162 mm
self refresh	YES	YES	YES	YES	YES	YES	YES	YES	YES
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	B&B Electronics Manufacturing Company	-	-	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company
