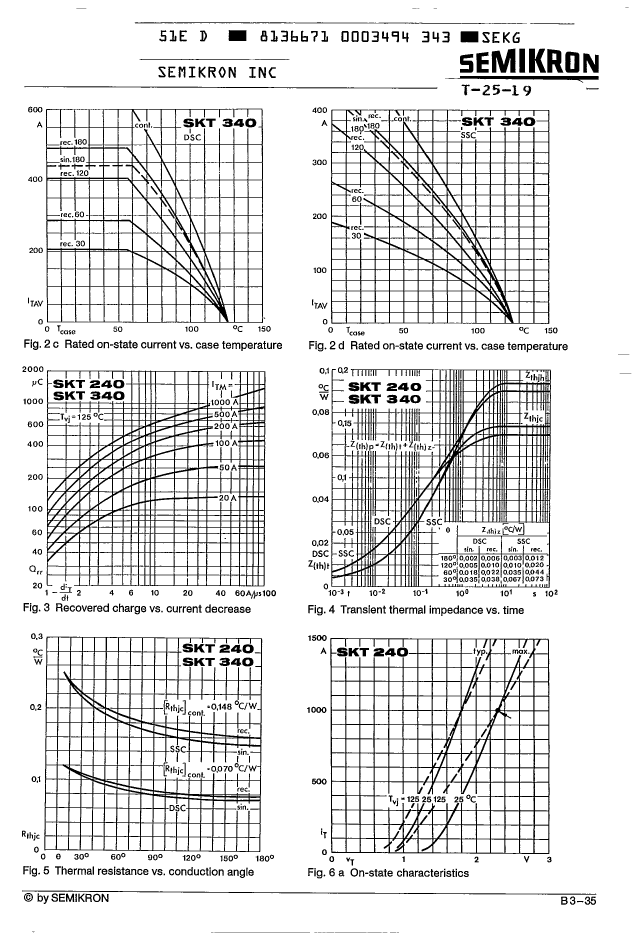

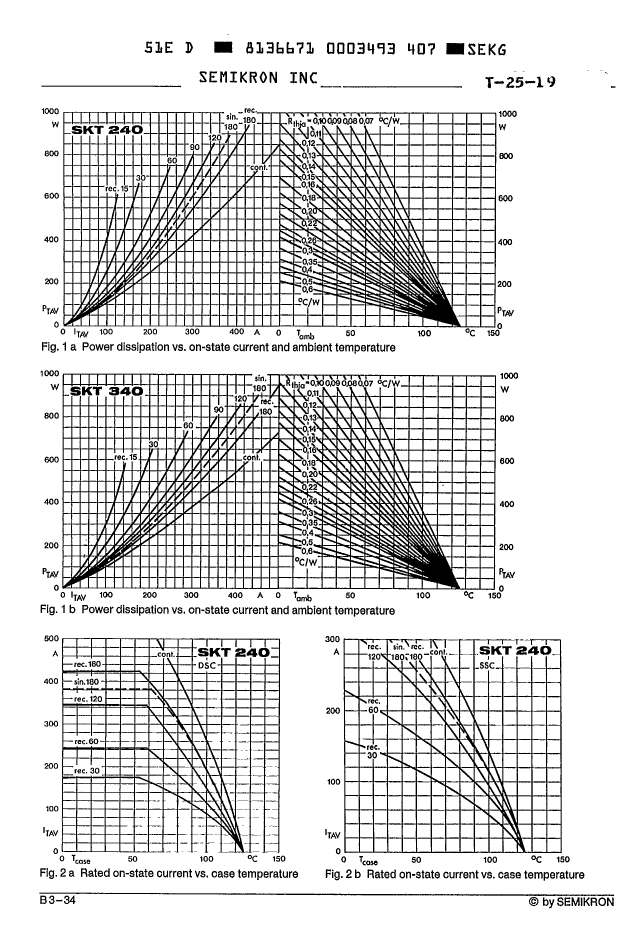

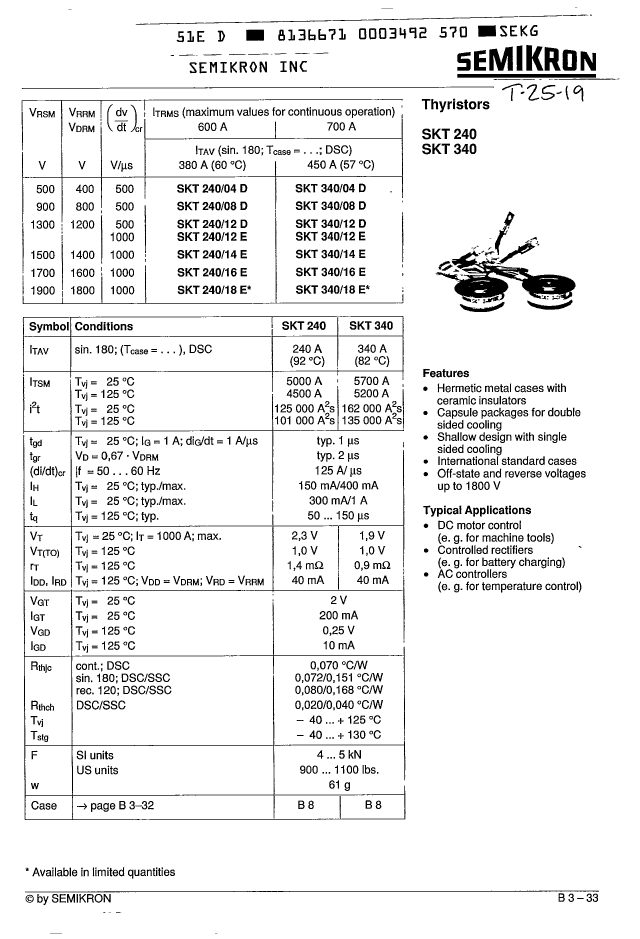

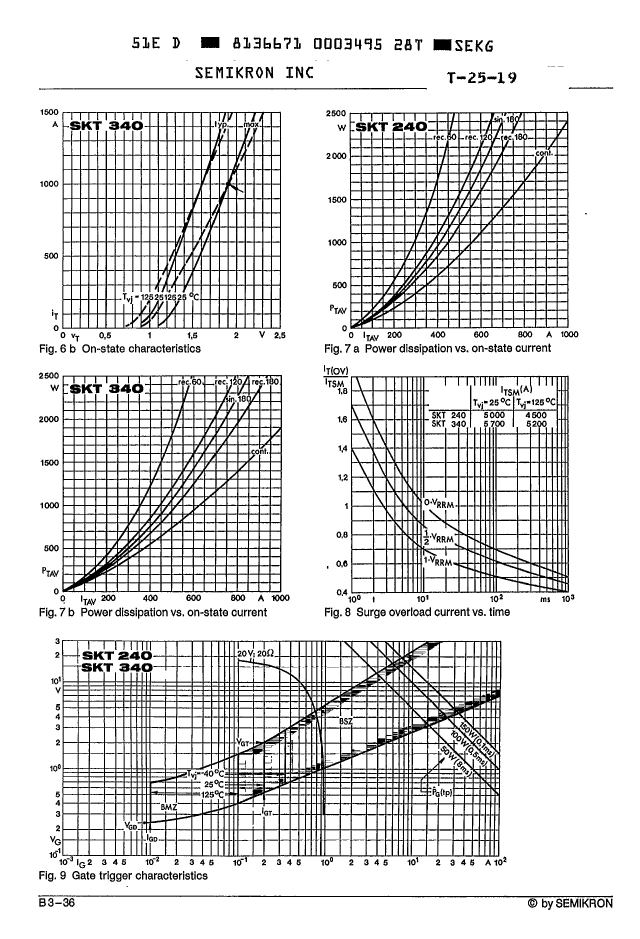

SKT240/12D: DescriptionSilicon Controlled Rectifier, 376.8A I(T)RMS, 240000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element, TO-200AB; CategoryAnalog mixed-signal IC Trigger device; File Size214KB，4 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SKT240/12D Overview

Silicon Controlled Rectifier, 376.8A I(T)RMS, 240000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element, TO-200AB

SKT240/12D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEMIKRON
package instruction	DISK BUTTON, O-MEDB-N2
Reach Compliance Code	compliant
Shell connection	ISOLATED
Nominal circuit commutation break time	150 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	400 mA
JEDEC-95 code	TO-200AB
JESD-30 code	O-MEDB-N2
JESD-609 code	e2
Maximum leakage current	40 mA
On-state non-repetitive peak current	5000 A
Number of components	1
Number of terminals	2
Maximum on-state current	240000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	DISK BUTTON
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	376.8 A
Maximum repetitive peak off-state leakage current	40000 µA
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	YES
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	NO LEAD
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

Preview

Download Datasheet

View All

SKT240/12D Related Products

	SKT240/12D	SKT240/08D	SKT340/08D	SKT340/12D
Description	Silicon Controlled Rectifier, 376.8A I(T)RMS, 240000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element, TO-200AB	Silicon Controlled Rectifier, 376.8A I(T)RMS, 240000mA I(T), 800V V(DRM), 800V V(RRM), 1 Element, TO-200AB, HERMETIC SEALED, METAL, TO-200AB, 4 PIN	Silicon Controlled Rectifier, 533.8A I(T)RMS, 340000mA I(T), 800V V(DRM), 800V V(RRM), 1 Element, TO-200AB, HERMETIC SEALED, METAL, TO-200AB, 4 PIN	Silicon Controlled Rectifier, 533.8A I(T)RMS, 340000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element, TO-200AB
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	DISK BUTTON, O-MEDB-N2	DISK BUTTON, O-MEDB-N2	DISK BUTTON, O-MEDB-N2	DISK BUTTON, O-MEDB-N2
Reach Compliance Code	compliant	compliant	compliant	compliant
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Nominal circuit commutation break time	150 µs	150 µs	150 µs	150 µs
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us	500 V/us	500 V/us	500 V/us
Maximum DC gate trigger current	200 mA	200 mA	200 mA	200 mA
Maximum DC gate trigger voltage	2 V	2 V	2 V	2 V
Maximum holding current	400 mA	400 mA	400 mA	400 mA
JEDEC-95 code	TO-200AB	TO-200AB	TO-200AB	TO-200AB
JESD-30 code	O-MEDB-N2	O-MEDB-N2	O-MEDB-N2	O-MEDB-N2
JESD-609 code	e2	e2	e2	e2
Maximum leakage current	40 mA	40 mA	40 mA	40 mA
On-state non-repetitive peak current	5000 A	5000 A	5700 A	5700 A
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum on-state current	240000 A	240000 A	340000 A	340000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	376.8 A	376.8 A	533.8 A	533.8 A
Maximum repetitive peak off-state leakage current	40000 µA	40000 µA	40000 µA	40000 µA
Off-state repetitive peak voltage	1200 V	800 V	800 V	1200 V
Repeated peak reverse voltage	1200 V	800 V	800 V	1200 V
surface mount	YES	YES	YES	YES
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	END	END	END	END
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	SCR	SCR	SCR
Maker	SEMIKRON	-	SEMIKRON	SEMIKRON
Is it lead-free?	-	Lead free	Lead free	Lead free
