FP6670PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6670PM

FP6670PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size74KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6670PM Overview

RF AMPLIFIER MODEL

FP6670PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	6 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	300 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2.5

Preview

Download Datasheet

View All

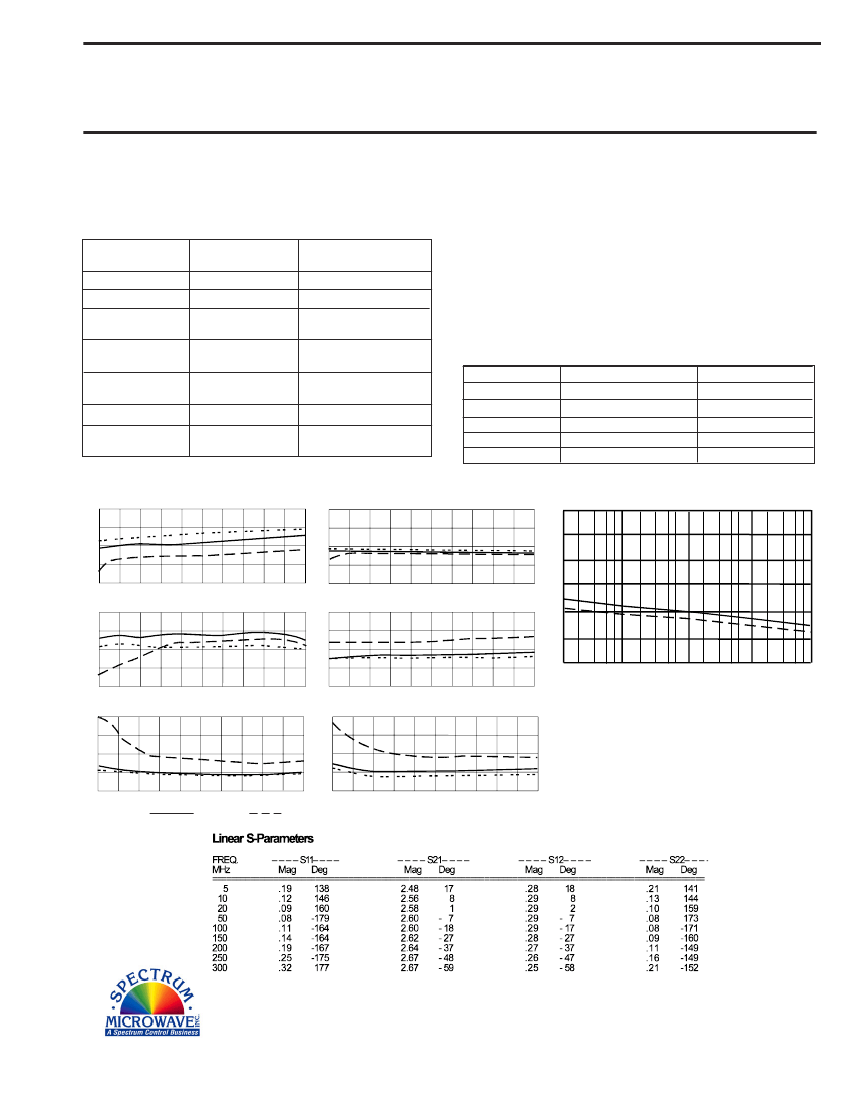

RF AMPLIFIER

MODEL

TM6670PM

Features

Superior Phase Noise Performance

Low Noise Figure: 1.8 dB Typical

Operating Temp. -55 ºC

to +85

ºC

Environmental Screening Available

TYPICAL

Ta= 25 ºC

10 - 300 MHz

-11

<1.5:1

1.8

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 300 MHz

6 Min.

18 Min.

-10 Max.

2.5:1 Max.

3 Max.

+15

30 Max.

Available as:

TM6670PM, 4 Pin TO-8 (T4)

TN6670PM, 4 Pin Surface Mount (SM3)

FP6670PM, 4 Pin Flatpack (FP4)

BX6670PM,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +52 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +46 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +36 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-169

-171

-172

-176

-177

Guarantee

-166

-168

-169

-173

-174

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

+23

+22

+21

+20

+19

2.0

1.5

1.0

Start 10 MHz

Sto p 300 MHz

Start 10 MHz

Sto p 3 00 M Hz

Start 10 MHz

St op 300 MHz

Reverse Isolation (dB)

-5

-10

-15

-20

-190

100

-150

-160

-170

-180

-130

-140

Phase Noise (dBc/Hz)

Start 10 MHz

Stop 300 MHz

1 dB Compression (dBm)

Noise Figure (dB)

10K

100K

Start 10 MHz

Stop 300 MHz

_________Guarantee __ __ __ __Typical

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 10 MHz

Stop 300 MHz

Residual Phase Noise Test Conditions

Carrier Frequency: 160 MHz

Power Output: +20 dBm

Temperature: 25 C

Agilent ES5500 System

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

3/31/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6670PM Related Products

	FP6670PM	BX6670PM	TM6670PM	TN6670PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compli	compliant	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	6 dB	6 dB	6 dB	6 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	300 MHz	300 MHz	300 MHz	300 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2.5	2.5	2.5	2.5
package instruction	FP-4	H1	-	SM3, 4 PIN
