FP9143 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP9143

FP9143: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size84KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9143 Overview

RF AMPLIFIER MODEL

FP9143 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP4, 4 PIN
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	9 dB
Maximum input power (CW)	13 dBm
Number of functions	1
Number of terminals	4
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	MODULE,4LEAD,.5SQ
power supply	15 V
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum slew rate	28 mA
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

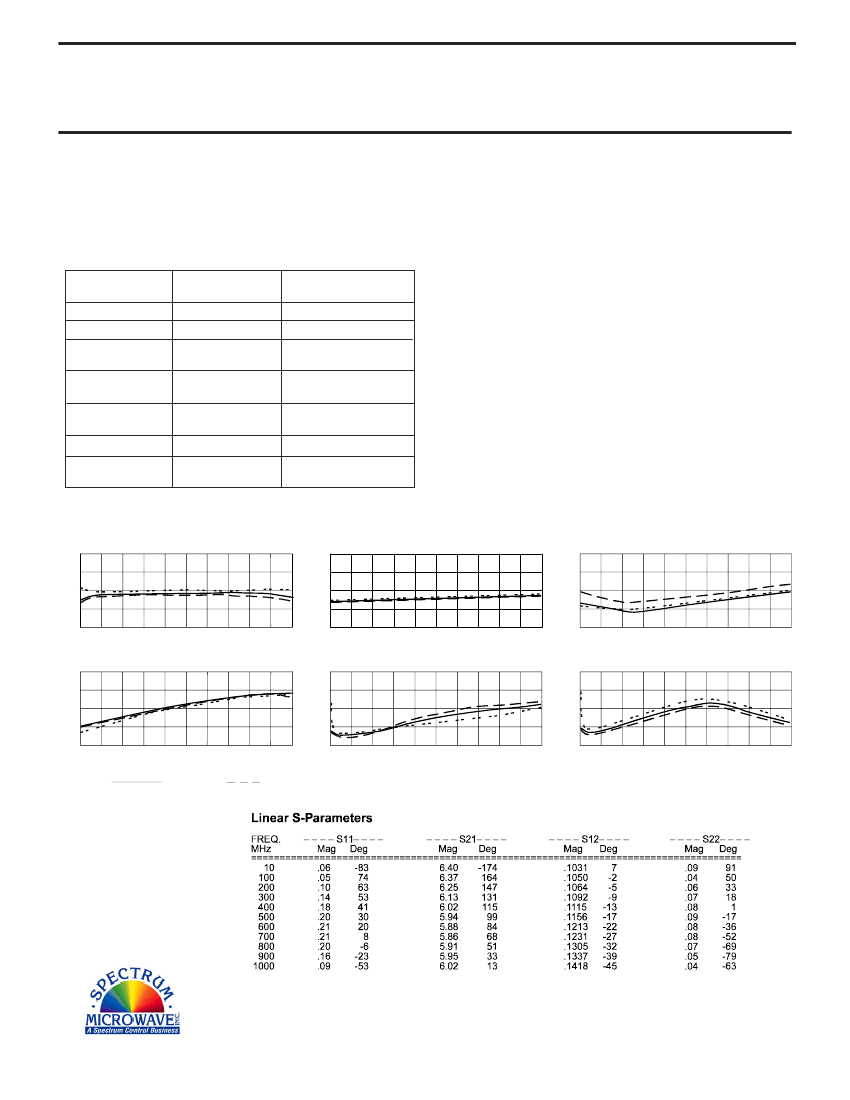

RF AMPLIFIER

MODEL

TM9143

Features

Low Noise Figure: 2.5 dB Typical

Medium Output Power: +10 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM9143, 4 Pin TO-8 (T4)

TN9143, 4 Pin Surface Mount (SM3)

FP9143, 4 Pin Flatpack (FP4)

BX9143, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +44 dBm (Typ.)

Second Order Two Tone Intercept Point........ +38 dBm (Typ.)

Third Order Two Tone Intercept Point............ +27 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

10-1000 MHz

10.5

+10

-11.5

<1.5:1

<1.75:1

2.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10-1000 MHz

9.0 Min.

+8.0 Min.

-11 Max.

2.0:1 Max.

4.5 Max.

+15

28 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 10 MHz

Stop 1000 MHz

Gain (dB)

- 5

- 10

- 15

- 20

Reverse Isolation(dB)

Start 10 MHz

Stop 1000 MHz

Start 10 MHz

Noise Figure (dB)

Stop 1000 MHz

+16

+14

+12

+10

+ 8

Start 10 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Stop 1000 MHz

Start 10 MHz

Stop 1000 MHz

Start 10 MHz

Stop 1000 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

7/29/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9143 Related Products

	FP9143	BX9143	TM9143	TN9143
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies
package instruction	FP4, 4 PIN	H1	CAN4,.3	MODULE,4LEAD,.45SQ
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	9 dB	9 dB	9 dB	9 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	1000 MHz	1000 MHz	1000 MHz	1000 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Number of functions	1	-	1	1
Number of terminals	4	-	4	4
Package body material	METAL	-	METAL	METAL
Encapsulate equivalent code	MODULE,4LEAD,.5SQ	-	CAN4,.3	MODULE,4LEAD,.45SQ
power supply	15 V	-	15 V	15 V
Maximum slew rate	28 mA	-	28 mA	28 mA
