RF AMPLIFIER
MODEL
TM9266
Features
!
!
!
!
High Gain - Two Stages: 17.0 dB Typical
High Output Level: +15.0 dBm Typical
High Third Order I.P.: +27.5 dBm Typical
Operating Temp. - 55 ºC
to +85
ºC
Available as:
TM9266, 4 Pin TO-8 (T4)
TN9266, 4 Pin Surface Mount (SM3)
FP9266, 4 Pin Flatpack (FP4)
BX9266, Connectorized Housing (H1)
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point ....... +48 dBm (Typ.)
Second Order Two Tone Intercept Point ........ +43 dBm (Typ.)
Third Order Two Tone Intercept Point ......... +27.5 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
TYPICAL
Ta= 25 ºC
10 - 2000 MHz
17.0
+14.5
-26
<1.8:1
<1.8:1
4.5
+15
75
MIN/MAX
Ta = -55 ºC to +85 ºC
10 - 2000 MHz
15.0 Min.
+14* Min.
-24 Max.
2.0:1 Max.
2.0:1 Max.
6.7 Max.
+15
80 Max.
Maximum Ratings
Ambient Operating Temperature .............. -55ºC to + 100 ºC
Storage Temperature ............................... -62ºC to + 125 ºC
Case Temperature ................................................. + 125 ºC
DC Voltage ......................................................... + 18 Volts
Continuous RF Input Power ................................. + 13 dBm
Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power .................... 0.5 Watt (3
µsec
Max.)
Noise Figure (dB)
Power
Vdc
mA
Note: Care should always be taken to effectively ground the case of each unit.
* 1.0 dB less below 500 MHz.

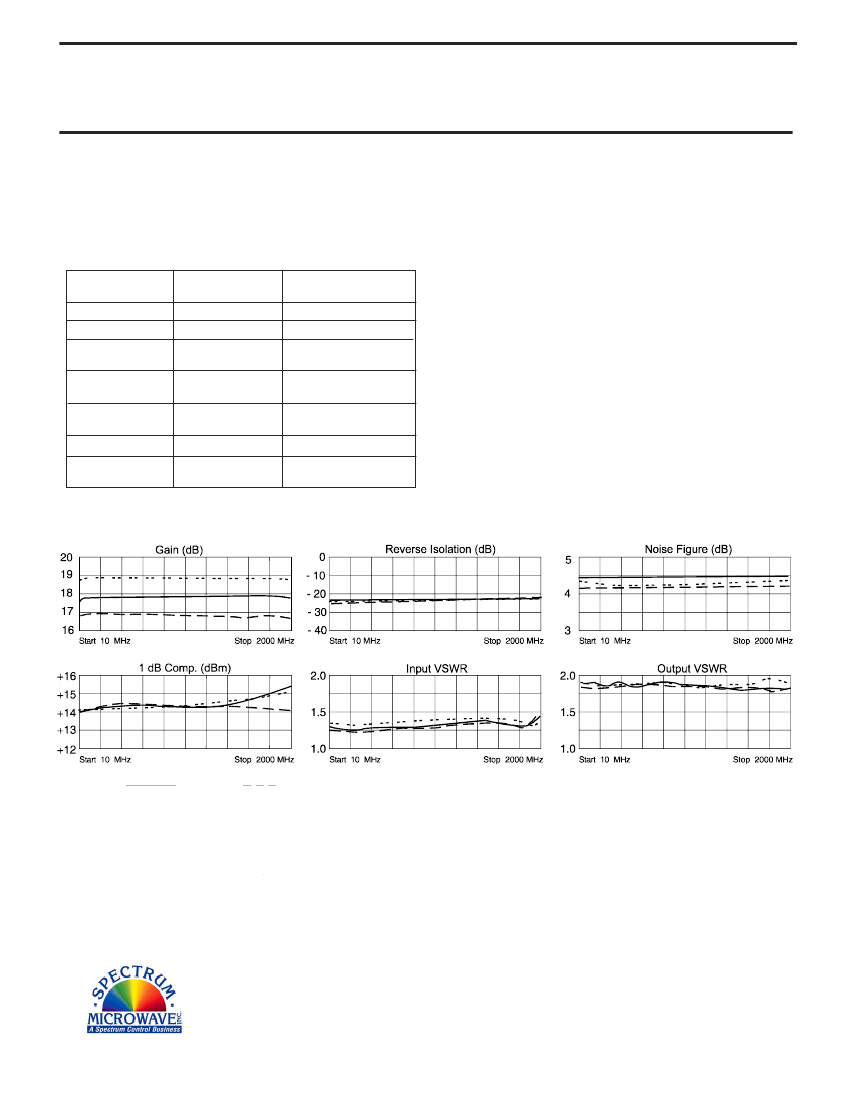

Typical Performance Data
Legend
+ 25 ºC
+ 85 ºC - - - - - - -55 ºC
Linear S-Parameters
FREQ.
– – – – S11– – – –
– – – – S21– – – –
– – – – S12– – – –
– – – – S22– – – –
Mag
Deg
Mag
Deg
Mag
Deg
Mag
Deg
MHz
==========================================================================================
.15
175
10
89
15
.0300
10
8.28
.21
.03
177
50
21
-1
.0323
-7
8.36
.20
.04
176
100
-44
7
.0291
-17
8.40
.20
.11
169
250
-100
2
.0320
-45
8.42
.20
.21
154
500
-147
3
.0315
-91
8.51
.21
.27
131
750
173
-3
.0392
-138
8.49
.20
.28
101
1000
129
-14
.0420
175
8.70
.15
.20
57
1250
85
-28
.0448
128
8.47
.06
.07
-118
1500
21
-39
.0452
80
8.42
.04
.13
170
1750
-147
-55
.0487
29
8.48
.12
.28
89
2000
149
-75
.0524
-33
8.06
.17
