844441AMI-150 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 844441AMI-150

844441AMI-150: DescriptionClock Generator, 300MHz, PDSO8, 3.90 X 4.90 MM, 1.375 MM HEIGHT, MS-012, SOIC-8; CategoryThe embedded processor and controller Microcontrollers and processors; File Size866KB，13 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

844441AMI-150 Overview

Clock Generator, 300MHz, PDSO8, 3.90 X 4.90 MM, 1.375 MM HEIGHT, MS-012, SOIC-8

844441AMI-150 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output clock frequency	300 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Master clock/crystal nominal frequency	25 MHz
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3.9 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER

Preview

Download Datasheet

View All

PRELIMINARY

FEMTOCLOCKS

SAS/SATA CLOCK GENERATOR

ICS844441I

Features

•

Designed for use in SAS, SAS-2, and SATA systems

Center (±0.25%) Spread Spectrum Clocking (SSC)

Down (-0.23% or -0.5%) SSC

Better frequency stability than SAW oscillators

One differential 2.5V LVDS output

Crystal oscillator interface designed for 25MHz

= 18pF) frequency

External fundamental crystal frequency ensures high reliability

and low aging

Selectable output frequencies: 75MHz, 100MHz, 150MHz,

300MHz

Output frequency is tunable with external capacitors

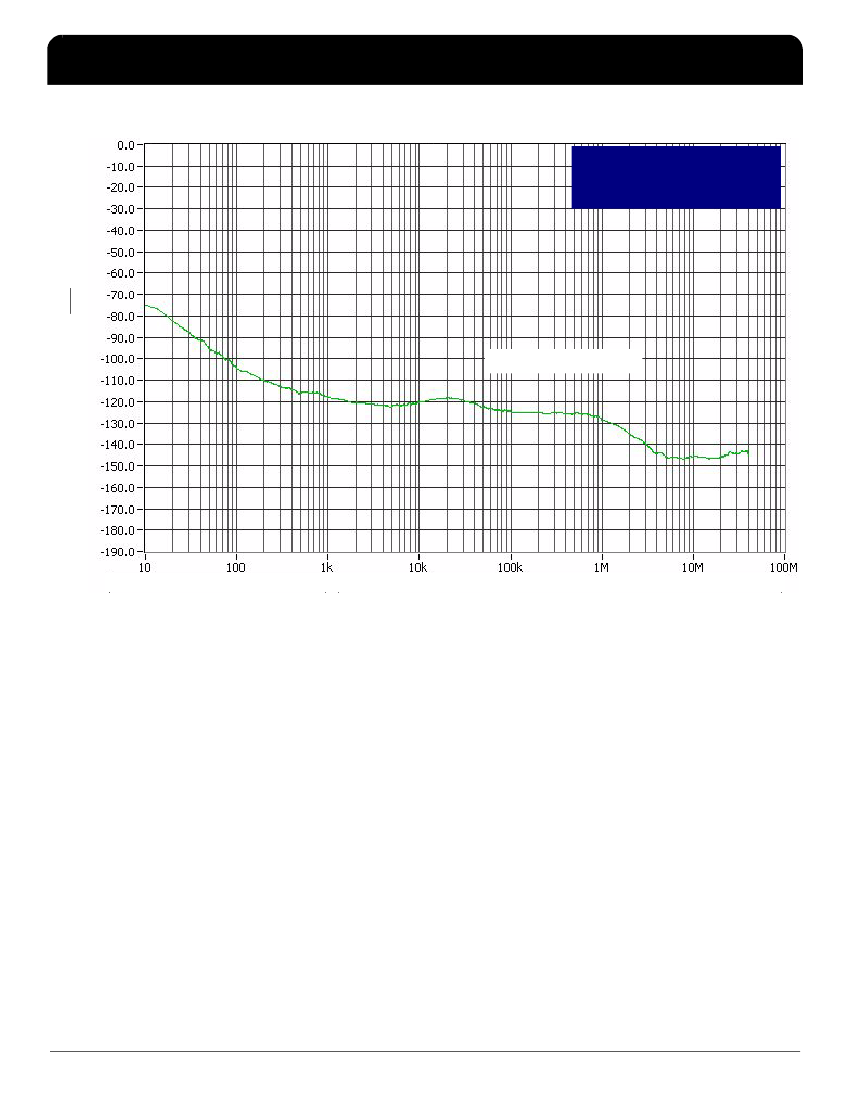

RMS phase jitter: 1.33ps (typical)

2.5V operating supply

-40°C to 85°C ambient operating temperature

Available in both standard (RoHS 5) and lead-free (RoHS 6)

packages

General Description

The ICS844441I is a low jitter, high performance

clock generator and a member of the FemtoClocks™

HiPerClockS™

family of silicon timing products. The ICS844441I is

designed for use in applications using the SAS and

SATA interconnect. The ICS844441I uses an

external, 25MHz, parallel resonant crystal to generate four

selectable output frequencies: 75MHz, 100MHz, 150MHz, and

300MHz. This silicon based approach provides excellent

frequency stability and reliability. The ICS844441I features down

and center spread spectrum (SSC) clocking techniques.

ICS

Applications

•

SAS/SATA Host Bus Adapters

SATA Port Multipliers

SAS I/O Controllers

TapeDrive and HDD Array Controllers

SAS Edge and Fanout Expanders

HDDs and TapeDrives

Disk Storage Enterprise

Pin Assignment

XTAL_OUT

XTAL_IN

GND

Block Diagrams

XTAL_IN

SSC_SEL0

SSC_SEL1

25MHz

XTAL

XTAL_OUT

OSC

FemtoClock™

PLL

00 = SSC Off

01 = 0.5% Down-spread

10 = 0.23% Down-spread

11 = 0.5% Center-spread

ICS844441I

8-Lead SOIC, 150 mil

3.90mm x 4.90mm x 1.375mm package body

M Package

Top View

GND

XTAL_OUT

XTAL_IN

SSC_SEL0

F_SEL1

GND

nPLL_SEL

F_SEL0

SSC_SEL(1:0)

Pulldown:Pulldown

SSC Output

Control Logic

8-Lead SOIC

nPLL_SEL

Pulldown

XTAL_IN

25MHz

XTAL

XTAL_OUT

OSC

FemtoClock™

PLL

00 = 75MHz

01 = 100MHz

10 = 150MHz

(default)

11 = 300MHz

SSC_SEL1

F_SEL(1:0)

SSC_SEL(1:0)

Pullup:Pulldown

Pulldown:Pulldown

Clock Output

Control Logic

16-Lead TSSOP

ICS844441I

16-Lead TSSOP

4.4mm x 5.0mm x 0.925mm package body

G Package

Top View

The Preliminary Information presented herein represents a product in pre-production. The noted characteristics are based on initial product characterization

and/or qualification. Integrated Device Technology, Incorporated (IDT) reserves the right to change any circuitry or specifications without notice.

IDT™ / ICS™

SAS/SATA CLOCK GENERATOR

ICS844441AGI REV. A JULY 17, 2008

844441AMI-150 Related Products

	844441AMI-150	844441AMI-300	844441AMI-300LFT	844441AMI-300LF	844441AMI-300T	844441AGILF	844441AGILFT	844441AMI-150LFT	844441AMI-150LF	844441AMI-150T
Description	Clock Generator, 300MHz, PDSO8, 3.90 X 4.90 MM, 1.375 MM HEIGHT, MS-012, SOIC-8	Clock Generator, 300MHz, PDSO8, 3.90 X 4.90 MM, 1.375 MM HEIGHT, MS-012, SOIC-8	Clock Generator, 300MHz, PDSO8, 3.90 X 4.90 MM, 1.375 MM HEIGHT, ROHS COMPLIANT, MS-012, SOIC-8	Clock Generator, 300MHz, PDSO8, 3.90 X 4.90 MM, 1.375 MM HEIGHT, ROHS COMPLIANT, MS-012, SOIC-8	Clock Generator, 300MHz, PDSO8, 3.90 X 4.90 MM, 1.375 MM HEIGHT, MS-012, SOIC-8	Clock Generator, 300MHz, PDSO16, 4.40 X 5 MM, 0.925 MM HEIGHT, ROHS COMPLIANT, MO-153, TSSOP-16	Clock Generator, 300MHz, PDSO16, 4.40 X 5 MM, 0.925 MM HEIGHT, ROHS COMPLIANT, MO-153, TSSOP-16	Clock Generator, 300MHz, PDSO8, 3.90 X 4.90 MM, 1.375 MM HEIGHT, ROHS COMPLIANT, MS-012, SOIC-8	Clock Generator, 300MHz, PDSO8, 3.90 X 4.90 MM, 1.375 MM HEIGHT, ROHS COMPLIANT, MS-012, SOIC-8	Clock Generator, 300MHz, PDSO8, 3.90 X 4.90 MM, 1.375 MM HEIGHT, MS-012, SOIC-8
Is it lead-free?	Contains lead	Contains lead	Lead free	Lead free	Contains lead	Lead free	Lead free	Lead free	Lead free	Contains lead
Is it Rohs certified?	incompatible	incompatible	conform to	conform to	incompatible	conform to	conform to	conform to	conform to	incompatible
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	TSSOP	TSSOP	SOIC	SOIC	SOIC
package instruction	SOP,	SOP,	SOP,	SOP,	SOP,	TSSOP,	TSSOP,	SOP,	SOP,	SOP,
Contacts	8	8	8	8	8	16	16	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G16	R-PDSO-G16	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0	e3	e3	e0	e3	e3	e3	e3	e0
length	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	5 mm	5 mm	4.9 mm	4.9 mm	4.9 mm
Number of terminals	8	8	8	8	8	16	16	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output clock frequency	300 MHz	300 MHz	300 MHz	300 MHz	300 MHz	300 MHz	300 MHz	300 MHz	300 MHz	300 MHz
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	TSSOP	TSSOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	240	260	260	240	260	260	260	260	240
Master clock/crystal nominal frequency	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.2 mm	1.2 mm	1.75 mm	1.75 mm	1.75 mm
Maximum supply voltage	2.625 V	2.625 V	2.625 V	2.625 V	2.625 V	2.625 V	2.625 V	2.625 V	2.625 V	2.625 V
Minimum supply voltage	2.375 V	2.375 V	2.375 V	2.375 V	2.375 V	2.375 V	2.375 V	2.375 V	2.375 V	2.375 V
Nominal supply voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	MATTE TIN	MATTE TIN	TIN LEAD	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	0.65 mm	0.65 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30	30	30	30	30	30
width	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	4.4 mm	4.4 mm	3.9 mm	3.9 mm	3.9 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)
Base Number Matches	-	1	1	1	1	1	1	1	1	-
