SDF10N100JEAVGD1Z datasheet, PDF

SDF10N100JEAVGD1Z: DescriptionPower Field-Effect Transistor, 10A I(D), 1000V, 1.2ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-258AA, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size68KB，1 Pages; ManufacturerSolitron Devices Inc.

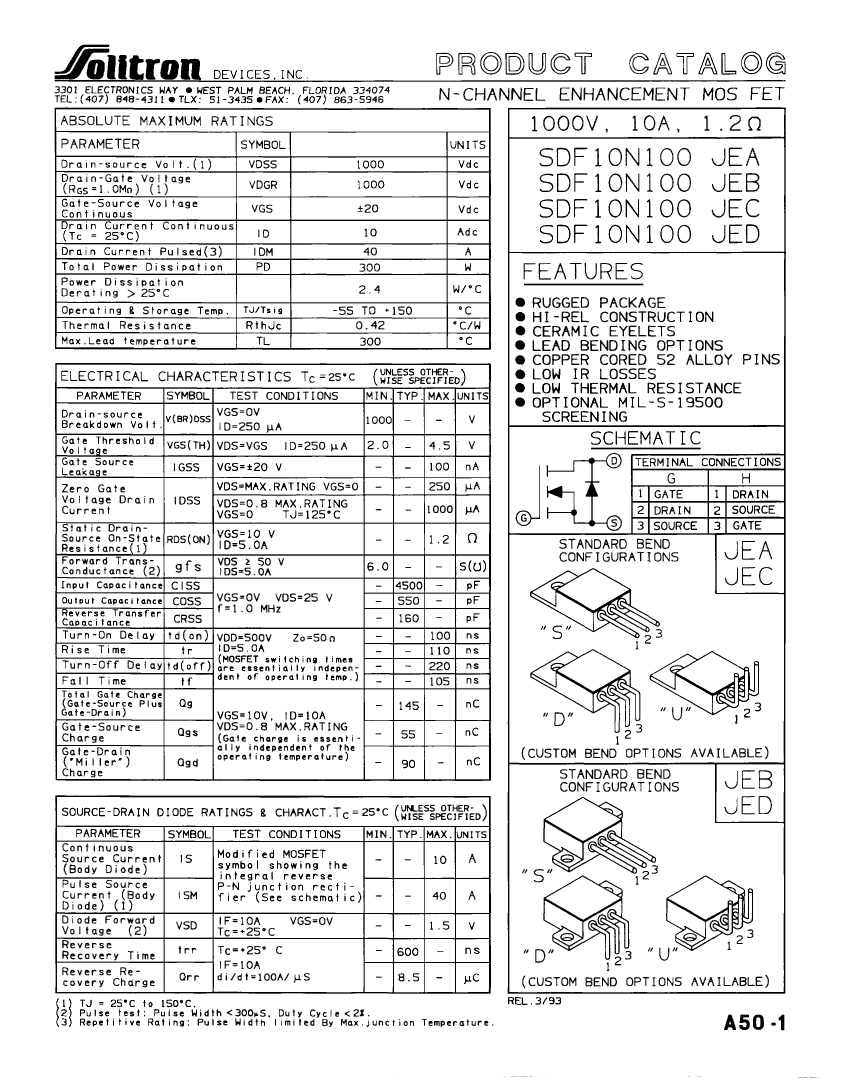

Download Datasheet Parametric View All

SDF10N100JEAVGD1Z Overview

Power Field-Effect Transistor, 10A I(D), 1000V, 1.2ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-258AA, 3 PIN

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Solitron Devices Inc.
Parts packaging code	TO-258AA
package instruction	FLANGE MOUNT, R-MSFM-T3
Contacts	3
Reach Compliance Code	unknown
Other features	CUSTOM BENT LEAD OPTIONS ARE AVAILABLE
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	1000 V
Maximum drain current (ID)	10 A
Maximum drain-source on-resistance	1.2 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-MSFM-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	METAL
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	300 W
Maximum pulsed drain current (IDM)	40 A
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Maximum off time (toff)	325 ns
Maximum opening time (tons)	210 ns
