PLDC20G10B-15HC datasheet, PDF

PLDC20G10B-15HC: DescriptionUV PLD, 15ns, PAL-Type, CMOS, CQCC28, WINDOWED, CERAMIC, LCC-28; CategoryProgrammable logic devices Programmable logic; File Size643KB，8 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric View All

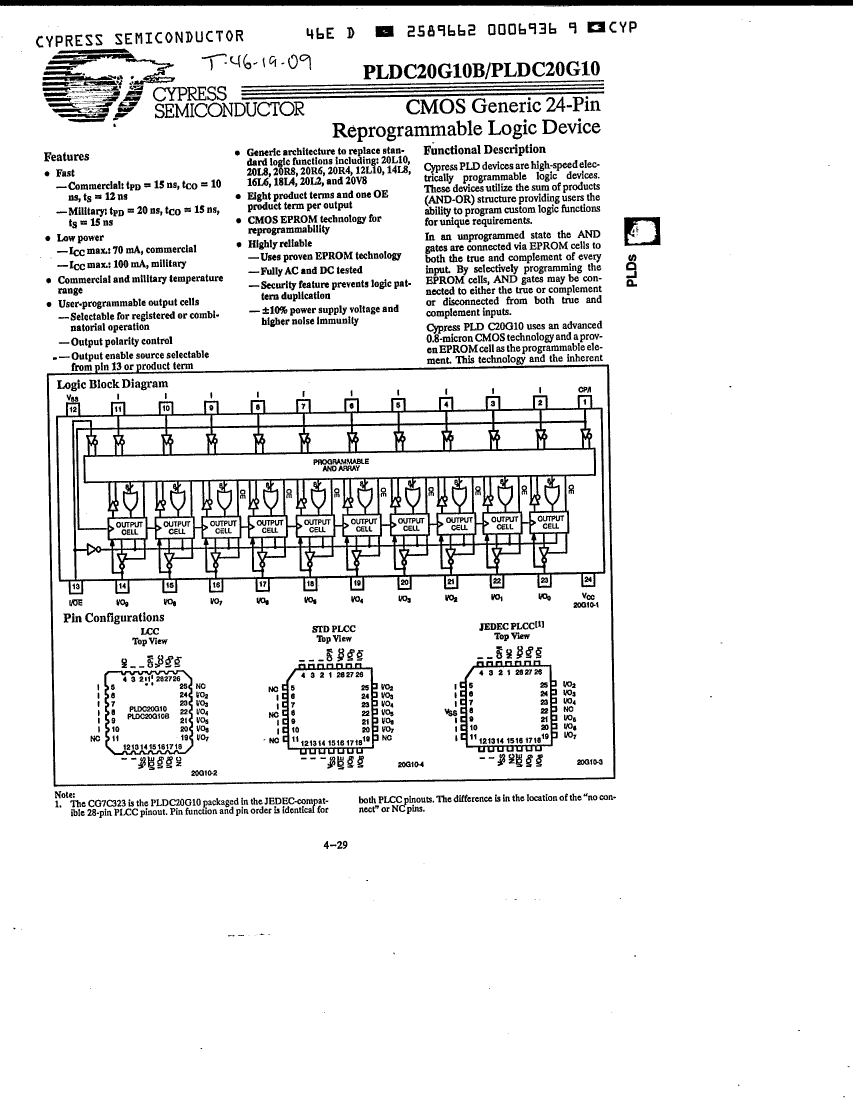

PLDC20G10B-15HC Overview

UV PLD, 15ns, PAL-Type, CMOS, CQCC28, WINDOWED, CERAMIC, LCC-28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Cypress Semiconductor
Parts packaging code	QLCC
package instruction	WINDOWED, CERAMIC, LCC-28
Contacts	28
Reach Compliance Code	compliant

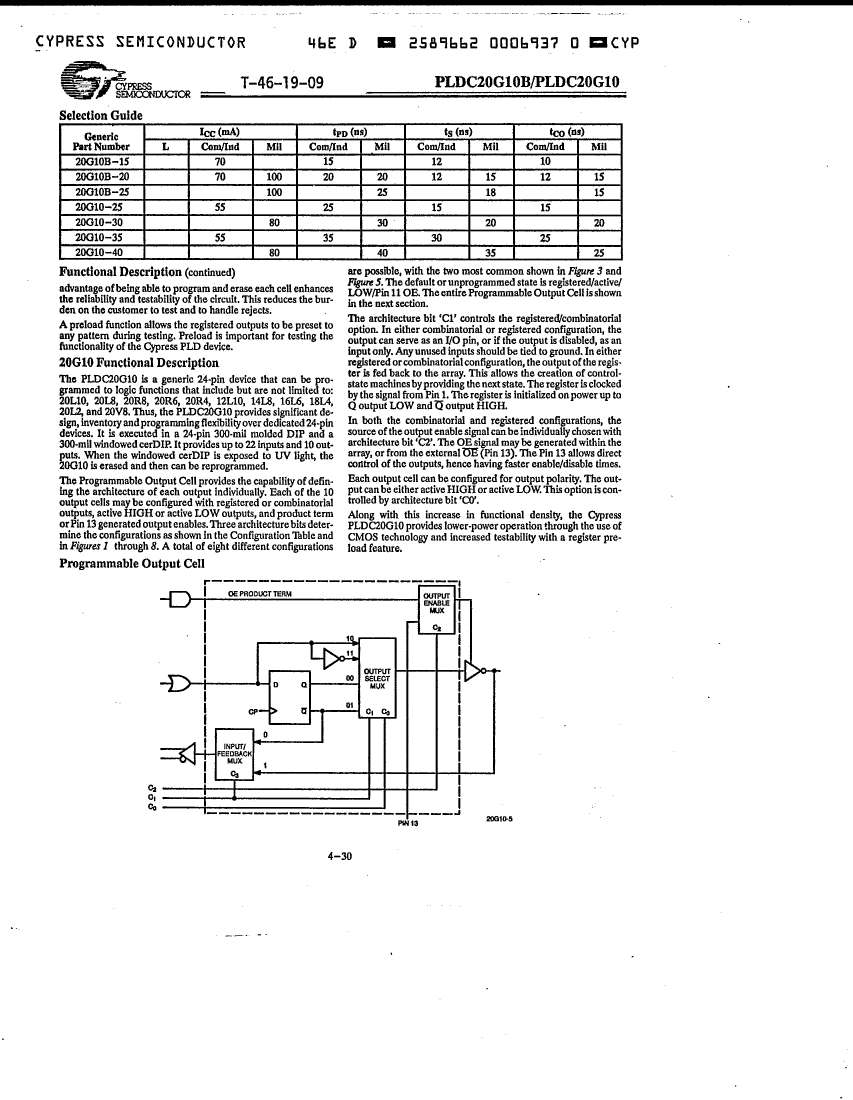

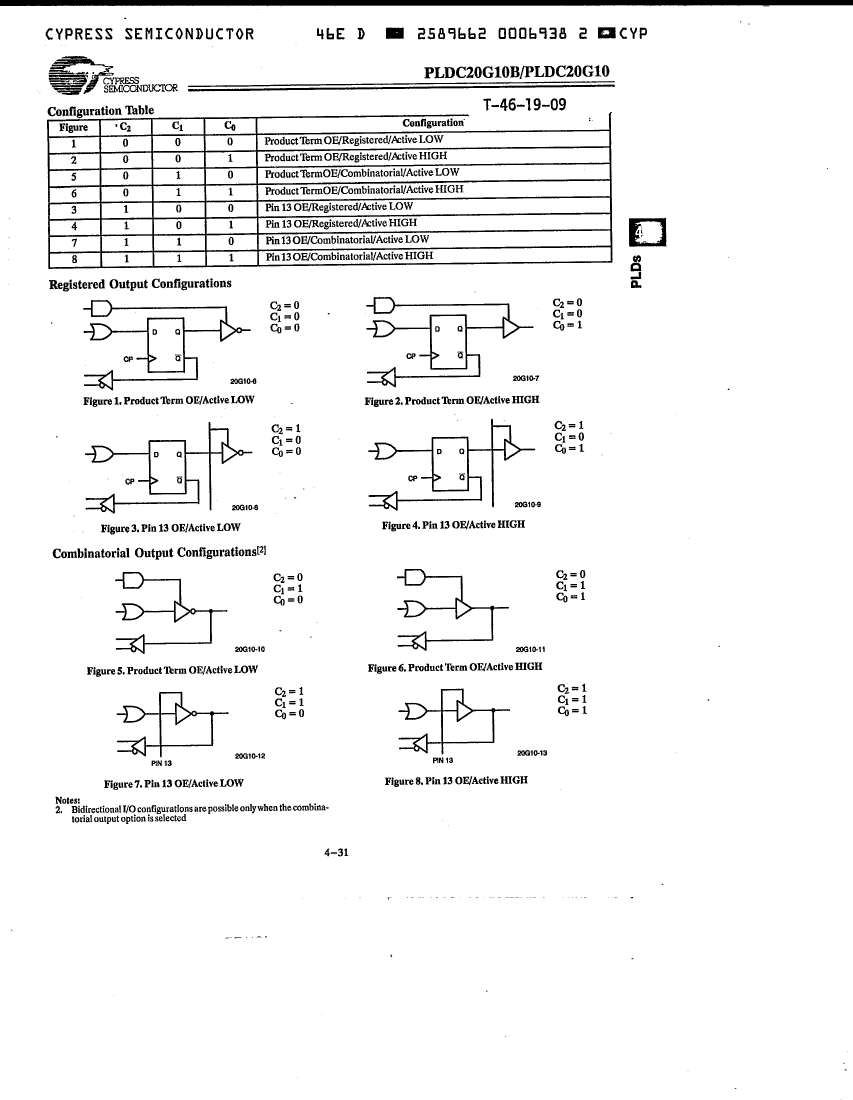

Other features	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
Architecture	PAL-TYPE

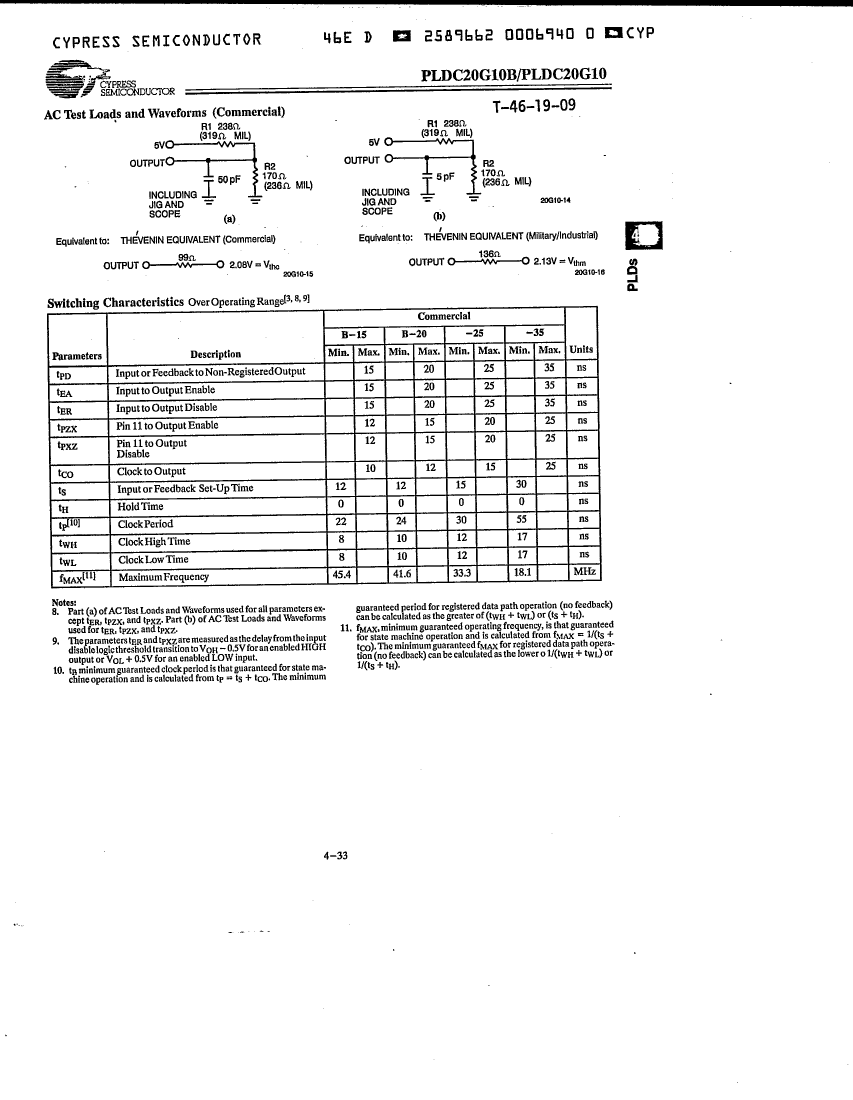

maximum clock frequency	45.4 MHz
JESD-30 code	S-CQCC-J28
JESD-609 code	e0
length	11.43 mm
Dedicated input times	10
Number of I/O lines	10
Number of entries	22
Output times	10
Number of product terms	90
Number of terminals	28
Maximum operating temperature	75 °C
Minimum operating temperature
organize	10 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCJ
Encapsulate equivalent code	LDCC28,.5SQ
Package shape	SQUARE
Package form	CHIP CARRIER, WINDOW
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programmable logic type	UV PLD
propagation delay	15 ns
Certification status	Not Qualified
Maximum seat height	4.57 mm

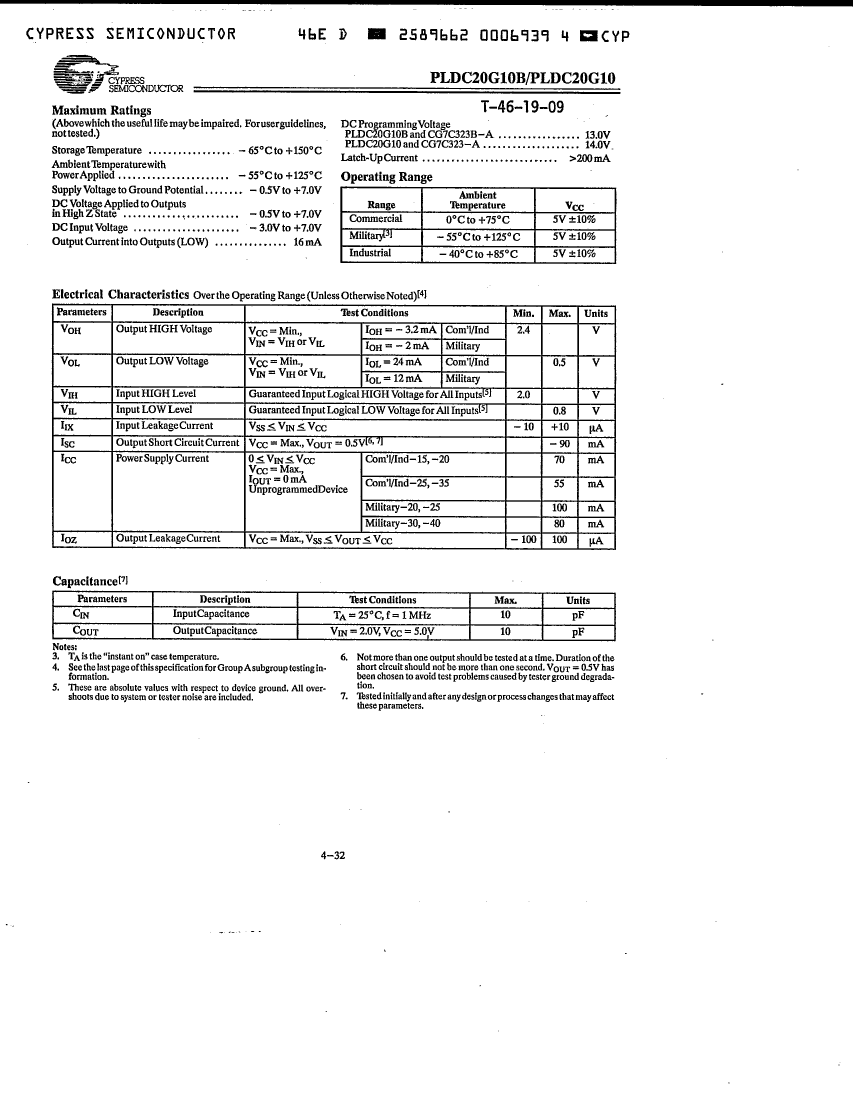

Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.43 mm
