2.5 x 2.0 x 1.2mm BUILT-IN CAPACITANCE CERAMIC RESONATOR
AWSCR-CW
AWSCR-CW
FEATURES:
• Low resonant impedance
• Built-in load capacitors
• IR reflow capable
Pb in ceramic
(exempt per RoHS 2002/95/EC Annex (7))
RoHS
Compliant
2.5 x 2.0 x 1.2mm
| | | | | | | | | | | | | | |
APPLICATIONS:
• Consumer electronics
STANDARD SPECIFICATIONS:
Item
Frequency Range
Resonant Impedance
Frequency Tolerance
Frequency stability
Withstanding Voltage (V)
Rating Voltage
(1) D.C.Voltage
(2) A.C. Voltage
Built-in Capacitance
(C1=C2)
Insulation Resistance
Operating Temperature
Storage Temperature
Aging Rate (Fosc)
Requirement
20.00MHz to 48.00 MHz
See Table 2.1
± 0.5% ( at 25℃)
±0.2% (-25℃½+85℃) max
*
50 (DC , 1 min)
6 V DC max
15 Vp-p. max
10pF± 20% (20.00 to 25.99 MHz)
5pF± 20% (26.00 to 48.00 MHz)
100MΩ min. (10V, 1min)
o
o
-25 C to +85 C
*
-55
o
C to +85
o
C
±0.2% max. (From initial value)
Table 2.1
Resonant Impedance
Frequency range (MHz)
(Ro)(Ω ) max
Ω
20.00 MHz - 25.99 MHz
60
26.00 MHz - 35.00 MHz
50
35.01 MHz - 48.00 MHz
50
* Please contact ABRACON for tighter stability
and/or wider temperature range

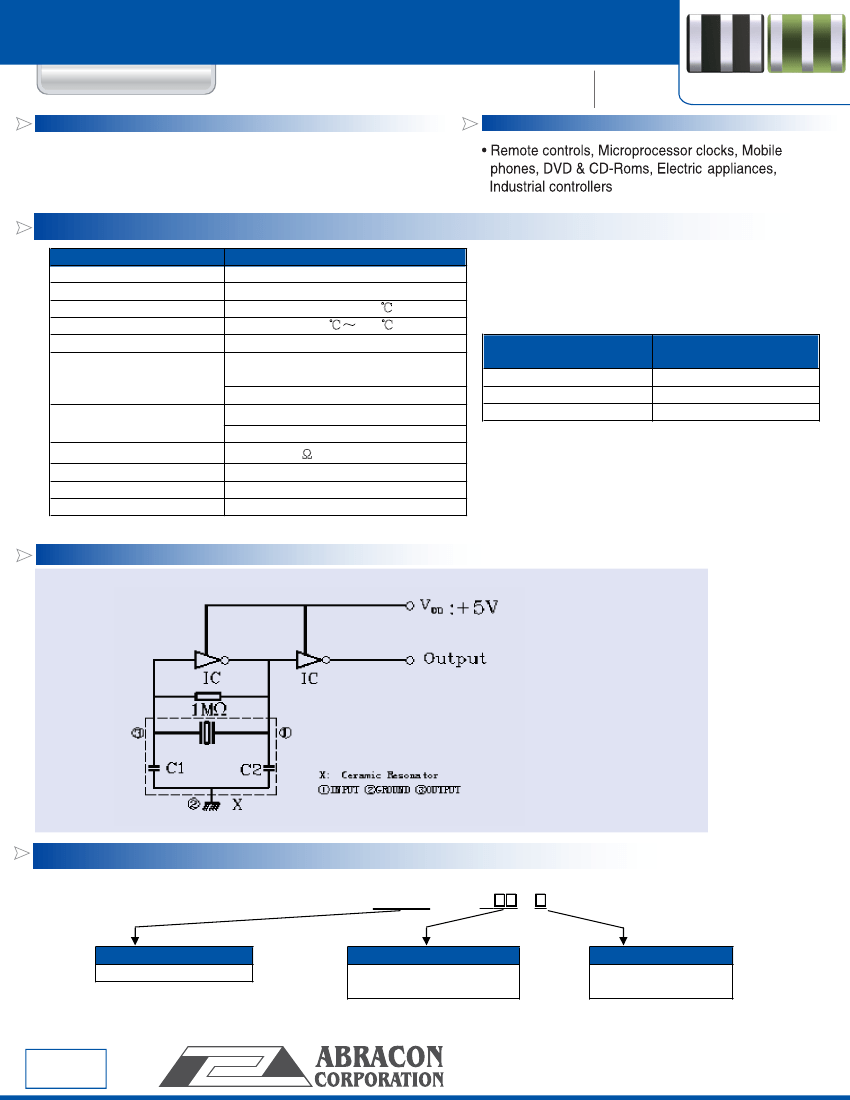

TEST CIRCUIT:
OPTIONS AND PART IDENTIFICATION:
AWSCR - XX.XXCW - C
Frequency
Frequency in MHz
Load Capacitance
Contact ABRACON for Load
Capacitance options
-
Packaging
T for Tape and Reel
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 09.12.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
2.5 x 2.0 x 1.2mm BUILT-IN CAPACITANCE CERAMIC RESONATOR
AWSCR-CW
AWSCR-CW

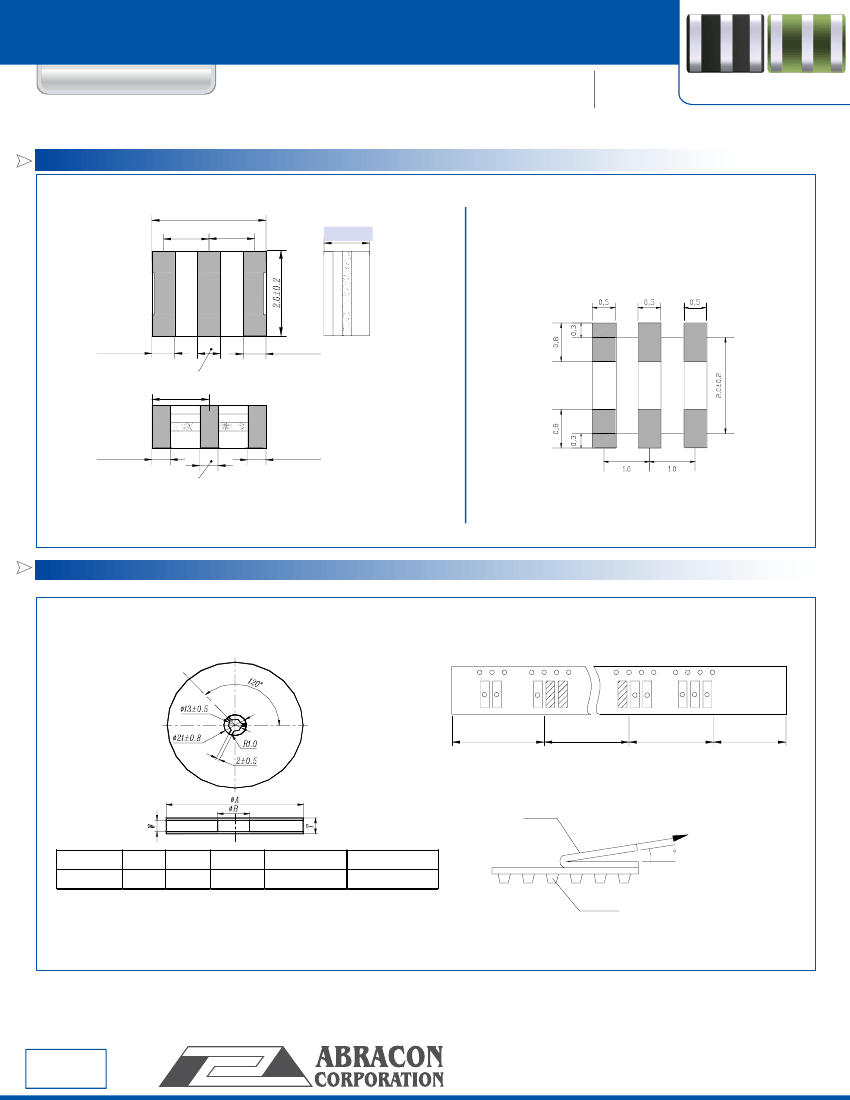

OUTLINE DRAWING:
Pb in ceramic
(exempt per RoHS 2002/95/EC Annex (7))
RoHS
Compliant
2.5 x 2.0 x 1.2mm
| | | | | | | | | | | | | | |
Dimensions: mm
2.5±0.2
1.0±0.2 1.0±0.2
1.2 max
1.1±0.1
RECOMMENDED LAND PATTERN
0.5±0.2
0.5±0.2
1.25±0.2
0.5±0.2
0.4±0.2
0.5±0.2
0.4±0.2
A: Frequency Code
*:Eiaj Monthly Code
TAPE & REEL:
Blank Pocket
10 Pitches
Loaded Pocket
Blank Pocket
10 Pitches
Leader
200mm Max
Top Tape
-70g
trength 20
Peeling S
φA
180±3
φB
W
T
Pieces per reel Carrier tape size
3000typ.
8
Carrier Tape
10 max
60min 8.4min 12.4max
Dimension : mm
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 09.12.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
2.5 x 2.0 x 1.2mm BUILT-IN CAPACITANCE CERAMIC RESONATOR
AWSCR-CW
AWSCR-CW

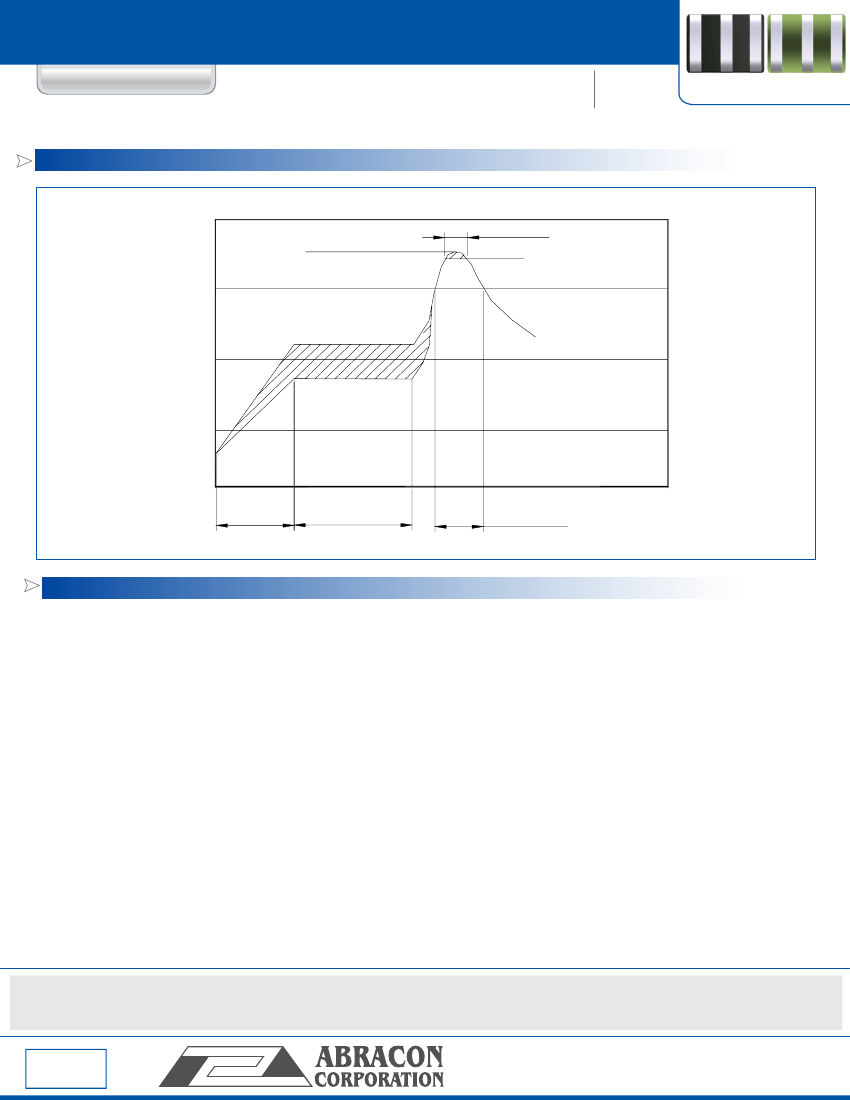

REFLOW PROFILE:
Pb in ceramic
(exempt per RoHS 2002/95/EC Annex (7))
RoHS
Compliant
2.5 x 2.0 x 1.2mm
| | | | | | | | | | | | | | |
Peak:260℃max
230℃
10s max
250℃
150℃
100℃
Pre-heating
30s min
within
80-120s.
within
20-40s
CAUTION
• Do not apply excess mechanical stress to the component body or terminations. Do not attempt to re-form or bend the components as this will cause
damage to the component.
• This component is not hermetically sealed. Do not clean or wash the component.
• Reflow soldering: Do not use strong acidity flux,such as flux with chlorine content of greater than 0.2wt% during reflow Soldering.
• Do not expose the component to open flame.
• This specification applies to the functionality of the component as a single unit. Customers are advised to insure that the component is thoroughly
evaluated in the particular application.
• Shelf life: The warranted shelf life of this product is six months after the delivery date under the conditions of sealed, unopened, original packaging.
• Storage conditions: If the product is to be stored for a period greater than six months after the delivery date, it is recommended that customers confirm
the solderability and characteristics for the product prior to use.
• This product is not recommended for use in the following applications: Automotive, Medical, Military, Safety, or any other high-reliability, life-dependant
application. Contact Abracon Corporation prior to using this product when in doubt.
