FEPF16JT: DescriptionRectifier Diode, 1 Phase, 2 Element, 16A, 600V V(RRM), Silicon, PLASTIC, ITO-220, FULL PACK-3; CategoryDiscrete semiconductor diode; File Size219KB，3 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric Compare View All

FEPF16JT Overview

Rectifier Diode, 1 Phase, 2 Element, 16A, 600V V(RRM), Silicon, PLASTIC, ITO-220, FULL PACK-3

FEPF16JT Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SENSITRON
Parts packaging code	SFM
package instruction	R-PSFM-T3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSFM-T3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	125 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	16 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

SENSITRON

SEMICONDUCTOR

Dim

! "

$ % &&

'()*

Min

ITO-220

Max

Min

Max

$ +#

$"+- 7&

14.9

15.1

0.587

0.594

—

10.5

—

0.413

2.62

2.87

0.103

0.113

3.56

4.06

0.140

0.160

13.46 14.22

0.530

0.560

0.68

0.94

0.027

0.037

3.74 Ø 3.91 Ø 0.147 Ø 0.154 Ø

5.84

6.86

0.230 0.270

4.44

4.70

0.175

0.185

+,-*../$

2.54

2.79

0.10

0.110

- &+

0.35

0.64

0.014

0.025

$, -

./.0$ ./1

1.14

1.40

0.045

0.055

& ,

2.41

2.67

0.095

0.105

2 +.3.(&4536

In mm

In inch

"# $%& %

%'& ()& ' !' %!*

%%' %!& !% +, -*

$%. ' ' /%#

.# $%. ' /%#

0 1.# /%#

4" ' /%#

7'%#

! 8

:' $%. %! "#

6*2; "# %

%' ;!

%! %! <=0 4!>

%! /%# 9

6*7

$%. '

7 %! 0 1.# /%#

' ', ; <: >

,% = %%% <: >

8%# %! "%# ;% %#

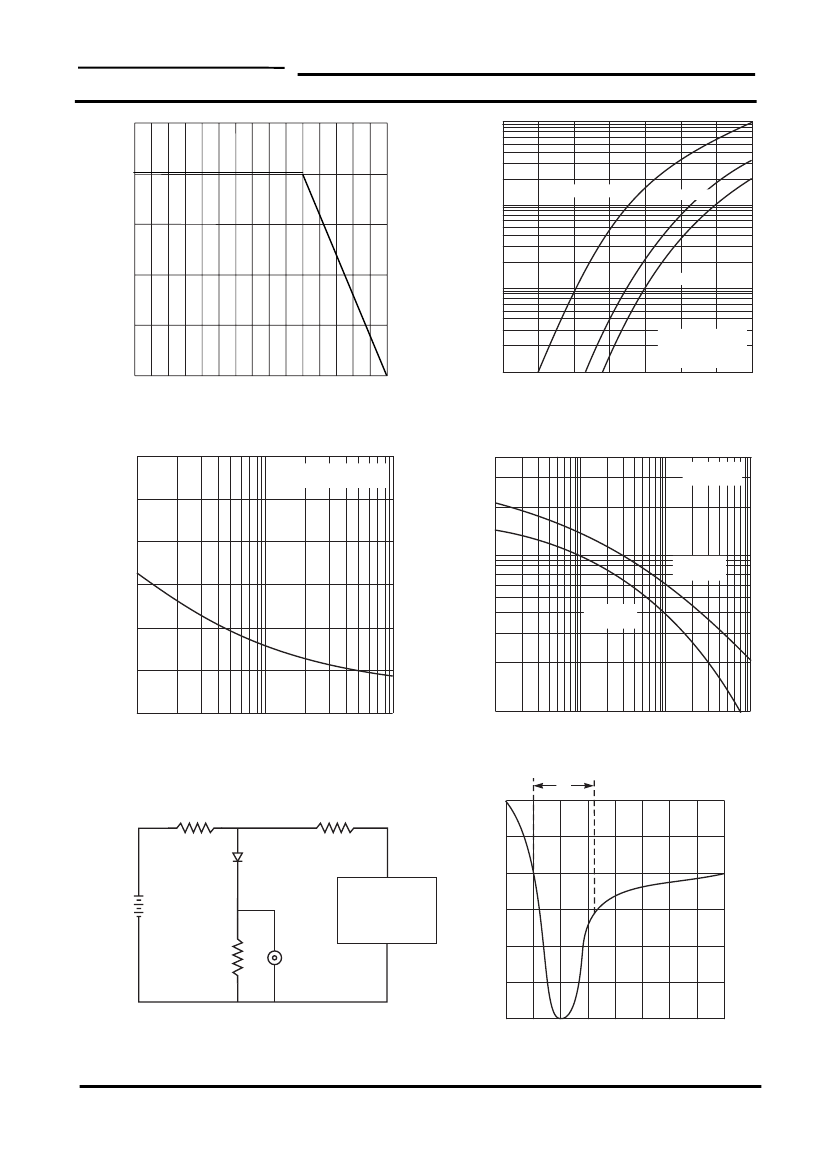

FEPF

:B * 4%! 9 *7& 9 *7& 9 * 7*

* 4%! % * 4() %! %! ' '%#

3*/ 0**

•

!!"#$•

•

% & '(&)*+,,---. &

./0•12&%#

%3 &

./0•

SENSITRON

SEMICONDUCTOR

TECHNICAL DATA

DISCLAIMER:

1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product

characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales department for the latest version

of the datasheet(s).

2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,

medical equipment, and safety equipment), safety should be ensured by using semiconductor devices that feature assured safety or by

means of users’ fail-safe precautions or other arrangement.

3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other cause during

operation of the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no responsibility for any intellectual

property claims or any other problems that may result from applications of information, products or circuits described in the datasheets.

4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage resulting from

use at a value exceeding the absolute maximum rating.

5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron Semiconductor.

6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of

Sensitron Semiconductor.

7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will

hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third

party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and

regulations.

•

221 West Industry Court

Deer Park, NY 11729-4681

(631) 586-7600 FAX (631) 242-9798

•

World Wide Web - http://www.sensitron.com

•

E-Mail Address - sales@sensitron.com

•
