CIC31J301 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> CIC31J301

CIC31J301: Description1 FUNCTIONS, 2 A, FERRITE CHIP; CategoryPassive components; File Size929KB，10 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric View All

CIC31J301 Overview

1 FUNCTIONS, 2 A, FERRITE CHIP

CIC31J301 Parametric

Parameter Name	Attribute value
Number of functions	1
Minimum operating temperature	-55 Cel
Maximum operating temperature	125 Cel
Processing package description	EIA STD PACKAGE SIZE 1206, 2 PIN
EU RoHS regulations	Yes
state	Active
filter type	FERRITE CHIP
Maximum DC resistance	0.0250 ohm
Manufacturer Series	CIC31
Installation type	SURFACE MOUNT
cking_method	TAPE AND REEL
Dimensions	L3.2XB1.6XH1.1 (mm)/L0.126XB0.063XH0.043 (inch)
Rated current	2 A
terminal coating	NOT SPECIFIED
heigh	1.1 mm
length	3.2 mm

Preview

Download Datasheet

View All

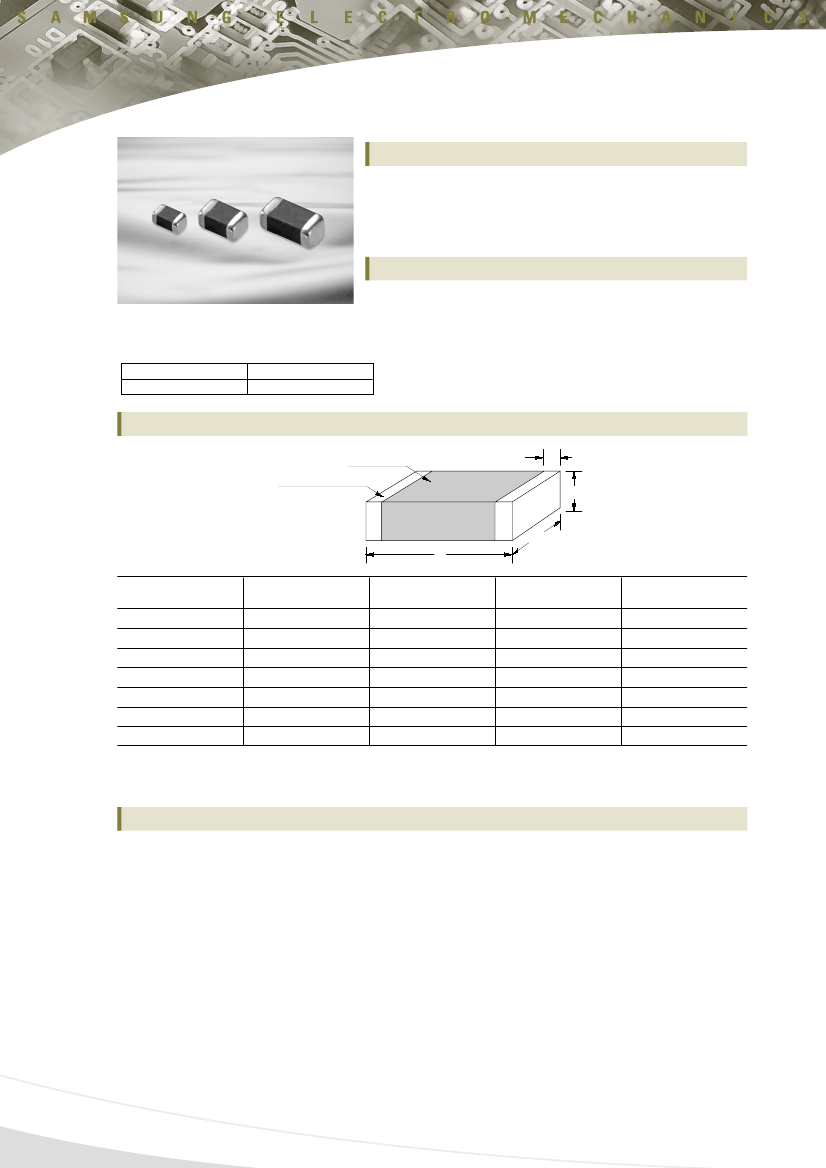

Chip Bead ; CIC/CIS Series

For High Current

Feature

•The

smallest beads used for high current.

(CIC: ~3A, CIS: ~6A)

Application

•Suppression

of noise in power line

The CIC/CIS Series can be used in high current owing to their low DC resistance.

They can match power lines to a maximum of 6A DC.

Operating Temp

Storage Temp

-55~+125

℃

-10~+40

℃

Dimensions

Ferrite Body

External Electrode

Unit : mm

SIZE CODE

1.0±0.05

1.6±0.15

2.0±0.2

3.2±0.2

4.5±0.2

0.5±0.05

0.8

±0.15

1.25±0.2

1.6±0.2

2.5±0.2

1.6±0.2

3.2±0.2

0.5±0.05

0.8±0.15

0.9±0.2

1.1±0.2

1.3±0.2

1.6±0.2 / 1.2±0.2

1.5±0.2

0.25±0.1

0.3±0.2

0.5+0.2,-0.3

0.5±0.3

Part Numbering

(1)

(2)

(3)

(4)

300

(5)

(6)

(7)

(1) Chip Beads

(2) C: For high current ~3A, S: Ultra high current ~6A

(3) Dimension

(4) Material Code(J, P)

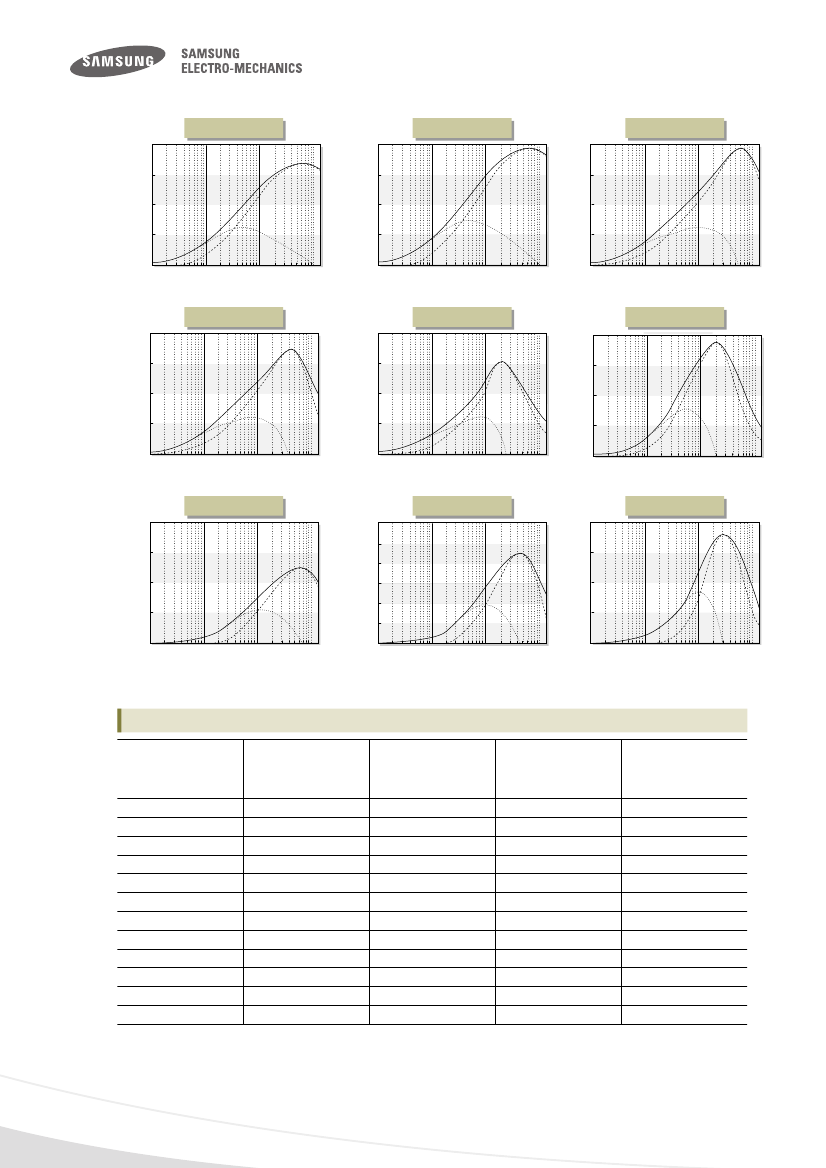

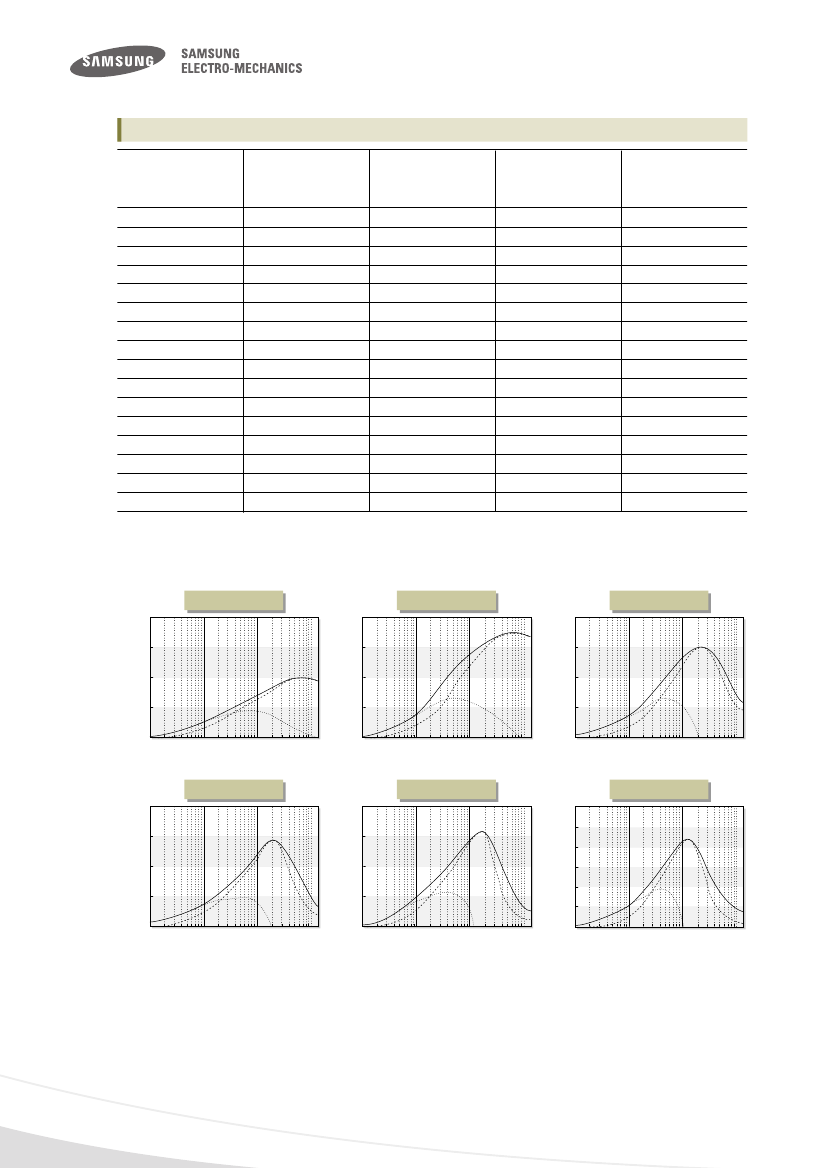

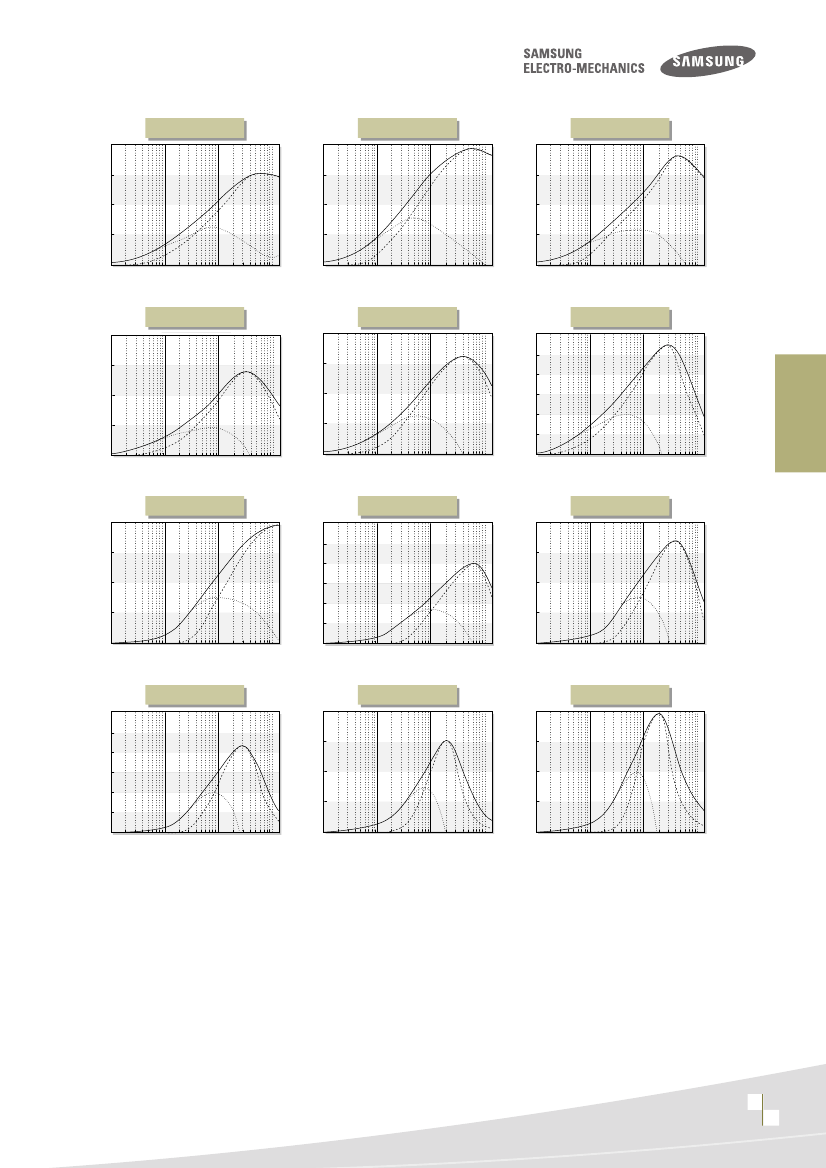

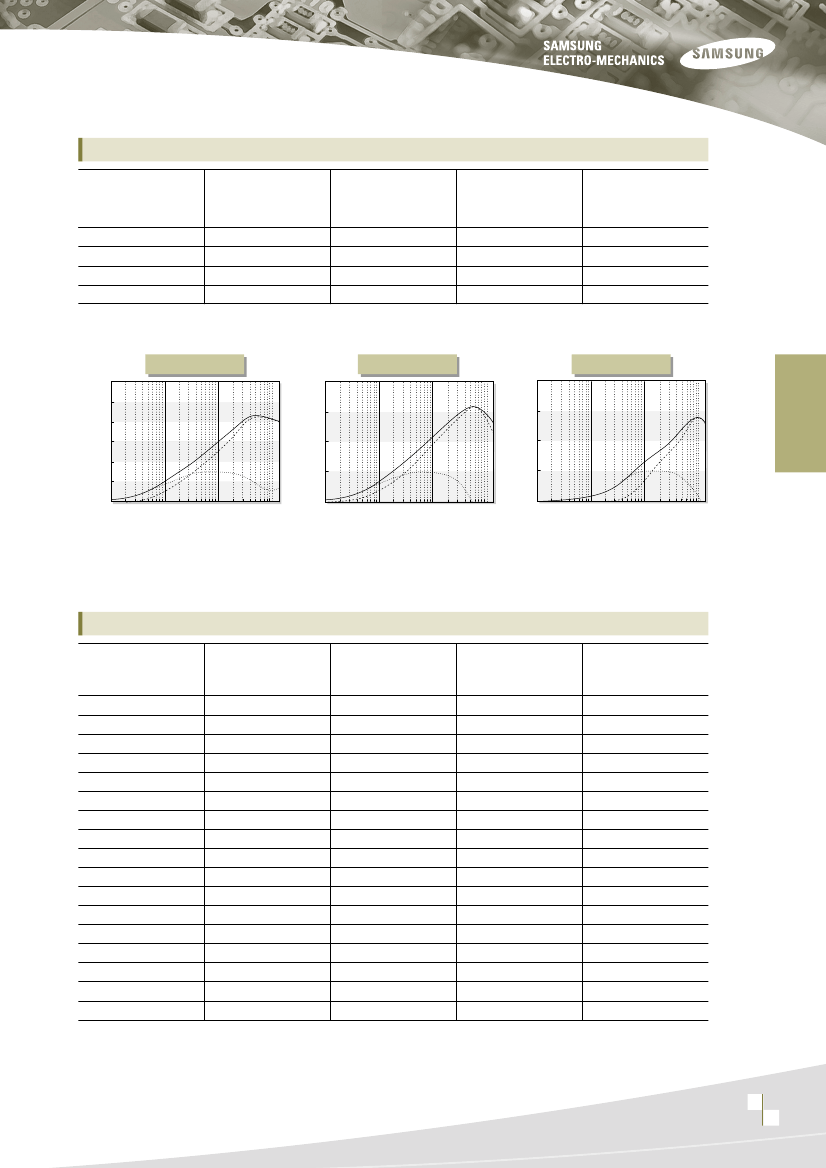

(5) Nominal impedance(310: 31Ω, 121: 120Ω)

(6) Thickness option(N: Standard, A: Thinner than standard, B: Thicker than standard)

(7) Packaging(C: paper tape, E: embossed tape)
