TC74HCT643AF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> TC74HCT643AF

TC74HCT643AF: DescriptionIC HCT SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOIC-20, Bus Driver/Transceiver; Categorylogic logic; File Size113KB，4 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74HCT643AF Overview

IC HCT SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOIC-20, Bus Driver/Transceiver

TC74HCT643AF Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP, SOP20,.3
Contacts	20
Reach Compliance Code	unknown
Other features	WITH DIRECTION CONTROL
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
series	HCT
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	12.8 mm
Load capacitance (CL)	150 pF
Logic integrated circuit type	BUS TRANSCEIVER
MaximumI(ol)	0.006 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Prop。Delay @ Nom-Sup	38 ns
propagation delay (tpd)	38 ns
Certification status	Not Qualified
Maximum seat height	1.8 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
width	5.3 mm

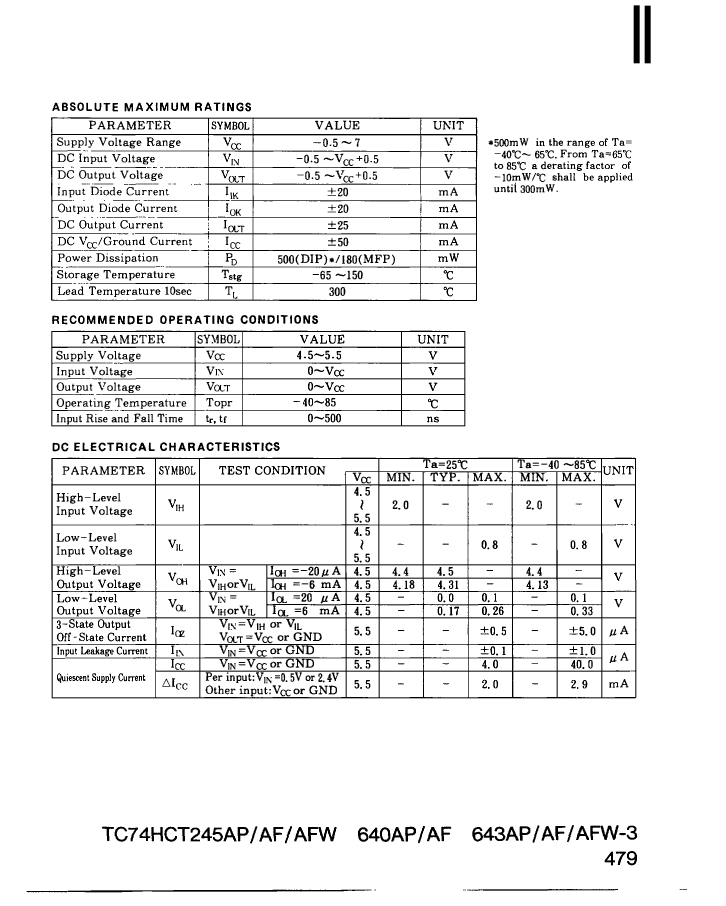

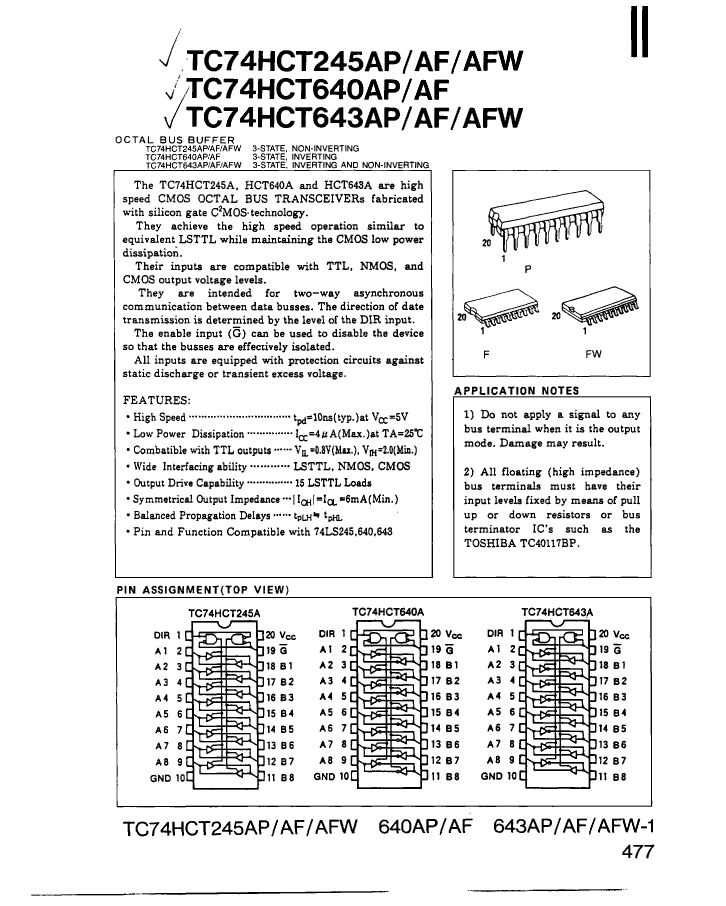

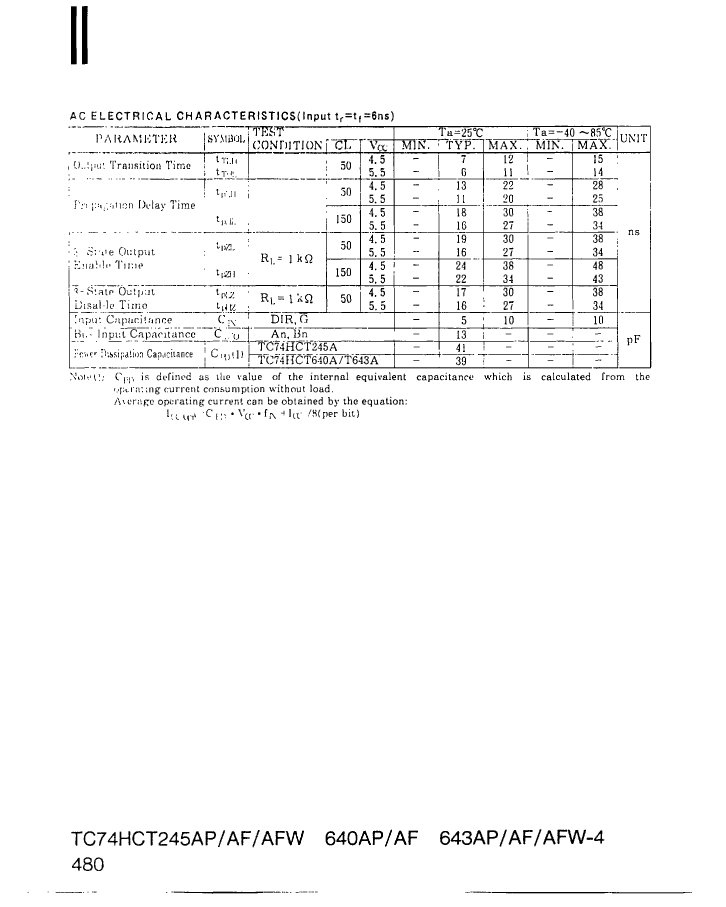

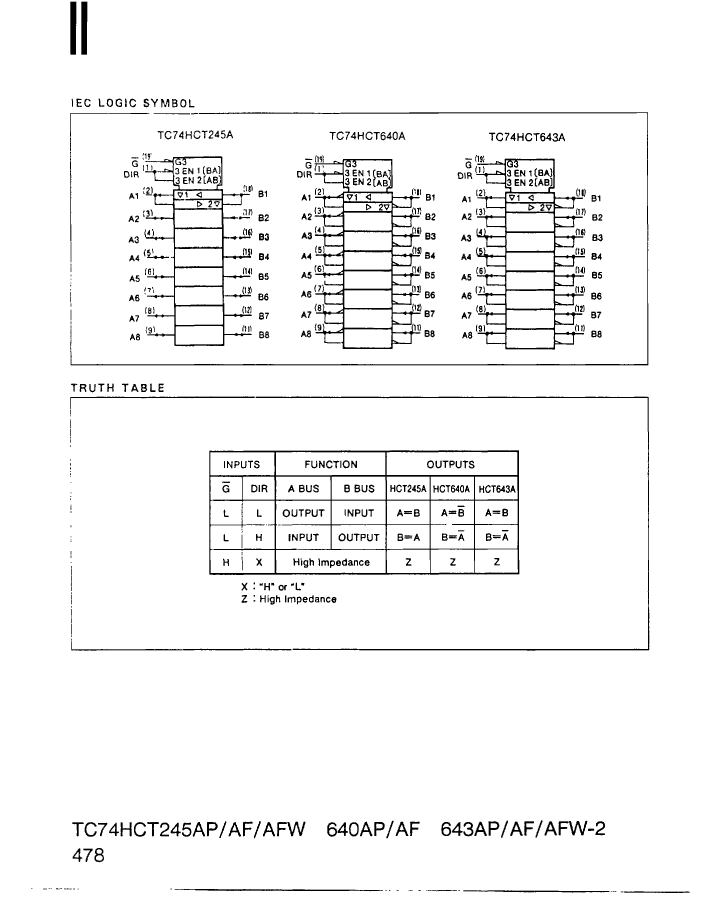

Preview

Download Datasheet

View All

TC74HCT643AF Related Products

	TC74HCT643AF	TC74HCT643AP	TC74HCT643AFW
Description	IC HCT SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOIC-20, Bus Driver/Transceiver	IC HCT SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDIP20, 0.300 INCH, PLASTIC, DIP-20, Bus Driver/Transceiver	IC HCT SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-20, Bus Driver/Transceiver
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	SOIC	DIP	SOIC
package instruction	SOP, SOP20,.3	DIP, DIP20,.3	SOP, SOP20,.4
Contacts	20	20	16
Reach Compliance Code	unknown	unknown	unknown
Other features	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL
Control type	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	HCT	HCT	HCT
JESD-30 code	R-PDSO-G20	R-PDIP-T20	R-PDSO-G16
JESD-609 code	e0	e0	e0
length	12.8 mm	24.6 mm	12.8 mm
Load capacitance (CL)	150 pF	150 pF	150 pF
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
MaximumI(ol)	0.006 A	0.006 A	0.006 A
Number of digits	8	8	8
Number of functions	1	1	1
Number of ports	2	2	2
Number of terminals	20	20	16
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP
Encapsulate equivalent code	SOP20,.3	DIP20,.3	SOP20,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	38 ns	38 ns	38 ns
propagation delay (tpd)	38 ns	38 ns	38 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.8 mm	4.45 mm	2.65 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
translate	N/A	N/A	N/A
width	5.3 mm	7.62 mm	7.5 mm
