ZLLS400
40V SURFACE MOUNT SCHOTTKY BARRIER DIODE
Product Summary
•
•
•
V
R
= 40V
I
F
= 0.52A
I
R
= 10μA
Features and Benefits
•
•
•
•
•
•
•
Low Equivalent On Resistance
Extremely low leakage (10μA @30V)
High current capability (I
F
= 0.52A)
Low V
F
, fast switching Schottky
ZLLS400 complements low temperature equivalent ZHCS400
Package thermally rated to 150°C
Qualified to AEC-Q101 Standards for High Reliability
Description and Applications
This compact SOD323 packaged Schottky diode offers users an
excellent performance combination comprising high current operation,
extremely low leakage and low forward voltage ensuring suitability for
applications requiring efficient operation at higher temperatures
(above 85°C) see Operational efficiency chart on page 4.
•
•
•
•
DC – DC Converters
Mobile Telecomms
Charging circuits
Motor control
Mechanical Data
•
•
•
•
•
•
Case: SOD323
Case Material: UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Cathode Band
Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.004 grams (approximate)
SOD323
Top View
Ordering Information
(Note 1)
Device
ZLLS400TA
ZLLS400TC
Notes:
Packaging
SOD323
SOD323
Shipping
3,000/Tape & Reel
10,000/Tape & Reel
1. For Packaging Details, go to our website at http://www.diodes.com.
Marking Information
A
40
Top View
C
40 = Product Type Marking Code
ZLLS400
Document number: DS33226 Rev. 7 - 2
1 of 6
www.diodes.com
February 2012
© Diodes Incorporated
ZLLS400

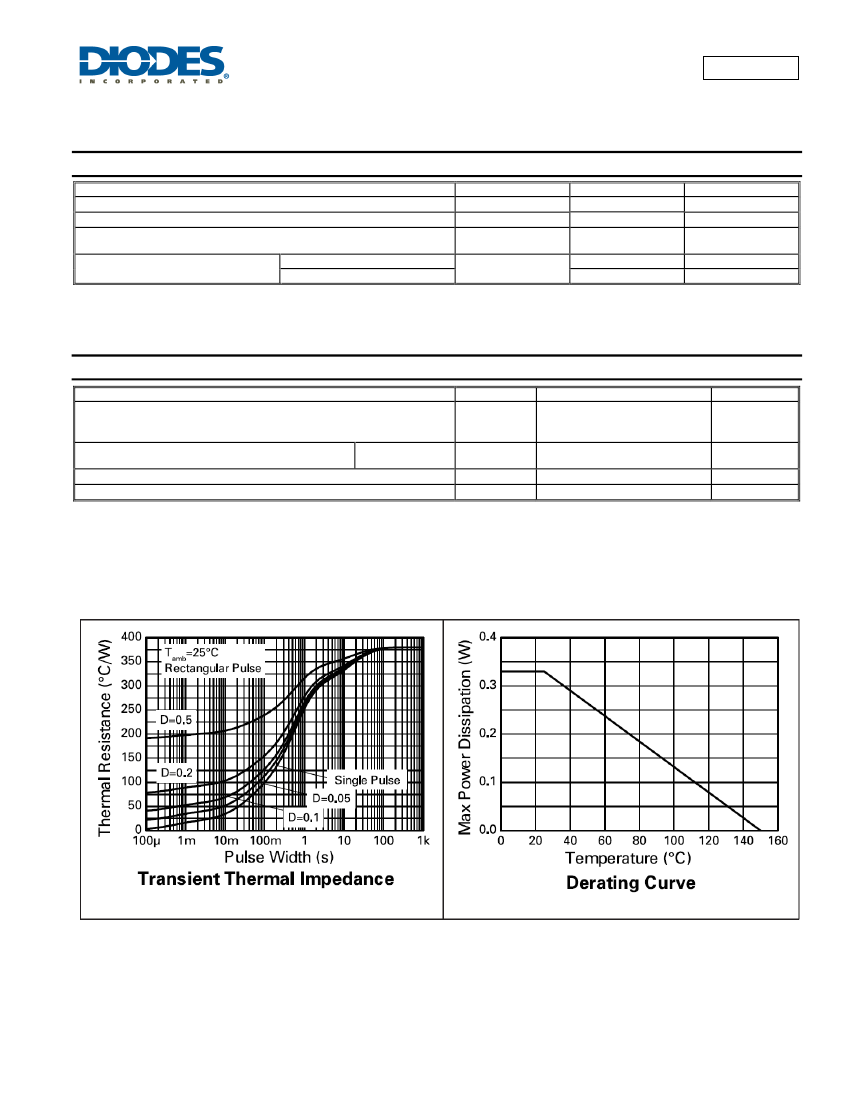

Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic
Continuous Reverse Voltage
Continuous Forward Current
Peak Repetitive Forward Current
Rectangular Pulse Duty Cycle
Non Repetitive Forward Current
t
≤
100μs
t
≤
10ms
Symbol
V
R
I
F
I
FPK
I
FSM
Value
40
0.52
0.85
12
2.5
Units
V
A
A
A
A
Thermal Characteristics
Characteristic
Power Dissipation, T
A
= 25°C
Single Die Continuous
Single Die Measured at t < 5 secs
Thermal Resistance, Junction to Ambiet
Junction Temperature
Storage Temperature Range
Notes:
Symbol
P
D
(Note 2)
(Note 3)
R
θJA
T
J
T
STG
Value
330
390
379
317
150
-55 to +150
Unit
mW
°C/W
°C
°C
2. For a device surface mounted on 25mm x 25mm FR4 PCB with high coverage of single sided 1oz copper, in still air conditions.
3. For a device surface mounted on FR4 PCB measured at t<5 secs.
ZLLS400
Document number: DS33226 Rev. 7 - 2
2 of 6
www.diodes.com
February 2012
© Diodes Incorporated
ZLLS400
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic
Reverse Breakdown Voltage
Symbol
V
(BR)R
Min
40
-
-
-
-
-
-
-
-
-
-
-
-
-
Typ
60
305
335
395
445
550
620
710
405
6
370
15
3
210
Max
-
360
390
450
500
630
710
800
-
10
-
-
-
-
Unit
V
Test Condition
I
R
= 200μA
I
F
= 50mA
I
F
= 100mA
I
F
= 250mA
I
F
= 400mA
I
F
= 750mA
I
F
= 1A
I
F
= 1.5A
I
F
= 400mA, T
A
= 100°C
V
R
= 30V
V
R
= 30V, T
A
= 85°C
f = 1MHz, V
R
= 30V
Switched from I
F
= 500mA to
V
R
= 5.5V Measured @ I
R
= 50mA
di /d t = 500mA / ns
R
source
= 6Ω; R
load
= 10Ω
Forward Voltage (Note 4)
V
F
mV
Reverse Current
Diode Capacitance
Reverse Recovery Time
Reverse Recovery Charge
Notes:
I
R
C
D
trr
Qrr
μA
pF
ns
pC
4. Measured under pulsed conditions. Pulse width = 300μS. Duty cycle
2%.

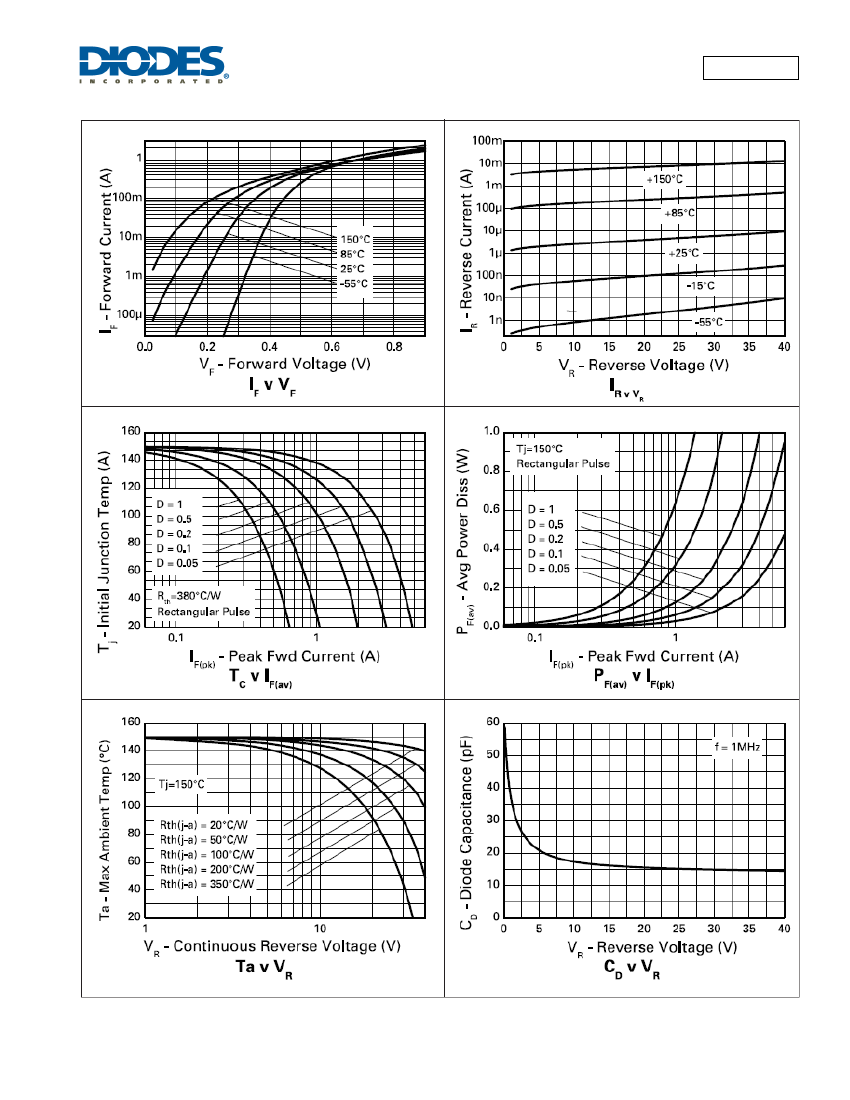

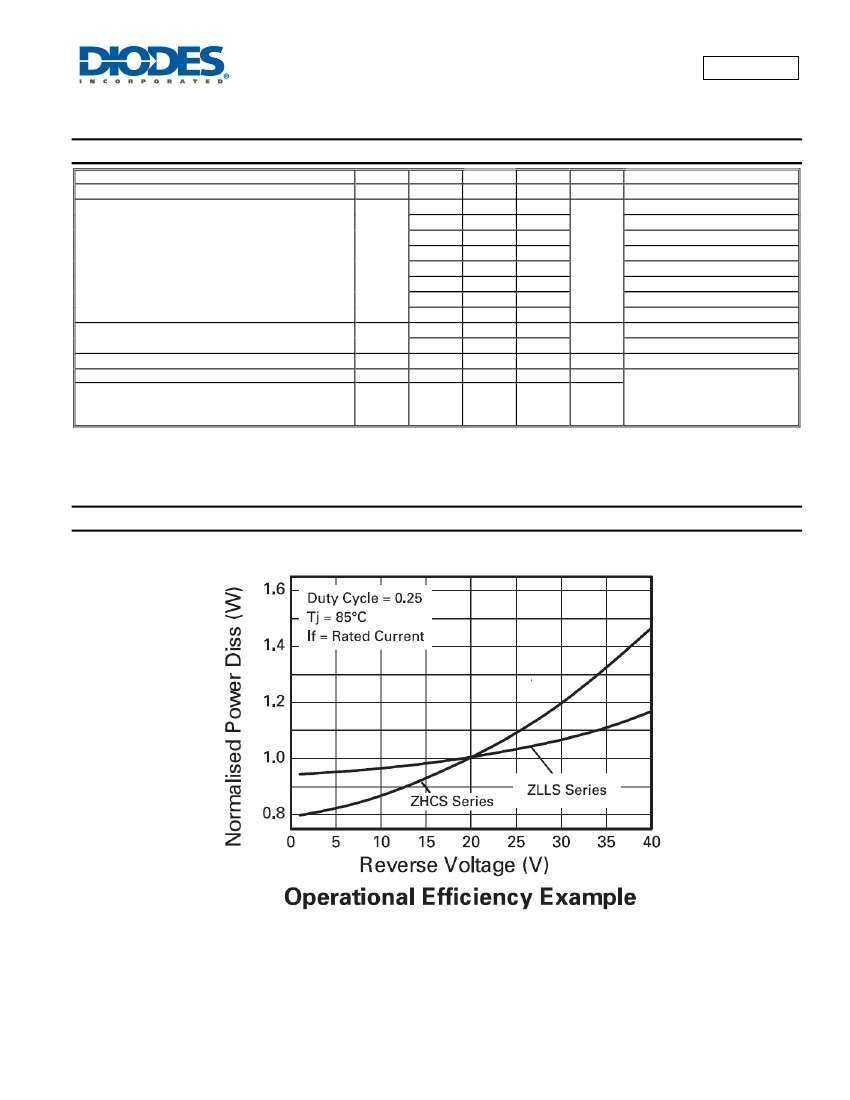

Operational efficiency chart
The operational efficiency chart indicates the beneficial use of the ZLLS series diodes in applications requiring higher voltage, higher temperature
operation. Circuits requiring low voltage low temperature operation will benefit from using Zetex low V
F
ZHCS series diodes.
ZLLS400
Document number: DS33226 Rev. 7 - 2
3 of 6
www.diodes.com
February 2012
© Diodes Incorporated
