TN3089: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size39KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

TN3089 Overview

RF AMPLIFIER MODEL

TN3089 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	19 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	160 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2.1
Base Number Matches	1

Preview

Download Datasheet

View All

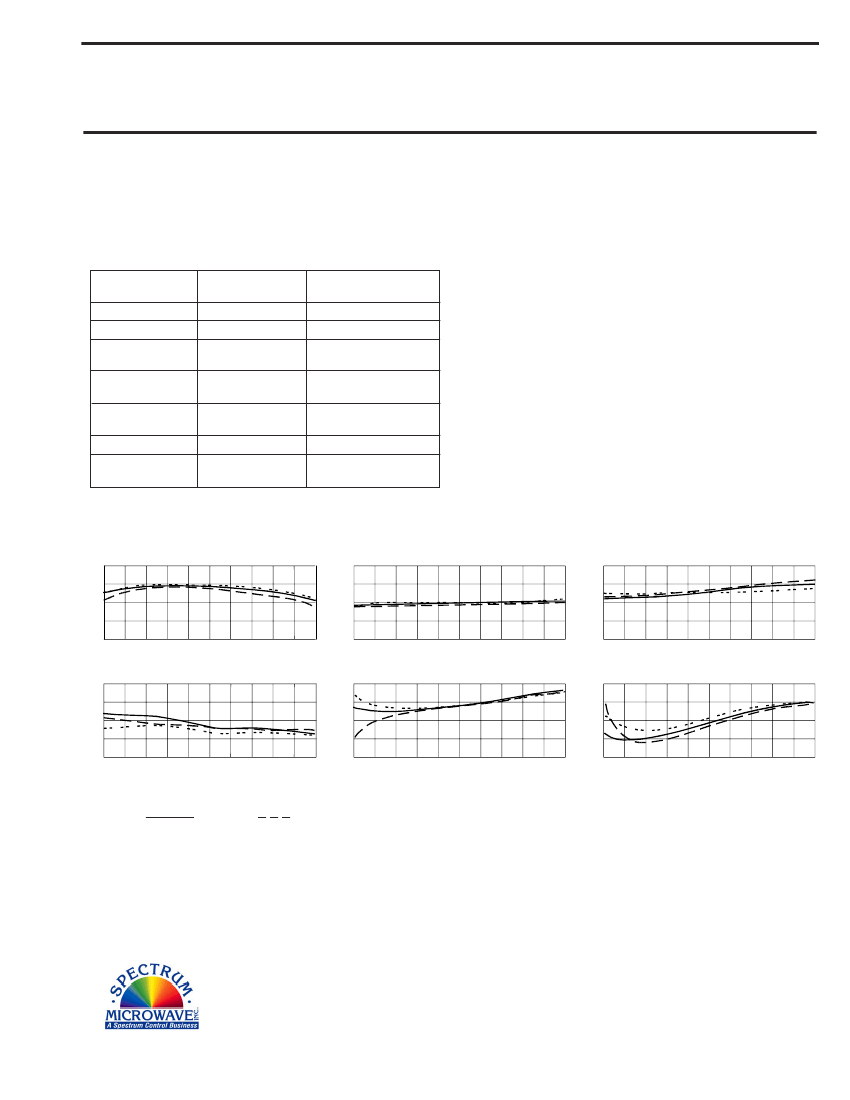

RF AMPLIFIER

MODEL

TM3089

Features

Higher Output Power: +24.5 dBm Typical

Superior Phase Noise Performance

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM3089, 4 Pin TO-8 (T4)

TN3089, 4 Pin Surface Mount (SM3)

FP3089, 4 Pin Flatpack (FP4)

BX3089, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +58 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +52 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +40 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

10 - 160 MHz

24.5

-22

1.8:1

2.5

+15

110

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 160 MHz

19 Min.

23 Min.

-21 Max.

2.1:1 Max.

2.0:1 Max.

3.0 Max.

+15

120 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 10 MHz

Stop 160 MHz

Reverse Isolation (dB)

- 10

- 20

- 30

- 40

Start 10 MHz

Stop 160 MHz

Noise Figure (dB)

Start 10 MHz

Stop 160 MHz

1 dB Comp. (dBm)

+26

+25

+24

+23

+22

Start 10 MHz

Stop 160 MHz

Input VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 160 MHz

Output VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 160 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

01/27/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
