5213-25CS Overview

D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Locking, Receptacle

5213-25CS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
body width	0.494 inch
body length	2.09 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VDC V
Insulator color	BLUE
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5213
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER COPPER
Termination type	IDC
Total number of contacts	25
Base Number Matches	1

Preview

Download Datasheet

View All

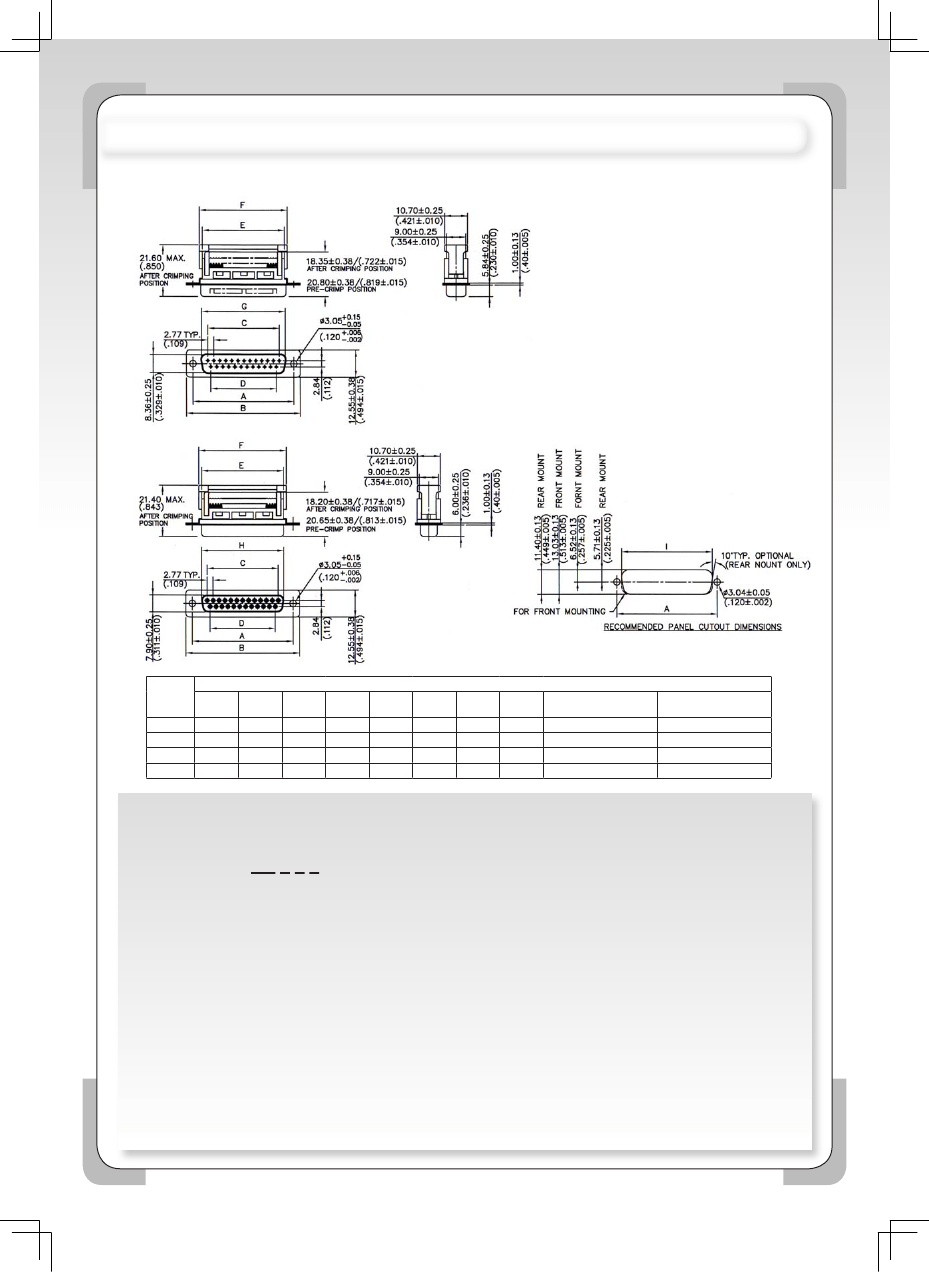

D-SUB. MALE CONNECTOR WITH METAL SHELL I.D.C. TYPE

SPECIFICATIONS

Current Rating:

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

MATERIALS

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

Dimensions(mm)

No. of

I±0.13

Contacts

A±0.13 B±0.25 C±0.13 D±0.13 E±0.25 F±0.25 G±0.25 H±0.25

REAR MOUNTING FRONT MOUNTING

24.99 30.80 11.08

8.31

16.10 18.60 16.92 16.33

20.47

22.20

33.32 39.10 19.39 16.62 24.00 26.60 25.25 24.66

28.80

30.53

47.04 53.09 33.24 30.47 38.14 40.90 38.96 38.38

42.52

44.27

63.50 69.40 49.86 47.09 54.60 57.10 55.45 54.84

59.08

60.73

ORDERING INFORMATION:

P/N 5 2 1 3 - x x x x x

1 234

1. NO. OF CONTACTS:

09, 15, 25, 37

2. HOUSING CONSTRUCTION TYPE:

"C" STANDARD THROUGH HOLES

"D" UNC4-40 THREADED INSERTS

3. STRAIN RELIEF TYPE:

"P" PLASTIC STRAIN RELIEF

"S" STEEL STRAIN RELIEF

4. HOUSING COLOR:

" " BLUE (STANDARD)

"B" BLACK

C0025
