USB3-B-S-F-TH datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> USB3-B-S-F-TH

Preview

USB3-B-S-F-TH: Description4 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector; File Size609KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

USB3-B-S-F-TH Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	USB3-B-S-F-TH	-	-	View	Buy Now

USB3-B-S-F-TH Overview

4 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE

USB3-B-S-F-TH Parametric

Parameter Name	Attribute value
Total number of contacts	4
Processing package description	ROHS COMPLIANT
state	ACTIVE
Options	GENERAL PURPOSE
Shell style	socket
Manufacturer Series	USB3-B
Contact surface matching	GOLD FLASH OVER NICKEL(50)
Contact coated terminals	MATTE Tin OVER Nickel(50)
Connection Type	Telecommunications and Datacom Connectors
Connector male and female	Jack
insert material	Nylon 6T
collocation information	MULTIPLE MATING PARTS AVAILABLE
Installation method	right angle
Installation type	BOARD
Shell material	FRONT-PHOSPHOR copper alloy AND REAR-brass, nickel plated
Terminal type	welding
UL flammability code	94V-0

Preview

Download Datasheet

View All

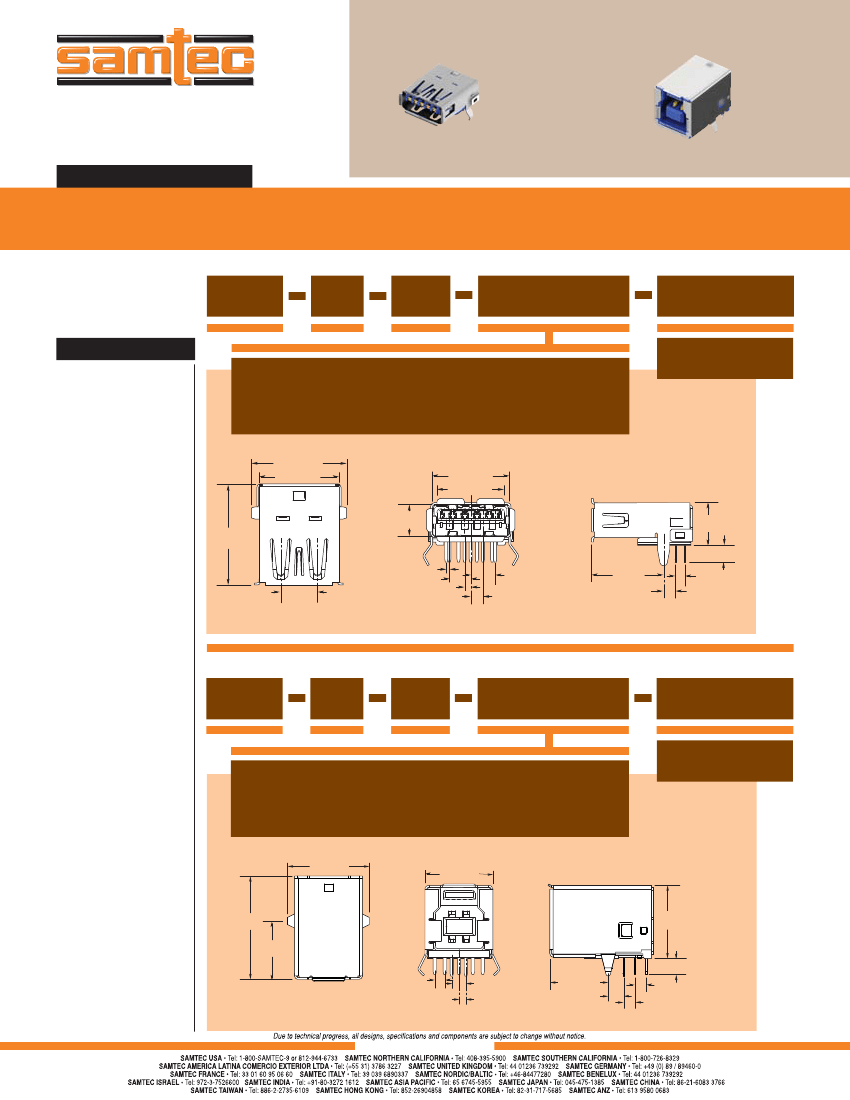

F-212

USB3–B–S–F–TH

USB3–A–S–S–TH

USB3-A, USB3-B SERIES

USB 3.0 INTERFACES

USB3-A Mates with:

USBC3-AM

USB3-B Mates with:

USBC3-BM

USB3

A

S

PLATING

TERMINATION

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?USB3-A or

www.samtec.com?USB3-B

Insulator Material:

Nylon 6T Blue

Contact Material:

Phosphor Copper

Plating:

Au or Sn over 50µ" (1,27µm) Ni

Shield Plating:

50µ" (1,27µm) Ni

Front Shield:

Phosphor Copper

Back Shield:

Brass

Operating Temp Range:

-50°C to +85°C

Current Rating:

1.8 A per power (VBUS)

contact and ground contact,

0.25A per other contact

Voltage Rating:

100 VAC

Contact Resistance:

30 mΩ max power and ground,

50 mΩ max for other contact

Minimum Cycles:

5000

RoHS Compliant:

Yes

–TH

–F

= Gold Flash on Mating Area, Matte Tin on Tails

= Through-hole

–S

= 30µ" (0,76µm) Gold on Mating Area, Matte Tin on Tails

(15,60) .614

(13,10) .516

(12,50) .492

(11,10) .437

(5,12)

.202

(16,50)

.650

(1,00) .039

(3,50) .138

(1,00) .039

(4,00)

.157

(2,00)

.079

(11,78)

.464

(2,00) .079

(6,99)

.275

(2,83)

.111

(1,50)

.059

(6,00)

.236

USB3

B

S

PLATING

TERMINATION

–TH

–F

= Gold Flash on Mating Area, Matte Tin on Tails

= Through-hole

–S

= 30µ" (0,76µm) Gold on Mating Area, Matte Tin on Tails

(14,30) .563

(12,00) .472

(18,25)

.719

(10,30)

.406

(12,90)

.508

(1,75)

.069

(1,25)

.049

(2,50)

.098

(10,30) .406

(2,72)

.107

(2,80)

.110

(2,00)

.079

(2,00)

.079
