N74H108A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> N74H108A

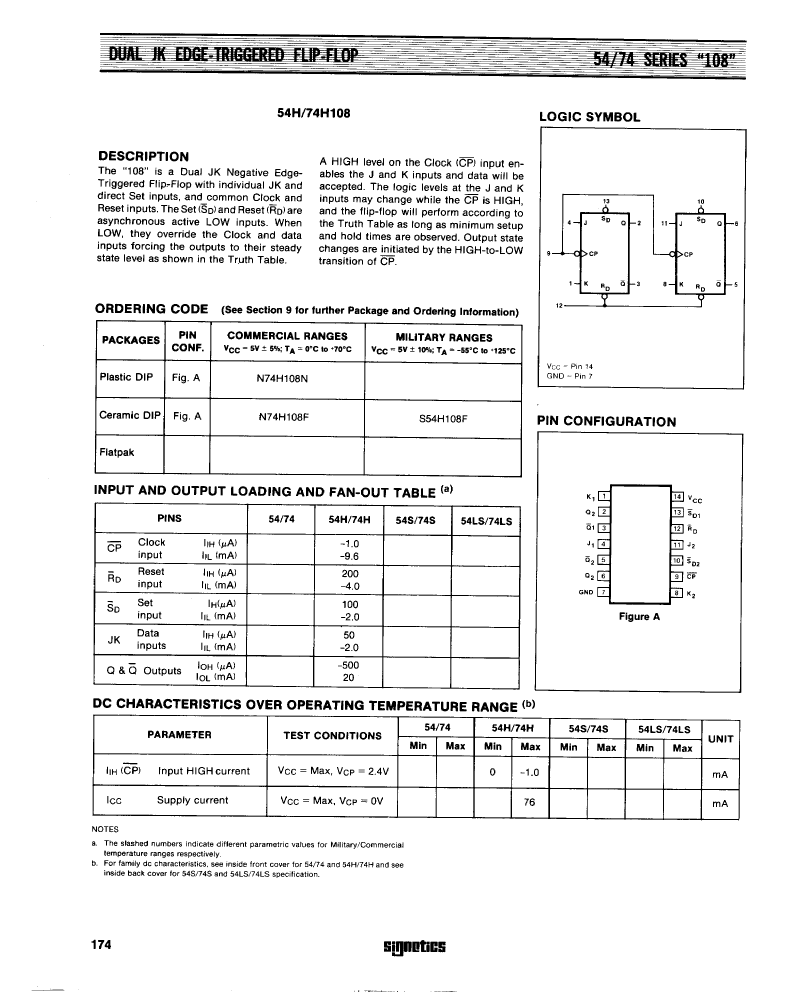

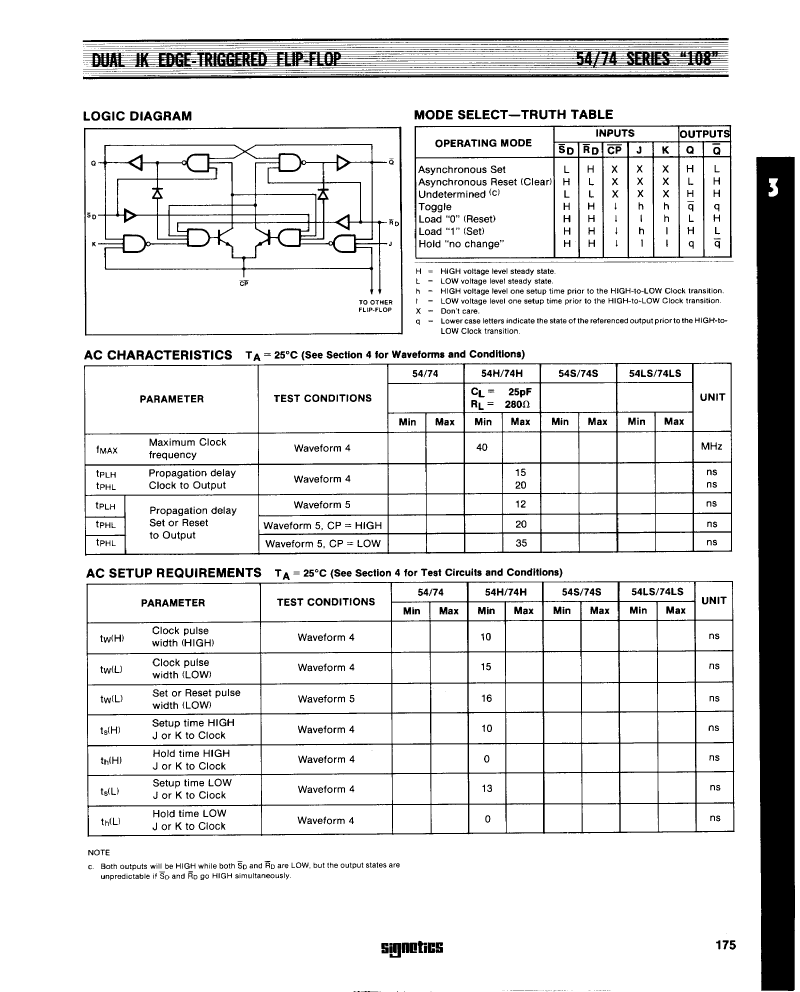

N74H108A: DescriptionJ-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, PDIP14; Categorylogic logic; File Size135KB，2 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

N74H108A Overview

J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, PDIP14

N74H108A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Logic integrated circuit type	J-K FLIP-FLOP
Maximum Frequency@Nom-Sup	40000000 Hz
MaximumI(ol)	0.02 A
Number of functions	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	76 mA
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	NEGATIVE EDGE

Preview

Download Datasheet

View All

N74H108A Related Products

	N74H108A	N74H108F	S54H108W	S54H108W/883B	N74H108FB
Description	J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, PDIP14	J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDIP14	J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP14	J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP14	J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDIP14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DFP, FL14,.3	DFP, FL14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
JESD-30 code	R-PDIP-T14	R-XDIP-T14	R-XDFP-F14	R-XDFP-F14	R-XDIP-T14
JESD-609 code	e0	e0	e0	e0	e0
Logic integrated circuit type	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP
MaximumI(ol)	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Number of functions	2	2	2	2	2
Number of terminals	14	14	14	14	14
Maximum operating temperature	70 °C	70 °C	125 °C	125 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DFP	DFP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	FL14,.3	FL14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	FLATPACK	FLATPACK	IN-LINE
Maximum supply current (ICC)	76 mA	76 mA	76 mA	76 mA	76 mA
surface mount	NO	NO	YES	YES	NO
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
Maximum Frequency@Nom-Sup	40000000 Hz	40000000 Hz	40000000 Hz	40000000 Hz	-
Certification status	-	Not Qualified	Not Qualified	Not Qualified	-
