IDT8MP624L100S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IDT8MP624L100S

IDT8MP624L100S: DescriptionSRAM Module, 64KX16, 100ns, CMOS; Categorystorage storage; File Size173KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT8MP624L100S Overview

SRAM Module, 64KX16, 100ns, CMOS

IDT8MP624L100S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum access time	100 ns
Other features	TTL COMPATIBLE INPUTS/OUTPUTS
I/O type	COMMON
JESD-30 code	R-XSMA-T40
JESD-609 code	e0
memory density	1048576 bit
Memory IC Type	SRAM MODULE
memory width	16
Number of functions	1
Number of terminals	40
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX16
Output characteristics	3-STATE
Package body material	UNSPECIFIED
Encapsulate equivalent code	SIP40,.1
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.0004 A
Minimum standby current	4.5 V
Maximum slew rate	0.15 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	30

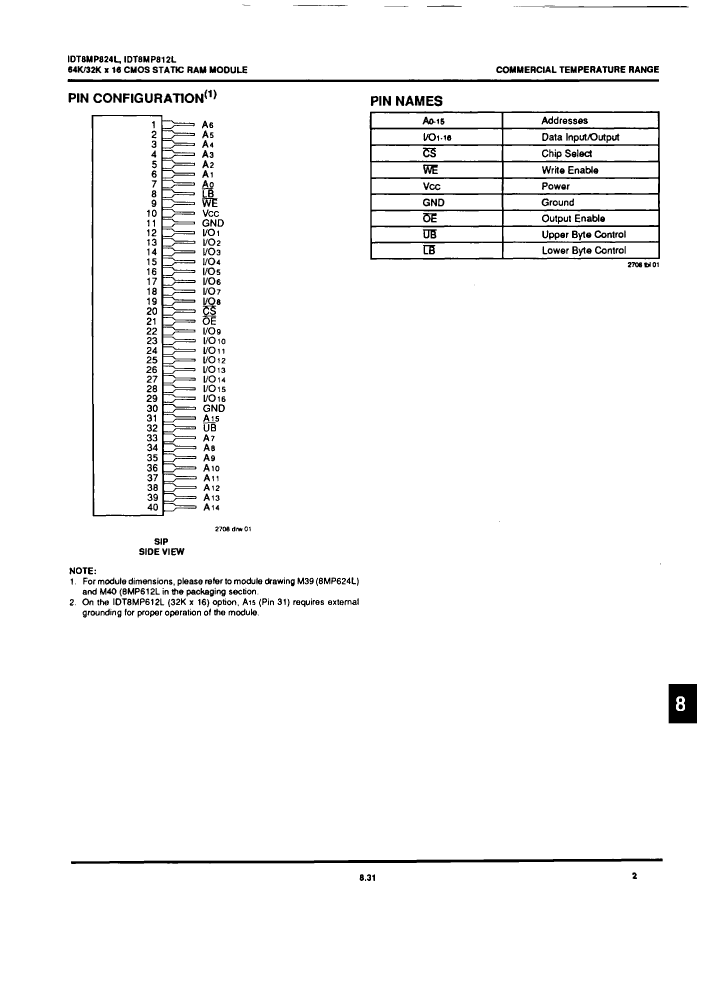

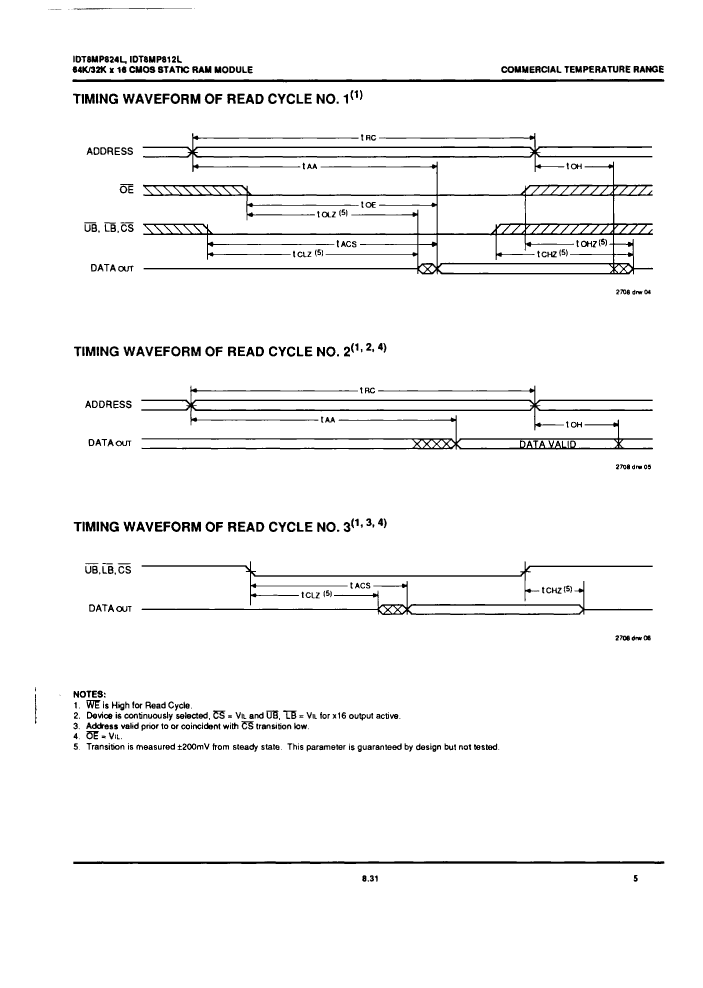

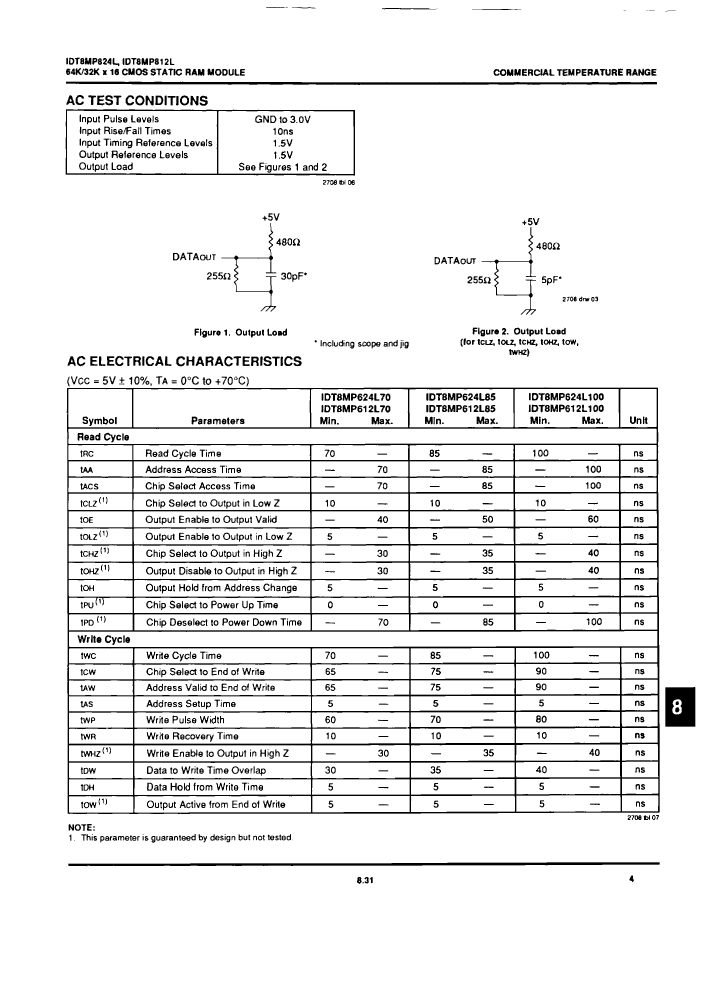

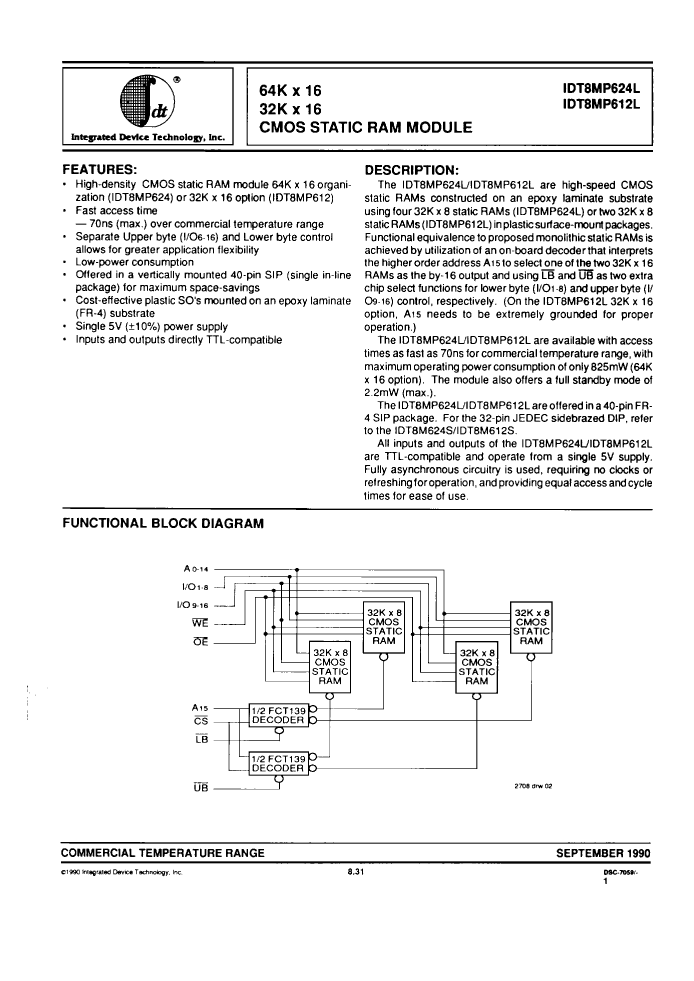

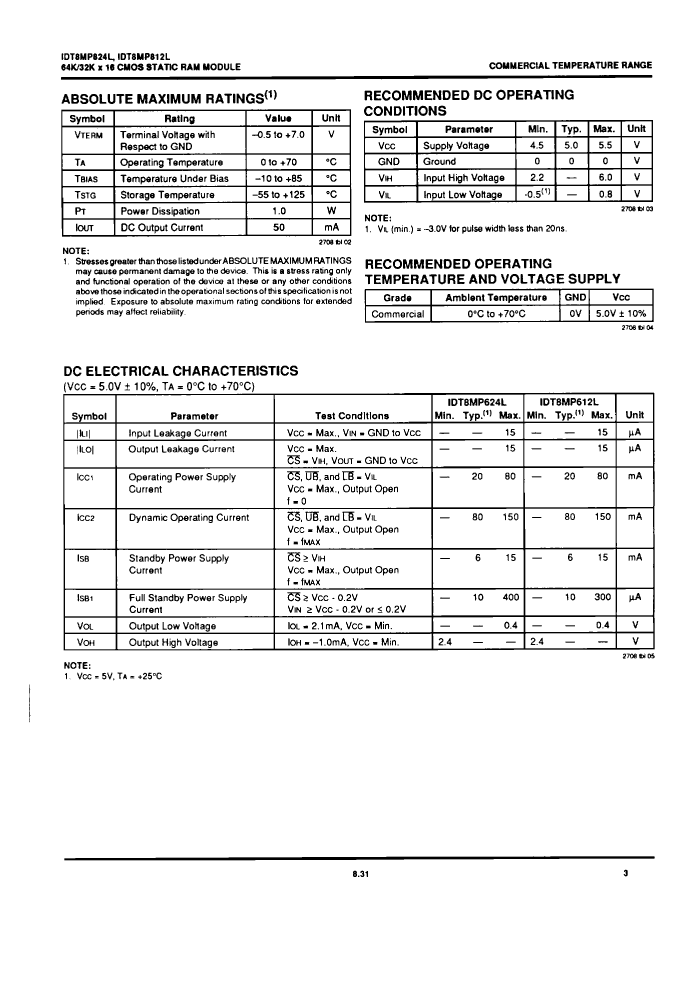

Preview

Download Datasheet

View All

IDT8MP624L100S Related Products

	IDT8MP624L100S	IDT8MP612L85S	IDT8MP612L100S	IDT8MP612L70S	IDT8MP624L85S	IDT8MP624L70S
Description	SRAM Module, 64KX16, 100ns, CMOS	SRAM Module, 32KX16, 85ns, CMOS	SRAM Module, 32KX16, 100ns, CMOS	SRAM Module, 32KX16, 70ns, CMOS	SRAM Module, 64KX16, 85ns, CMOS	SRAM Module, 64KX16, 70ns, CMOS
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	_compli	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	100 ns	85 ns	100 ns	70 ns	85 ns	70 ns
Other features	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XSMA-T40	R-XSMA-T40	R-XSMA-T40	R-XSMA-T40	R-XSMA-T40	R-XSMA-T40
JESD-609 code	e0	e0	e0	e0	e0	e0
memory density	1048576 bit	524288 bi	524288 bit	524288 bit	1048576 bit	1048576 bit
Memory IC Type	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE
memory width	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1
Number of terminals	40	40	40	40	40	40
word count	65536 words	32768 words	32768 words	32768 words	65536 words	65536 words
character code	64000	32000	32000	32000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	64KX16	32KX16	32KX16	32KX16	64KX16	64KX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Encapsulate equivalent code	SIP40,.1	SIP40,.1	SIP40,.1	SIP40,.1	SIP40,.1	SIP40,.1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	225	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	225	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.0004 A	0.0003 A	0.0003 A	0.0003 A	0.0004 A	0.0004 A
Minimum standby current	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Maximum slew rate	0.15 mA	0.15 mA	0.15 mA	0.15 mA	0.15 mA	0.15 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	30	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	30	NOT SPECIFIED
Maker	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
