Printview: Female connector; with push-button; with strain relief; with coding finger; with latch - Item No.:
2231-103/026-000/133-000
.
Female connector; with push-button; with strain relief; with coding
finger; with latch
Item No.: 2231-103/026-000/133-000
.
Female connector; with push-button; with strain relief; with coding finger; with latch
.
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
2231-103/026-000/133-000
1
1
Item description:Universal connection for all conductor typesEasy-to-use design does not require special toolsAbility
to wire while matedSimple, push-in termination of solid and ferruled stranded conductorsIntegrated test ports for
testing parallel to conductor entryCoding option available
Technical data
Miscellaneous
No. of poles
Pin spacing
Color
Ratings according to 1
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
Rated voltage (III / 2) [V]
Rated surge voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated surge voltage (II / 2) [kV]
3
5 mm (0.197 in %)
gray
IEC/EN 60664-1
320 [V]
4 [kV]
320 [V]
4 [kV]
630 [V]
4 [kV]
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Female connector; with push-button; with strain relief; with coding finger; with latch - Item No.:
2231-103/026-000/133-000
Technical data
Nominal current [A]
Number of individual connection objects at the product
Number of levels
Connection technology
Number of connection points
Actuation type
Solid sizes
Fine-stranded wires
Fine-stranded wires with insulated ferrule
Fine-stranded wires with uninsulated ferrule
Strip length
Material group
Insulating material
Flammability rating per UL 94
Limit temperature range
Clamping spring material
Contact material
Contact plating
Weight [g]
Width
Height
Length
16 [A]
1
1
Push-in CAGE CLAMP®
1
Betätigungsdrücker
0.2 … 2.5 mm² / 24 … 12 AWG
0.2 … 2.5 mm² / 24 … 12 AWG
0.25 … 1.5 mm² / …
0.25 … 2.5 mm² / …
10 … 11 mm / 0.39 … 0.43 in
I
Polyamide 66 (PA 66)
V0
-60 … 100 C
Chrome-nickel spring steel (CrNi)
Copper alloy
tin-plated
5.215 [g]
16.5 mm / 0.65 in
15 mm / 0.591 in
45.6 mm / 1.795 in
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Female connector; with push-button; with strain relief; with coding finger; with latch - Item No.:
2231-103/026-000/133-000

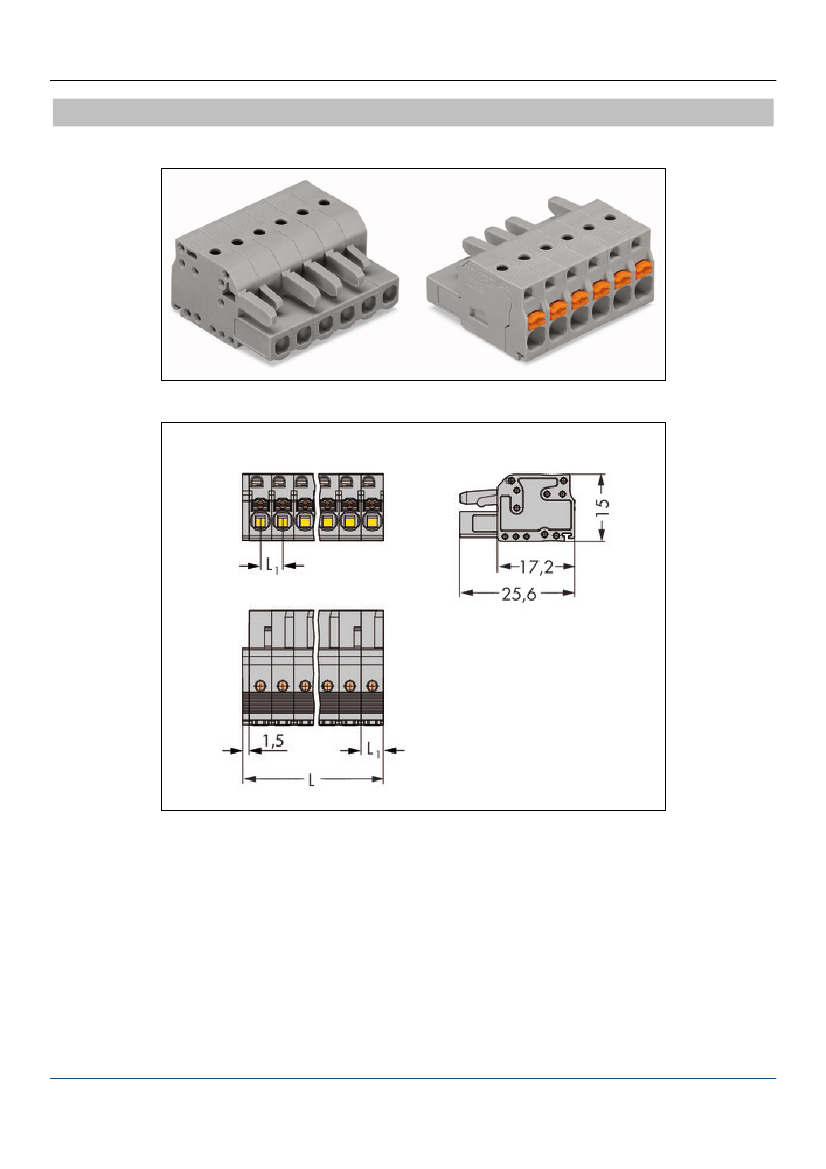

Images & drawings
.
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Female connector; with push-button; with strain relief; with coding finger; with latch - Item No.:
2231-103/026-000/133-000
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
WAGO Kontakttechnik GmbH & Co. KG
