QS74LCX162501PV

Description
Registered Bus Transceiver, LVC/LCX/Z Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.300 INCH, SSOP-56
Categorylogic    logic
File Size326KB,8 Pages
ManufacturerQuality Semiconductor Inc
Download Datasheet Parametric Compare View All

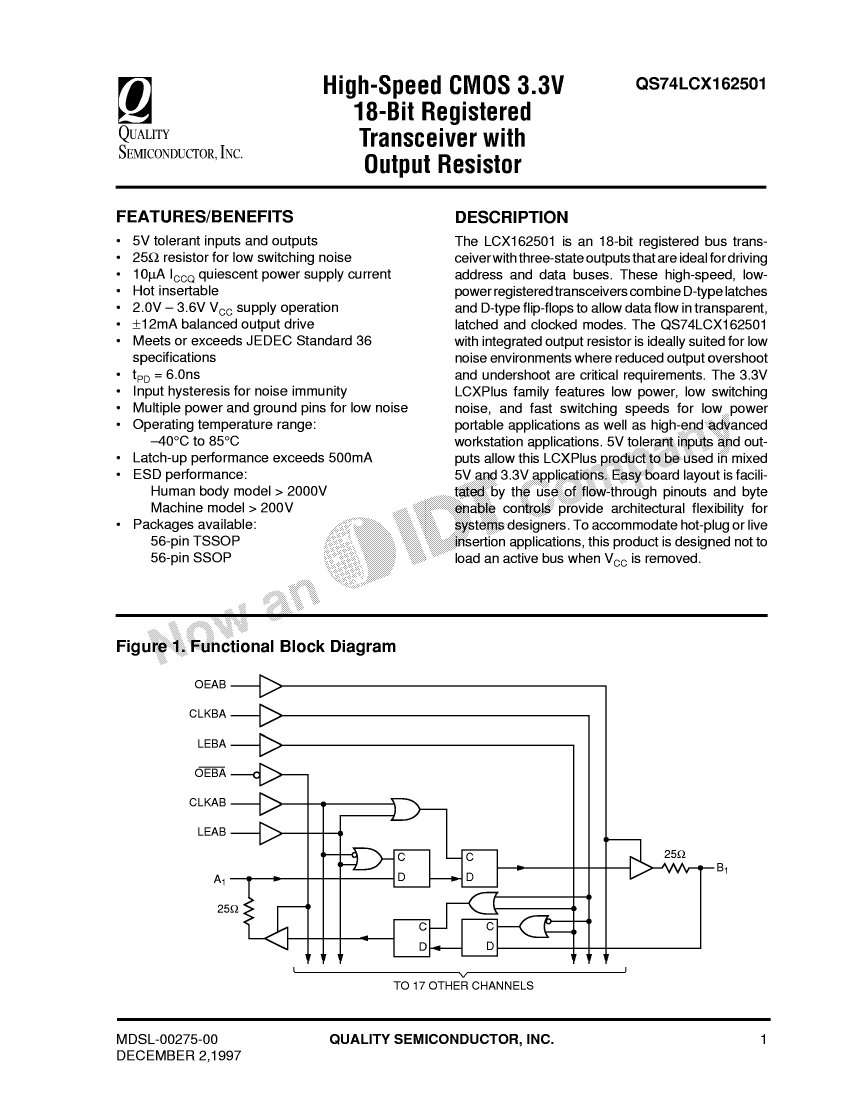

QS74LCX162501PV Overview

Registered Bus Transceiver, LVC/LCX/Z Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.300 INCH, SSOP-56

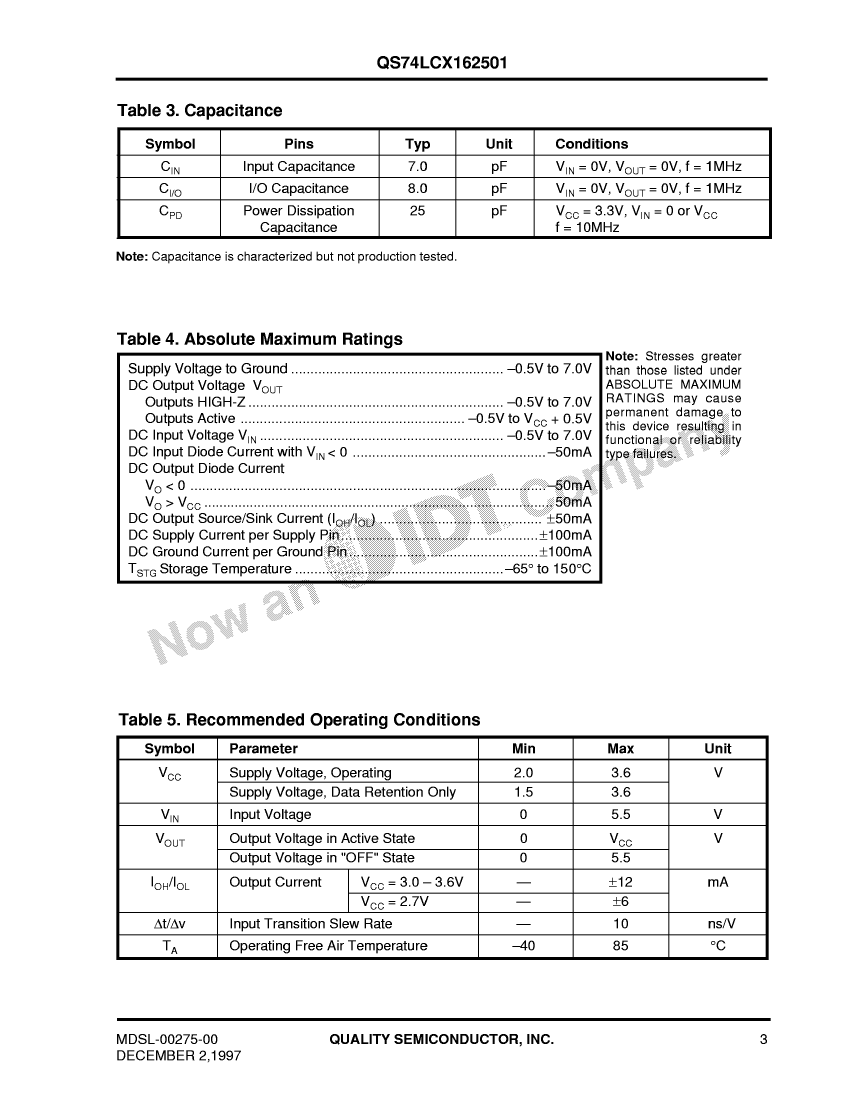

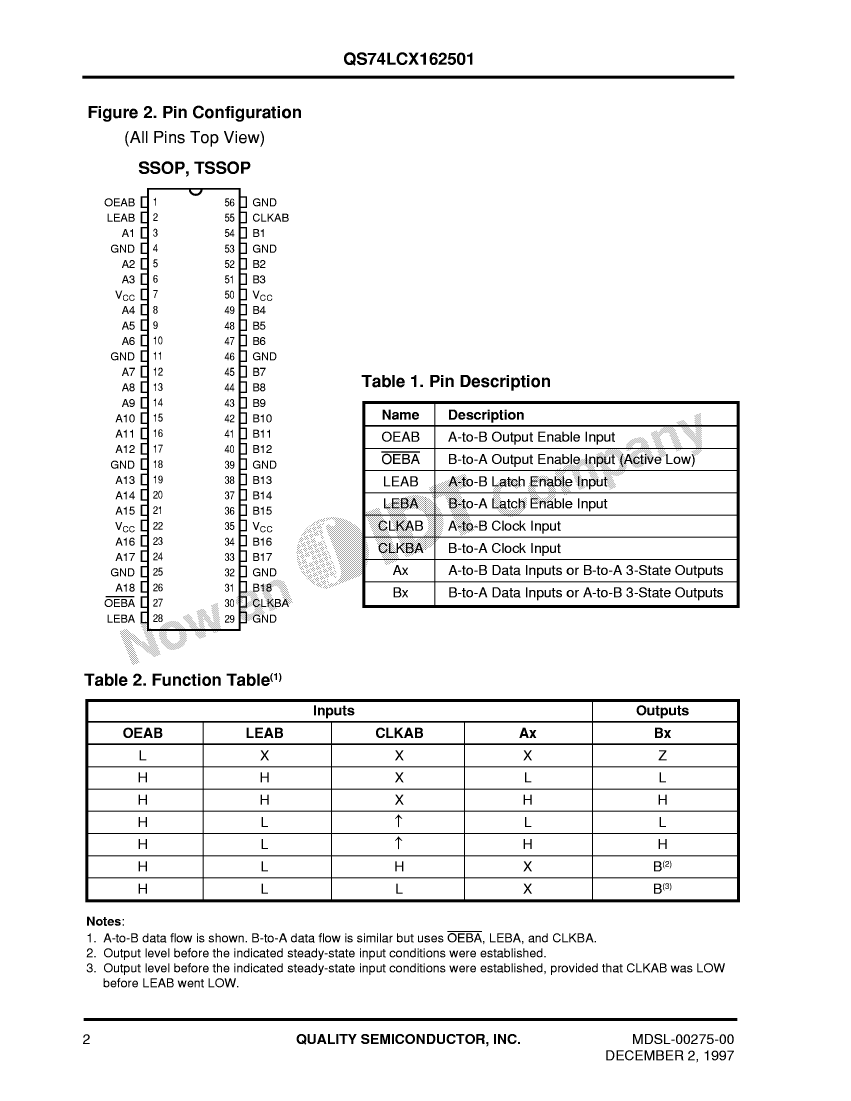

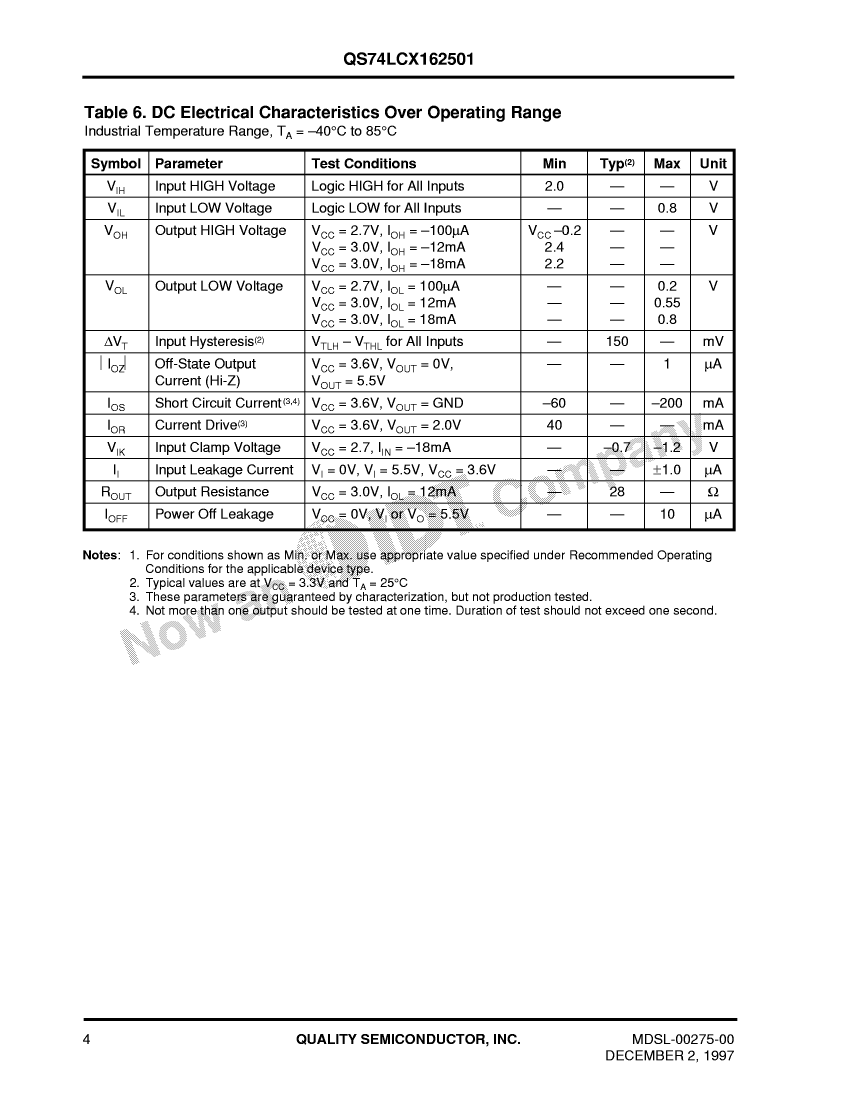

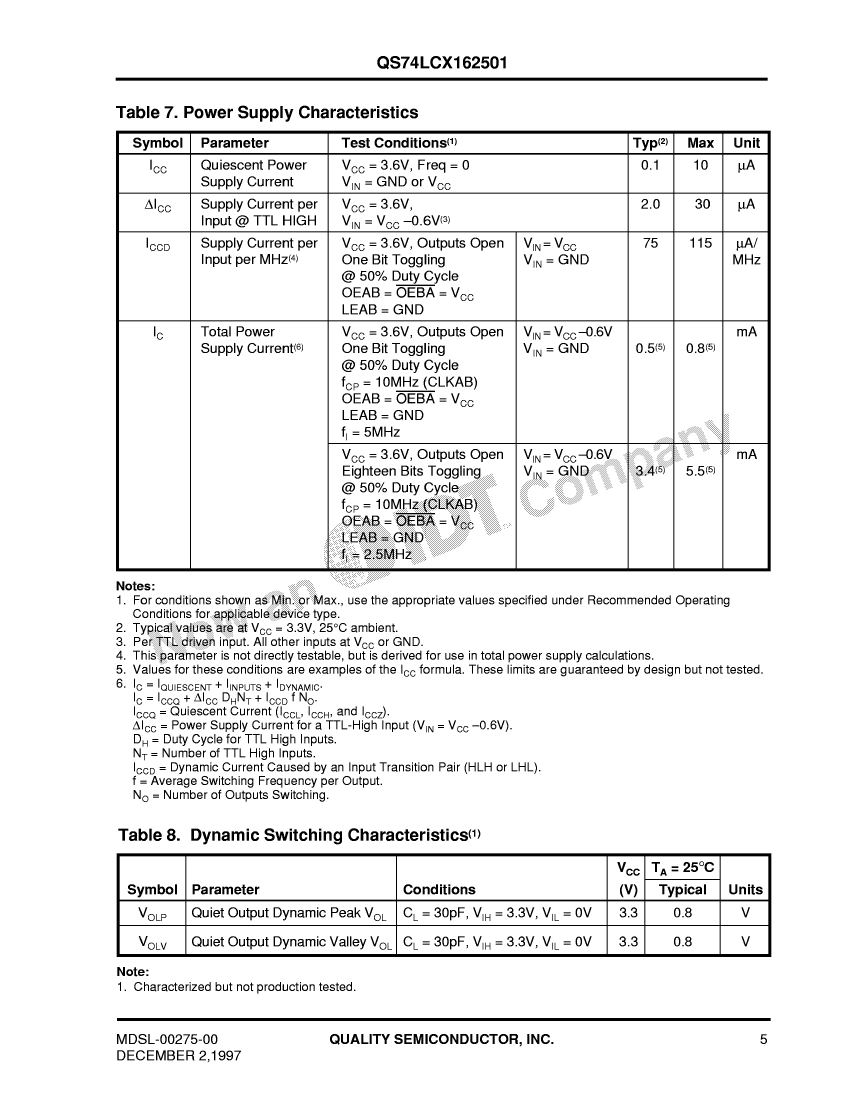

QS74LCX162501PV Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerQuality Semiconductor Inc
package instructionSSOP, SSOP56,.4
Reach Compliance Codeunknown
Control typeINDEPENDENT CONTROL
Counting directionBIDIRECTIONAL
seriesLVC/LCX/Z
JESD-30 codeR-PDSO-G56
JESD-609 codee0
Load capacitance (CL)50 pF
Logic integrated circuit typeREGISTERED BUS TRANSCEIVER
MaximumI(ol)0.018 A
Number of digits18
Number of functions1
Number of ports2
Number of terminals56
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE WITH SERIES RESISTOR
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeSSOP
Encapsulate equivalent codeSSOP56,.4
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply3.3 V
Prop。Delay @ Nom-Sup6 ns
propagation delay (tpd)7 ns
Certification statusNot Qualified
Maximum supply voltage (Vsup)3.6 V
Minimum supply voltage (Vsup)2 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch0.635 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
translateN/A
Trigger typePOSITIVE EDGE

QS74LCX162501PV Related Products

QS74LCX162501PV QS74LCX162501PA
Description Registered Bus Transceiver, LVC/LCX/Z Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.300 INCH, SSOP-56 Registered Bus Transceiver, LVC/LCX/Z Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.240 INCH, TSSOP-56
Is it Rohs certified? incompatible incompatible
Maker Quality Semiconductor Inc Quality Semiconductor Inc
package instruction SSOP, SSOP56,.4 TSSOP, TSSOP56,.3,20
Reach Compliance Code unknown unknown
Control type INDEPENDENT CONTROL INDEPENDENT CONTROL
Counting direction BIDIRECTIONAL BIDIRECTIONAL
series LVC/LCX/Z LVC/LCX/Z
JESD-30 code R-PDSO-G56 R-PDSO-G56
JESD-609 code e0 e0
Load capacitance (CL) 50 pF 50 pF
Logic integrated circuit type REGISTERED BUS TRANSCEIVER REGISTERED BUS TRANSCEIVER
MaximumI(ol) 0.018 A 0.018 A
Number of digits 18 18
Number of functions 1 1
Number of ports 2 2
Number of terminals 56 56
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
Output characteristics 3-STATE WITH SERIES RESISTOR 3-STATE WITH SERIES RESISTOR
Output polarity TRUE TRUE
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SSOP TSSOP
Encapsulate equivalent code SSOP56,.4 TSSOP56,.3,20
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
power supply 3.3 V 3.3 V
Prop。Delay @ Nom-Sup 6 ns 6 ns
propagation delay (tpd) 7 ns 7 ns
Certification status Not Qualified Not Qualified
Maximum supply voltage (Vsup) 3.6 V 3.6 V
Minimum supply voltage (Vsup) 2 V 2 V
Nominal supply voltage (Vsup) 3.3 V 3.3 V
surface mount YES YES
technology CMOS CMOS
Temperature level INDUSTRIAL INDUSTRIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form GULL WING GULL WING
Terminal pitch 0.635 mm 0.5 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
translate N/A N/A
Trigger type POSITIVE EDGE POSITIVE EDGE
