RM4207BD: DescriptionOperational Amplifier, 2 Func, 200uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size215KB，8 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

RM4207BD Overview

Operational Amplifier, 2 Func, 200uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8

RM4207BD Parametric

Parameter Name	Attribute value
Maker	Raytheon Company
package instruction	CERAMIC, DIP-8
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.015 µA
Nominal Common Mode Rejection Ratio	120 dB
Maximum input offset voltage	200 µV
JESD-30 code	R-CDIP-T8
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Nominal slew rate	0.3 V/us
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	1500 kHz

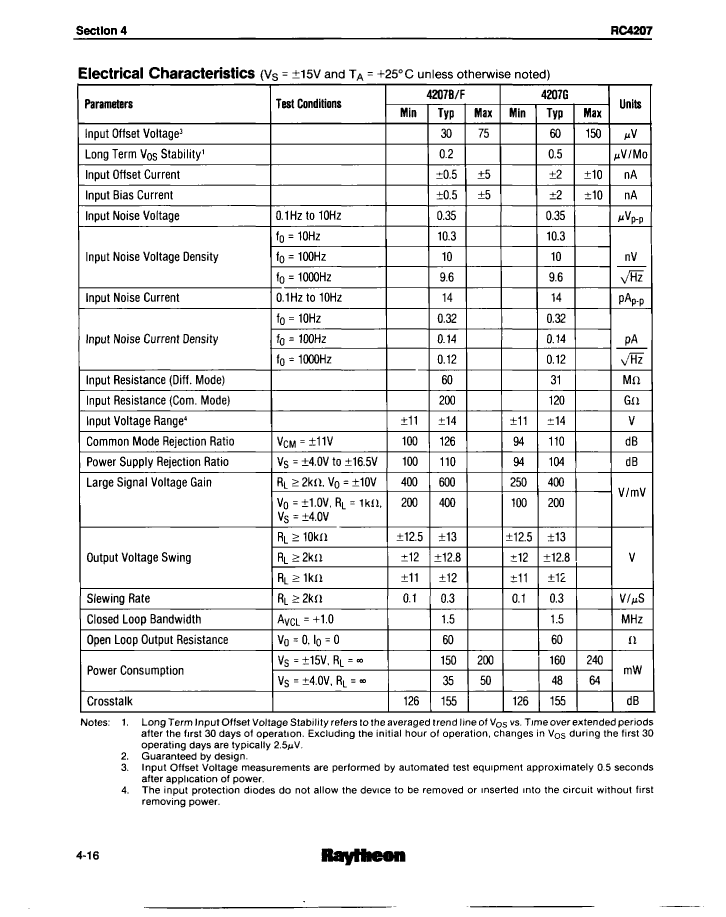

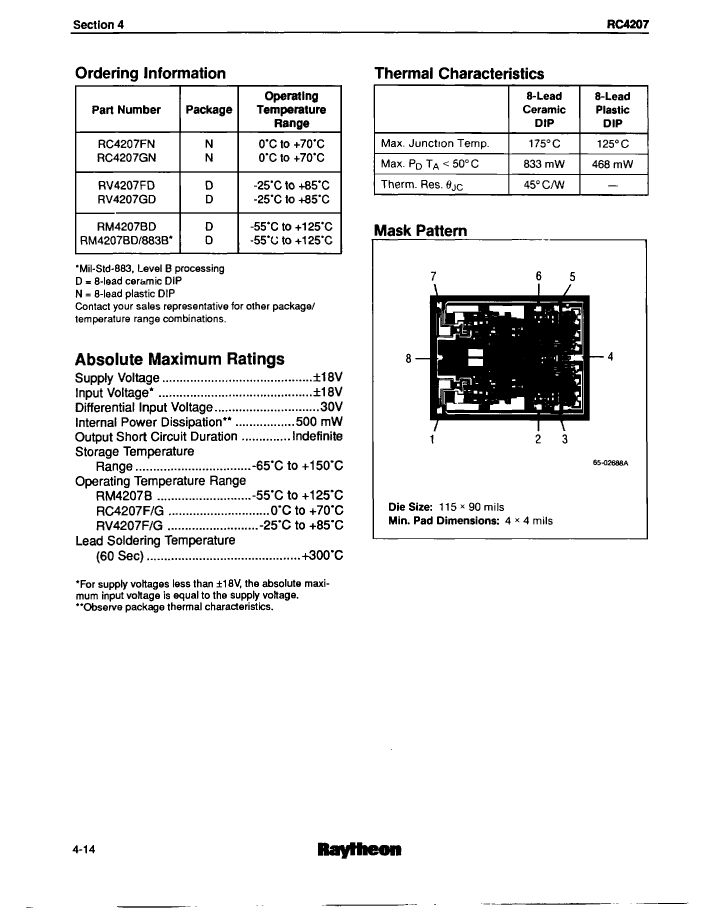

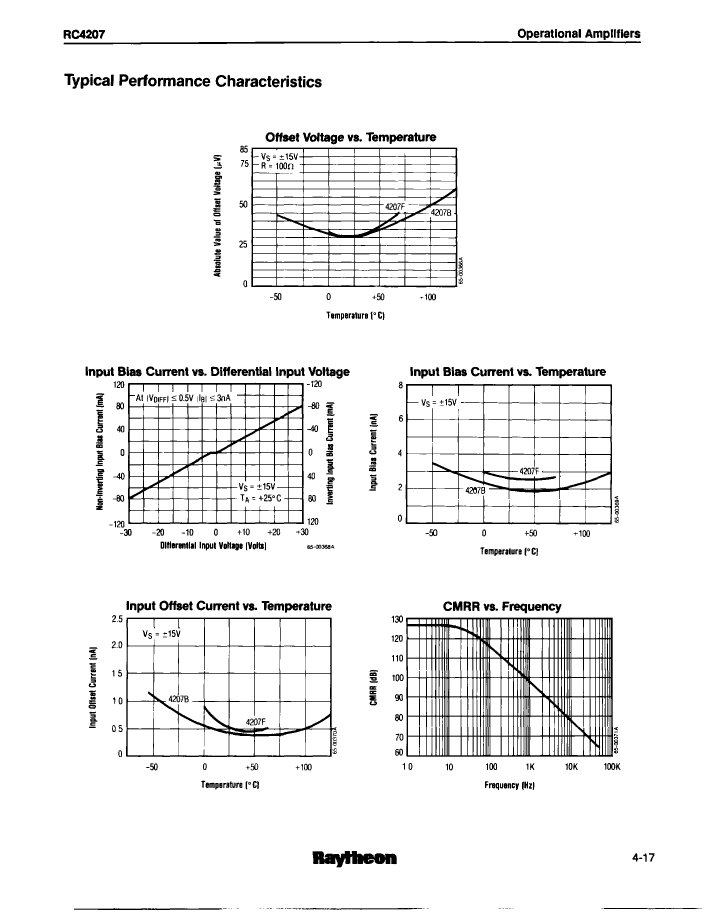

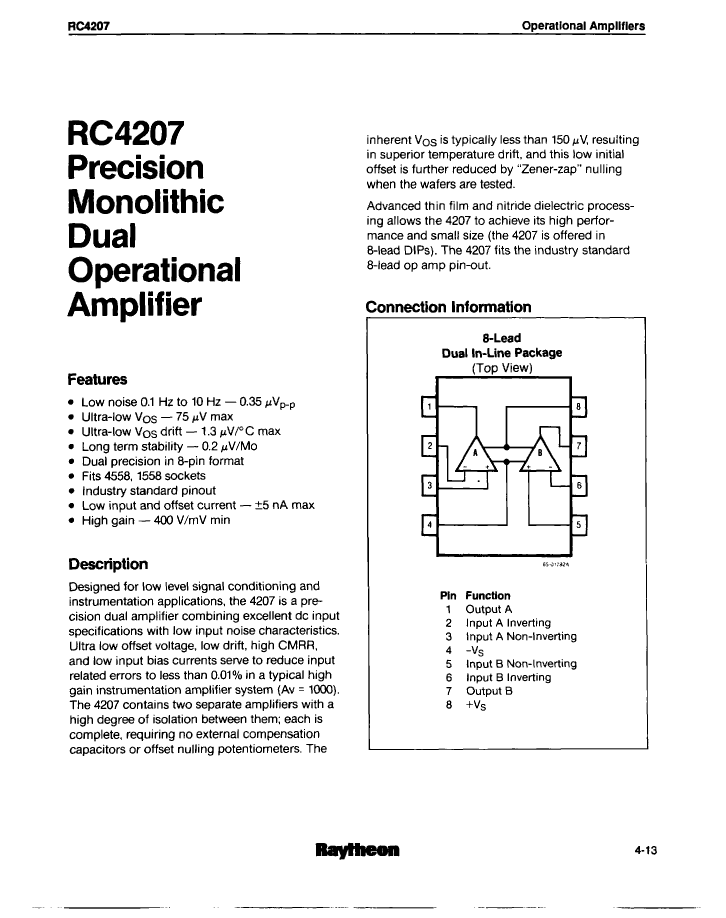

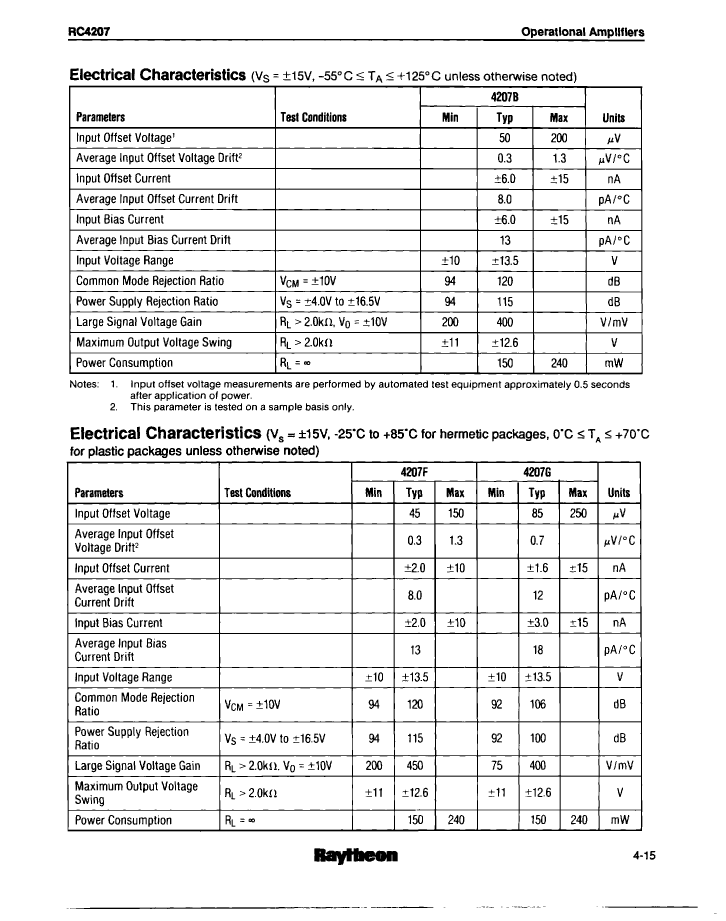

Preview

Download Datasheet

View All

RM4207BD Related Products

	RM4207BD	RV4207FD	RM4207BD/883B	RV4207GD
Description	Operational Amplifier, 2 Func, 200uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8	Operational Amplifier, 2 Func, 150uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8	Operational Amplifier, 2 Func, 200uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8	Operational Amplifier, 2 Func, 250uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8
package instruction	CERAMIC, DIP-8	CERAMIC, DIP-8	CERAMIC, DIP-8	CERAMIC, DIP-8
Reach Compliance Code	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.015 µA	0.01 µA	0.015 µA	0.015 µA
Nominal Common Mode Rejection Ratio	120 dB	120 dB	120 dB	106 dB
Maximum input offset voltage	200 µV	150 µV	200 µV	250 µV
JESD-30 code	R-CDIP-T8	R-CDIP-T8	R-CDIP-T8	R-CDIP-T8
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	2	2	2	2
Number of terminals	8	8	8	8
Maximum operating temperature	125 °C	85 °C	125 °C	85 °C
Minimum operating temperature	-55 °C	-25 °C	-55 °C	-25 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal slew rate	0.3 V/us	0.3 V/us	0.3 V/us	0.3 V/us
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	OTHER	MILITARY	OTHER
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
Nominal Uniform Gain Bandwidth	1500 kHz	1500 kHz	1500 kHz	1500 kHz
