VM43217400DJSA-6 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> VM43217400DJSA-6

Preview

VM43217400DJSA-6: DescriptionFast Page DRAM Module, 4MX32, 60ns, CMOS, SOJ-72; Categorystorage storage; File Size669KB，18 Pages; ManufacturerVanguard International Semiconductor Corporation; Websitehttp://www.vis.com.tw/

Download Datasheet Parametric Compare View All

VM43217400DJSA-6 Overview

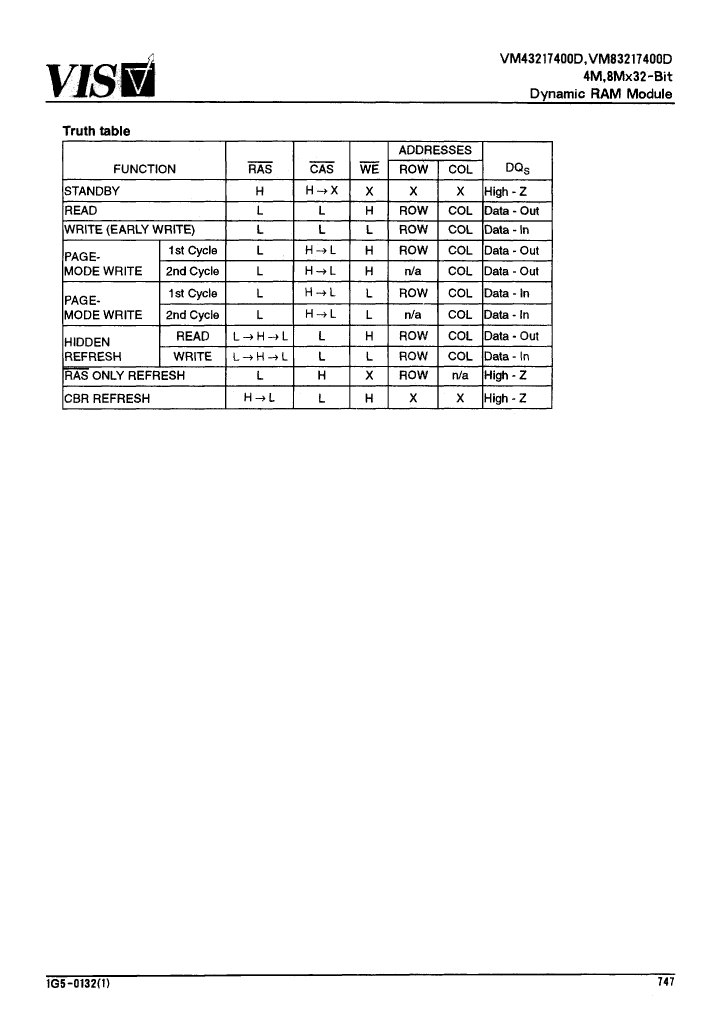

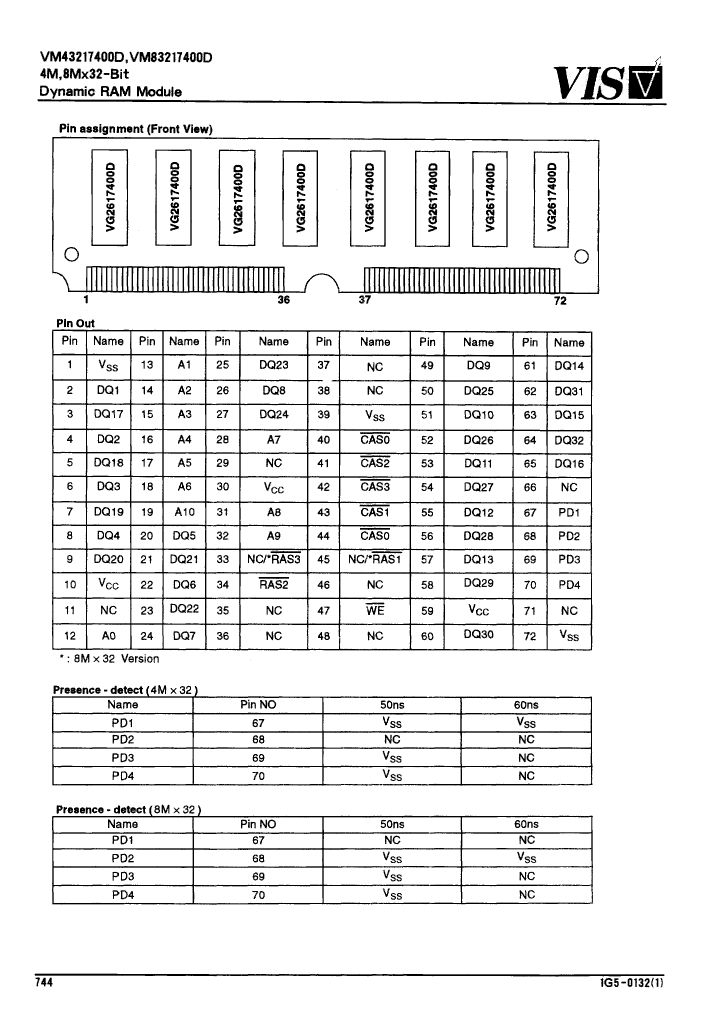

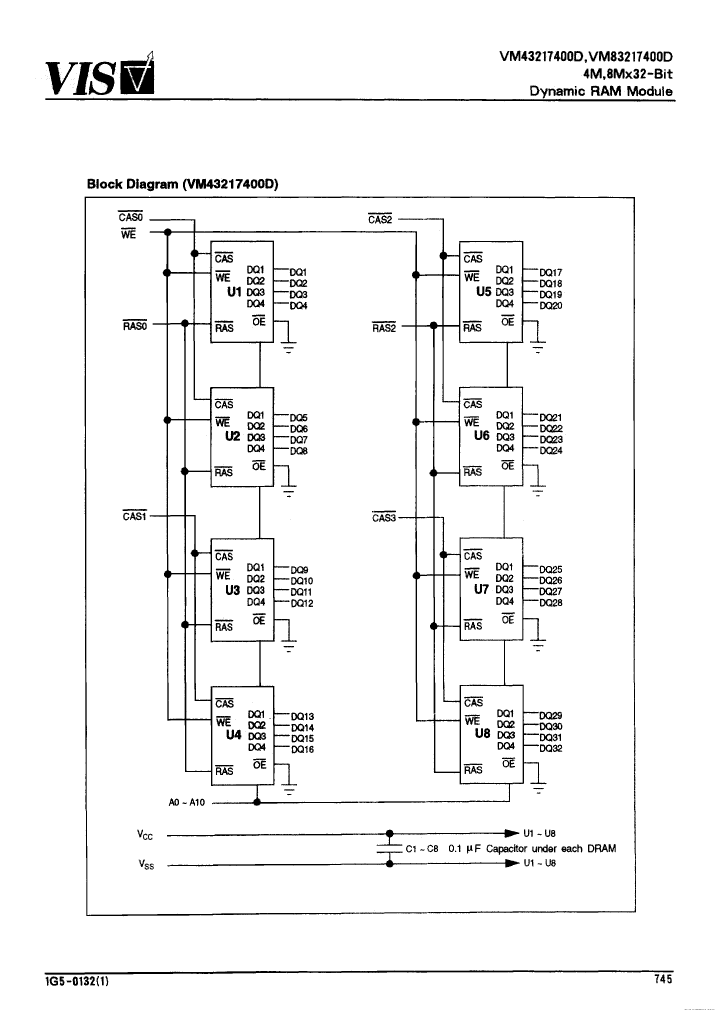

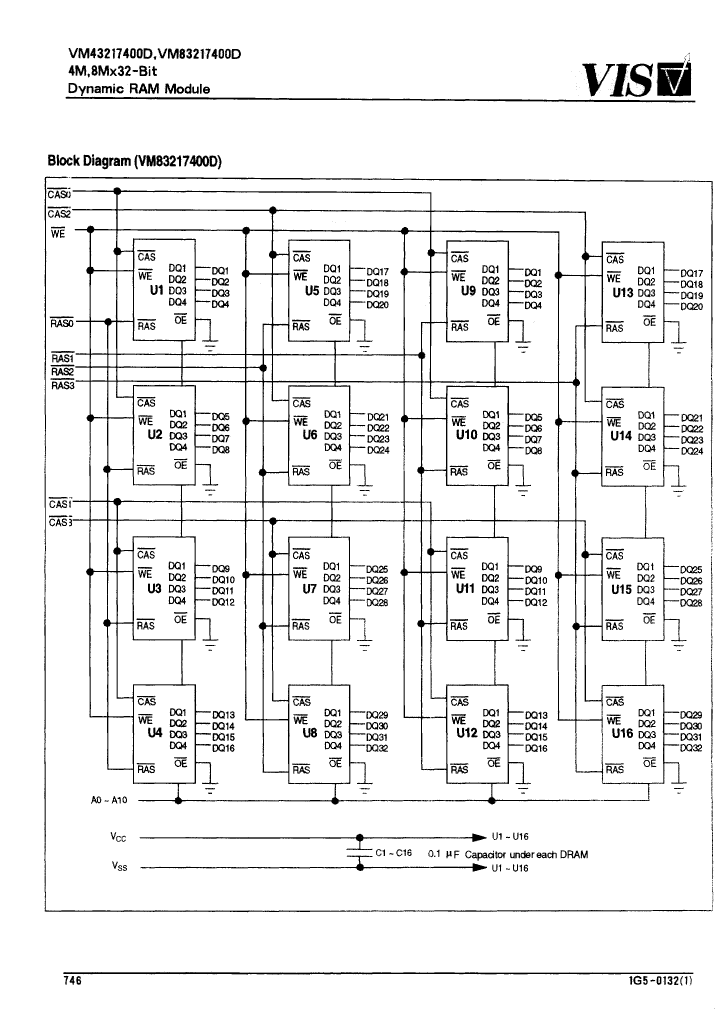

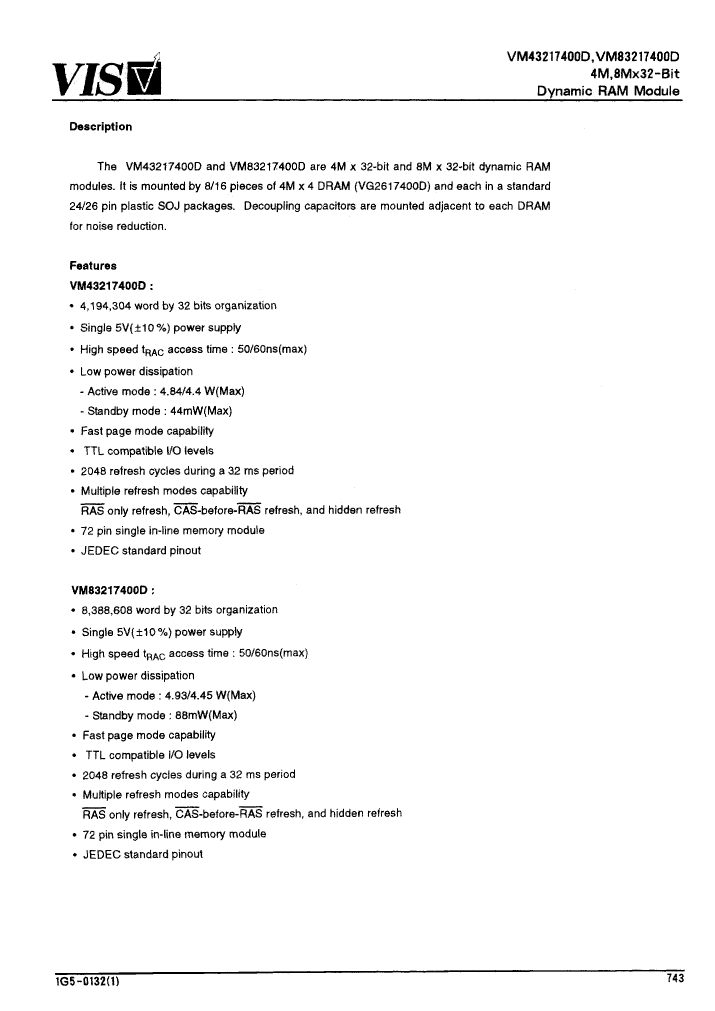

Fast Page DRAM Module, 4MX32, 60ns, CMOS, SOJ-72

VM43217400DJSA-6 Parametric

Parameter Name	Attribute value
Maker	Vanguard International Semiconductor Corporation
Parts packaging code	SOJ
package instruction	,
Contacts	72
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	60 ns
JESD-30 code	R-XSMA-N72
memory density	134217728 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	72
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX32
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	SINGLE

Preview

Download Datasheet

View All

VM43217400DJSA-6 Related Products

	VM43217400DJSA-6	VM43217400DJS-5	VM83217400DJS-6	VM83217400DJSA-6	VM43217400DJSA-5	VM43217400DJS-6	VM83217400DJSA-5	VM83217400DJS-5
Description	Fast Page DRAM Module, 4MX32, 60ns, CMOS, SOJ-72	Fast Page DRAM Module, 4MX32, 50ns, CMOS, SOJ-72	Fast Page DRAM Module, 8MX32, 60ns, CMOS, SOJ-72	Fast Page DRAM Module, 8MX32, 60ns, CMOS, SOJ-72	Fast Page DRAM Module, 4MX32, 50ns, CMOS, SOJ-72	Fast Page DRAM Module, 4MX32, 60ns, CMOS, SOJ-72	Fast Page DRAM Module, 8MX32, 50ns, CMOS, SOJ-72	Fast Page DRAM Module, 8MX32, 50ns, CMOS, SOJ-72
Parts packaging code	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ
Contacts	72	72	72	72	72	72	72	72
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	60 ns	50 ns	60 ns	60 ns	50 ns	60 ns	50 ns	50 ns
JESD-30 code	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72
memory density	134217728 bit	134217728 bit	268435456 bit	268435456 bit	134217728 bit	134217728 bit	268435456 bit	268435456 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	32	32	32	32	32	32	32	32
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	72	72	72	72	72	72	72	72
word count	4194304 words	4194304 words	8388608 words	8388608 words	4194304 words	4194304 words	8388608 words	8388608 words
character code	4000000	4000000	8000000	8000000	4000000	4000000	8000000	8000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4MX32	4MX32	8MX32	8MX32	4MX32	4MX32	8MX32	8MX32
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	Vanguard International Semiconductor Corporation	Vanguard International Semiconductor Corporation	-	Vanguard International Semiconductor Corporation	Vanguard International Semiconductor Corporation	Vanguard International Semiconductor Corporation	Vanguard International Semiconductor Corporation	Vanguard International Semiconductor Corporation
