MCSOH-C131.0720MHZE/DJ/L datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MCSOH-C131.0720MHZE/DJ/L

MCSOH-C131.0720MHZE/DJ/L: DescriptionOscillator,; CategoryPassive components oscillator; File Size70KB，2 Pages; ManufacturerMicro Crystal; Websitehttp://www.microcrystal.com

Download Datasheet Parametric View All

MCSOH-C131.0720MHZE/DJ/L Overview

Oscillator,

MCSOH-C131.0720MHZE/DJ/L Parametric

Parameter Name	Attribute value
Maker	Micro Crystal
Reach Compliance Code	compliant

Preview

Download Datasheet

View All

MCSOH

FREQUENCY STABILITY

OVER:

OPERATING TEMP. RANGE:

See note 1

OVERALL STABILITY:

< ±100ppm *

INCLUDING:

•

OVER OPERATING TEMPERATURE RANGE

•

ADJUSTMENT @ 25°

•

LONG TERM AGING (10 YEARS)

•

STABILITY OVER SUPPLY VOLTAGE ±10%

•

STABILITY OVER LOAD (MIN. TO MAX.)

SMD Ceramic Clock-Oscillator

Overall stability ± 100ppm

5V Power Supply

20 to 160MHz

Note 1: Operating Temperature Range

MCSOH-A:

MCSOH-B:

MCSOH-C:

0 to +70 °

-40 to +85 °

-55 to +125 °

Option 1: Enable / Disable (on request)

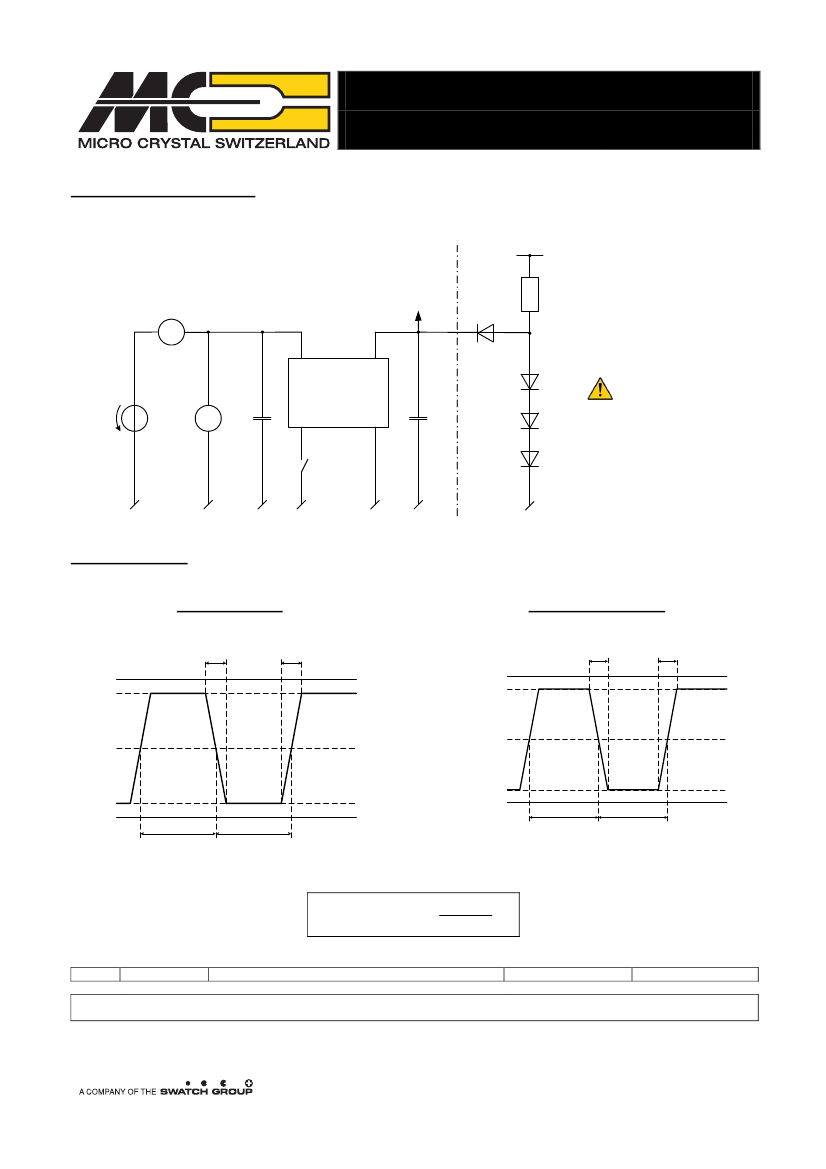

See application circuit on page 2 for details

Pin 1:

Pin 3 (Fout)::

Open

Clock

High Z

POWER SUPPLY

SUPPLY VOLTAGE:

INPUT CURRENT:

Vdd = 5V

10%

< 50mA*

OUTPUT

OUTPUT SIGNAL:

SYMMETRY:

RISE & FALL TIME:

LEVEL “0” & “1”:

START-UP TIME:

FAN OUT (LOAD):

AC-MOS compatible *

40 / 60% (min.) @ Vdd / 2

tr < 3ns tf < 3ns

< 0.4V > Vdd – 0.5V

< 5ms

10 TTL / LS *

Option 2: J / Leads (on request)

With tinned J / Leads pins

Height: 3.8mm included J / Leads

Marking Example

Micro Crystal

ENVIRONMENT

OPERABLE TEMP. RANGE:

STORAGE TEMP. RANGE:

VIBRATIONS:

SHOCKS:

PACKAGE:

PACKAGE DIMENSIONS:

PROCESSING:

-55 to +125°

-65 to +125°

10 to 2000Hz / 10g

5000g, 0.3ms, ½ sine

Ceramic

14.1 x 9.3 x 2.4mm

(see packaging info)

Reflow soldering 260° / 10s max.

(see packaging info)

MCSOH-B

160.000 MHz

E/D

09.42

Micro Crystal

Type

Frequency

(PIN 1)

Option 1

Date Code

Ordering Information Example

MCSO

H -

160MHz E/D

J/L

xxx

Customer

spec N°

Oscillator Type

MCSO

= Surface Mount

Clock

Crystal Oscillator

MISCELLANEOUS

* Customer’s specification on request

Oscillator Version

= High Frequency

Option 2:

J/L

= J-Leads

Temperature Range

= 0 to +70°

= -40 to 85°C

= -55 to 125°

= Custom spec.

Oscillator Output

Frequency

Option 1:

E/D

= Enable /

Disable

STANDARD FREQUENCIES [MHz]

40.0000

50.0000

58.9824

65.0000

78.0000

90.0000

108.0000

131.0720

40.6000

50.7500

60.0000

65.5360

80.0000

96.0000

110.5920

132.7104

40.9600

51.1500

60.9000

66.3552

81.2000

98.3040

117.9640

144.0000

44.2368

51.2000

61.3800

72.0000

81.8400

100.0000

120.0000

150.0000

48.0000

52.0000

61.4400

73.7280

81.9200

102.4000

125.0000

160.0000

49.1520

55.2960

64.0000

76.8000

88.4736

104.0000

128.0000

Date :

June 2003

Revision No. : 8

Revision Date : 10-09

Page 1 / 2

In accordance with our policy of continuous development and improvement,

we reserve the right to modify the design or the specifications of our products without prior notice.

Headquarters:

Micro Crystal AG

Mühlestrasse 14

CH-2540 Grenchen

Switzerland

Tel.

Fax

Internet

+41 32 655 82 82

+41 32 655 80 90

www.microcrystal.ch

sales@microcrystal.ch
