TSZU52C2V0 - TSZU52C39
Taiwan Semiconductor
Small Signal Product
SMD Zener Diode
FEATURES
- Wide zener voltage range selection : 2.0V to 39V
- Designed for mounting on small surface
- Extremely thin / leadless package
- Packing code with suffix "G" means
green compound (halogen-free)
0603
MECHANICAL DATA
- Case: 0603
- Terminal: Gold plated, solderable per
MIL-STD-750, method 2026
- Polarity : Indicated by cathode band
- Weight : 0.003 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Power Dissipation
Forward Voltage
Forward Current, Surge Peak
8.3 ms Single Half Sine-Wave Superimposed on Rate Load
Junction and Storage Temperature Range
SYMBOL
P
D
V
F
I
FSM
T
J
, T
STG
VALUE
150
0.9
2
-55 to +125
UNIT
mW
V
A
o
@ I
F
= 10mA
C
Document Number: DS_S1412002
Version: E14
TSZU52C2V0 - TSZU52C39
Taiwan Semiconductor
Small Signal Product
ELECTRICAL CHARACTERISTICS
( T
A
= 25 C unless otherwise noted )
o
Device
Device
Marking
Code
Z0
Z1
Z2
Z3
Z4
Z5
Z6
Z7
Z8
Z9
ZA
ZB
ZC
ZE
ZF
ZG
ZH
ZJ
ZK
ZM
ZN
ZP
ZQ
ZR
ZS
ZT
ZU
ZV
ZW
ZX
ZY
ZZ
Zener Voltage
V
Z
(Volt)
Min
1.90
2.09
2.28
2.57
2.85
3.14
3.42
3.71
4.09
4.47
4.85
5.32
5.89
6.46
7.13
7.79
8.65
9.50
10.45
11.40
12.35
14.25
15.20
17.10
19.00
20.90
22.80
25.65
28.50
31.35
34.20
37.05
Max
2.10
2.31
2.52
2.84
3.15
3.47
3.78
4.10
4.52
4.94
5.36
5.88
6.51
7.14
7.88
8.61
9.56
10.50
11.55
12.60
13.65
15.75
16.80
18.90
21.00
23.10
25.20
28.35
31.50
34.65
37.80
40.95
I
Z
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Operating Resistance Rising Operating Resistance
Z
ZT
(Ohm)
Max
100
100
85
83
95
95
95
95
95
78
60
40
10
8
7
7
10
15
20
20
25
30
40
50
50
55
80
80
80
80
90
90
I
Z
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Z
ZK
(Ohm)
Max
600
600
600
500
500
500
500
500
500
500
480
400
200
150
50
50
50
70
70
90
110
110
170
170
220
220
220
250
250
250
250
300
I
Z
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Reverse Current
I
R
(uA)
Max
100
100
100
75
50
25
15
10
5.0
5.0
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
V
R
(V)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
0.8
1.0
2.0
3.0
5.0
6.0
7.0
7.5
8.5
9.0
10
11
12
14
15
17
18
20
23
25
27
29
TSZU52C2V0
TSZU52C2V2
TSZU52C2V4
TSZU52C2V7
TSZU52C3V0
TSZU52C3V3
TSZU52C3V6
TSZU52C3V9
TSZU52C4V3
TSZU52C4V7
TSZU52C5V1
TSZU52C5V6
TSZU52C6V2
TSZU52C6V8
TSZU52C7V5
TSZU52C8V2
TSZU52C9V1
TSZU52C10
TSZU52C11
TSZU52C12
TSZU52C13
TSZU52C15
TSZU52C16
TSZU52C18
TSZU52C20
TSZU52C22
TSZU52C24
TSZU52C27
TSZU52C30
TSZU52C33
TSZU52C36
TSZU52C39
Document Number: DS_S1412002
Version: E14
TSZU52C2V0 - TSZU52C39
Taiwan Semiconductor
Small Signal Product
RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)

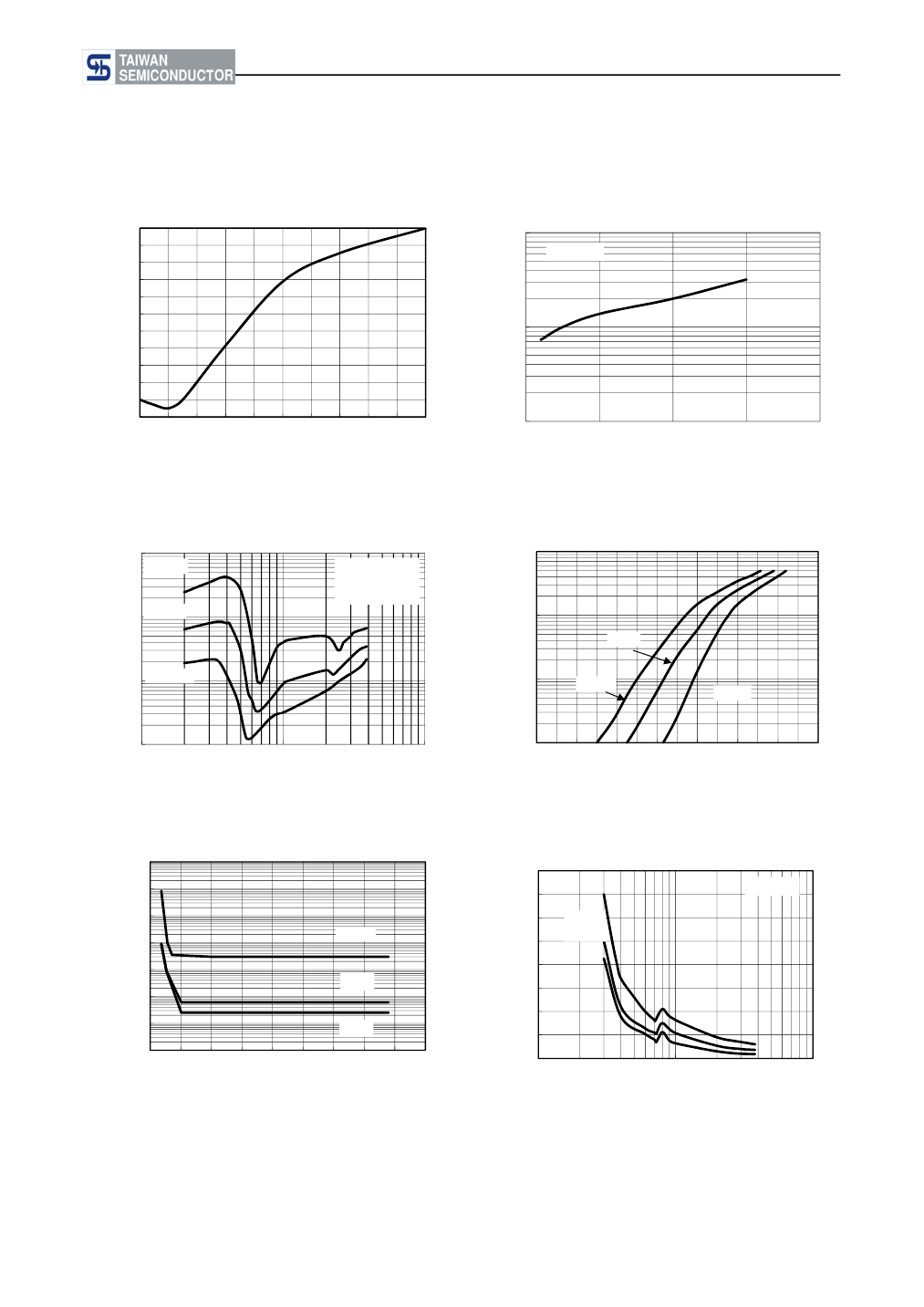

Fig. 1 Temperature Coefficients
7
Temperature Coefficient (mV/
o
C)
6
4
3
2
1
0
-1
-2
-3
-4
2
3
4
5
6
7
8
9
10
11
12
Nomial Zener Voltage (V)
Temperature Coefficient (mV/
o
C)
5
100
T
A
=25
o
C
Fig. 2 Temperature Coefficients
10
1
10
20
30
40
50
Nomial Zener Voltage (V)
Fig. 3 Effect of Zener Voltage on Zener Impedance
1000
I
Z
=1mA
Dynamic Impedance (Ohm)
T
J
=25
o
C
I
Z
(AC)0.1 I
Z
(DC)
F=1kHZ
1000
Fig. 4 Typical Forward Voltage
Forward Current (mA)
100
I
Z
=5mA
100
75
o
C
10
I
Z
=20mA
10
125
o
C
25
o
C
1
1
10
Nomial Zener Voltage (V)
100
1
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
Forward Voltage (V)
Fig. 5 Typical Leakage Current
100
10
Leakage Current (mA)
1
0.1
0.01
25
o
C
0.001
0.0001
0.00001
0
5
10
15
20
25
30
35
40
45
Nomial Zener Voltage (V)
-55
o
C
+125
o
C
Capacitance (pF)
400
350
300
250
200
150
100
50
0
1
0V Bias
1V Bias
Fig. 6 Typical Capacitance
T
A
=25
o
C
10
Normal Zener Voltage (V)
100
Document Number: DS_S1412002
Version: E14
TSZU52C2V0 - TSZU52C39
Taiwan Semiconductor
Small Signal Product

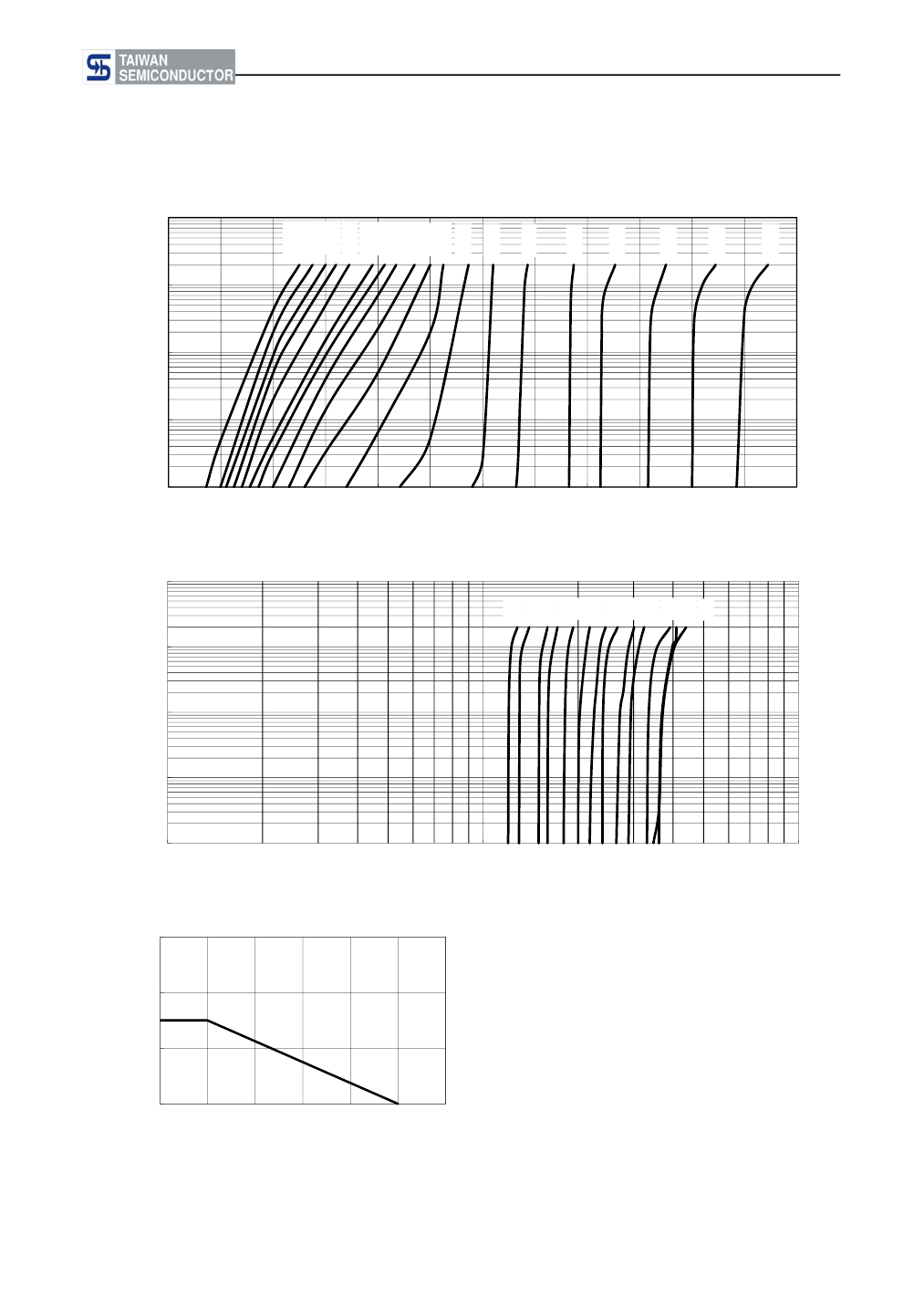

Fig. 7 Zener Voltage VS. Zener Current
100.00
2V2
2V4
2V7
3V3
3V6
3V9
4V3
4V7
5V1
5V6
6V2
6V8
7V5
8V2
9V1
10
11
12
100
2
3
10.00
Zener Current (mA)
1.00
0.10
0.01
0
2
4
6
Zener Voltage (V)
8
10
Fig. 8 Zener Voltage vs. Zener Currnt
100.00
16
18
20
13
15
22
24
27
30
33
12
36
39
10.00
Zener Current (mA)
1.00
0.10
0.01
1
10
Zener Voltage (V)
Fig. 9 Steady State Power Derating
0.3
Power Dissipation (W)
0.2
0.1
0.0
0
25
50
75
100
125
150
Temperature (
o
C)
Document Number: DS_S1412002
Version: E14
TSZU52C2V0 - TSZU52C39
Taiwan Semiconductor
Small Signal Product
ORDERING INFORMATION
PART NO.
TSZU52Cxxx
(Note1)
PART NO.
SUFFIX
(Note 2)
-xx
PACKING CODE
RZ
PACKING CODE
SUFFIX
G
PACKAGE
0603
PACKING
4K / 7" Reel
Note 1: "xxx" defines voltage from 2.0V (TSZU52C2V0) to 39V (TSZU52C39)
Note 2: Part No. Suffix „-xx “ would be used for special requirement
EXAMPLE
PREFERRED P/N
PART NO.
PART NO.
SUFFIX
PACKING CODE
PACKING CODE
SUFFIX
G
DESCRIPTION
Multiple manufacture
source
Green compound
Defined manufacture
source
Green compound
TSZU52C39 RZG
TSZU52C39
RZ
TSZU52C39-F0 RZG
TSZU52C39
-F0
RZ
G
PACKAGE OUTLINE DIMENSION
0603
DIM.
L
W
T
C
D
Unit (mm)
Min
1.60
0.80
0.70
-
-
Typ.
-
-
-
0.45
0.70
Max
1.80
1.00
0.85
-
-
Min
0.063
0.031
0.028
-
-
Unit (inch)
Typ.
-
-
-
0.018
0.028
Max
0.071
0.039
0.033
-
-
Document Number: DS_S1412002
Version: E14
