Z86C4008PEC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86C4008PEC

Z86C4008PEC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，57 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z86C4008PEC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDIP40, PLASTIC, DIP-40

Z86C4008PEC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	DIP
package instruction	PLASTIC, DIP-40
Contacts	40
Reach Compliance Code	unknown
Has ADC	NO
Other features	RAM/ROM PROTECT
Address bus width	16
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
low power mode	YES
Number of DMA channels
Number of external interrupt devices	4
Number of I/O lines	32
Number of serial I/Os
Number of terminals	40
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	236
RAM (number of words)	256
rom(word)	4096
ROM programmability	MROM
speed	8 MHz
Maximum slew rate	15 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

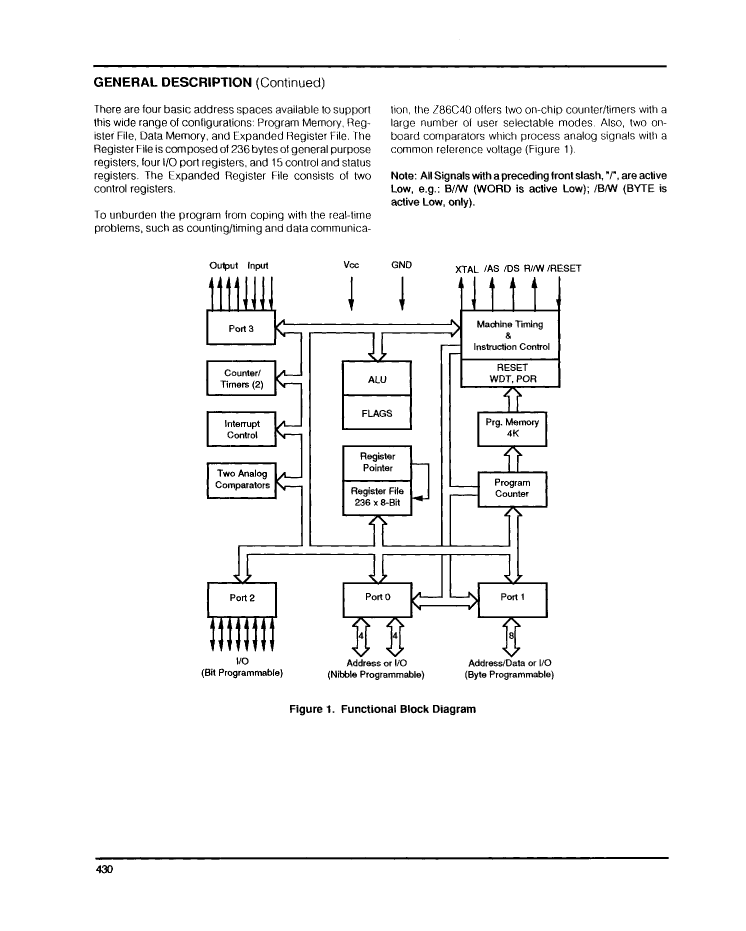

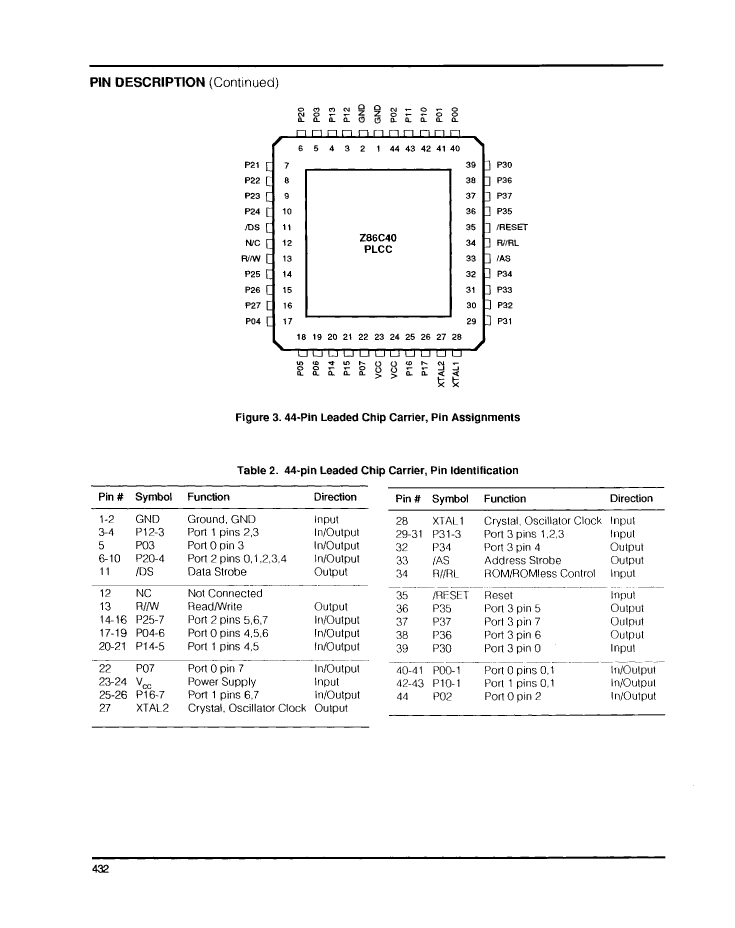

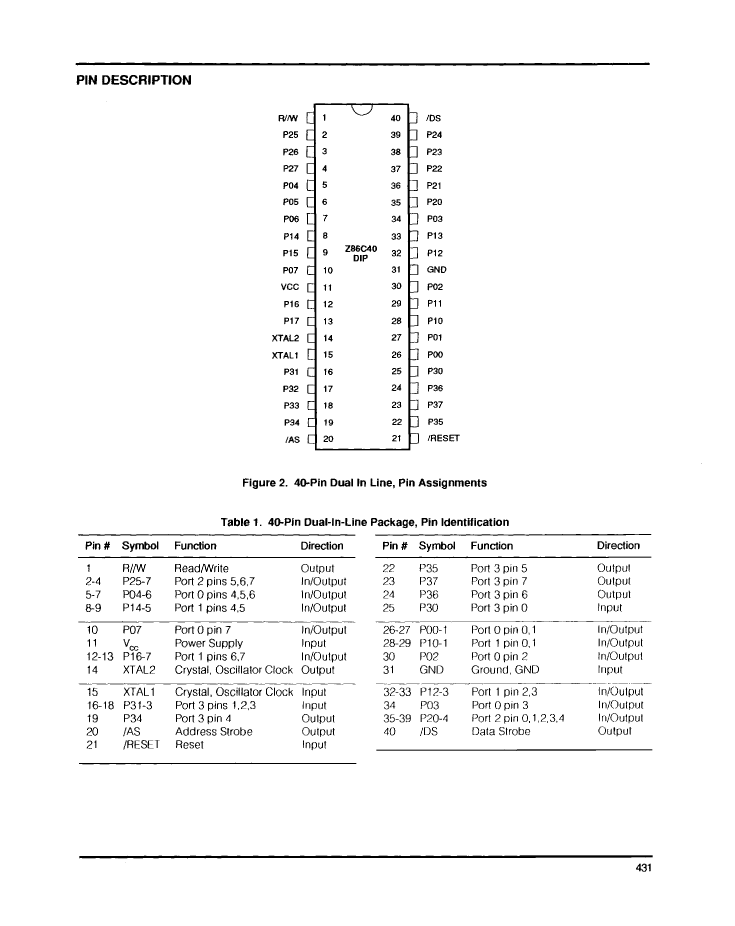

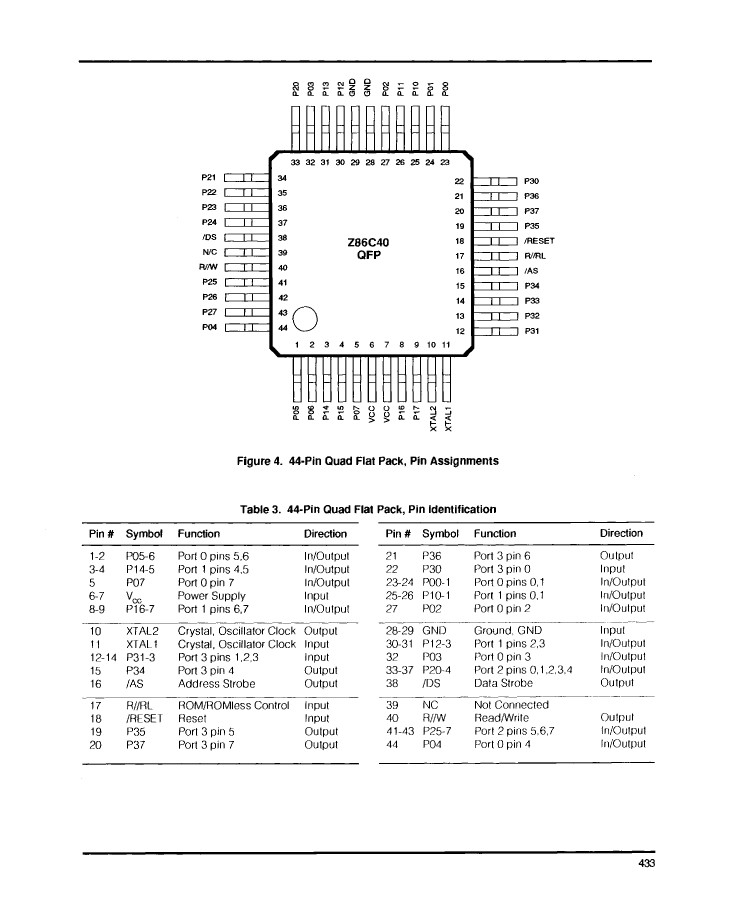

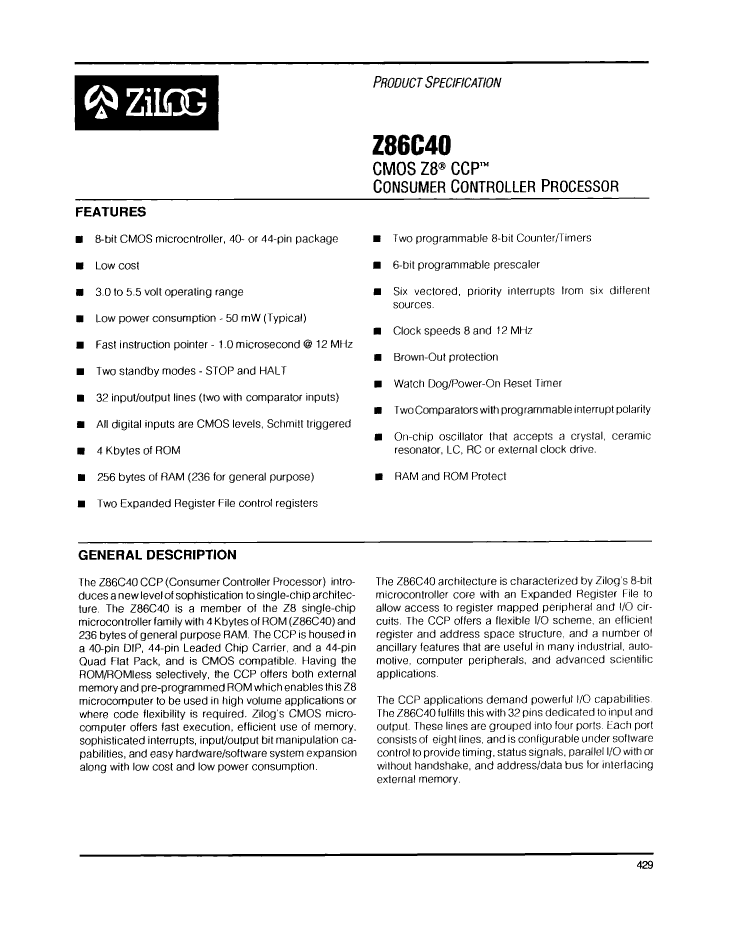

Preview

Download Datasheet

View All

Z86C4008PEC Related Products

	Z86C4008PEC	Z86C4008PSC	Z86C4008VEC	Z86C4008FEC	Z86C4008FSC	Z86C4008VSC
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PQFP44, PLASTIC, QFP-44	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PQFP44, PLASTIC, QFP-44	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PQCC44, PLASTIC, LCC-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
Parts packaging code	DIP	DIP	LCC	QFP	QFP	LCC
package instruction	PLASTIC, DIP-40	PLASTIC, DIP-40	PLASTIC, LCC-44	PLASTIC, QFP-44	PLASTIC, QFP-44	PLASTIC, LCC-44
Contacts	40	40	44	44	44	44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO	NO	NO
Other features	RAM/ROM PROTECT	RAM/ROM PROTECT	RAM/ROM PROTECT	RAM/ROM PROTECT	RAM/ROM PROTECT	RAM/ROM PROTECT
Address bus width	16	16	16	16	16	16
bit size	8	8	8	8	8	8
boundary scan	NO	NO	NO	NO	NO	NO
CPU series	Z8	Z8	Z8	Z8	Z8	Z8
maximum clock frequency	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
DAC channel	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDIP-T40	R-PDIP-T40	S-PQCC-J44	S-PQFP-G44	S-PQFP-G44	S-PQCC-J44
JESD-609 code	e0	e0	e0	e0	e0	e0
low power mode	YES	YES	YES	YES	YES	YES
Number of external interrupt devices	4	4	4	4	4	4
Number of I/O lines	32	32	32	32	32	32
Number of terminals	40	40	44	44	44	44
Number of timers	2	2	2	2	2	2
On-chip data RAM width	8	8	8	8	8	8
On-chip program ROM width	8	8	8	8	8	8
Maximum operating temperature	105 °C	70 °C	105 °C	105 °C	70 °C	70 °C
PWM channel	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ	QFP	QFP	QCCJ
Encapsulate equivalent code	DIP40,.6	DIP40,.6	LDCC44,.7SQ	QFL44,.37X.4,32	QFL44,.37X.4,32	LDCC44,.7SQ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER	FLATPACK	FLATPACK	CHIP CARRIER
power supply	3/5 V	3.3/5 V	3/5 V	3/5 V	3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	236	236	236	236	236	236
RAM (number of words)	256	256	256	256	256	256
rom(word)	4096	4096	4096	4096	4096	4096
ROM programmability	MROM	MROM	MROM	MROM	MROM	MROM
speed	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
Maximum slew rate	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	GULL WING	GULL WING	J BEND
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	0.8 mm	0.8 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	QUAD	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
